Insta 360 Mount
Print Profile(1)
Bill of Materials
- Schlauchschelle x 2: Ø: 16 - 27 mm oder nach Dicke des Ski-Stocks | max. Breite: 10 mm
- Kabelbinder x 2: max. Breite: 10 mm
- Metallstange x 1: max. Ø: 4,3 mm | Länge: 60 mm
Description
Boost Me (for free)
I publish models from my everyday life that I or acquaintances need and that also work.
Description

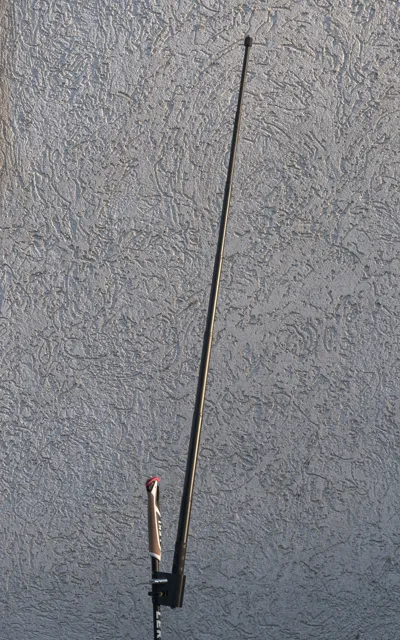

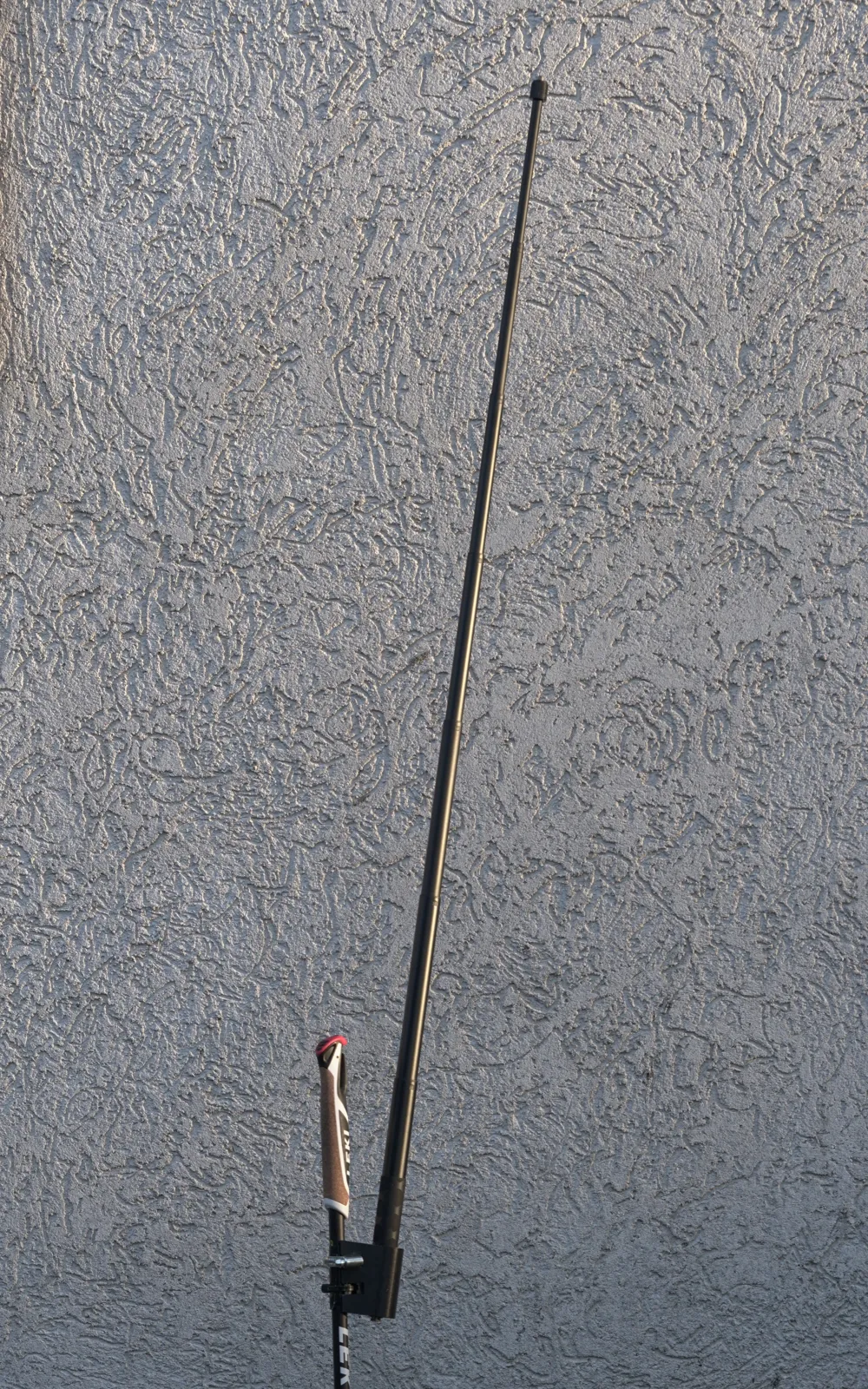

I needed a mount for my Insta 360 on a ski pole
The holder is designed for Insta 360's "Invisible Action Selfie Stick" (Ø 23.2 mm). This is inserted into the holder and can optionally be secured on the underside with a threaded screw for camera tripods

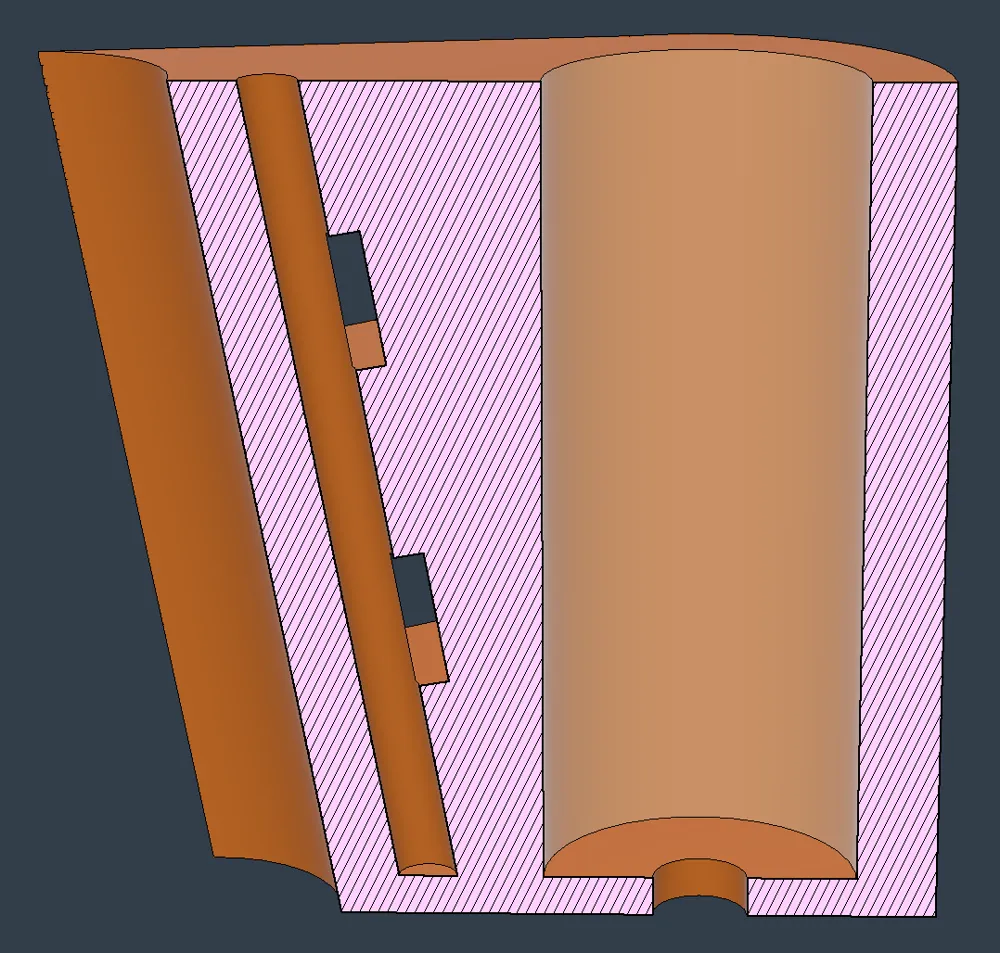

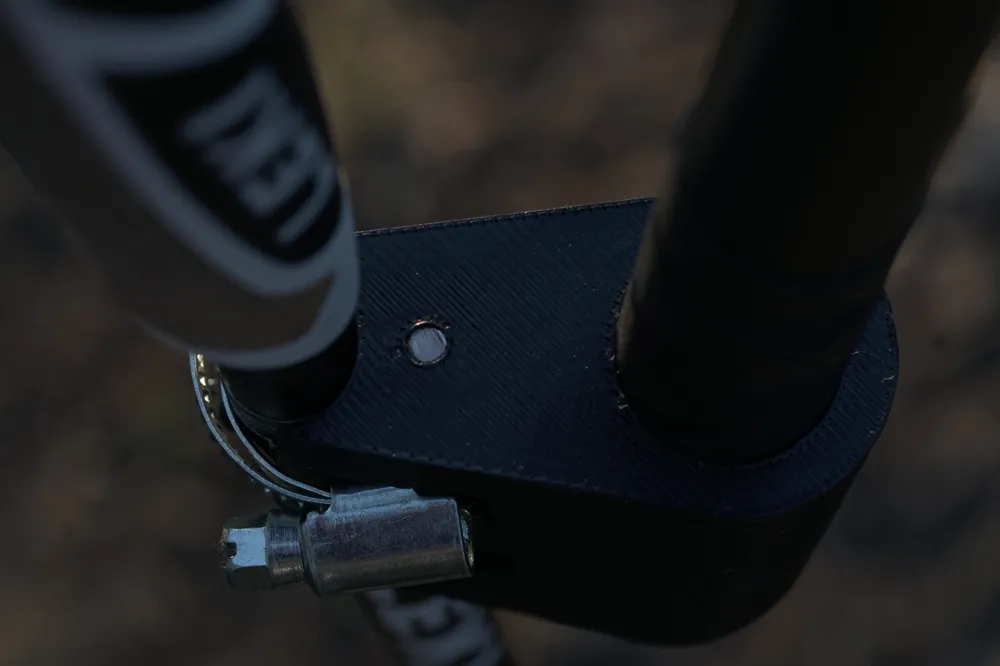

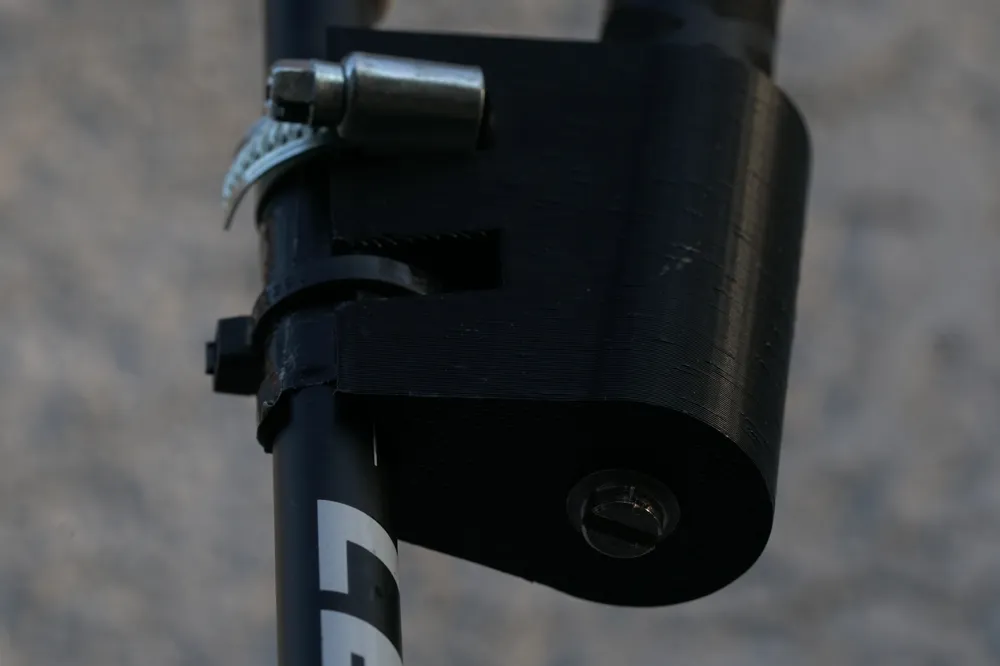

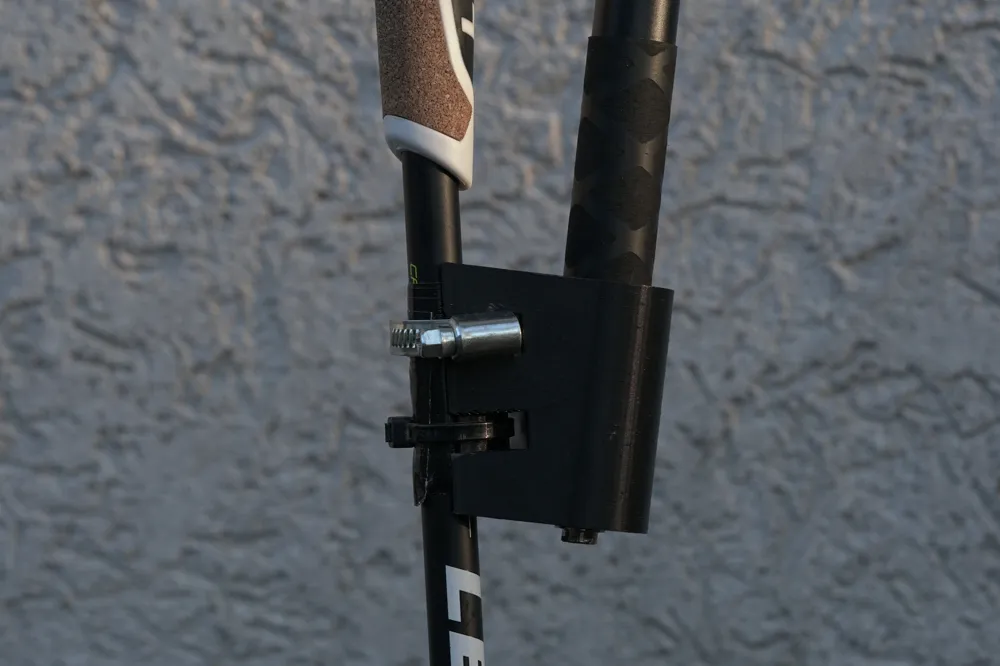

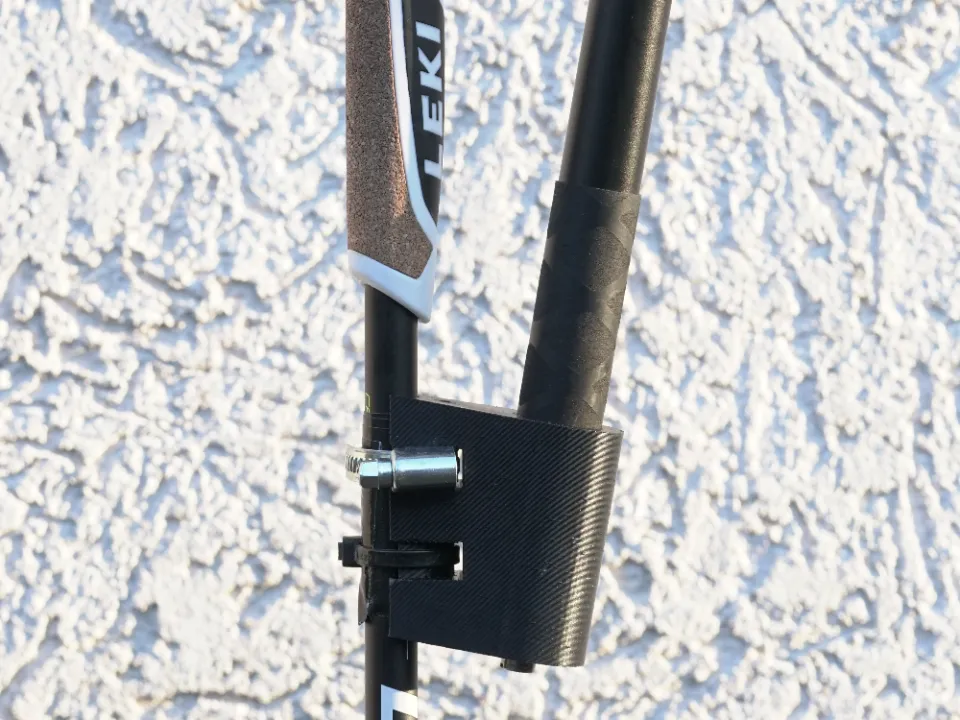

The holder is attached to the ski pole using a hose clamp and/or cable ties. I attached the holder with a hose clamp and a cable tie. This held up well, even during falls. For improved stability and pressure distribution during attachment, I embedded a metal rod
I have uploaded various thicknesses to choose from. In the narrowest version, the "Invisible Action Selfie Stick" fits very snugly, and no screw is needed
Mounting Instructions
If necessary, protect the ski pole from scratches by wrapping it with duct tape
Tighten with the hose clamp and/or cable ties
Trademark Notice
There is no cooperation with the mentioned brand manufacturers. The use of the brand name/brand logo is solely to clarify the compatibility of the printed 3D model with the mentioned brand product
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
