Lamp with smoke exhaust
Print Profile(3)
Description
Hi,

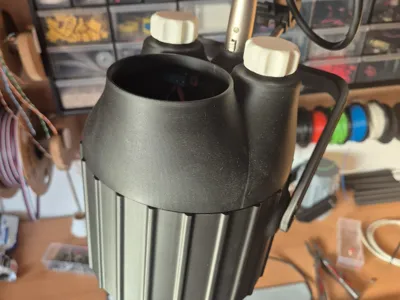

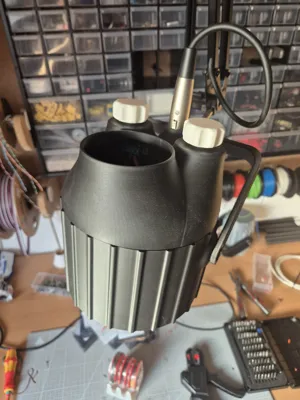

I have developed a lamp for soldering or crafting that has an integrated extractor, e.g. for extracting solder fumes, because, for whatever reason, solder fumes always tend to drift towards your nose.

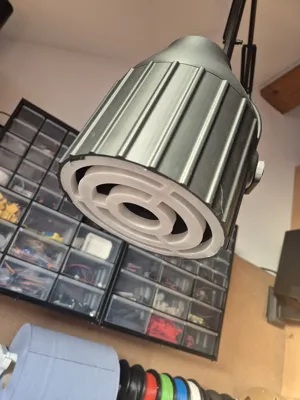

The lamp has standard 12V white LED strips installed.

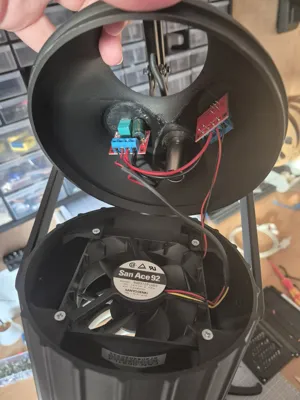

I have installed 1803B controllers to regulate the brightness and the fan.
AMAZON link to the controllers:
https://amzn.eu/d/03NaK5Oj
A 90x90mm fan is installed, which can be of your choice depending on the desired strength and volume level. However, you could also leave it out and print the cover variant with only one controller.

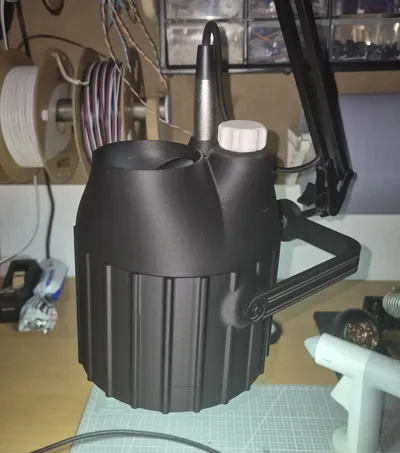

For the power connection, I used an XLR plug because it is attached to a microphone arm in my case. I simply cut off the RCA connector and soldered the positive and negative terminals.
Amazon link to the XLR plug used:
https://amzn.eu/d/0eilOU7S
