CTS 7290 Flashbang | Dummy Grenade

Print Profile(1)

All
X1 Carbon
H2S
P2S
H2D Pro
P1P
A1 mini
X1
H2D
X1E
A1
H2C
P1S
X2D
A2L

Default Profile
Default Profile
Designer
5.7 h
3 plates
5.0(5)

Open in Bambu Studio
Boost
133
326
33
5
134
61
Released

Bill of Materials

Bambu Filaments
Select all
Matte Charcoal (11101) / Filament with spool / 1kg
Matte Dark Green (11501) / Refill / 1kg
Silver (13109) / Filament with spool / 1 kg

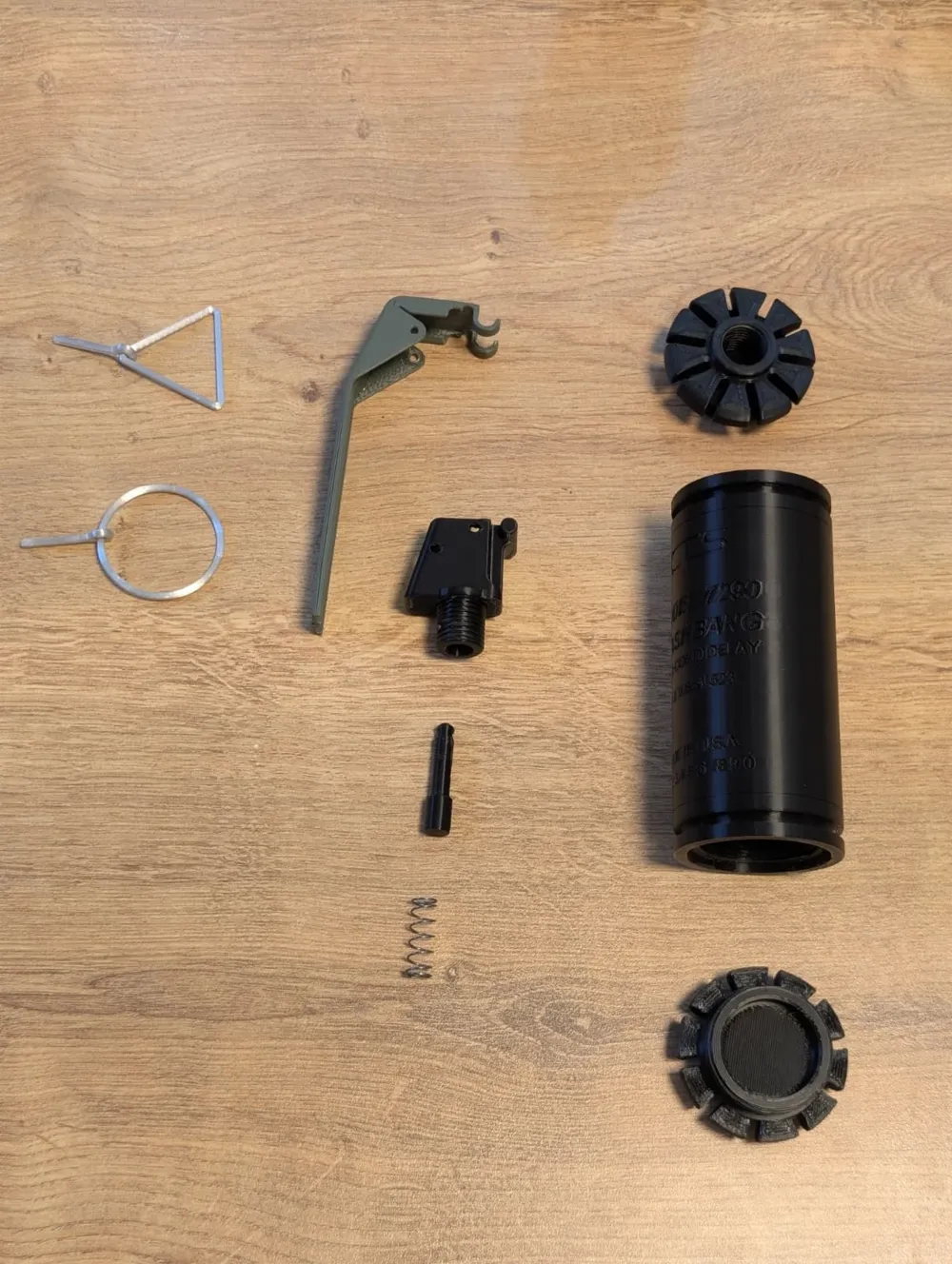

List other parts
  • 7x20x0.6mm Spring x 1: https://aliexpress.com/item/1005007866254454.html?
  • 2x35mm Split Keyring (Optional) x 1: https://aliexpress.com/item/4001146334373.html?
  • M2.5x20mm Cotter Pin (Optional) x 1: https://aliexpress.com/item/1005009427772484.html?

Description

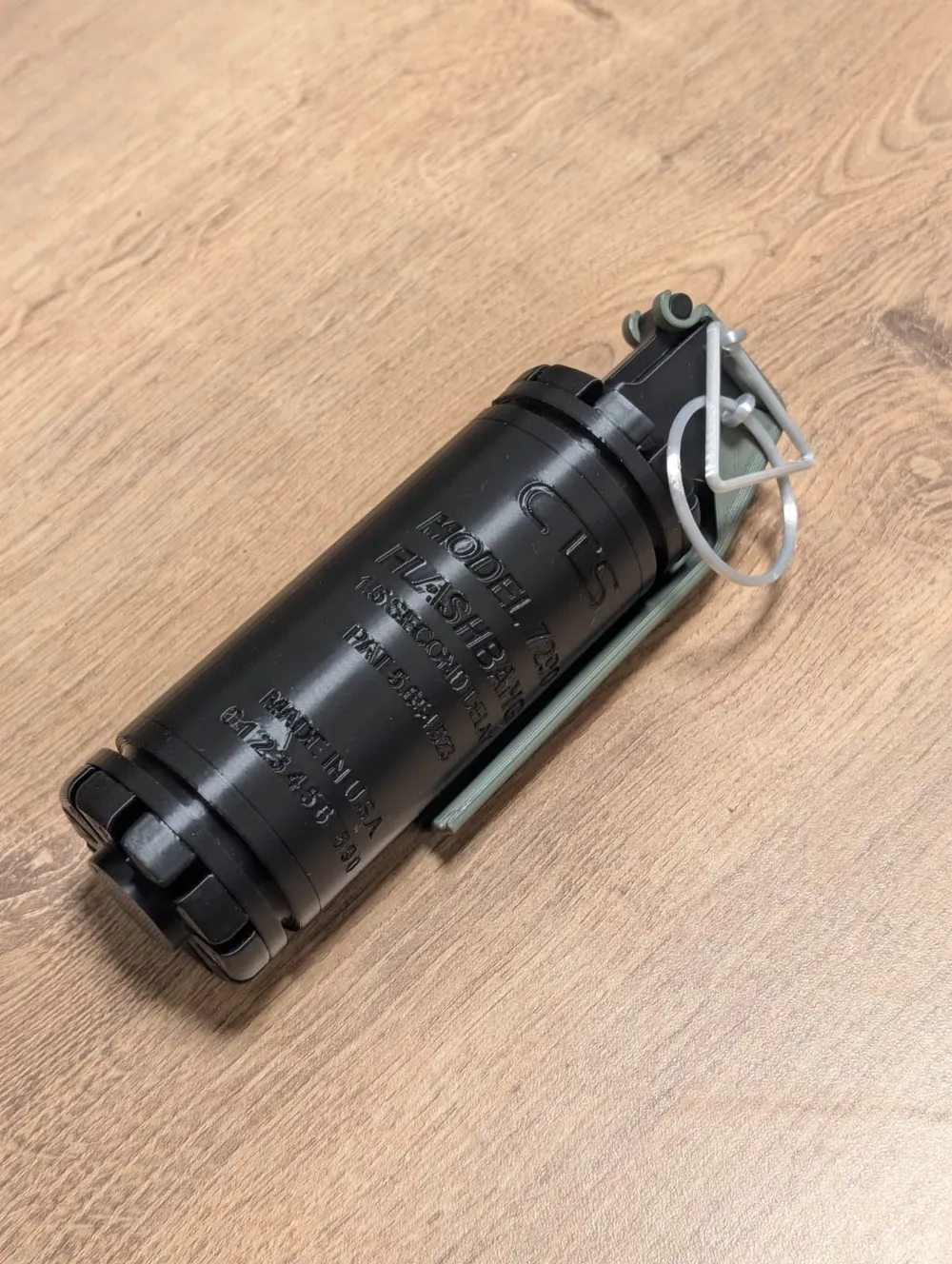

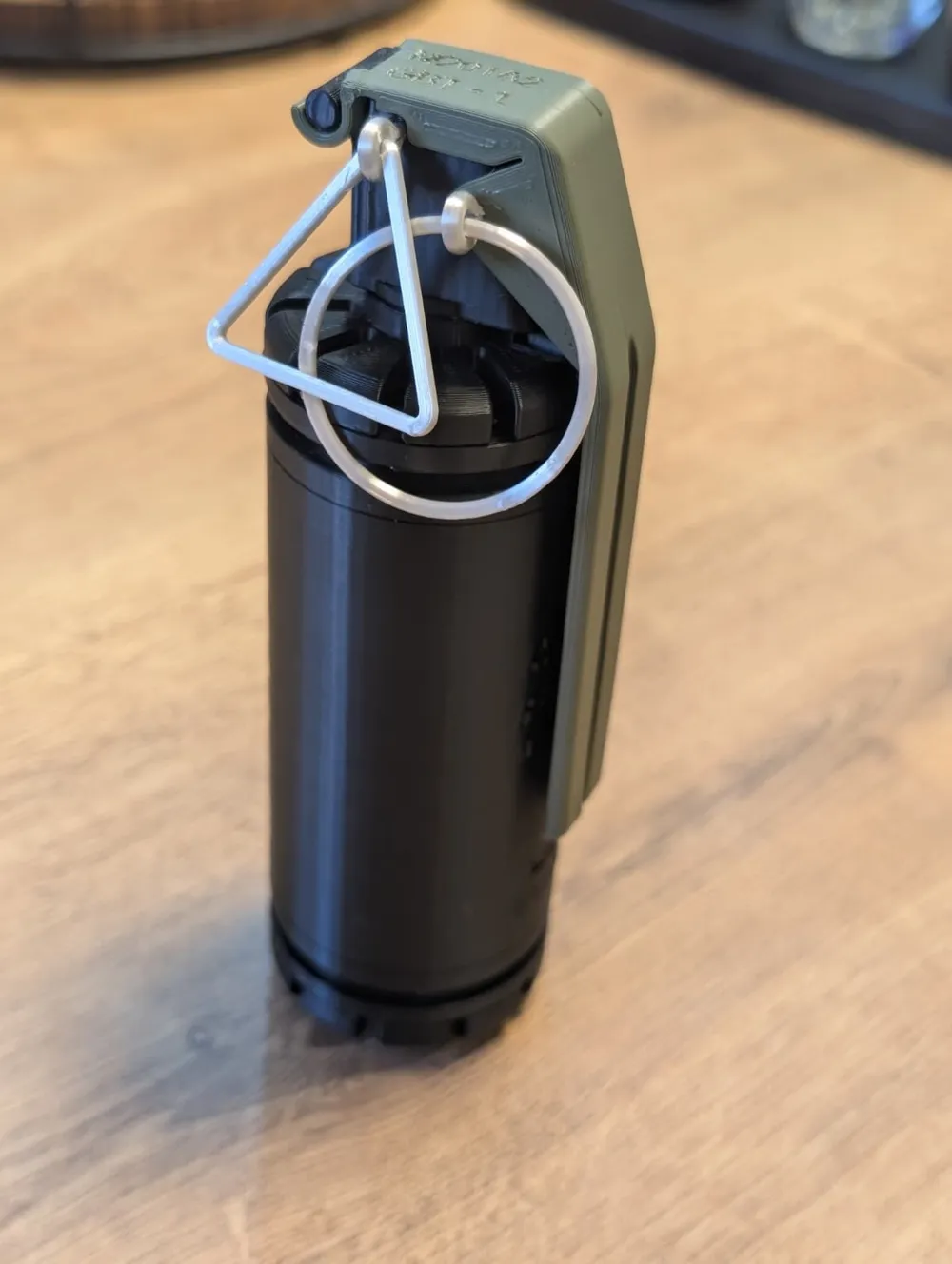

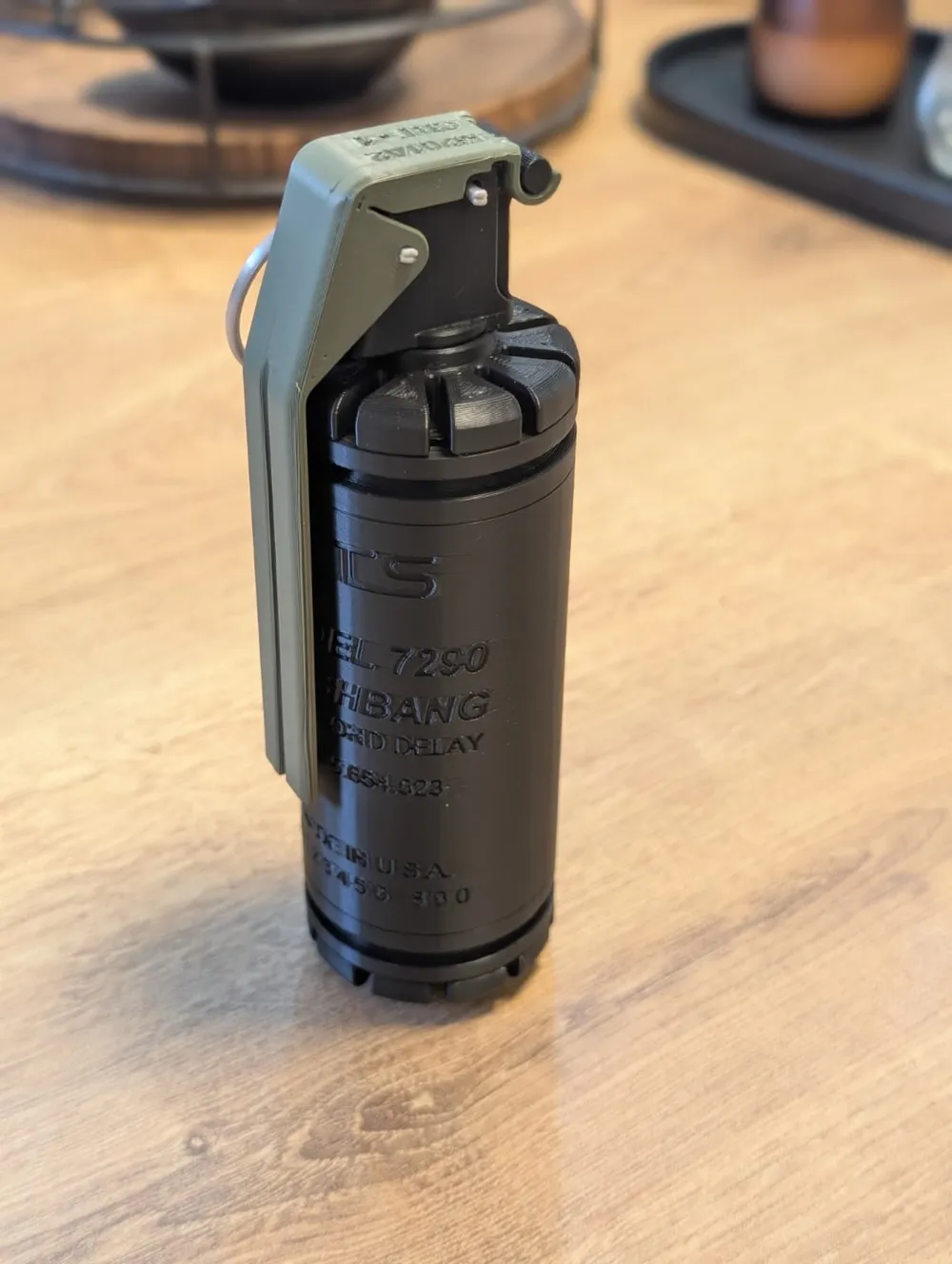

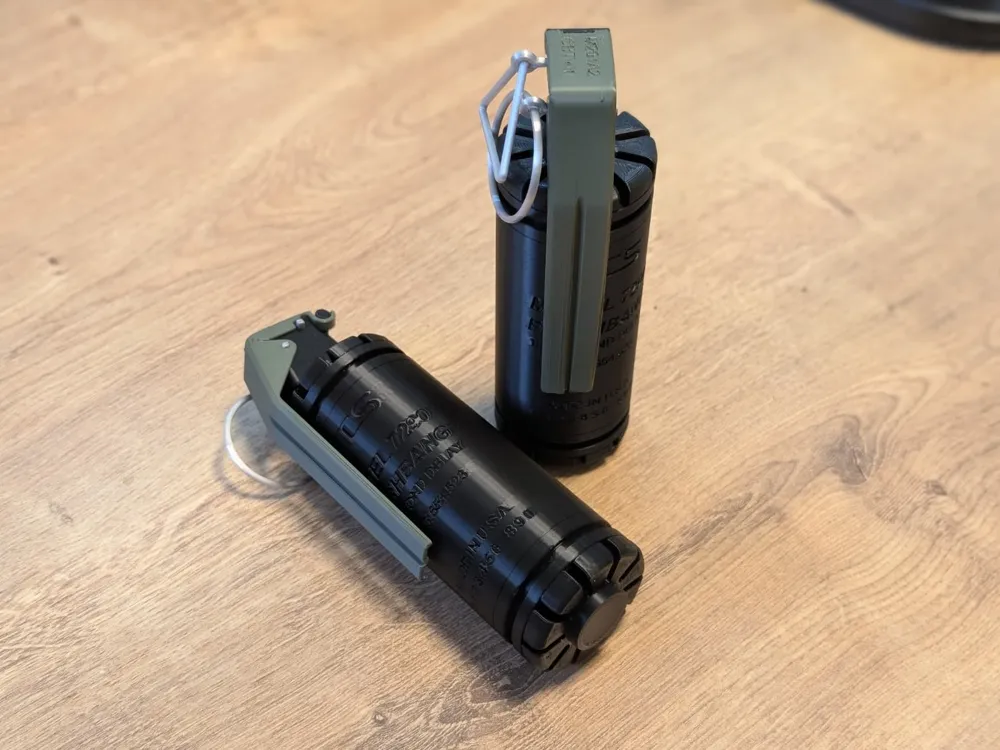

Introducing the CTS 7290: a dummy stun grenade, a piece of crowd control and dispersion equipment used by law enforcement and military around the globe, a counterpart to the renowned M84. Featuring primary and secondary pull rings, combined with a spring loaded safety lever.

Boost Me (for free)

A token of appreciation if you like this model 🎖️🏆

- Features -

CTS 7290 in action; initiation procedure

Lightweight: weighing only ~80 grams (~2.72 oz)
Fidget: spring loaded safety lever and detachable safety pin and pull ring
Compact: totaling 44mm in diameter and 146mm in height (excl. lever)
Container: can be used to store small items within ~90ml (~3 fl oz) internal volume


- Support -

Contact:
If you encounter any issues with printing, assembly, etc., please leave a comment below or email me at: vissidus@gmail.com
I'll do the best of my ability to help you resolve any and all issues.

If you've printed the model and enjoyed playing with it, a follow and a like would be greatly appreciated!





Disclaimer: the Author assumes no responsibility or liability for any misuse and damage caused by the contents of this publication. The model and individual parts contained in this publication are not intended to be used to perpetrate any illegal activity.
Under no circumstances shall the Author of this model and publication be liable for any alterations made to the contents of this publication by any party aimed to construct a firearm.

The Author and/or the model are not affiliated with Combined Systems, Inc.
