Audi Q5 FY Dashboard Screen Utility Tray

If you drive an Audi Q5 (FY), you know the struggle: there is almost no dedicated space for sunglasses, keys, or small essentials. Most aftermarket solutions are bulky or require messy adhesives.

The Solution

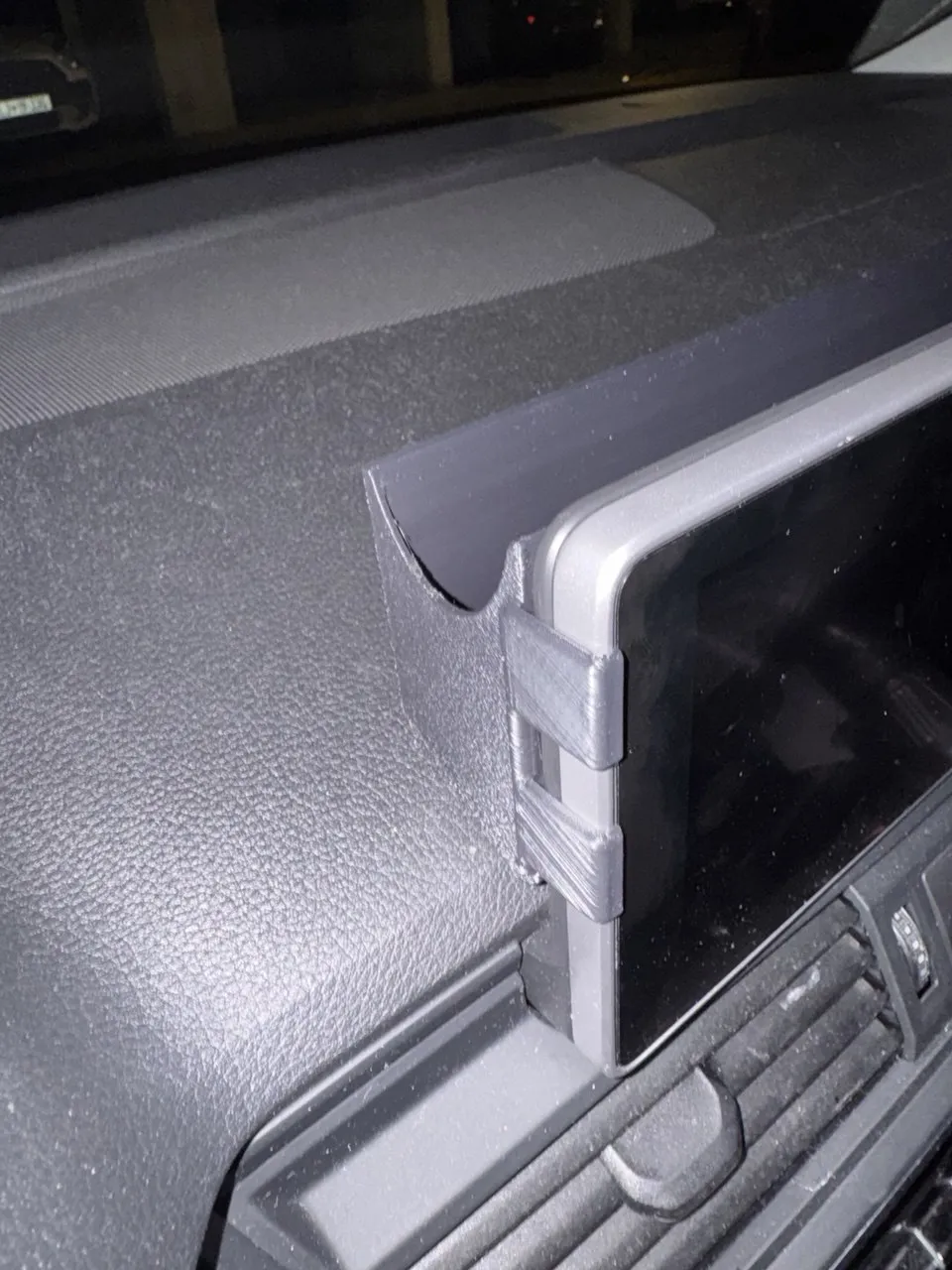

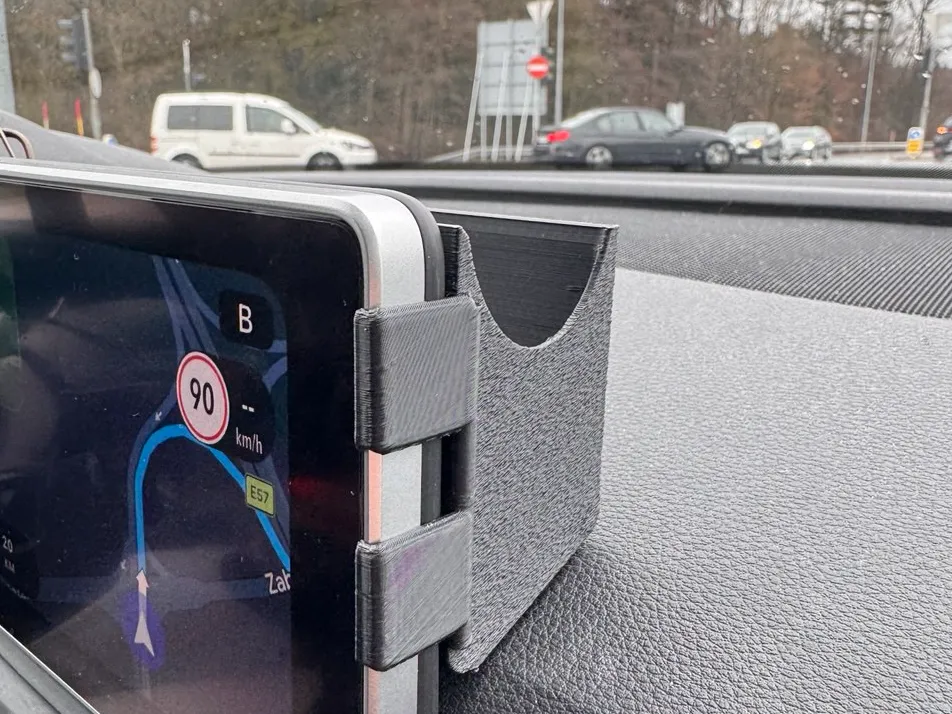

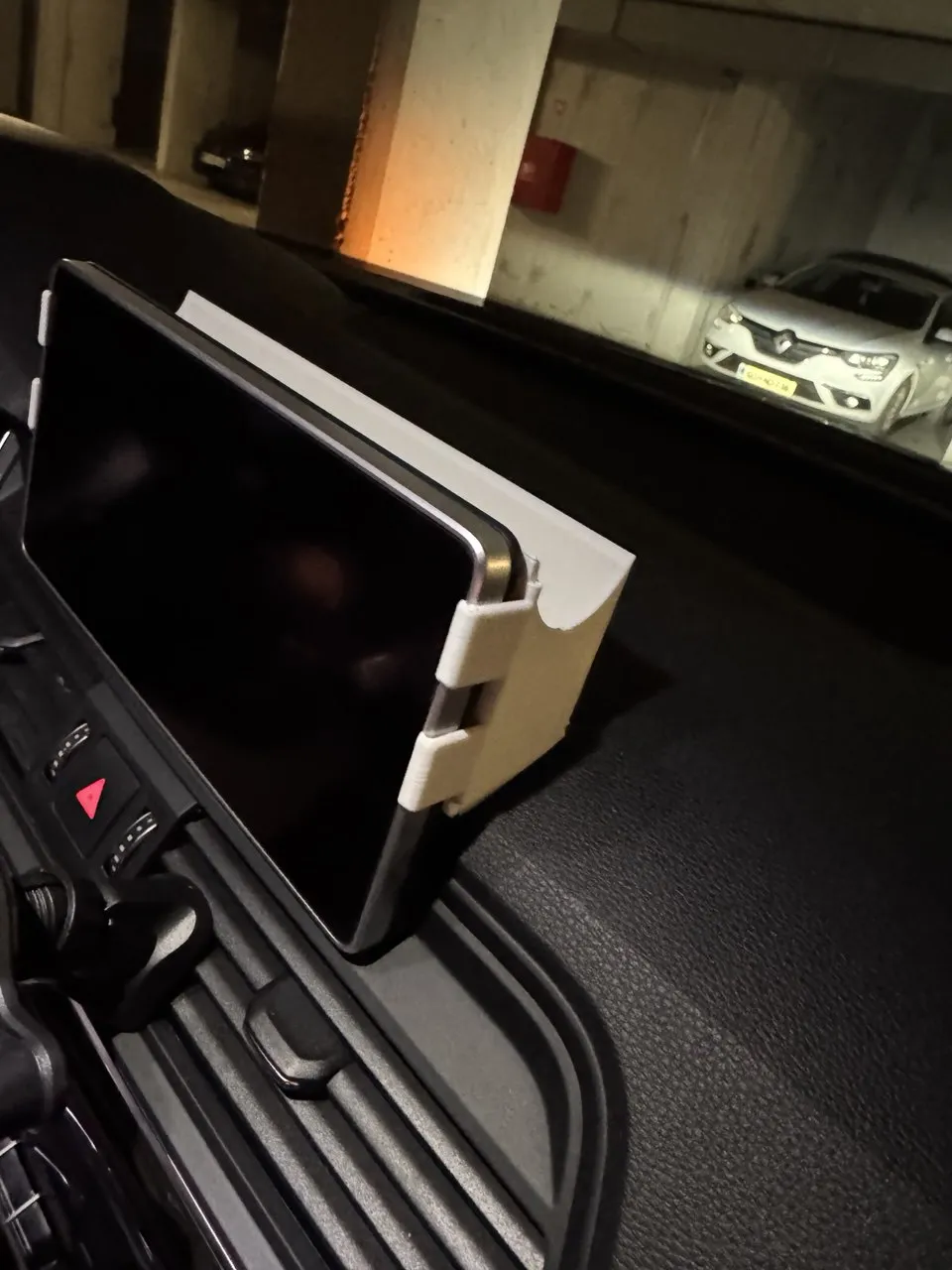

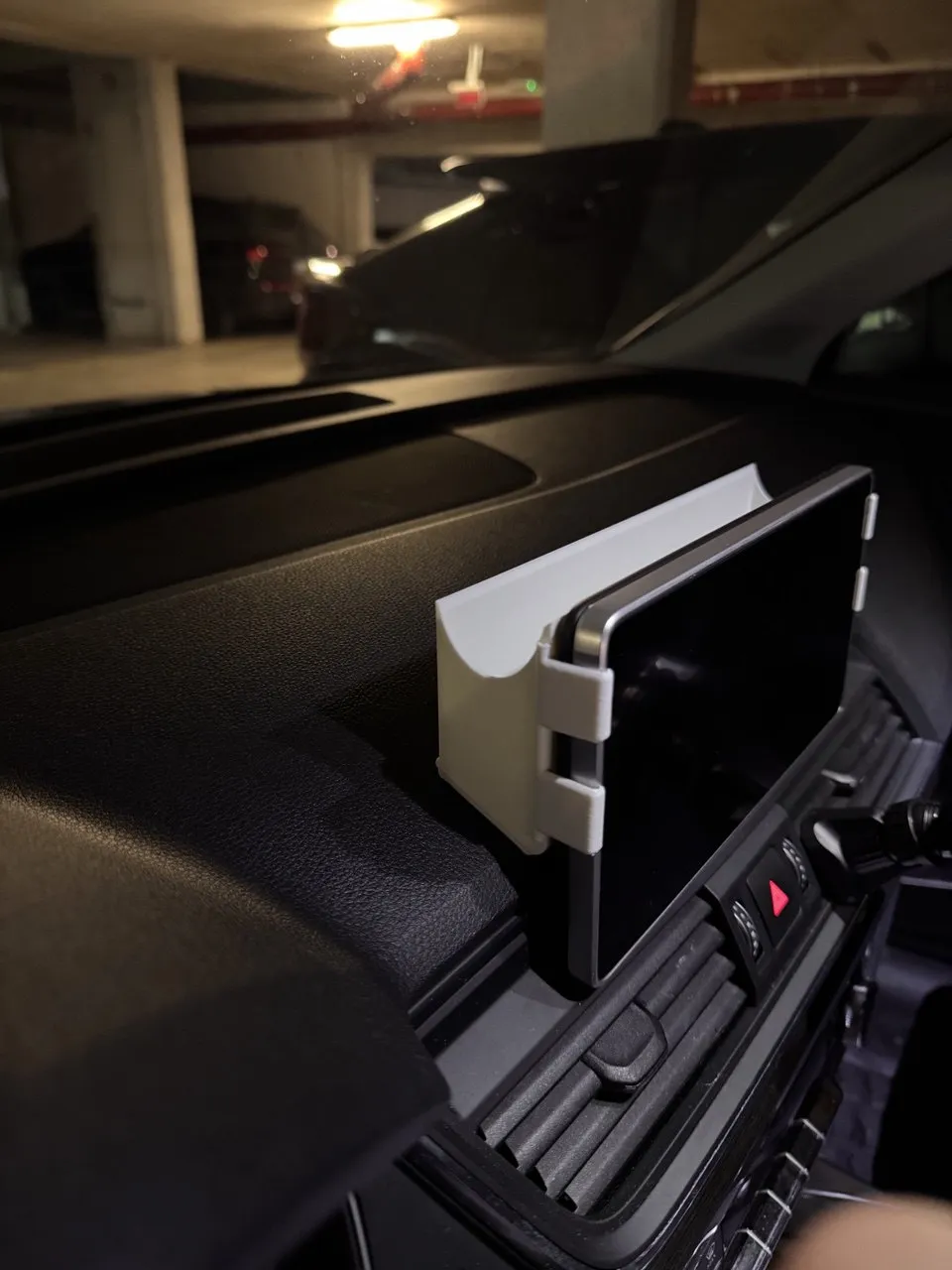

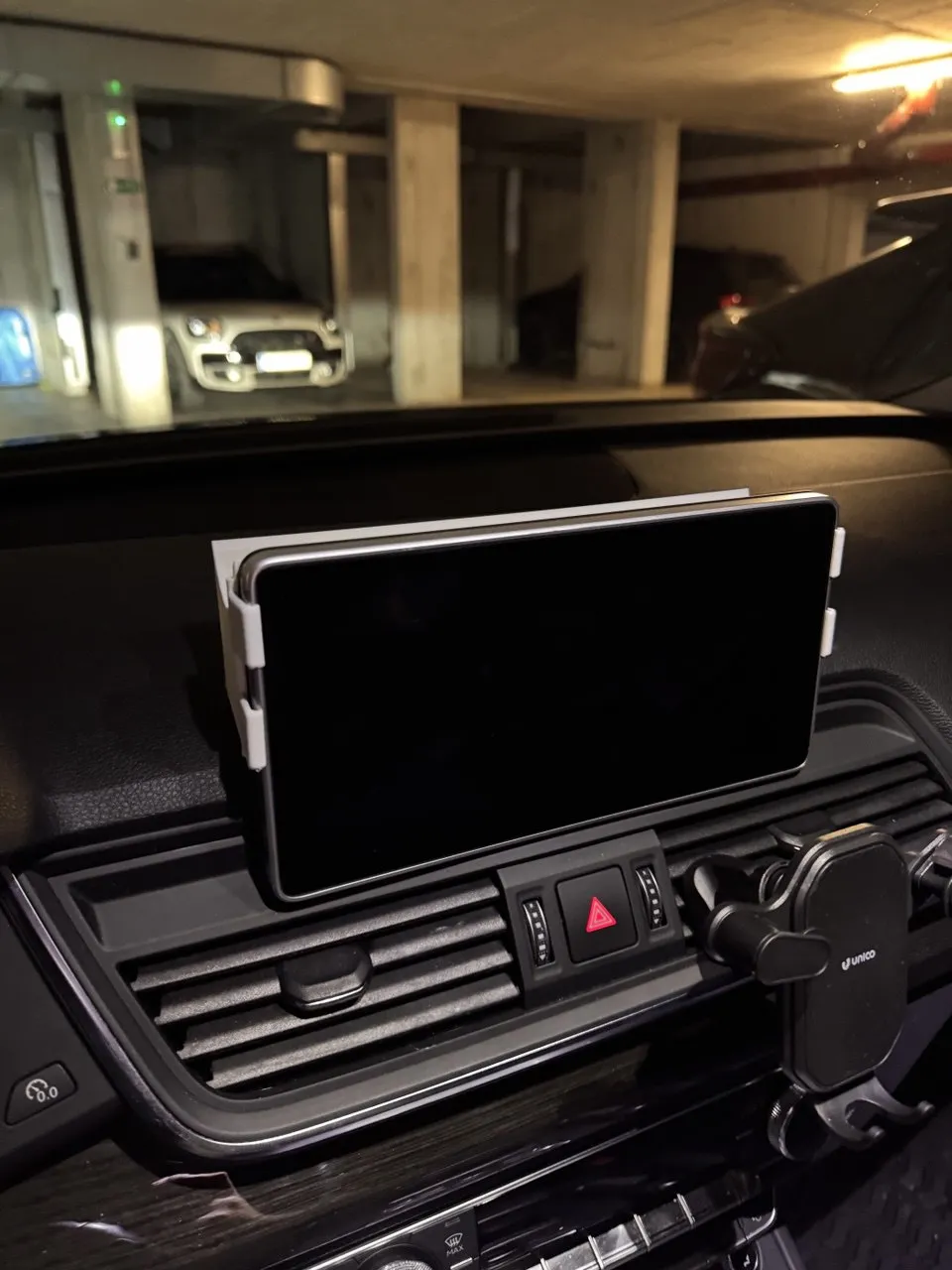

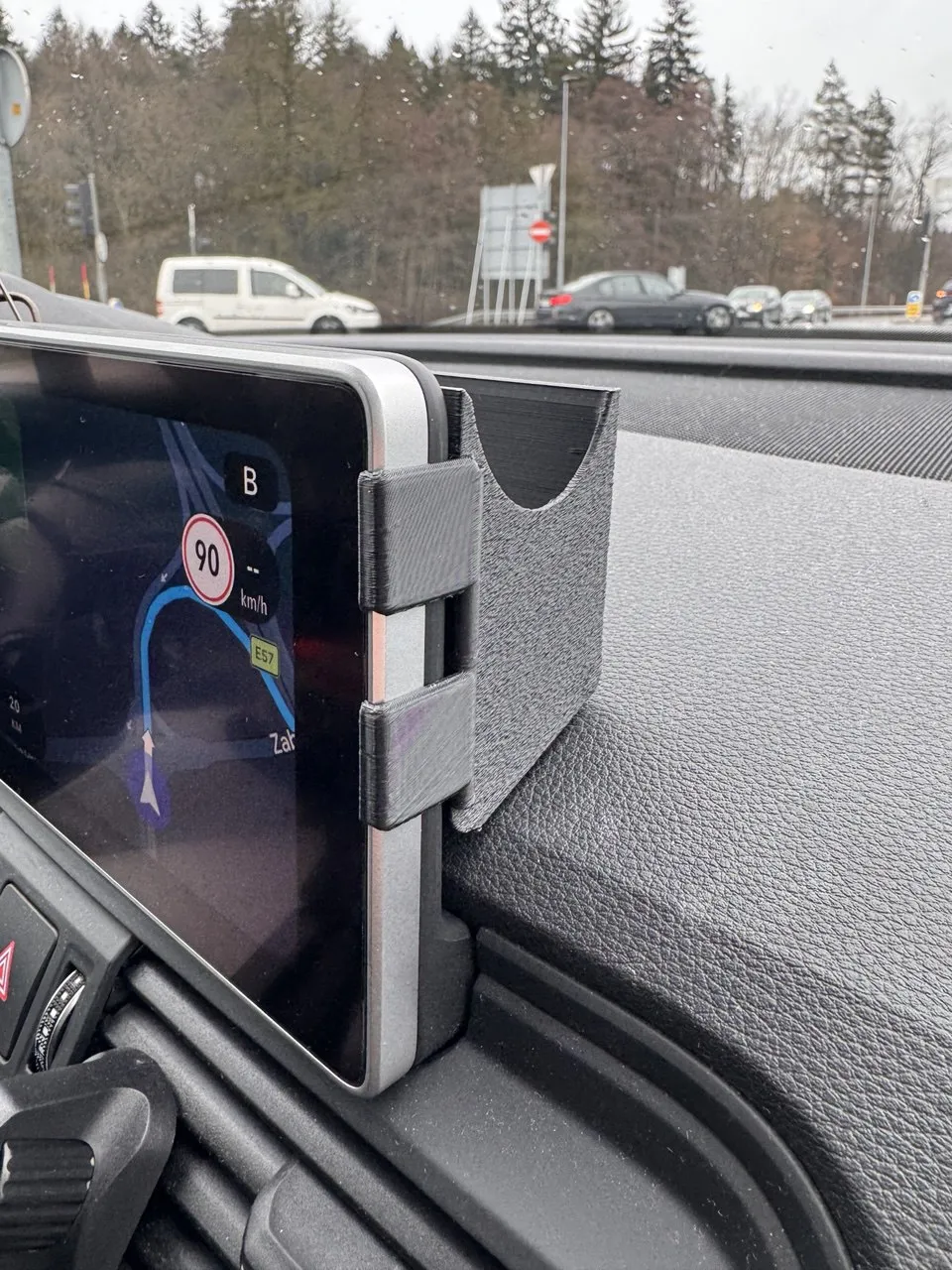

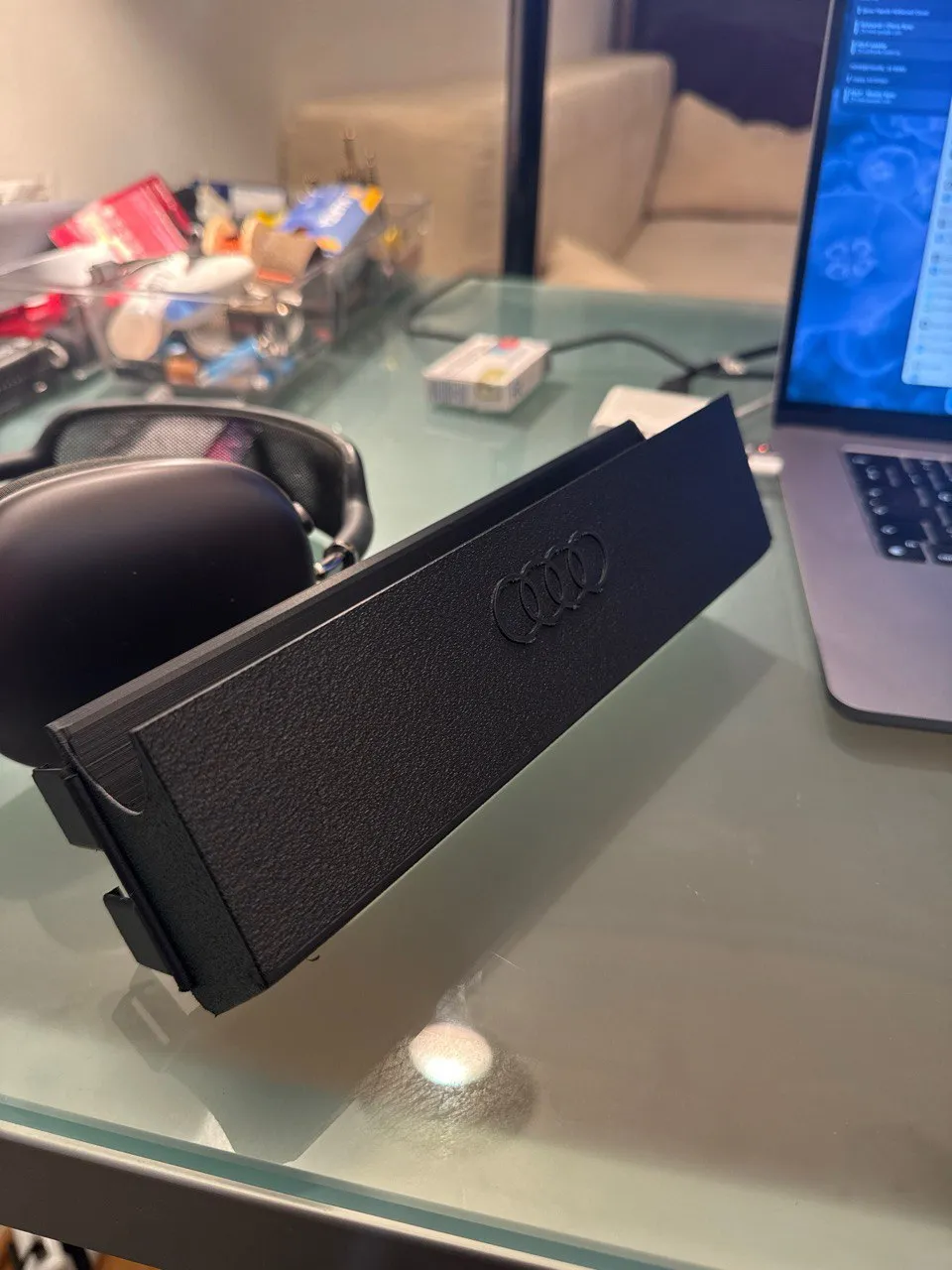

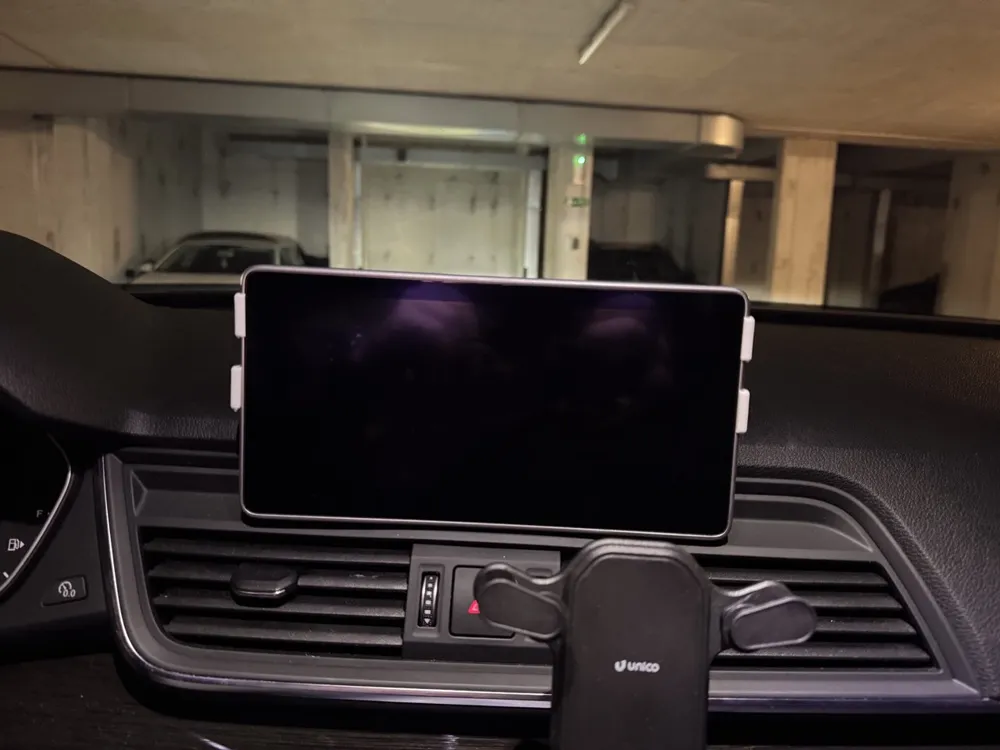

This 3D-printed organizer clips securely onto the back/top of the central MMI display. It utilizes the monitor's geometry to provide a stable, "factory-look" storage pocket without blocking your view or interfering with the screen's operation.

Key Features:

• Perfect Fit: Specifically designed for the Audi Q5/SQ5 (FY generation) monitor.
• Snap-On Design: Securely clicks into place. It stays firm even on rough roads and won't rattle.
• Heat Resistant: Designed to be printed in ASA. Unlike PLA, it won't warp or melt under direct sunlight through the windshield.
• Minimalist Aesthetic: Blends into the Audi interior design language.

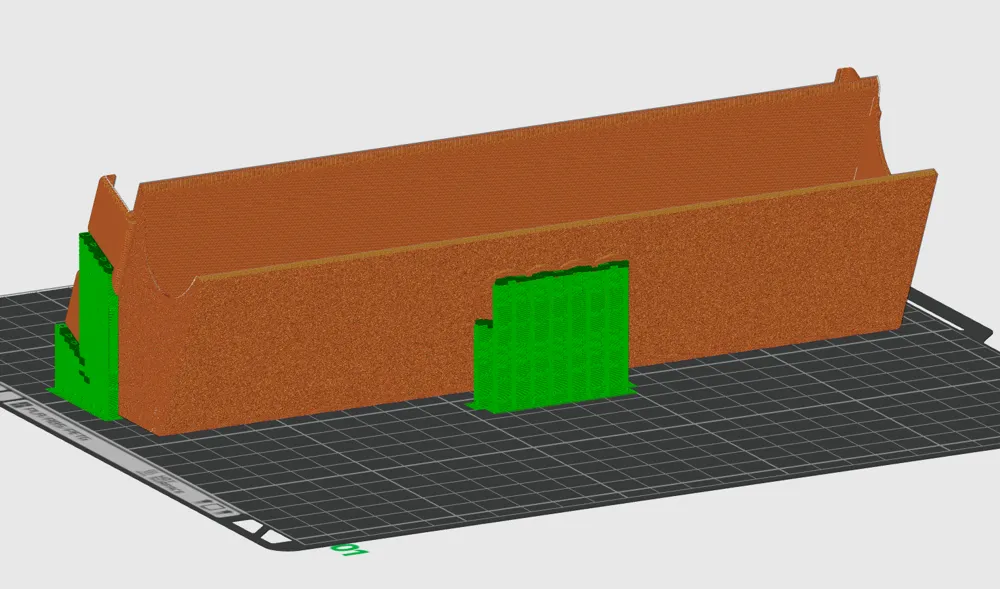

Printing Recommendations:

• Material: ASA is highly recommended (PETG as a minimum, avoid PLA).
• Layer Height: 0.2mm for a balance of speed and finish.
• Walls: 3–4 loops for structural integrity of the clips.

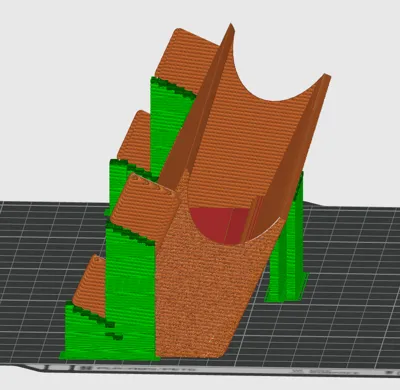

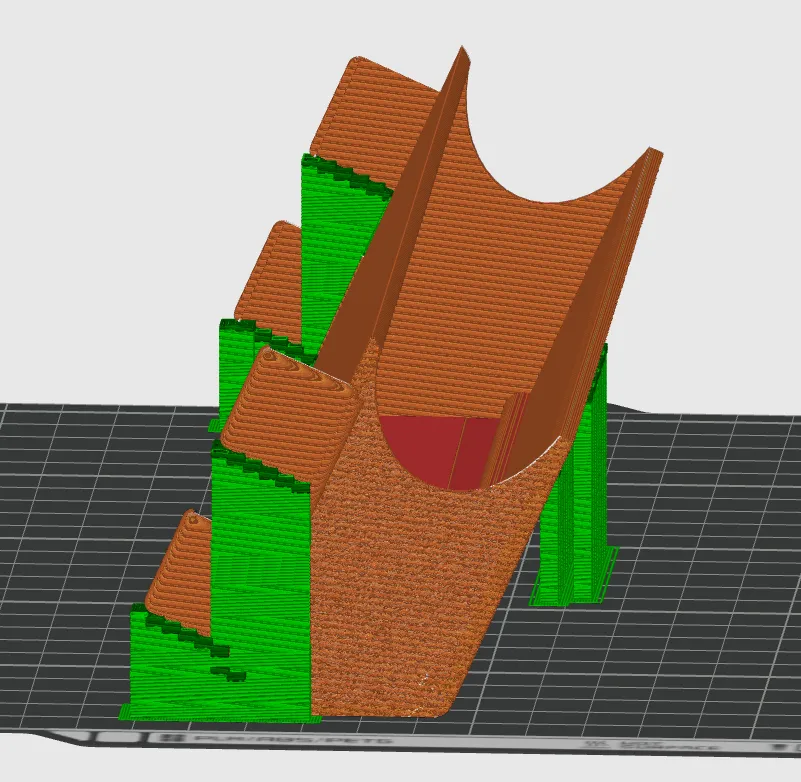

• Supports: (Specify here, e.g., "Minimal supports needed for the clip overhangs").
• Infill: 15% Gyroid.

Compatibility:

• Audi Q5 / SQ5 / Q5 TFSI e (B9/FY Platform: 2017–2024).
• Note: Designed for the standard tablet-style MMI screen.
