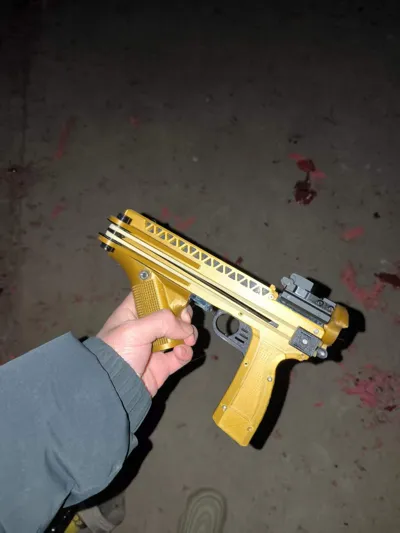

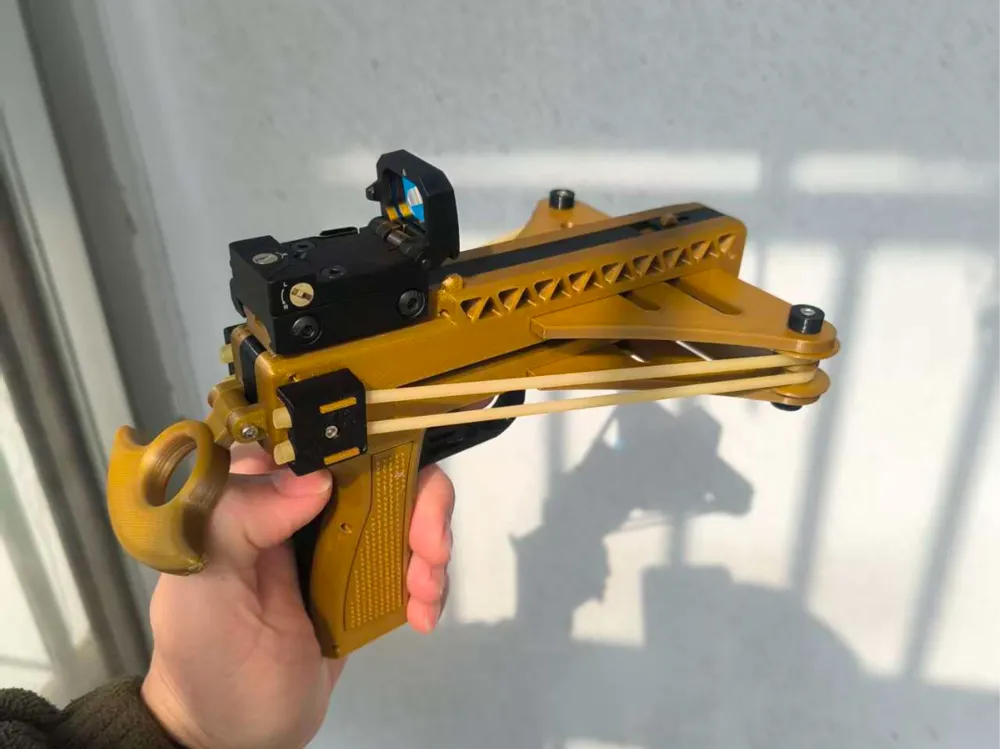

Extended slingshot, appearance mimics Eagle Strike
Print Profile(1)
Description
The appearance mimics the Eagle Strike slingshot, but the internal trigger mechanism is different. I haven't used Eagle Strike, so I drew this myself for fun. This is the extended version. There is a shorter version with slightly lower muzzle velocity. The slide rail is tilted 1°.

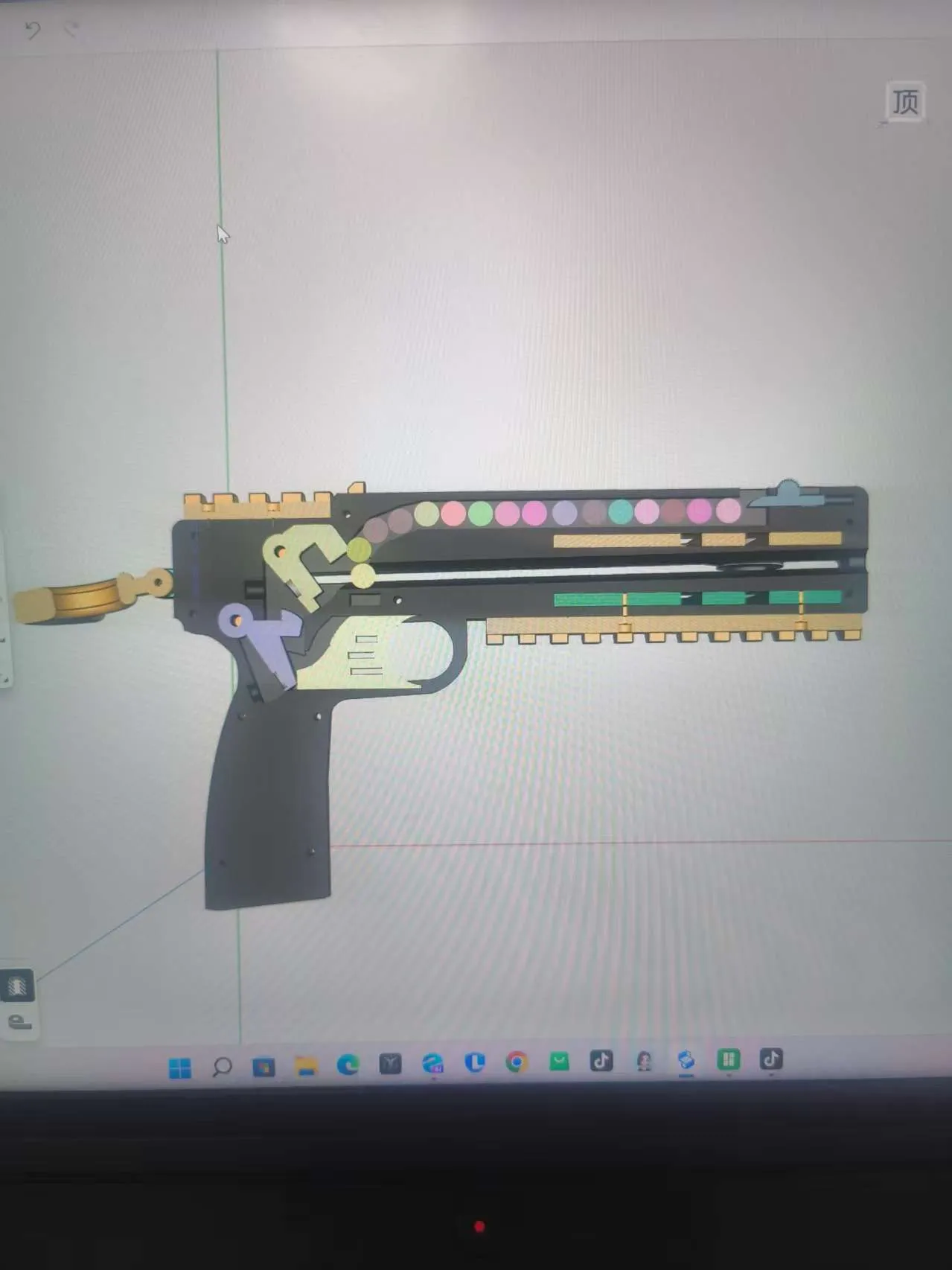

Internal structure diagrams are below. Magnets need to be installed to secure the marbles. 8mm marbles.
Hardware diagrams are below.
