Particulate Matter Sensor Housing AirRohr (sensor.community)
Print Profile(1)
Description
Here is my enclosure for the fine dust sensor according to AirRohr from https://sensor.community
I will not go into further detail about the sensor's assembly instructions here, as these can be found on the sensor.community website (https://sensor.community/de/sensors/airrohr/)
Since I didn't feel like building such a “shabby” enclosure from KG pipes, as described in the sensor.community assembly instructions, and I couldn't find a printable model anywhere, I have now designed an enclosure myself, which I am now providing here

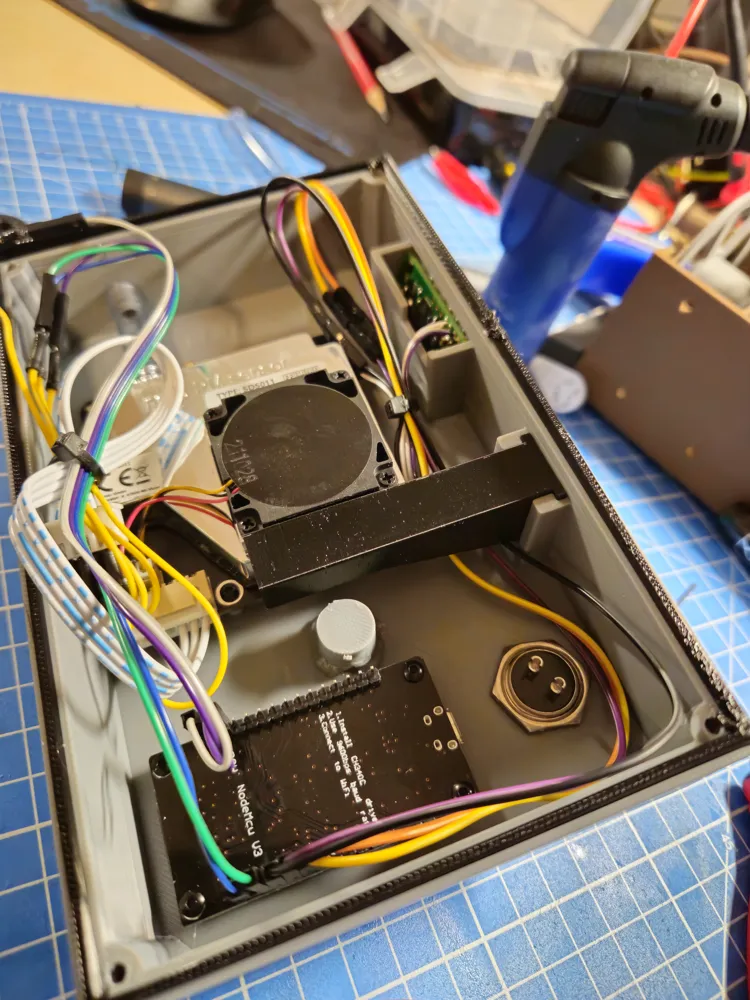

The enclosure is for (my) following components/devices:
- ESP8266 (NodeMCU V3)
- Fine dust sensor SDS011
- Sensor CO2/T/RH/ SCD30
- Circular connector IP55, 2-pin, 18mm
Additional components:

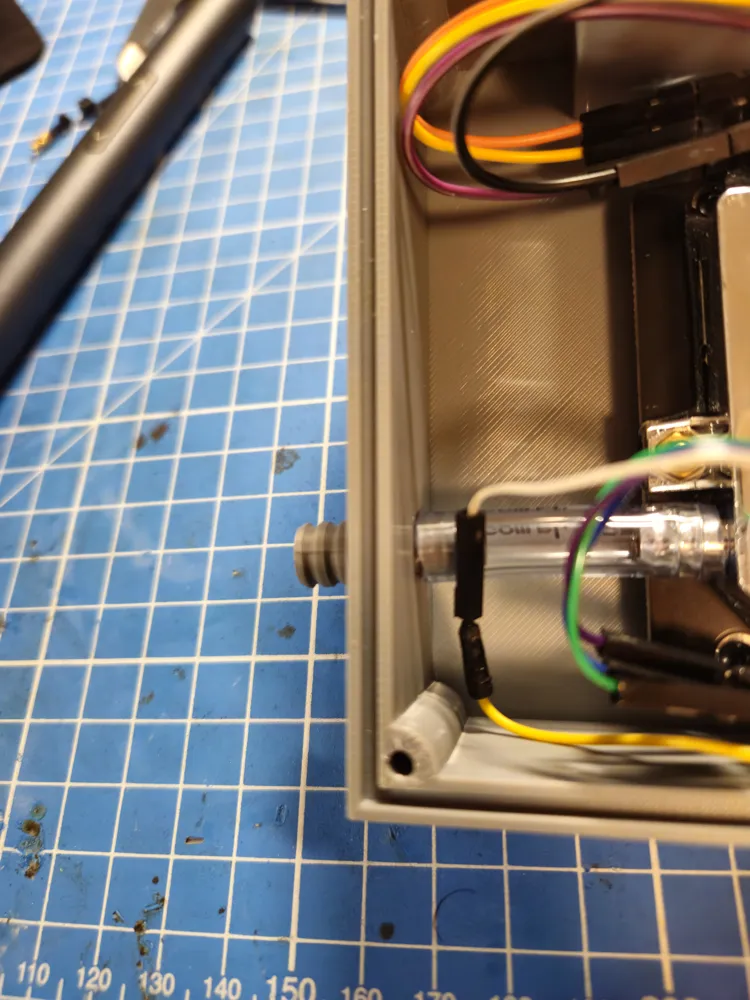

- Inner tube, 6 mm inner diameter, 40 mm long
- Outer tube, 9 mm inner diameter, 100-300 mm long - or the “intake pipe” included in the print profile
- Heat-set inserts for the lid, 4 pieces, M2.5x6x3.5
- Screws for the lid, cylinder head screws 4 pieces, M2.5x8
- Screws for circuit boards, 7 pieces, M2.5x6

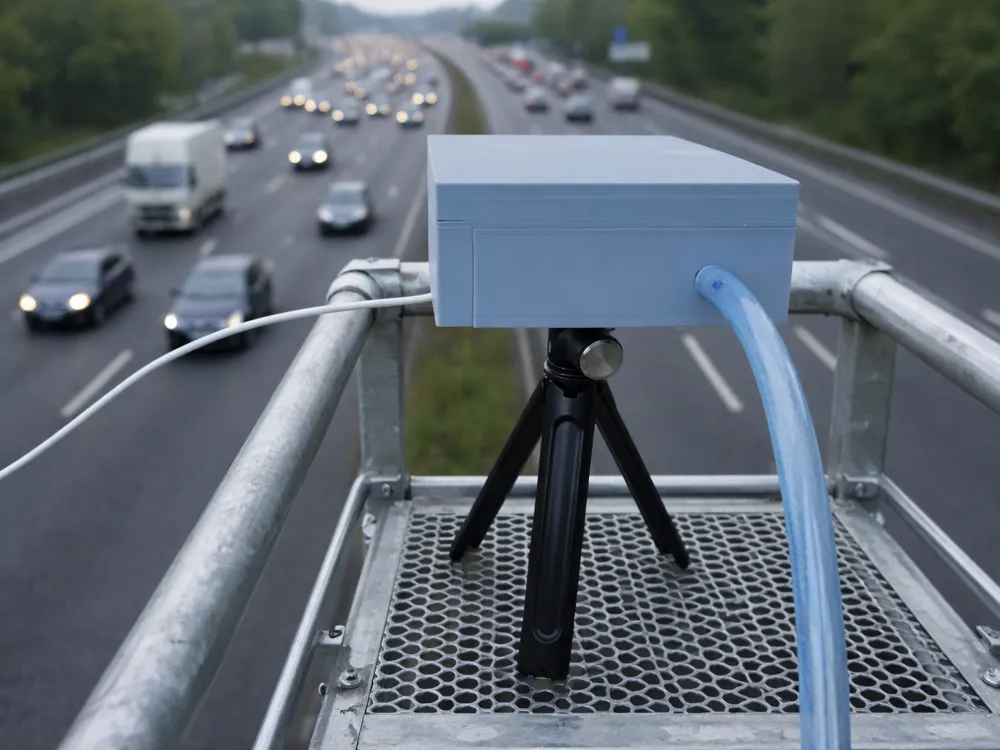

- Heat-set insert for tripod mounting, RX-¼"x12.7 (camera thread)
- Heat-set inserts for mounting with "wall and pipe holder", 2 pieces, M3x4x4.2
- Screws for mounting with "wall and pipe holder", 2 pieces, M3x12
Making the enclosure waterproof: https://www.3djake.com/diamant-polymer/dichtol-am-hydro

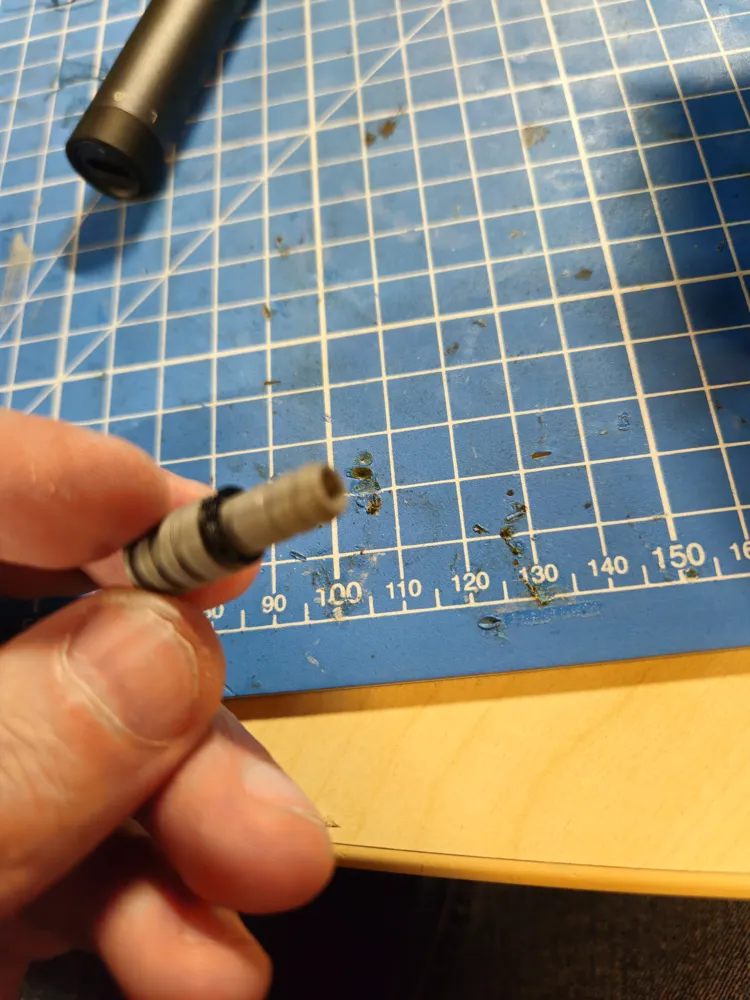

For power supply, a splash-proof circular connector - as described above - can be installed, or the plugs with cable outlet. The two-part plug is for cables with USB connectors

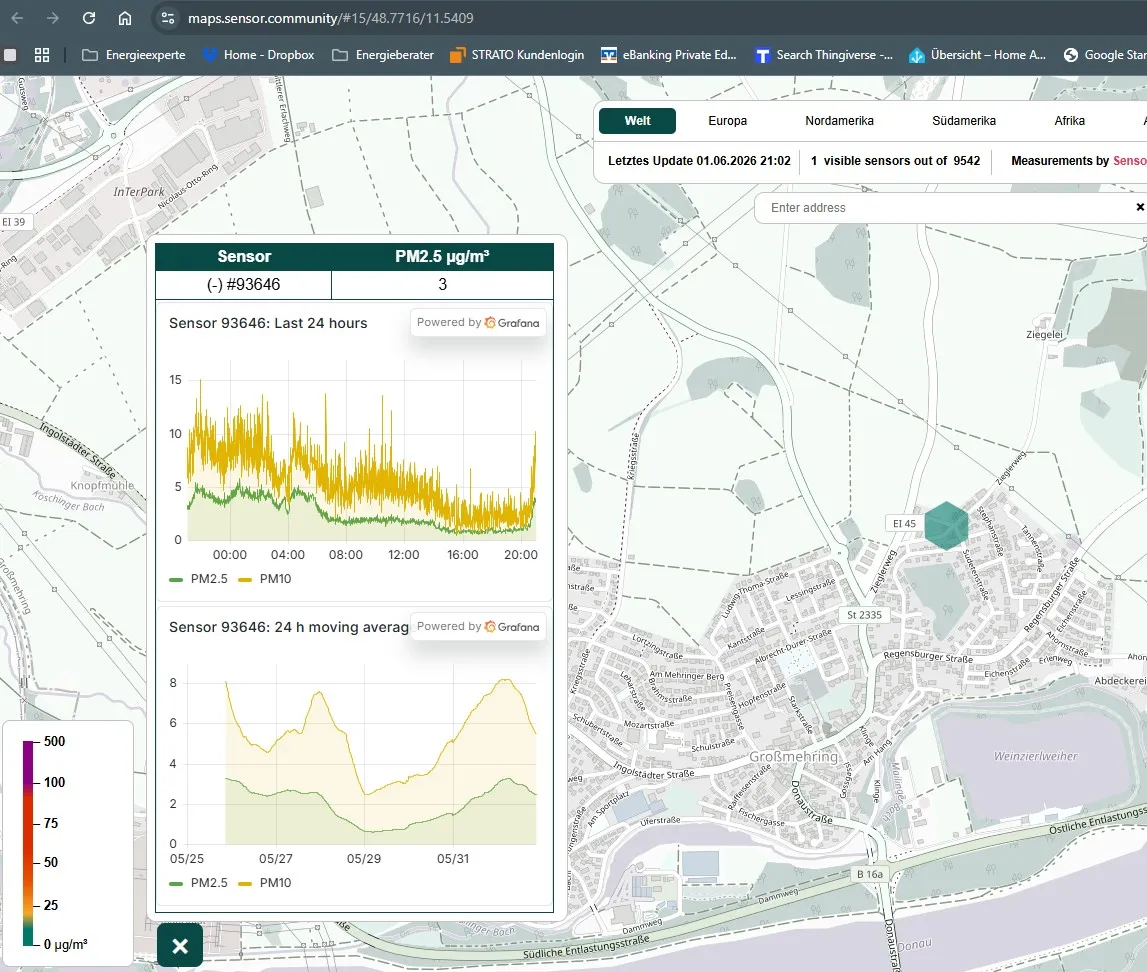

My Fine Dust Sensor: https://maps.sensor.community/#15/48.7716/11.5409
I am happy to answer any questions.
I would be delighted to receive a comment with a photo of your print!
