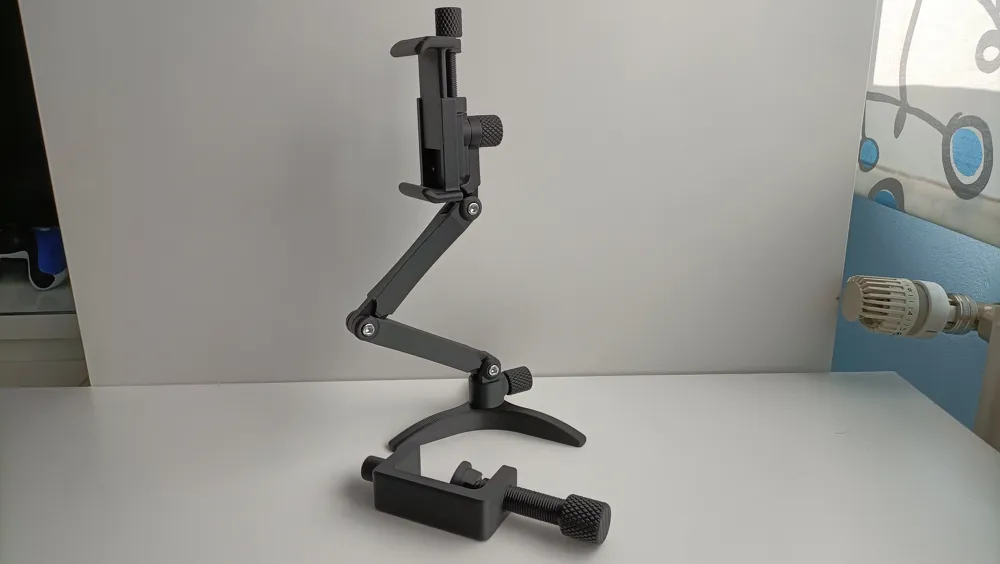

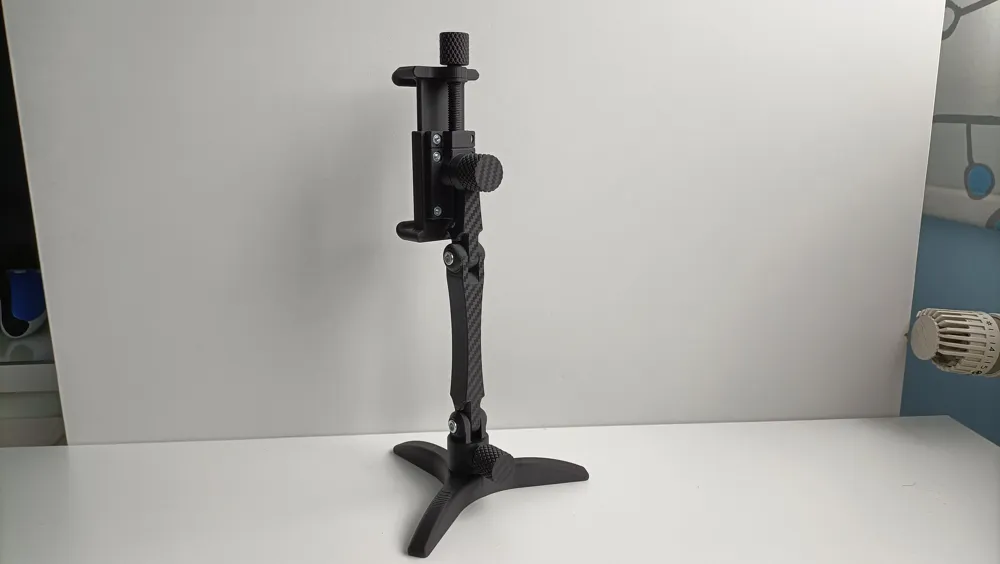

This is version two of my other articulated mobile phone holder with horizontal and vertical positions

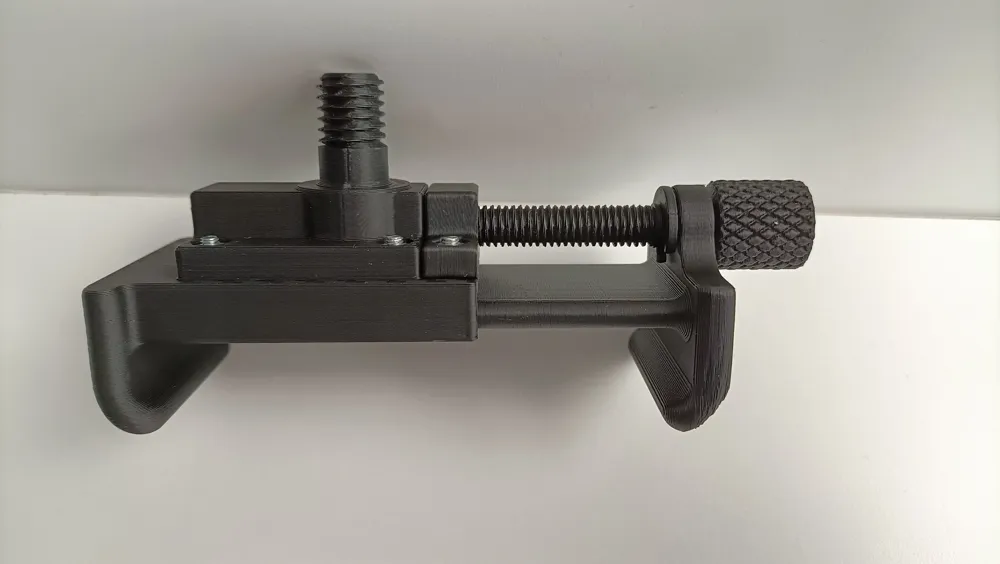

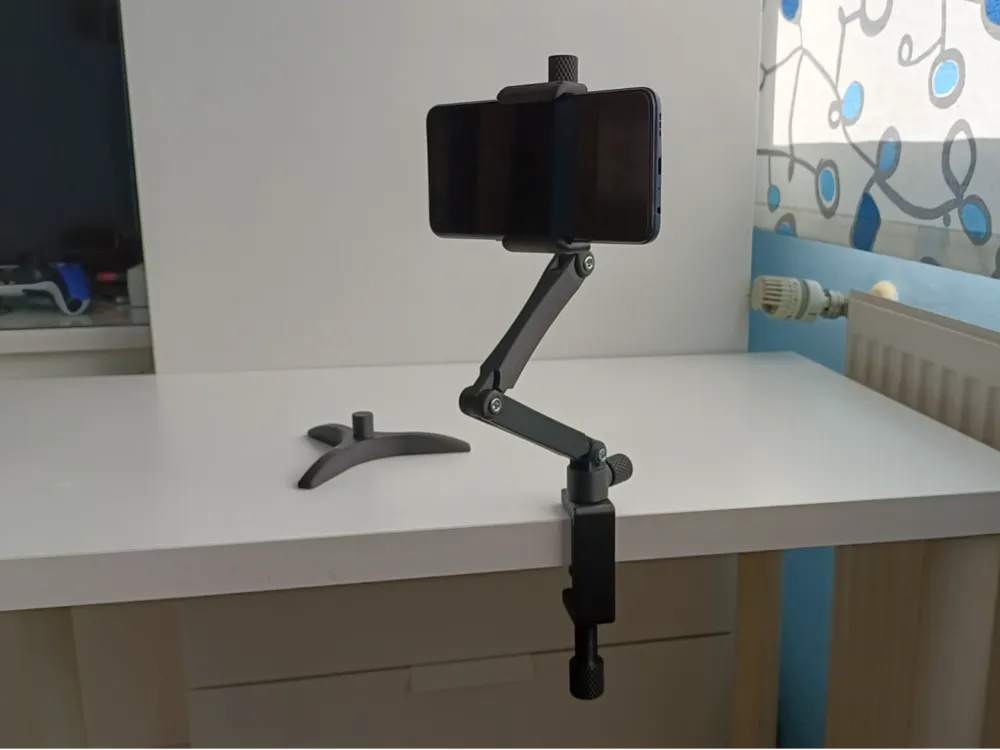

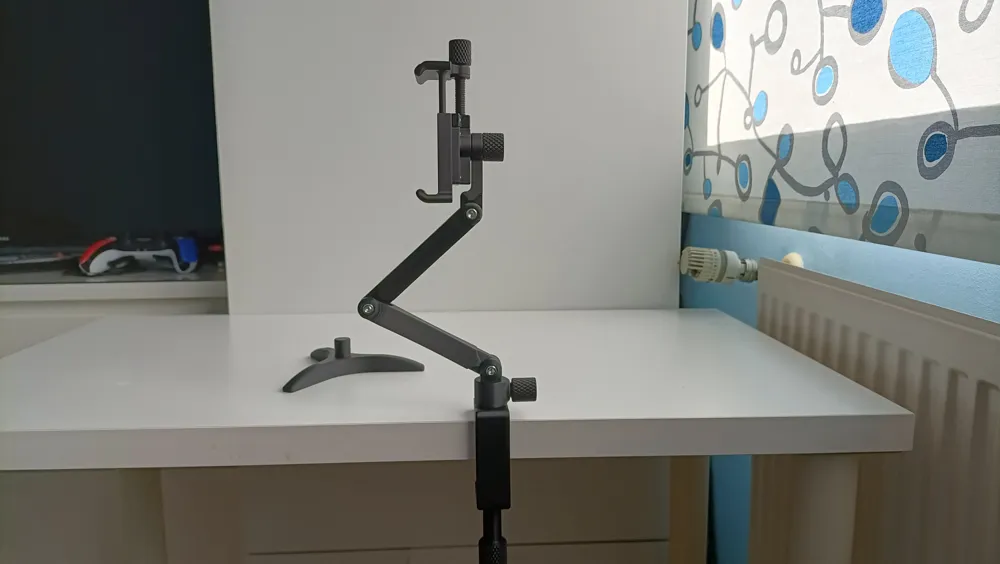

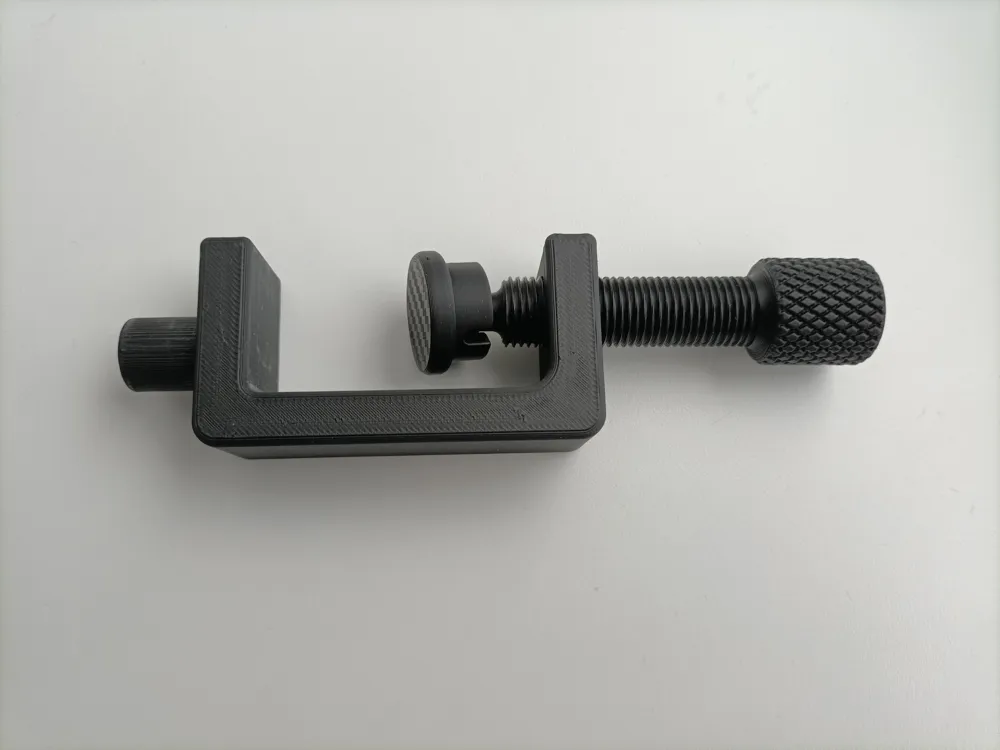

In this version, the shafts have been modified to allow for a greater tilt angle, the tripod base has been modified to be compatible with the clamp for fixing to tables, desks, etc., which is included in the second print profile. Some new parts have also been included

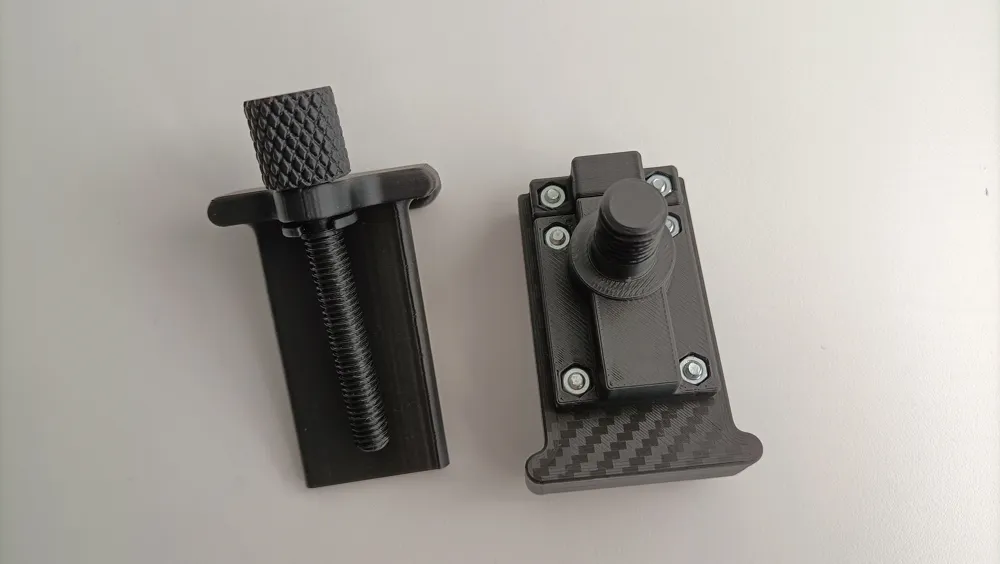

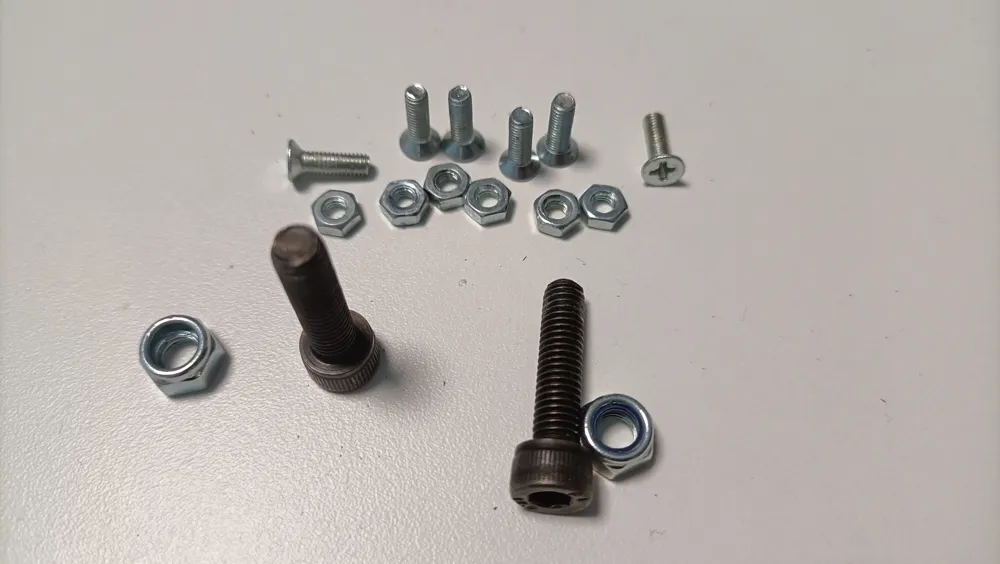

For assembly, 6 M3x10 countersunk screws, 6 M3 nuts, 2 M5x20 Allen screws, and two M5 self-locking nuts are required. Assembly details are shown in the photos
In my print profile, the parts are positioned so that the threads print well and supports are hardly needed
If you want to make it longer and more articulated, you can print more extenders (extended part)
I have uploaded a third print profile with the M8 spindle and the top claw 2 cm longer in case you need a wider opening
If you like the design, do not hesitate to support me by giving me a boost
