Description

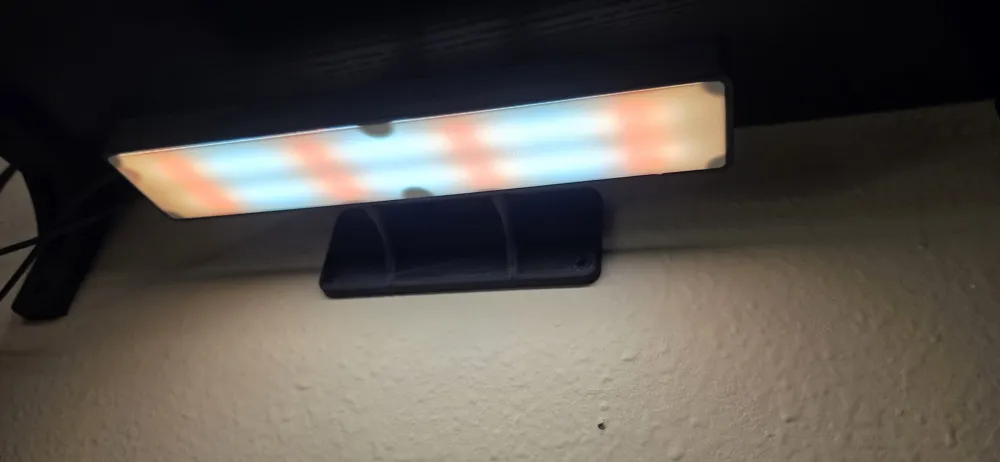

This model consists of three printable parts:
- LED Housing – Main body that holds the LED strip/module

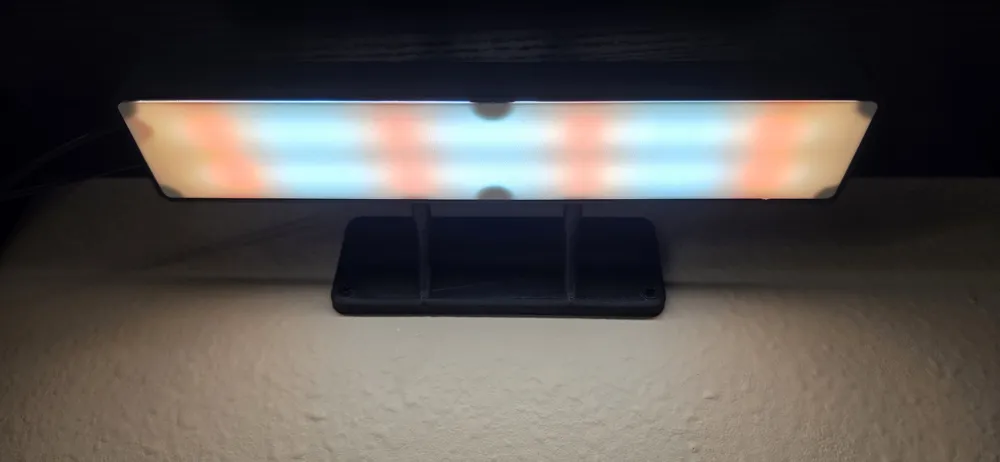

- Opaque Diffuser Cover – Press-fit + glue front panel for soft, even light
- Wall Mount Stand – A stable bracket that positions the light at an optimal distance from the wall
No additional printed parts required.
Assembly
- Install your LED strip/module inside the housing
- Apply a thin line of super glue to the front stand-offs
- Press the diffuser cover into place

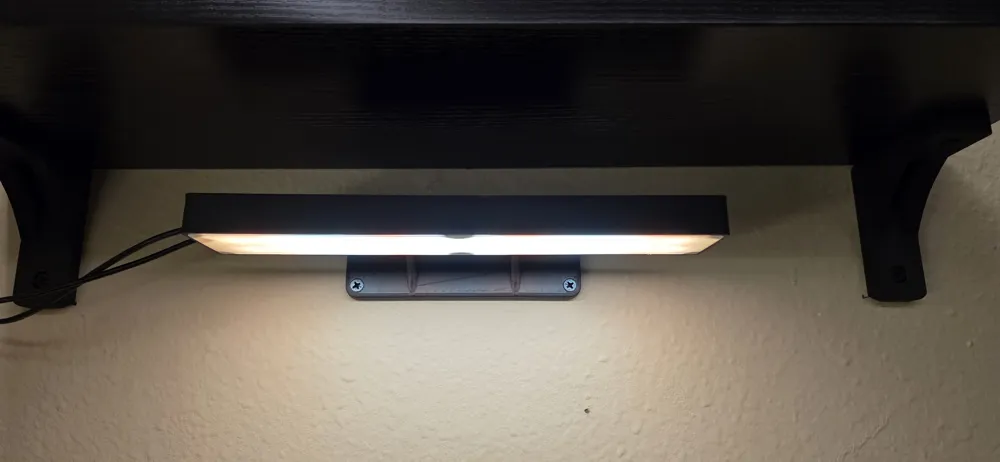

- Mount the stand to the wall using 4 screws
- Slide/seat the housing onto the stand

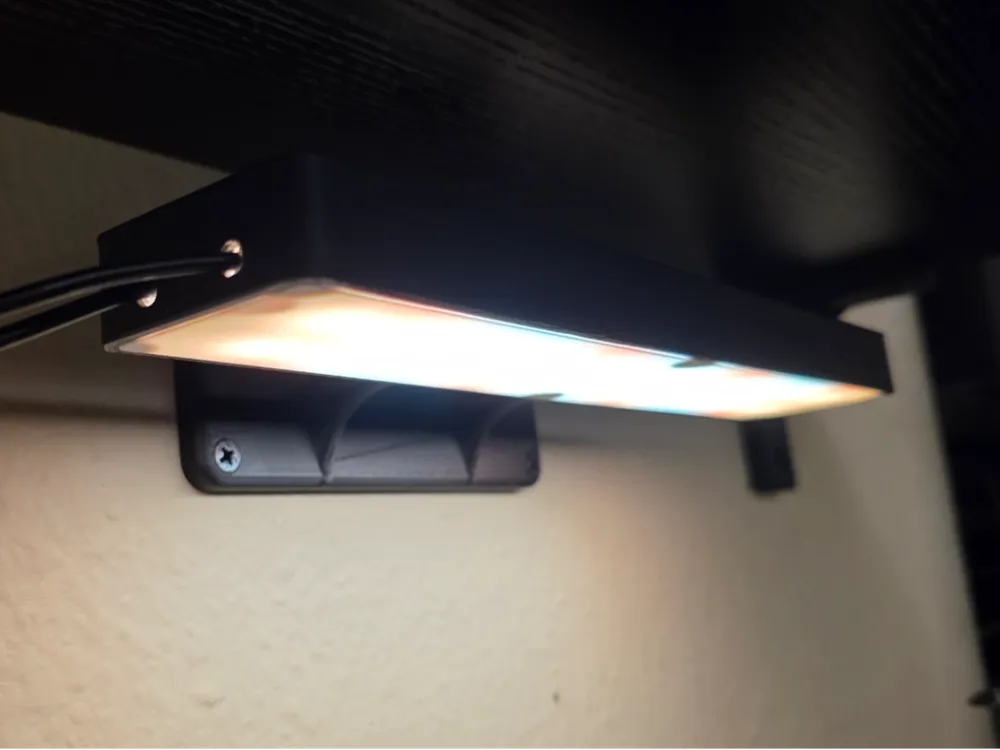

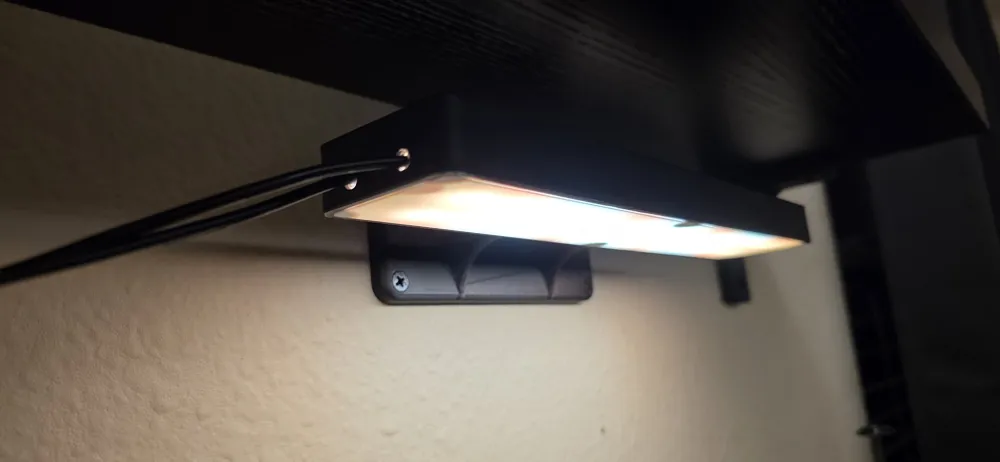

Cords exit cleanly from the side for easy cable routing.
Print Settings (Reference)
Not required, but these settings produced strong, clean results:
- Layer height: 0.2 mm
- Walls: 4
- Infill: 15% Gyroid
- No supports needed (depending on orientation)
- Material: PLA, PETG, or similar
Hardware Required
- 4 × wall mounting screws
- Super glue (for diffuser attachment)
- LED strip or light module of your choice
