Under sink towel and linen holder

Print Profile(2)

All
H2S
H2D
H2D Pro
H2C
P1S
X1E
P2S
X1
P1P
X1 Carbon
A1
X2D
A2L

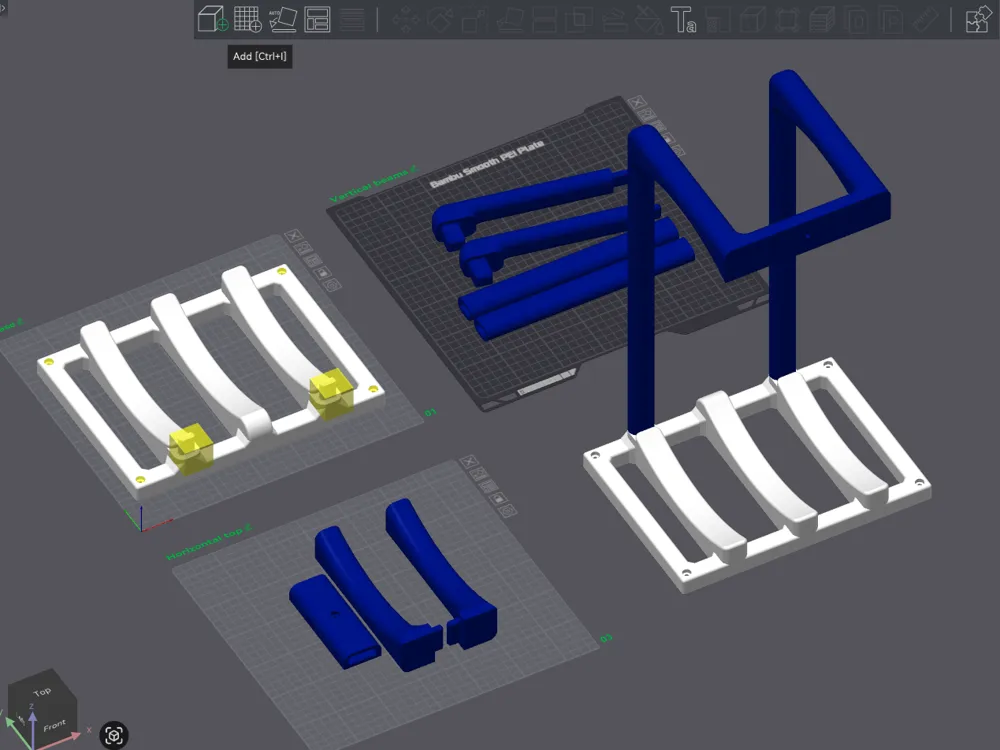

0.6mm nozzle, 0.3mm layer, 3 walls, 5% infill
0.6mm nozzle, 0.3mm layer, 3 walls, 5% infill
Designer
10.5 h
3 plates

P-series printer - 0.6mm nozzle, 0.3mm layer, 2-4 walls
P-series printer - 0.6mm nozzle, 0.3mm layer, 2-4 walls
Designer
14 h
5 plates

Open in Bambu Studio
Boost
4
35
0
0
0
0
Released

Description

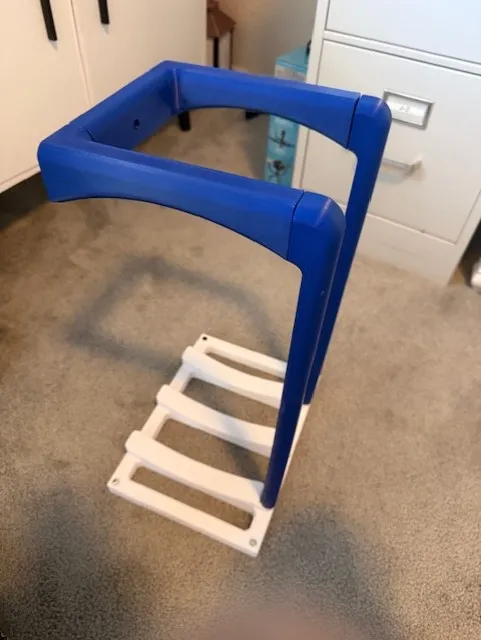

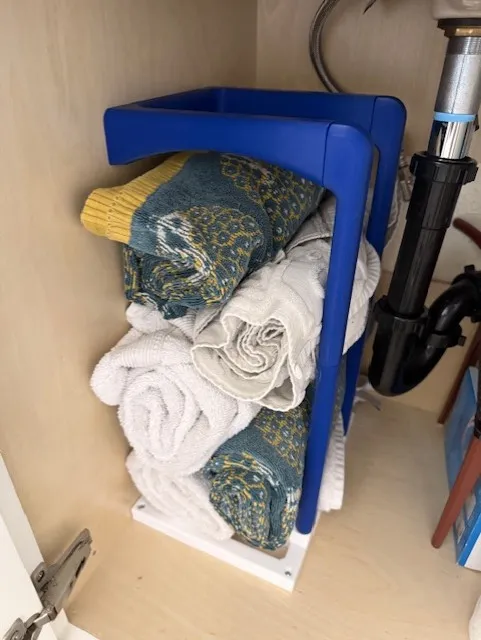

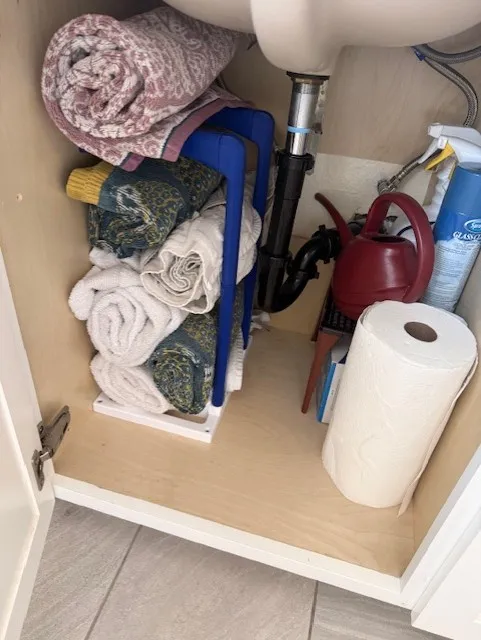

I needed space under my guest bathroom sink to store bath towels in an orderly and clean way. I found inspiration from another model (https://makerworld.com/en/models/1561885-towel_holder) but needed something a little bigger and stronger. So, I designed this one.

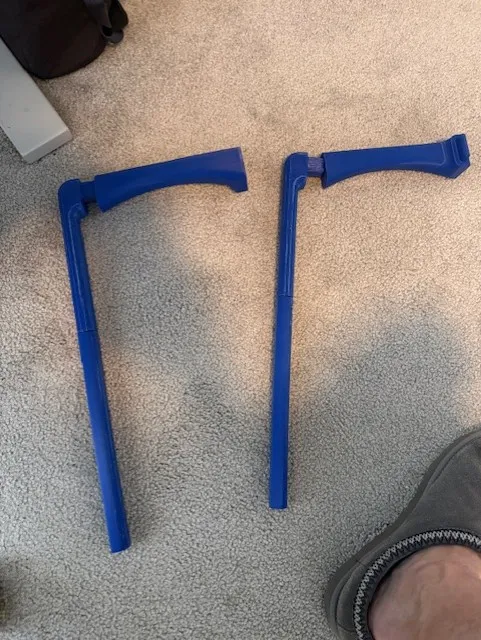

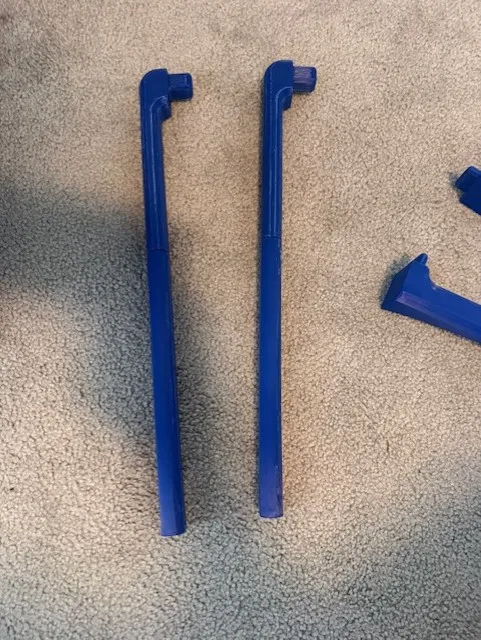

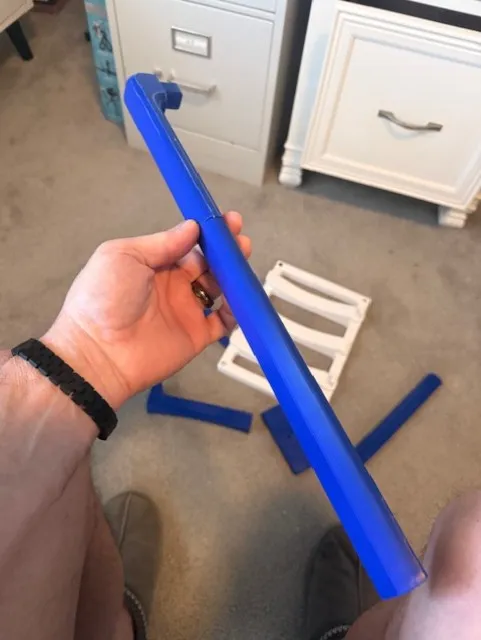

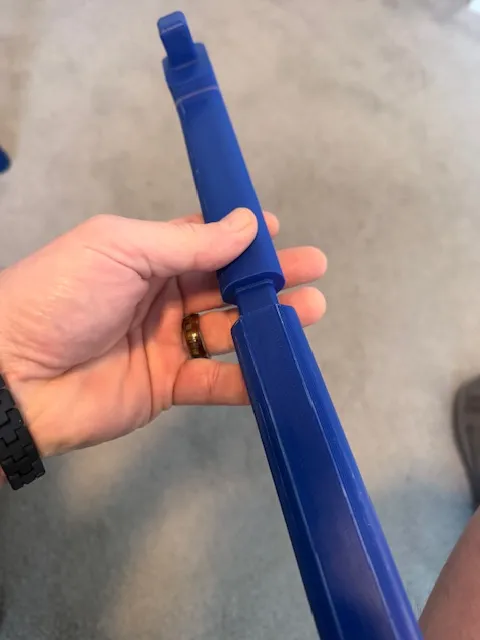

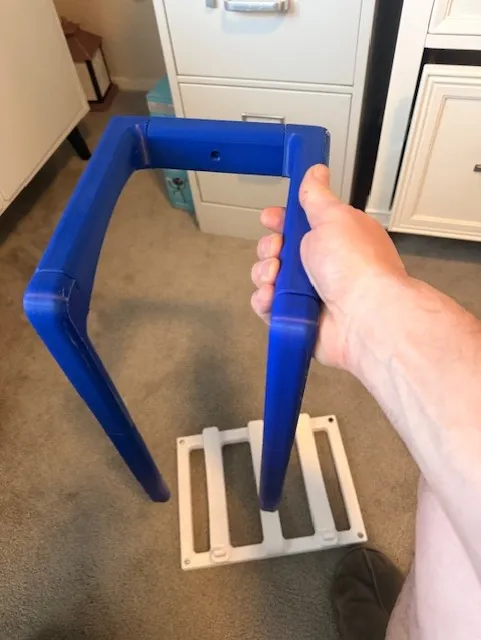

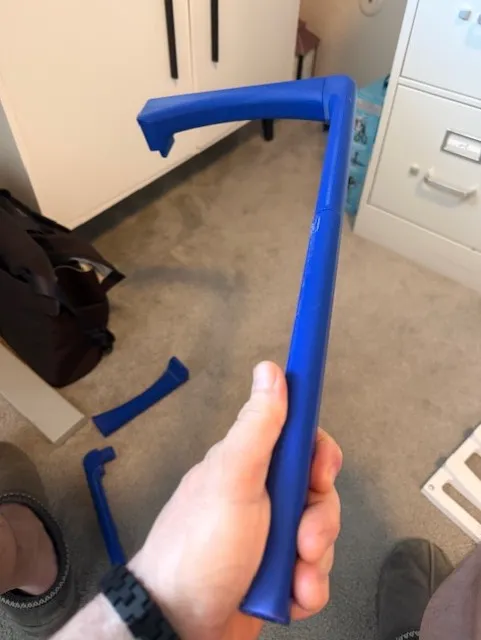

It can be adjusted vertically to hold more towels if you want a taller version by cutting the vertical rods and extending them in the slicer. I'd suggest some glue to hold it together but on mine, the press fit seems to be holding perfectly.

Also, I don't see a reason you couldn't scale this to fit a P-series printer - just be mindful to scale proportionately (XYZ).

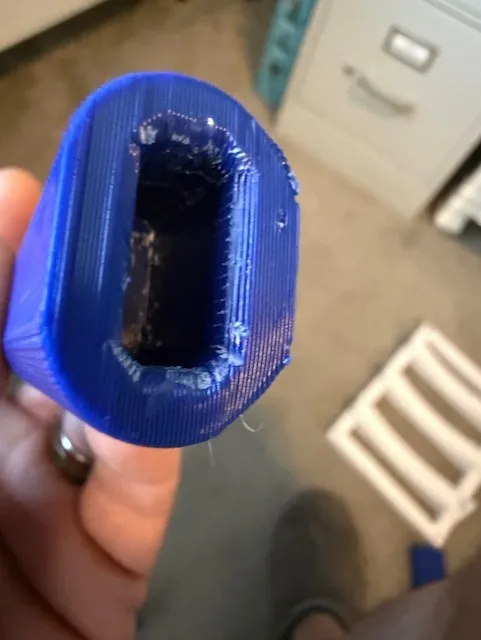

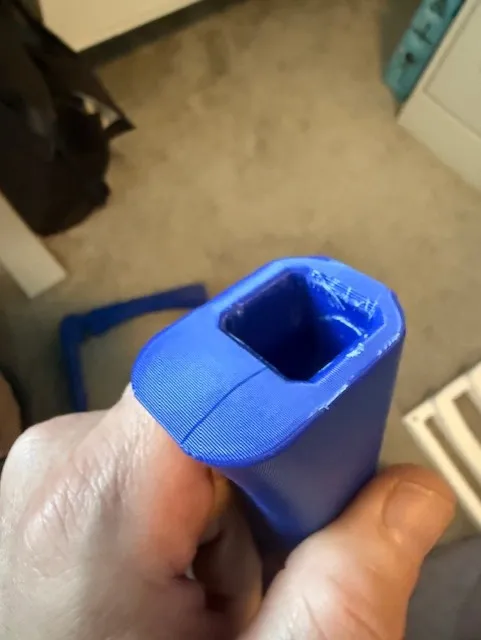

One call-out: Supports in the recesses are a little stubborn. I tuned them the best I could - feel free to tinker - but I found it useful to use a poker and some pliers and just be patient and get every little bit out. It took maybe a total of 10 minutes for all supports for me. Please post a note if you have found a better way to support this sort of opening - love picking up new ideas.

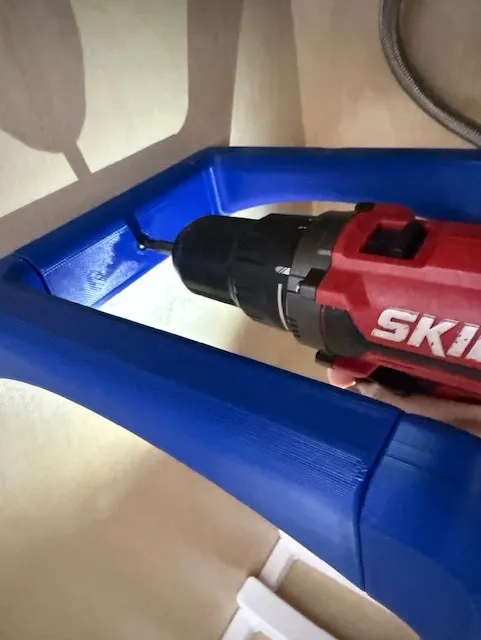

I used 4 screws to fasten it to the bottom and 1 to fasten it to the top.



Thanks for looking and I hope you enjoy it!



Boost or post images if you like it.
