Michael Jackson Spotify Vinyl with Hueforge

Product Description

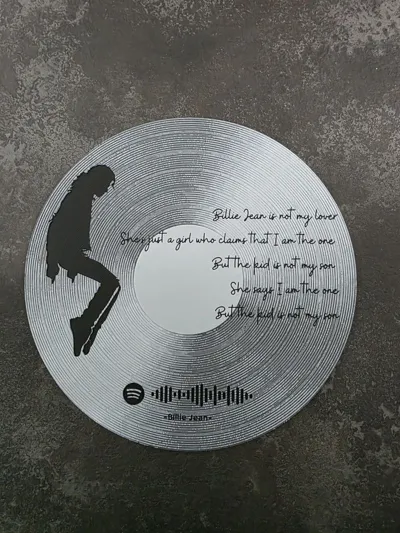

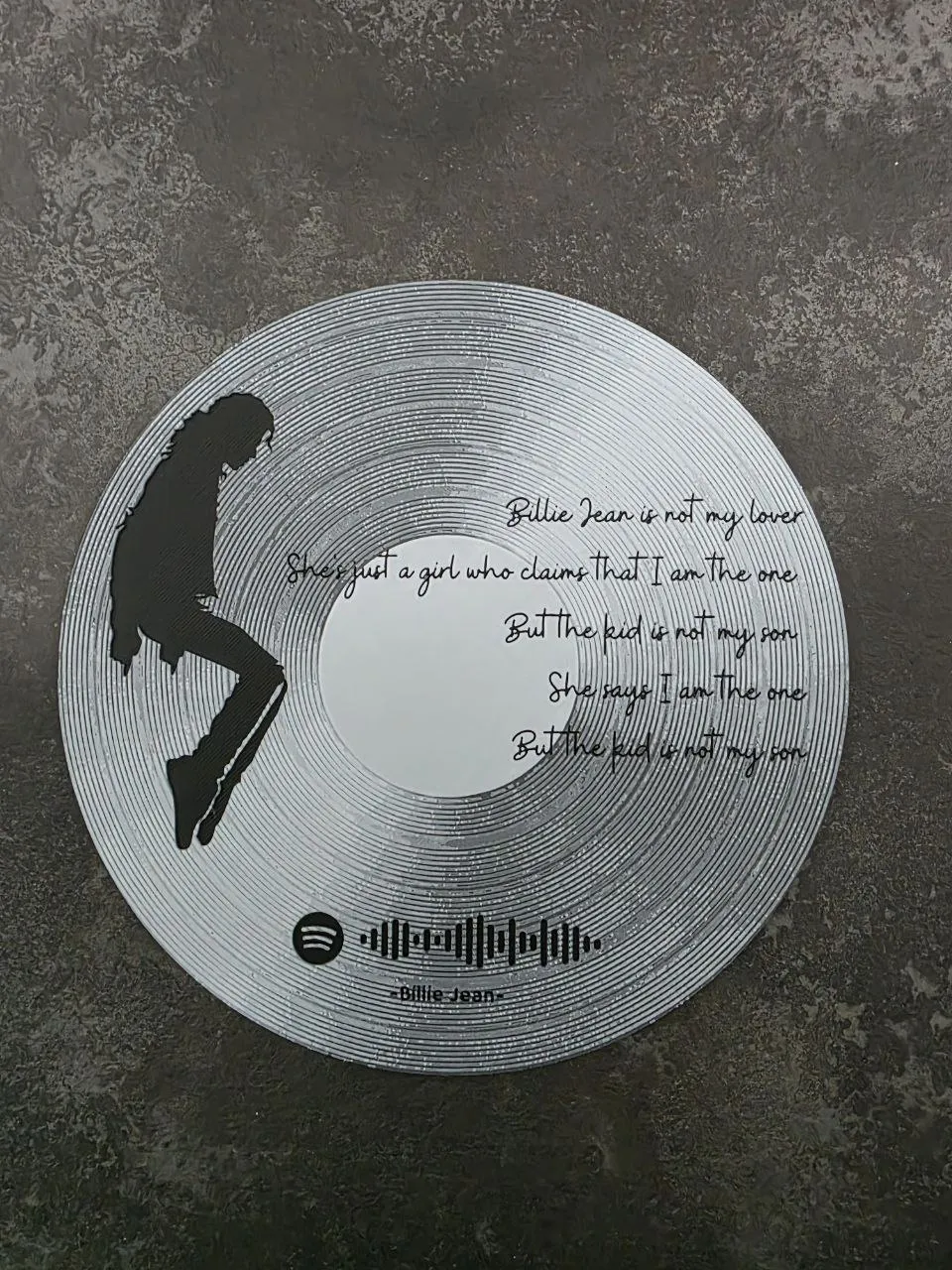

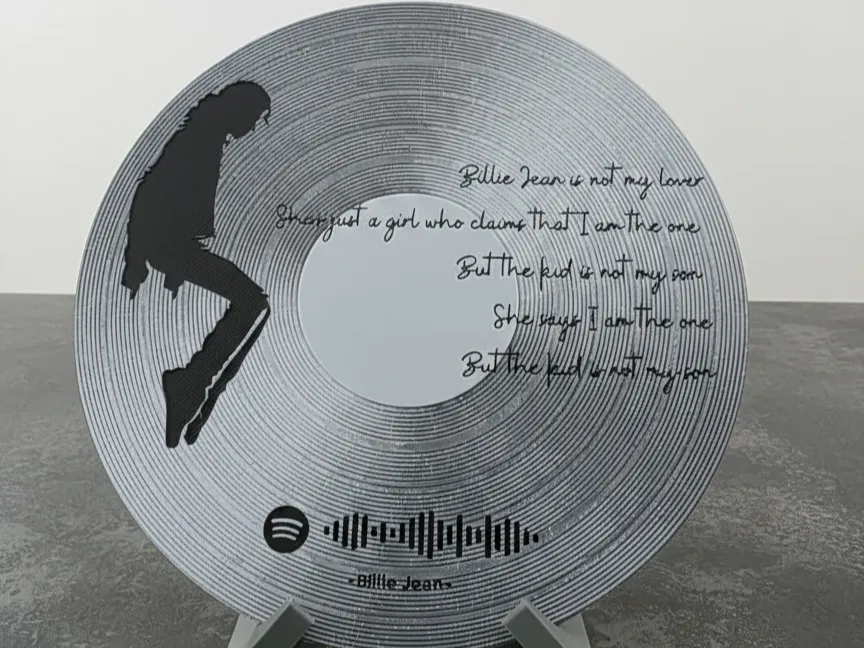

This is a decorative vinyl record (approximately 20 cm in diameter).

It is purely an ornamental object, it is not playable, and it features a Spotify Code to play the related track.

You can print the vinyl backing from this link: https://makerworld.com/it/models/2442861

Printing Details

The model was created using HueForge (Personal License) and leverages filament translucency (Transmission Distance – TD) to create grayscale gradients by layering black, gray, and white filaments.

To achieve optimal results, you only need three colors:

1. Black
2. Gray
3. White

The use of a white filament with an appropriate TD is crucial.

⚠️ Warning: Opaque white filaments are not suitable for this type of print.

• Recommended: Bambu Lab Jade White
• Compatible: Any white (or colored) filament with a TD between 5 and 6
• I used a third-party PLA+ White with similar opacity.

Printing Instructions

No AMS Required The included profile features automatic filament changes at layers 10 and 14. If you do not have an AMS, simply insert manual pauses to change the filament:

• Black → Up to layer 10
• Gray → From layer 10 to layer 14
• White → From layer 14 to the end

If slicing manually: Ensure you use the following settings for optimal HueForge results:

• Infill: 100%
• Layer Height: 0.08 mm
• First Layer Height: 0.16 mm

Pro Tip

Make sure to thoroughly clean the build plate before printing to ensure perfect first-layer adhesion.

Filaments Used

• PLA+ Sunlu Black (Transmission Distance: 0.6)
• PLA+ Sunlu Grey (Transmission Distance: 2)
• PLA+ Sunlu White (Transmission Distance: 5)

Legal Disclaimer

This project was created using a personal HueForge license and is intended for non-commercial use only.
