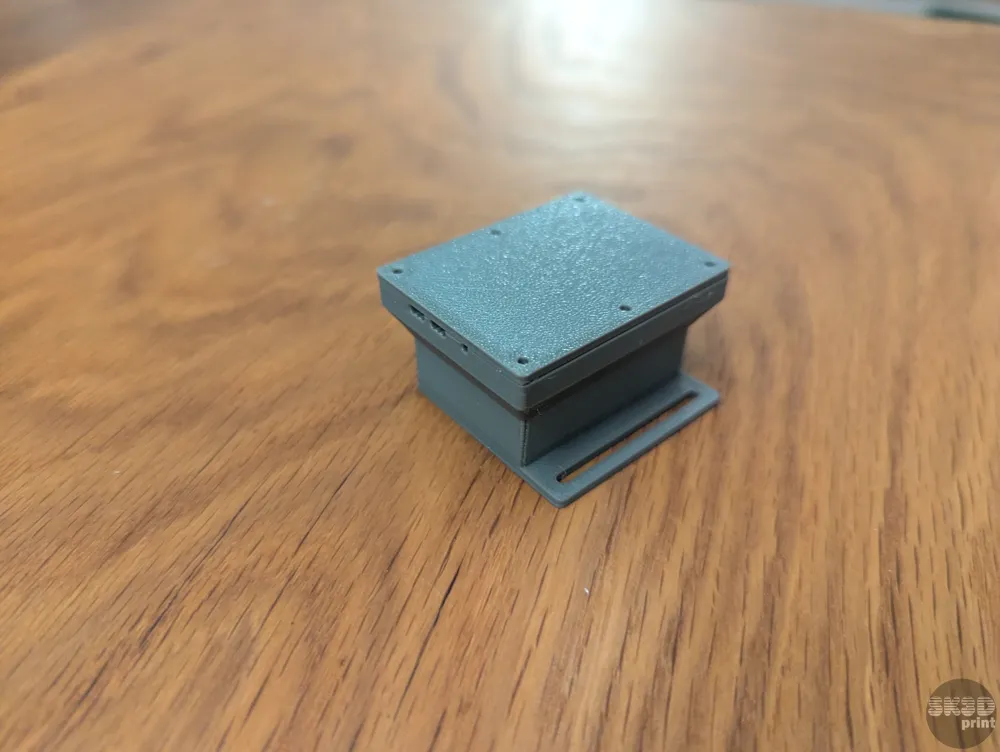

Waterproof Receiver Box

This is a little receiver box that can be made largely waterproof by adding a simple rubber band as a gasket.
I use this box in my offroad rc cars as well as in my rc boats and until now i had no moisture in the box - even after having considerable amounts of water in the boat hull.

The box can fit a Spektrum SR215 easily - for other receivers please take a look at the specified dimensions. It can be mounted using double sided tape or using the large mounting bracket.

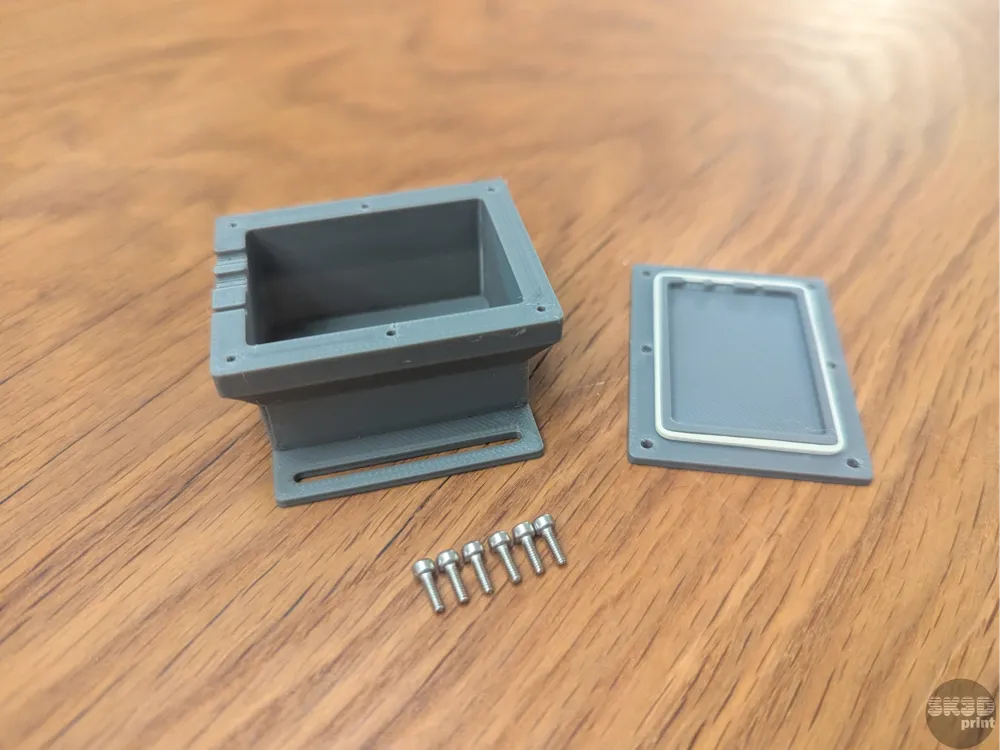

To seal the box correctly, you will need the following additional hardware:

• One small rubber band
• 6 pcs m2 screws with 5-6 mm length

Outer dimensions (not including bracket):
L 52 x W 40 x H 28

Inner dimensions:
L 41 x W 29 x H 22
