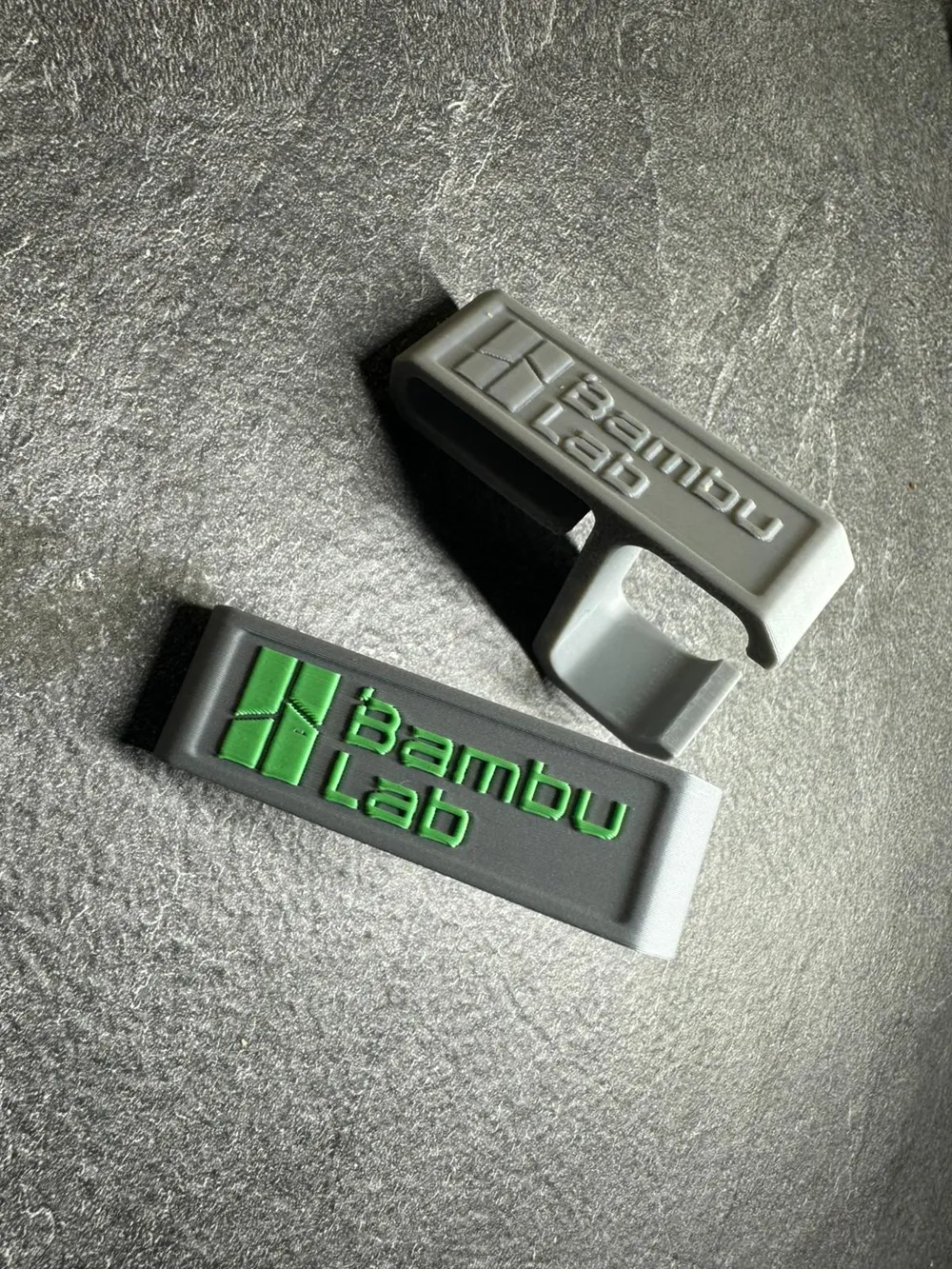

Bambu Lab A1 & A2L Extruder Black Cable Guide

Bambu Lab A1 & A2L Extruder Black Cable Guide – OEM Stress Relief System (Long Life Mod)

Why this exists

The stock cable routing on the Bambu Lab A1 leaves the toolhead cable partially unsupported during Z-axis travel.
Over time, repetitive flexing concentrates stress near the toolhead connector.

This model was engineered to:

• Control bending radius
• Reduce cyclic fatigue
• Stabilize cable oscillation
• Improve long-term reliability

This is not cosmetic.
This is a mechanical reliability upgrade.

What makes this different

Unlike simple clips, this system:

✔ Enforces a controlled bend radius
✔ Reduces micro-vibration during fast X movements
✔ Stabilizes vertical cable drop

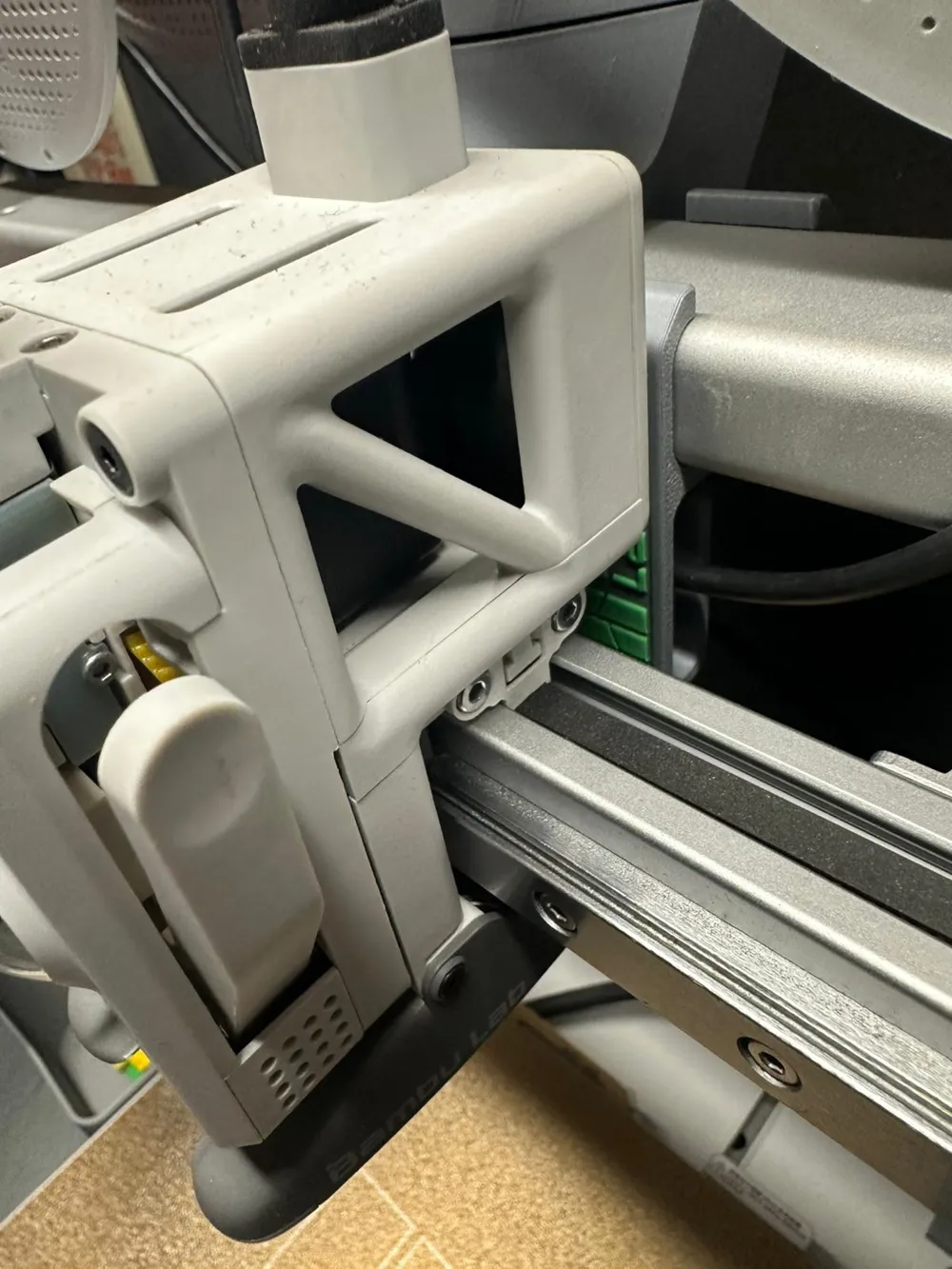

✔ Preserves full Z travel clearance
✔ Maintains OEM aesthetics

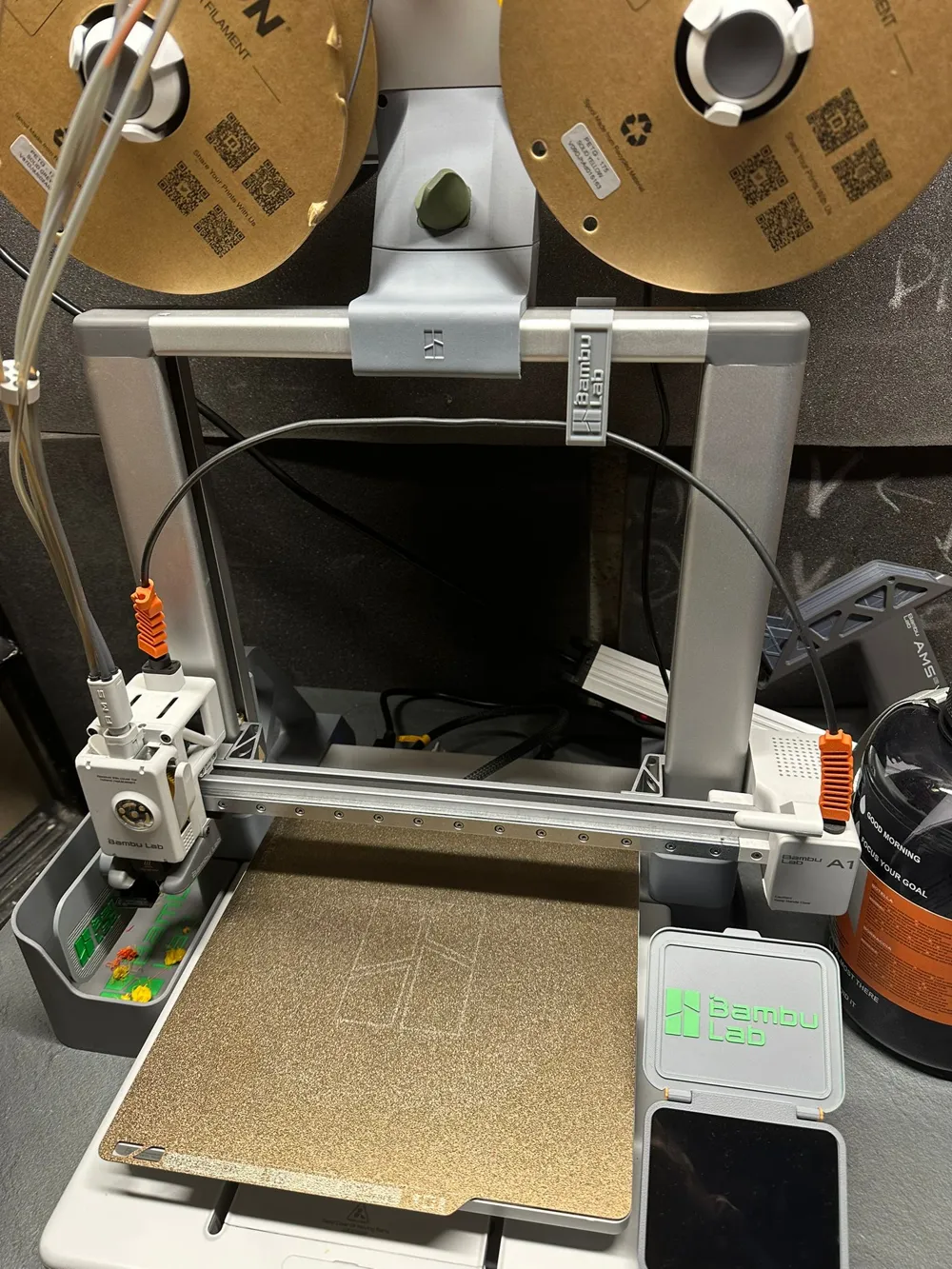

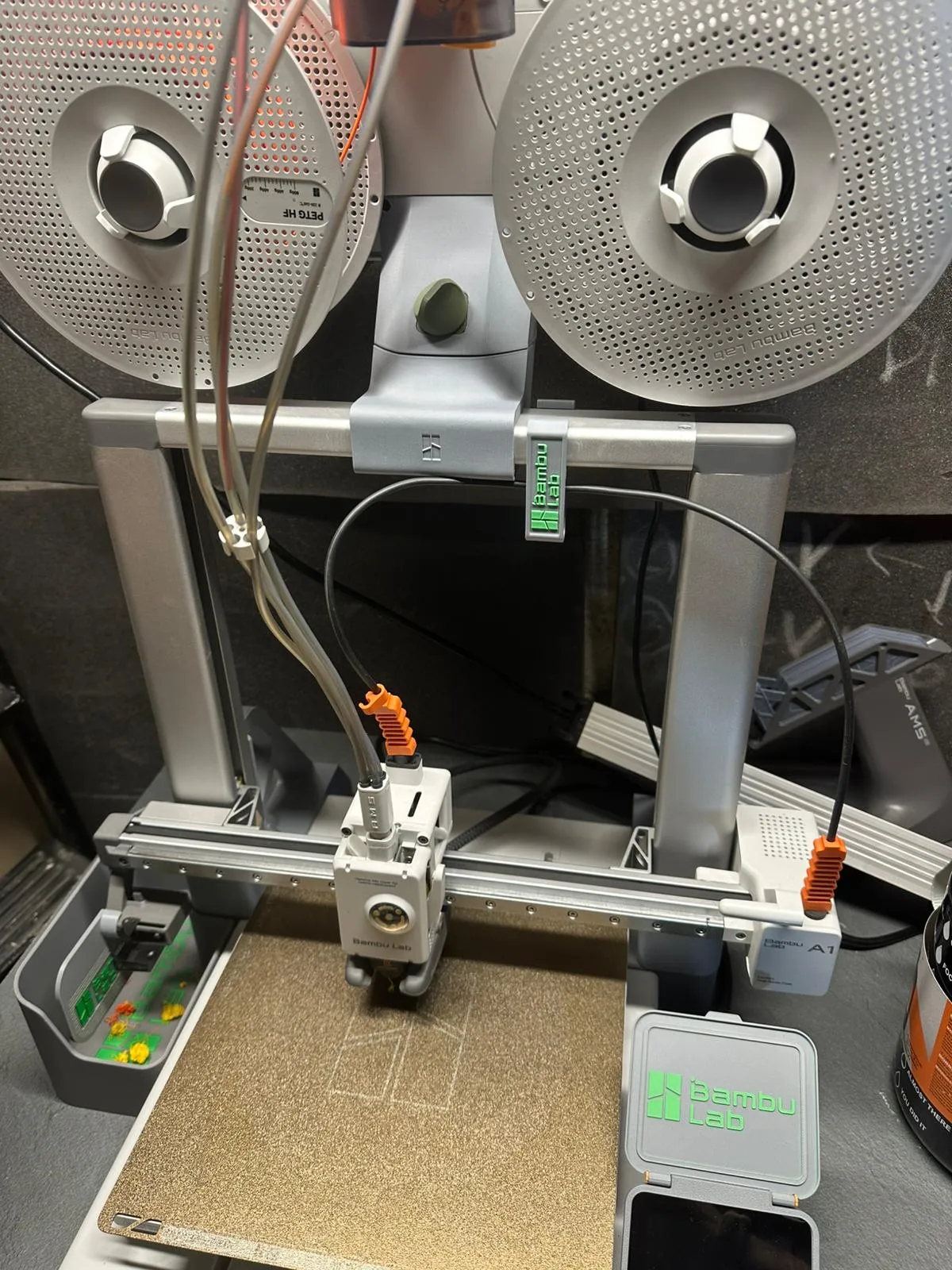

Designed specifically for the Bambu Lab A1

Engineering Concept

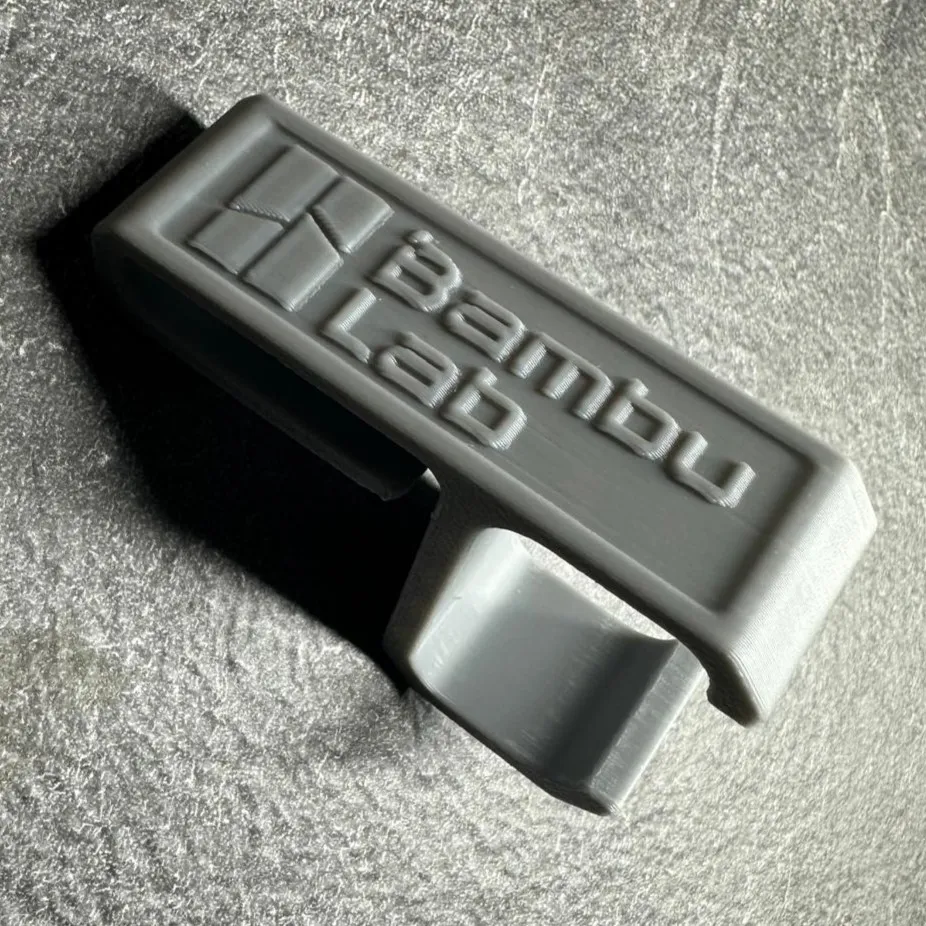

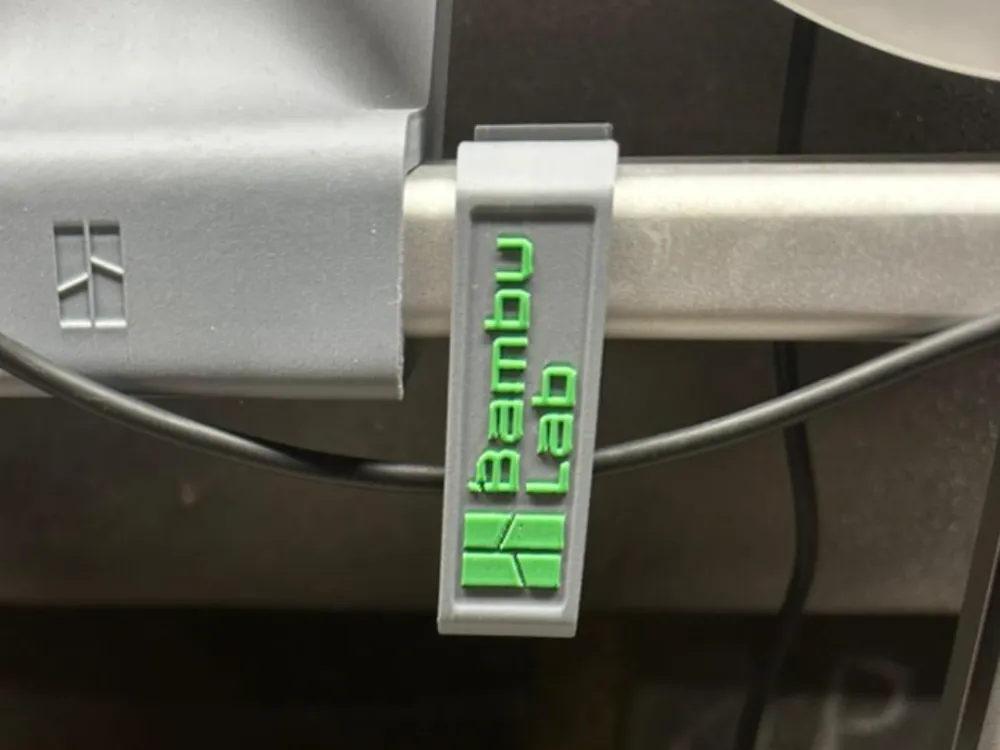

The guide anchors to the upper cross beam and gently redirects the cable path to:

• Eliminate sharp angle transitions
• Reduce connector-side fatigue
• Maintain natural cable curvature

Optimized to avoid:

• Interference with AMS Lite
• Z-axis collision
• Frame vibration resonance

Print Settings (Validated)

Material:

• PLA
• PETG (recommended for better long-term durability)
• PA-CF (premium high-stiffness option)

Layer height:
0.2 mm

Walls:
Minimum 4 perimeters

Infill:
20% (Gyroid or Cubic recommended for a good strength-to-weight balance)

Orientation:
Print flat to maximize structural integrity and bending resistance.

Supports:
Not required.

Installation

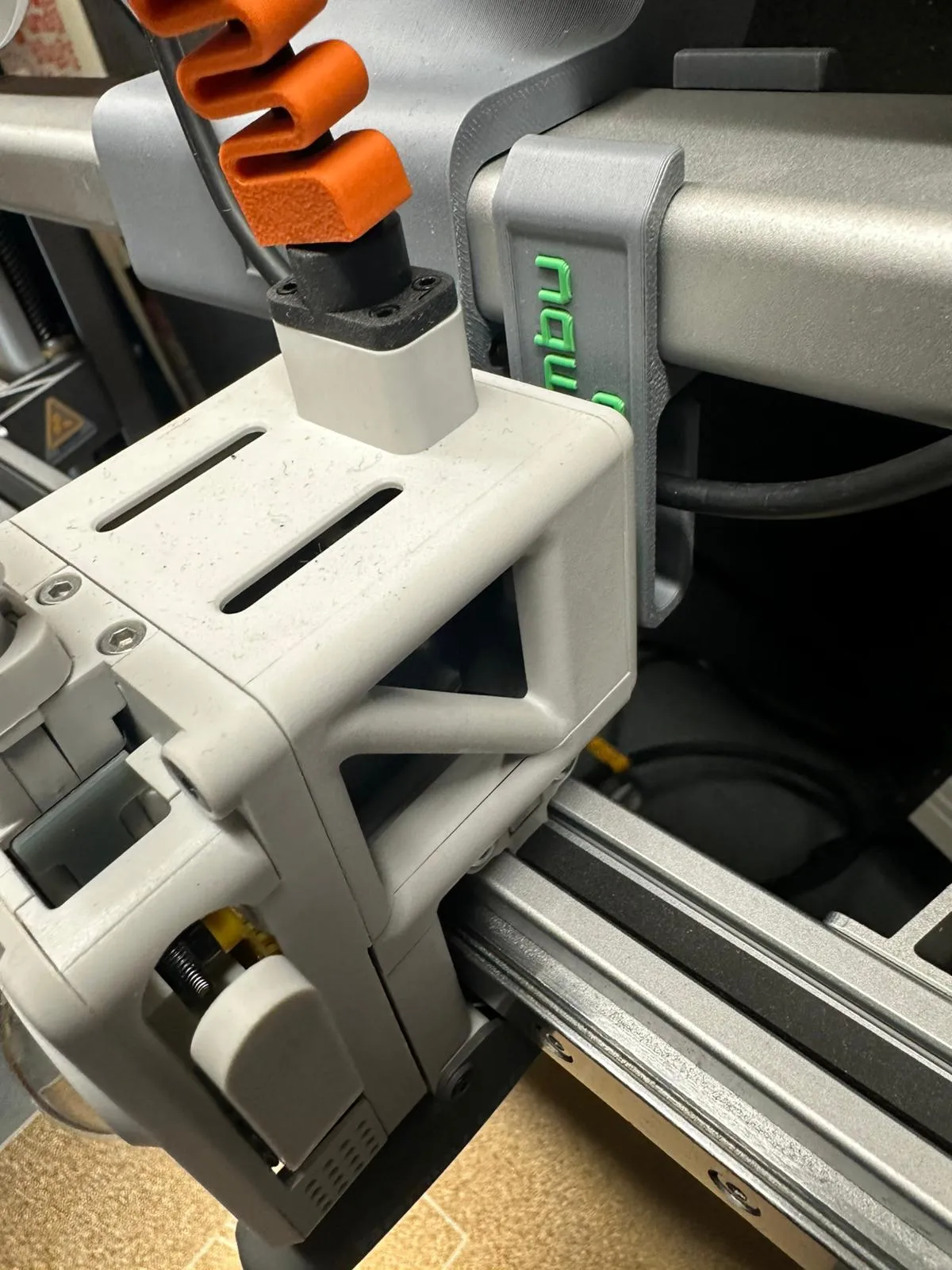

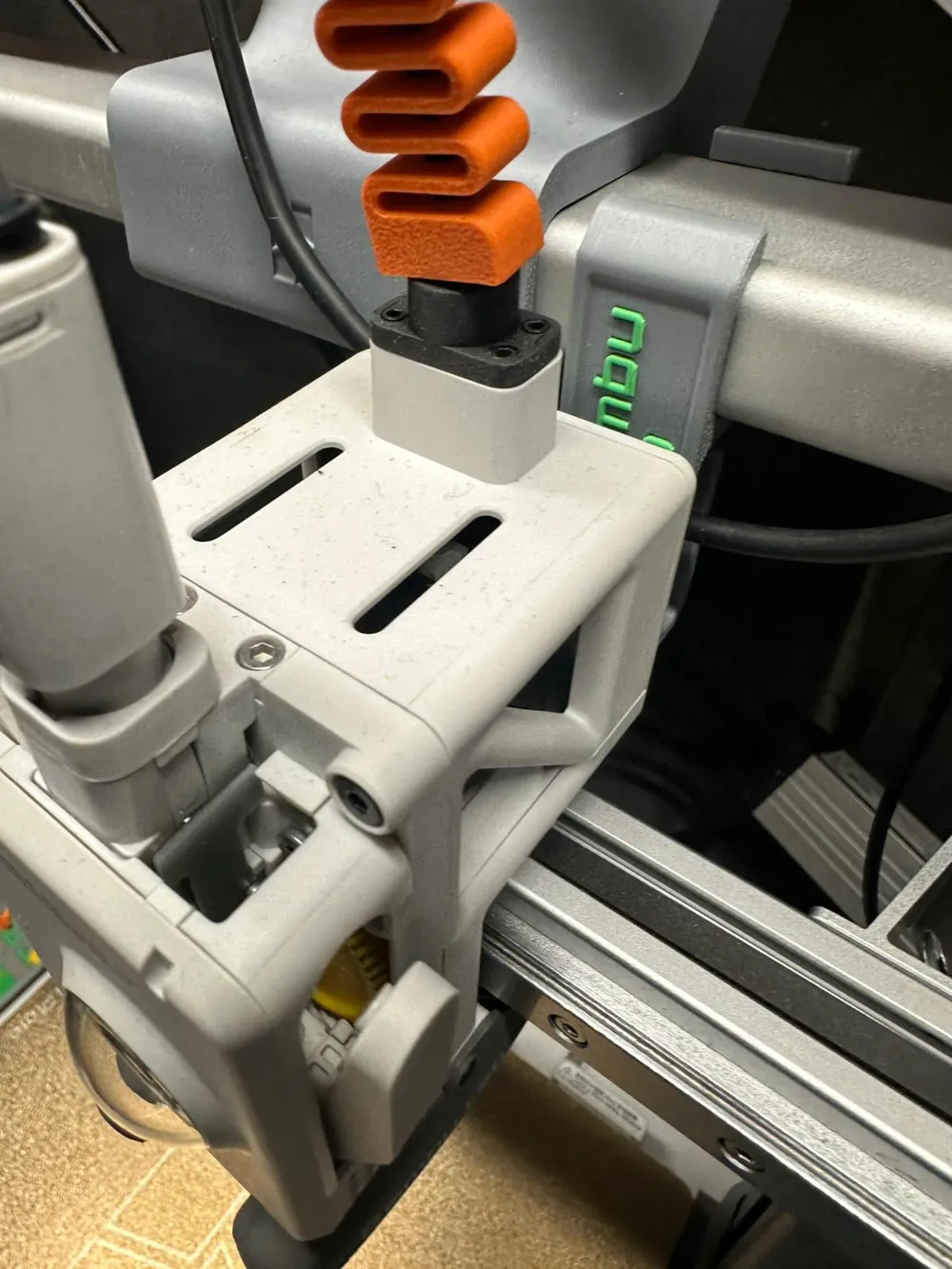

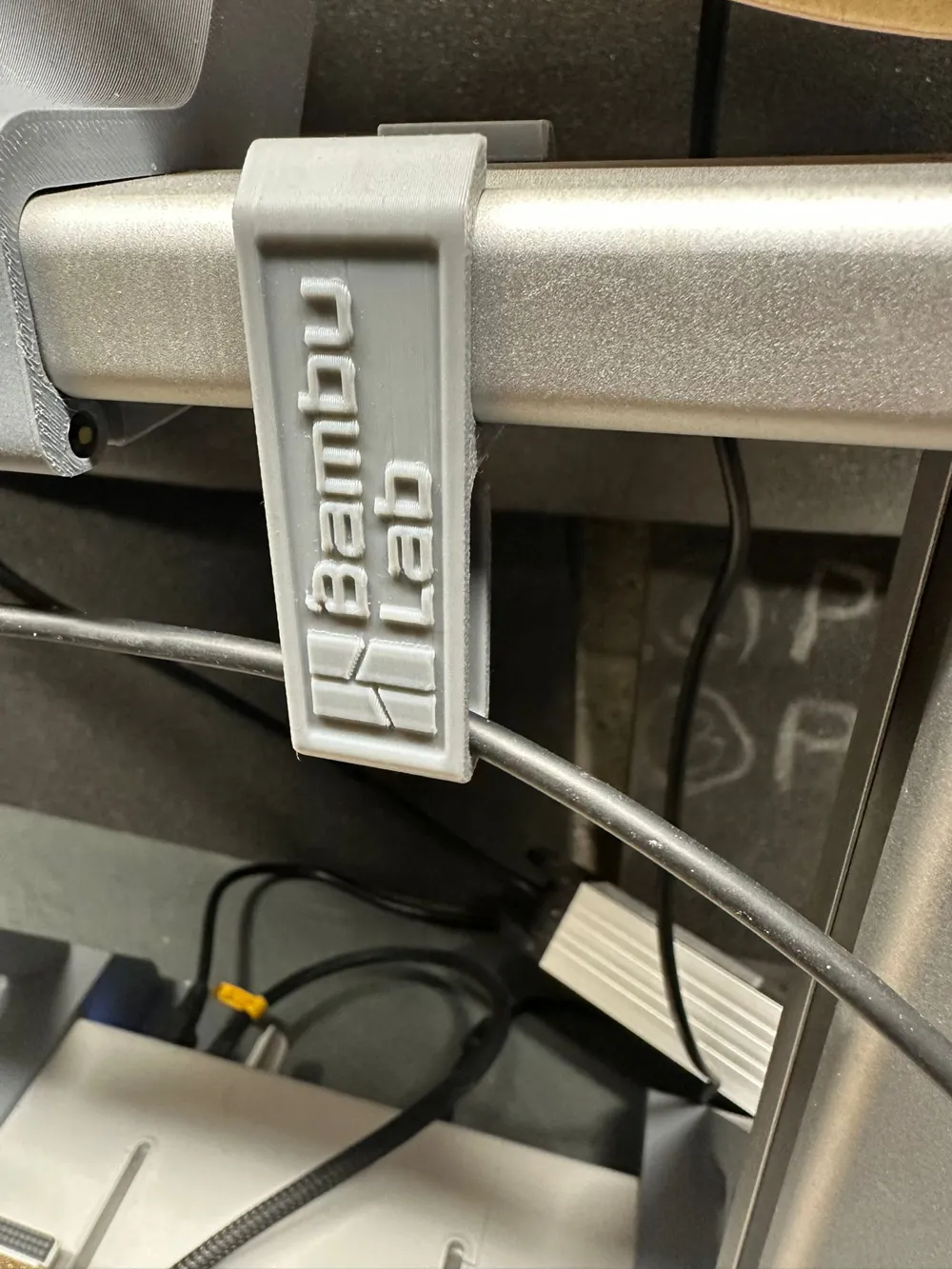

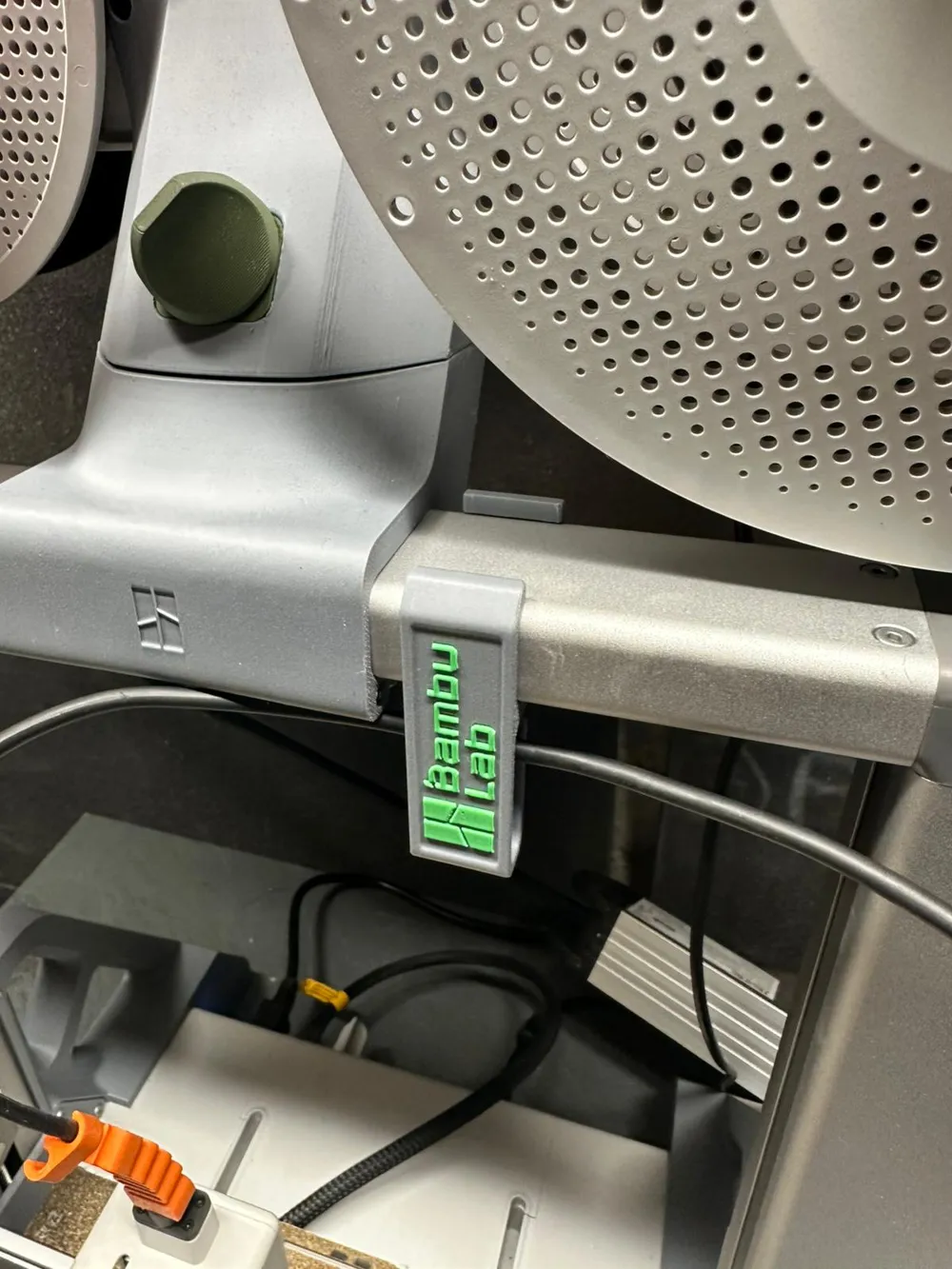

1. Snap onto upper cross beam.

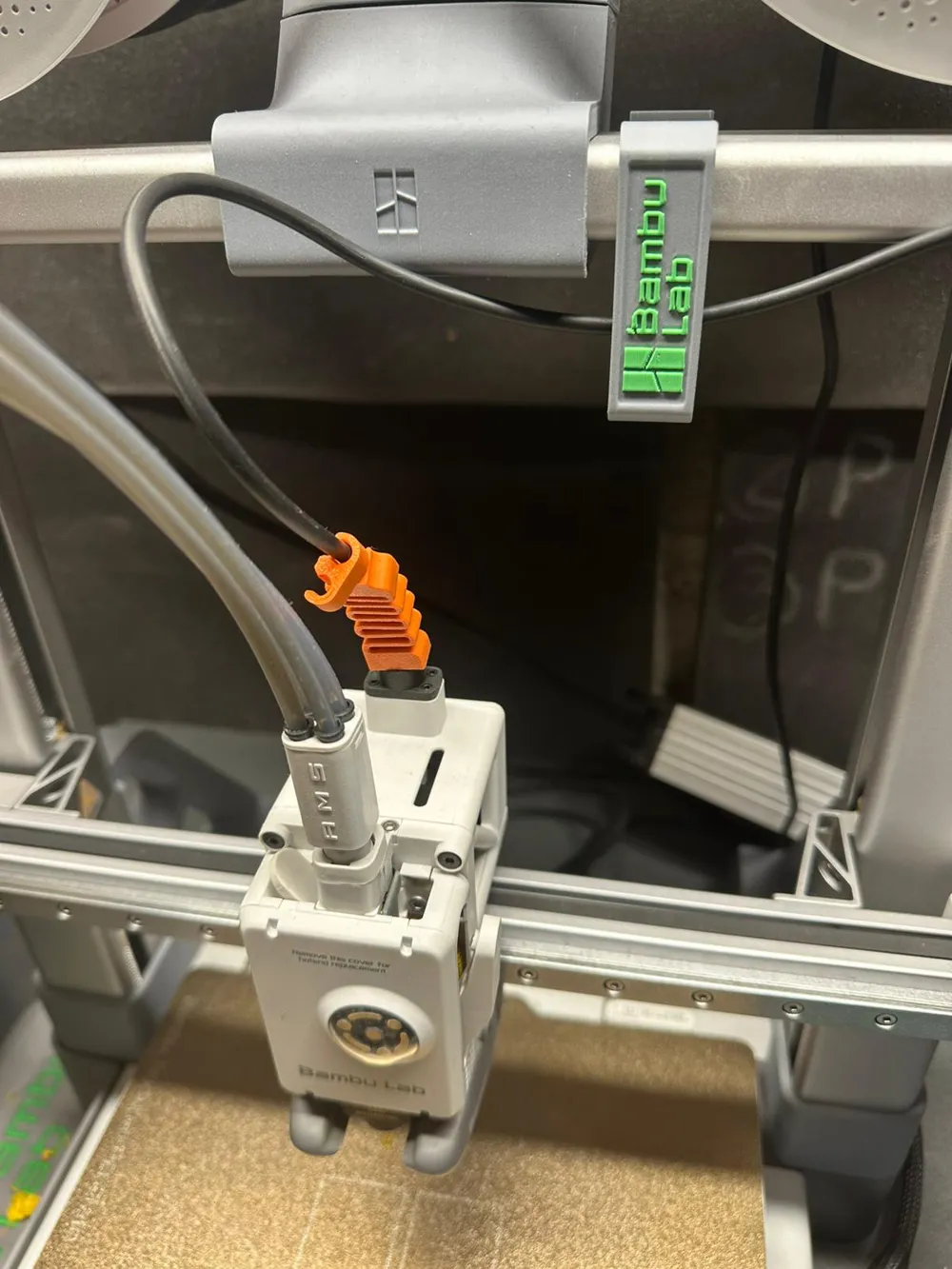

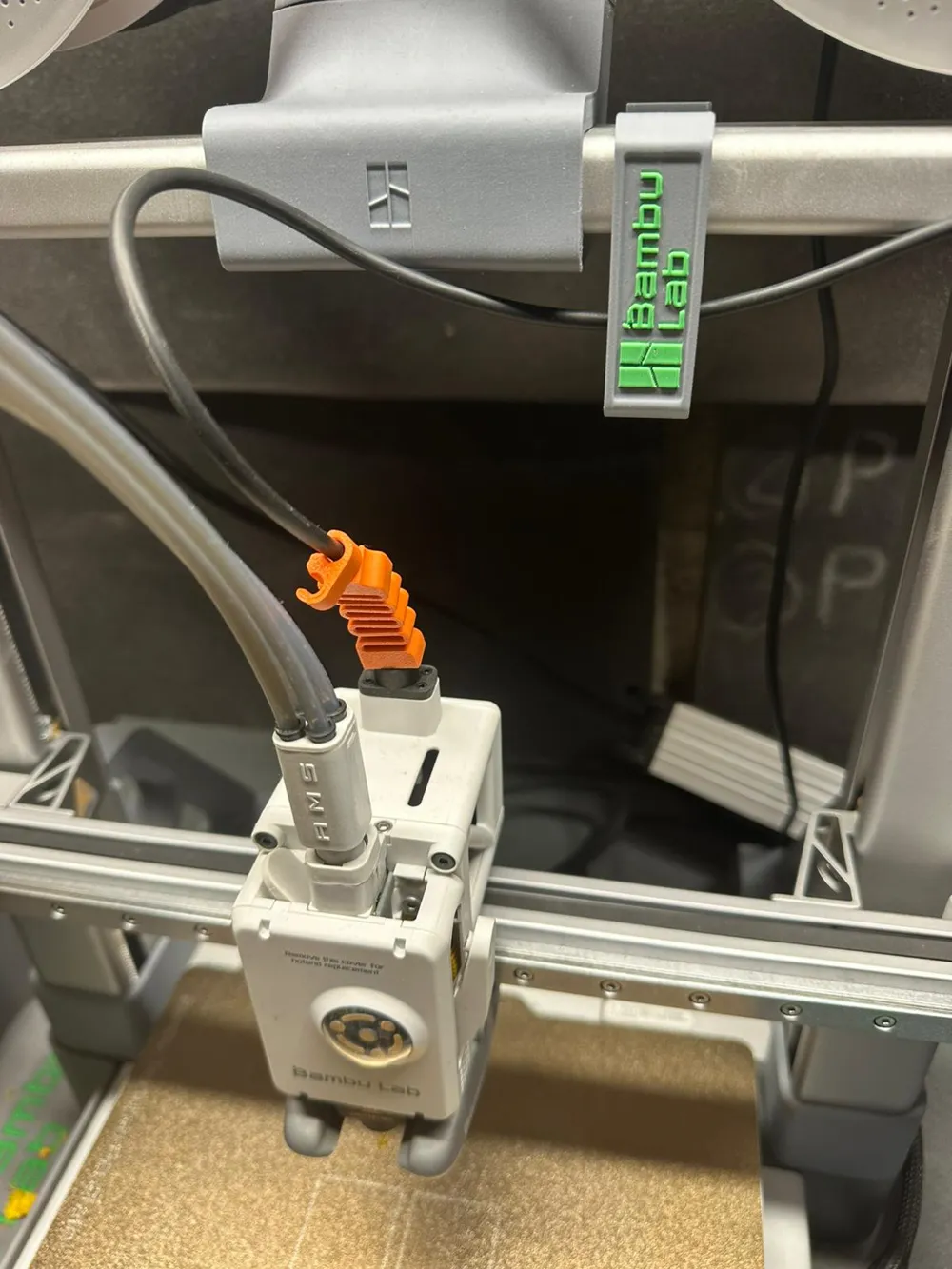

2. Route cable naturally into channel.
3. Verify full Z-axis travel.
4. Check minimum bend radius is smooth and continuous.

Installation time: under 2 minutes.

No hardware required.

Compatibility

✔ Bambu Lab A1
✔ Compatible with AMS Lite setups
✘ Not designed for A1 Mini

This design was engineered from real-world fatigue considerations and long print-hour validation.

It will remain Exclusive to support ongoing engineering improvements and version upgrades.

Future planned:

• Reinforced Pro version
• Dual-support extended edition
• Cable spine hybrid variant
