TBS Source One v6, DJI O4 Pro antenna mounts

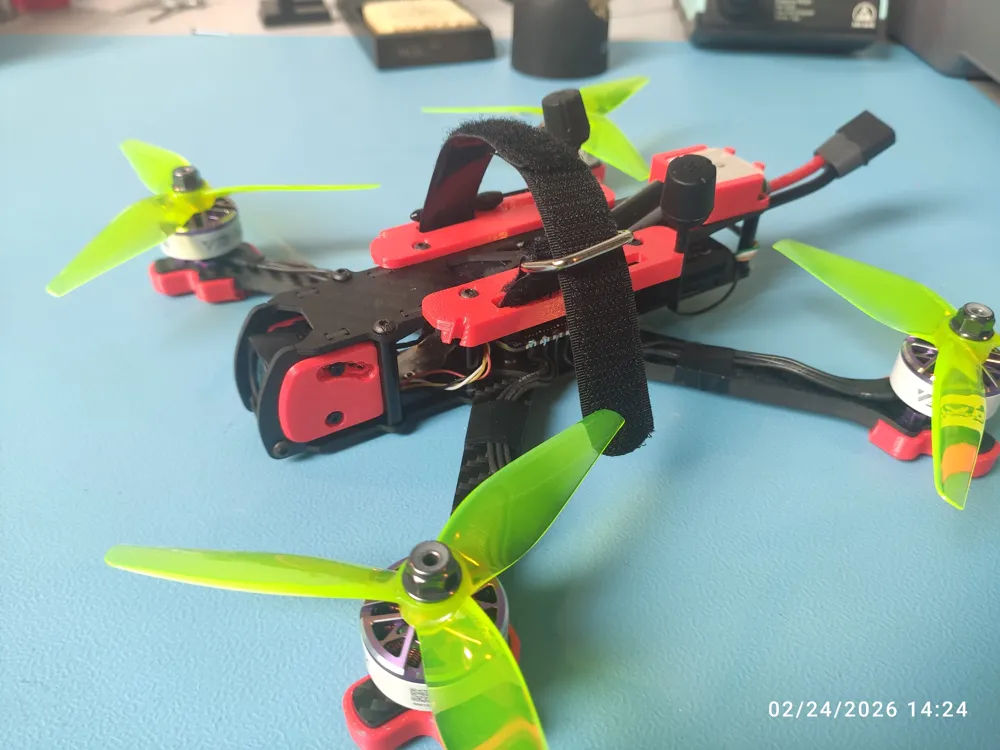

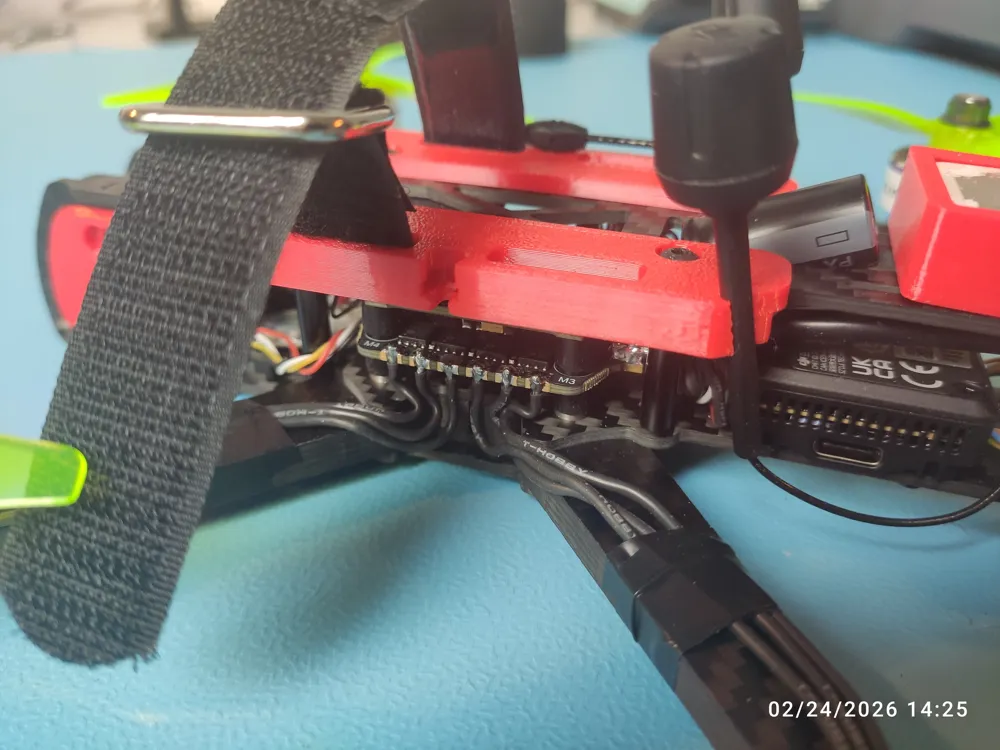

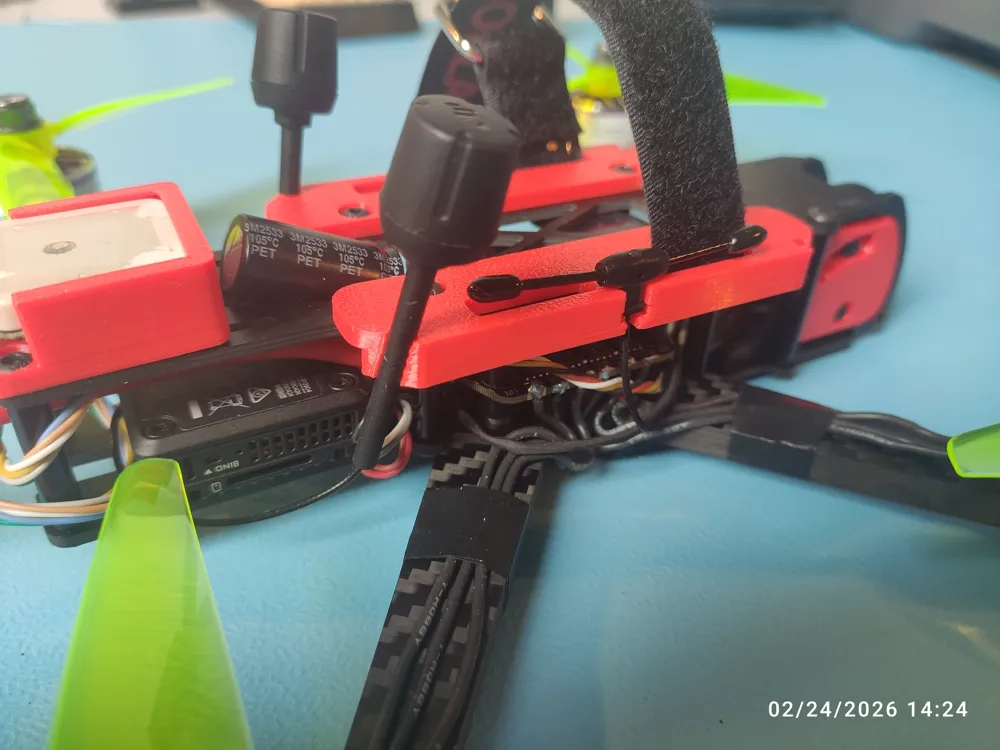

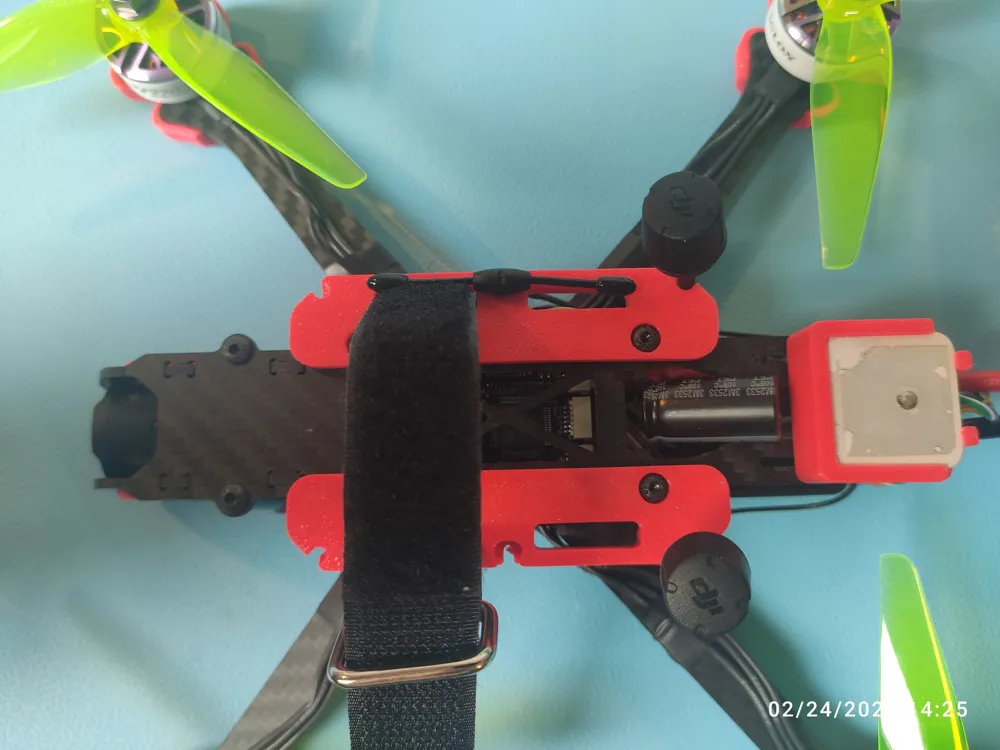

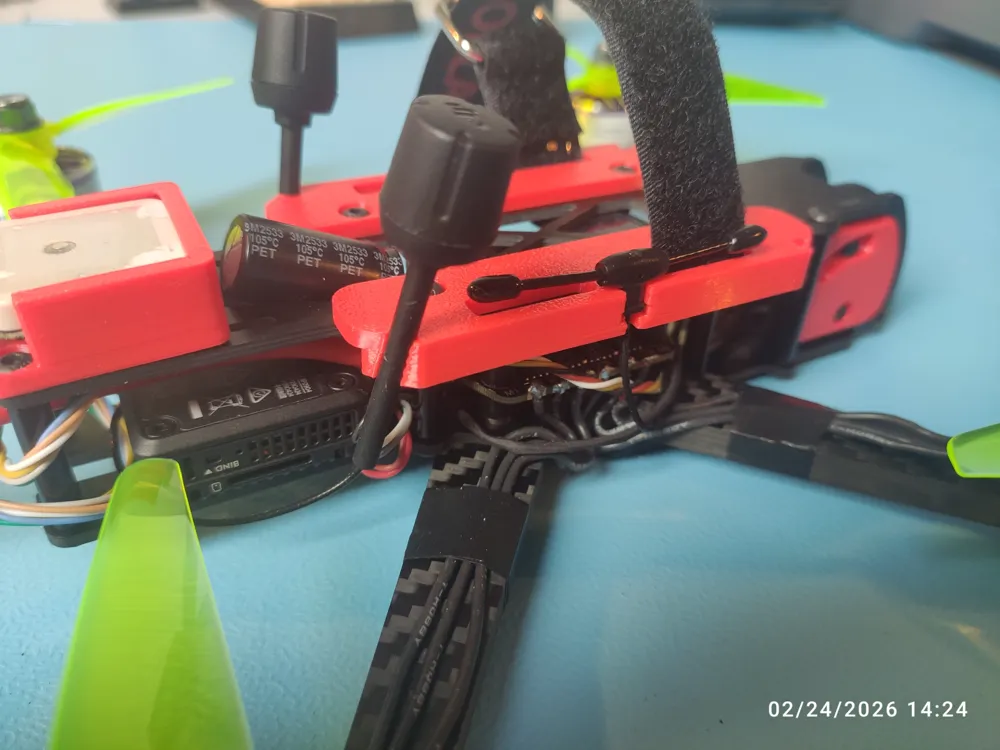

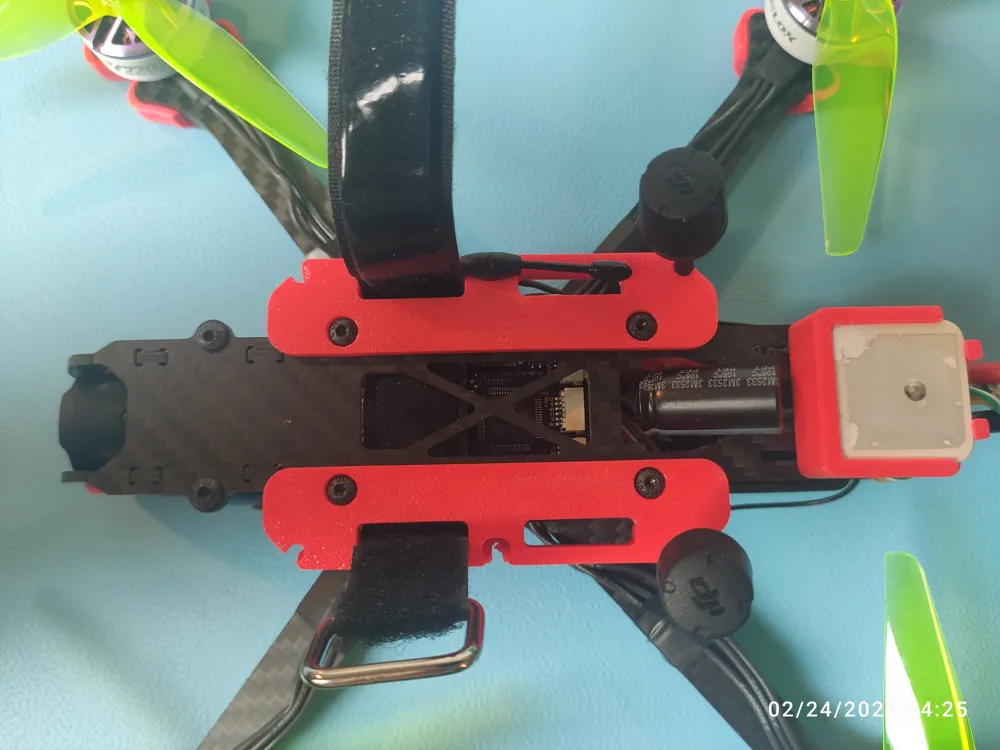

3D model to mount the DJI O4 Pro camera antenna's in the TBS Source One V6 frame.

The idea was to keep the antenna's near the center of the frame to reduce the chance of them crashing into things (may not be ideal for range).

The other antenna visible is the RX antenna from: RadioMaster XR1 ELRS 2.4GHz Nano Receiver.

All antennas are kept in place by the friction of the TPU.

Holes are slightly tapered to remove the need of support while printing (they may not be perfectly clean, but functional)

I have printed these parts from Bambu TPU material.

Happy flying.

For reference, the build is:
Frame: TBS Source one 5" V6

Motors: T-Motor Velox V2207 V3 Motor - Purple - 1750KV

FC & ESC stack: GEPRC TAKER F722 BLS 60A V2 Stack

Receiver: RadioMaster XR1 ELRS 2.4GHz Nano Receiver

GPS: TBS M10Q GPS GLONASS

Props: HQProp 5037 PizzaCutters
