TBS Source One, DJI O4 Pro Cam Mount

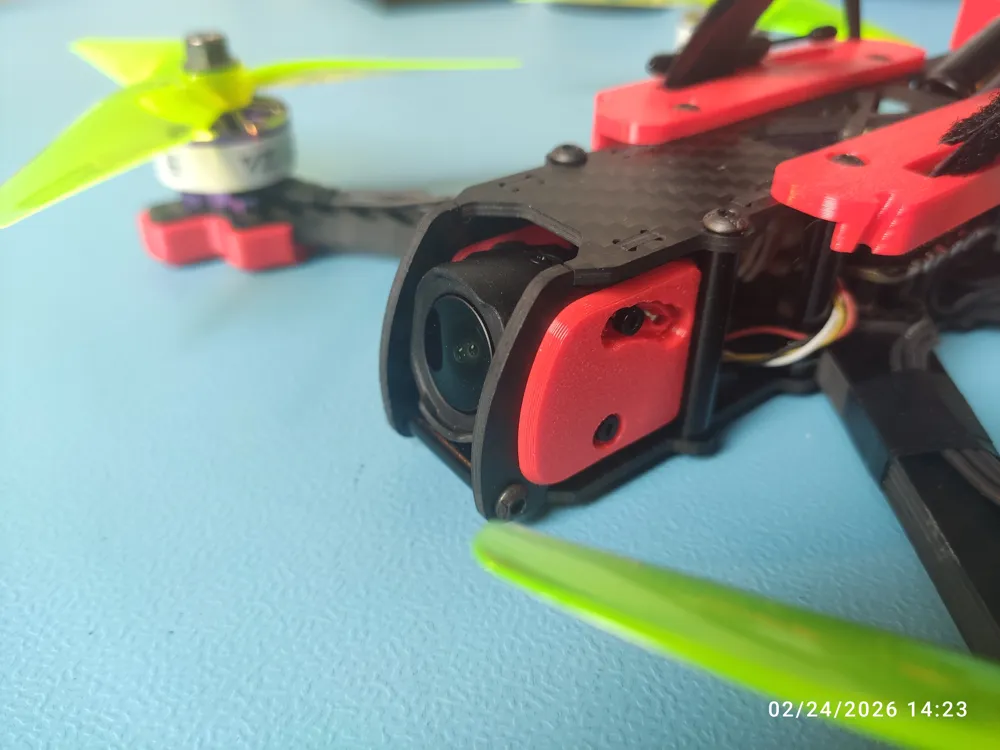

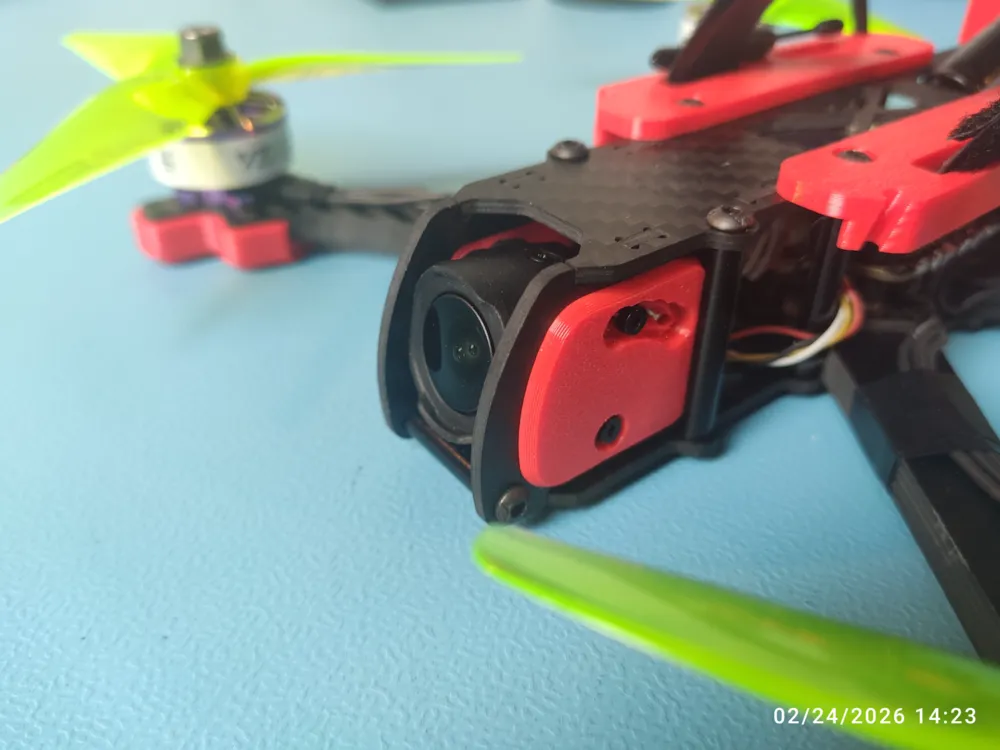

3D model to mount the DJI O4 Pro camera in the TBS Source One V6 frame (16mm hole spacing).

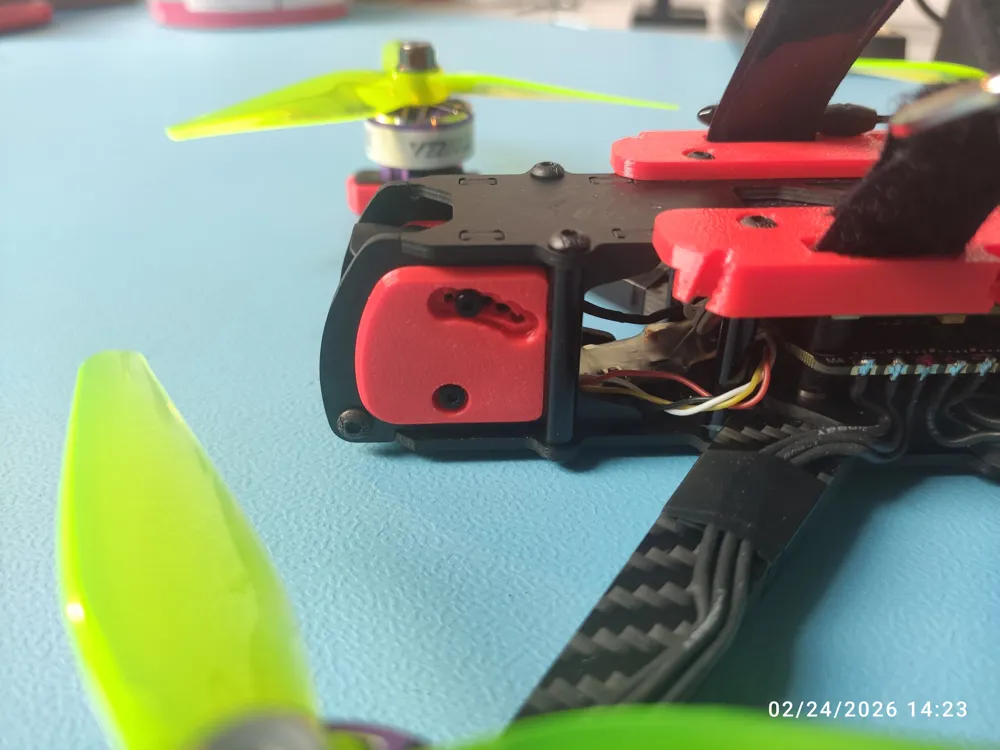

Holes can be used to adjust the camera angle from 0 - 40 degrees, in 10 degree increments.

Camera sits back slightly in the carbon frame for some impact protection.

Holes are slightly tapered to remove the need of support while printing (they may not be perfectly clean, but functional)

I have printed these parts from Bambu TPU material.

Happy flying.

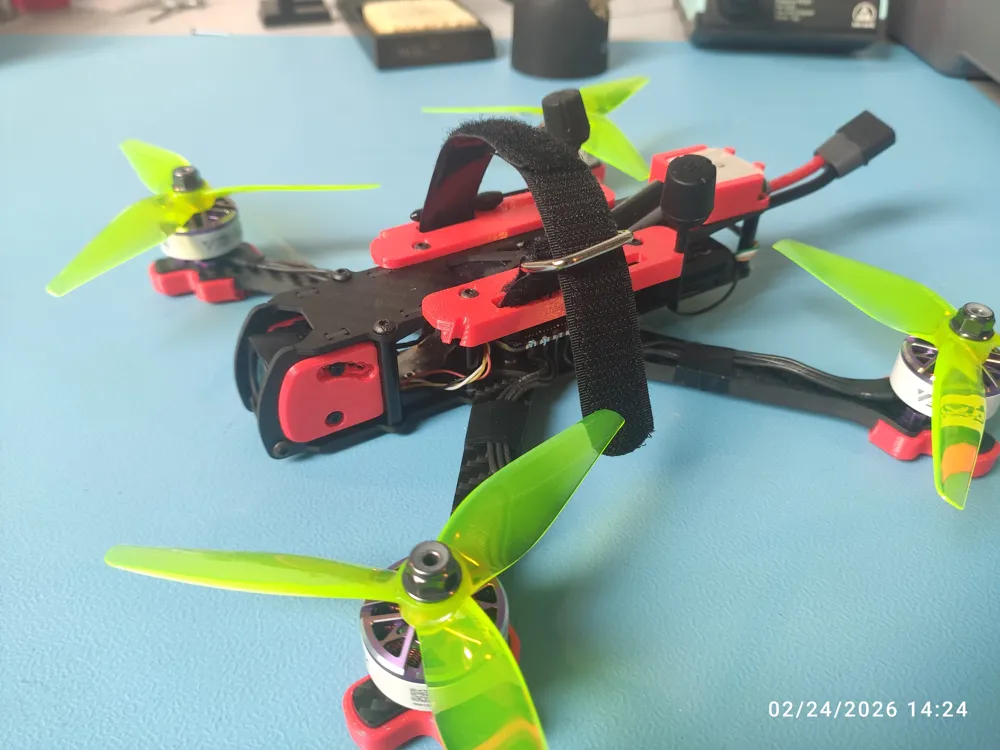

For reference, the build is:
Frame: TBS Source one 5" V6

Motors: T-Motor Velox V2207 V3 Motor - Purple - 1750KV

FC & ESC stack: GEPRC TAKER F722 BLS 60A V2 Stack

Receiver: RadioMaster XR1 ELRS 2.4GHz Nano Receiver

GPS: TBS M10Q GPS GLONASS

Props: HQProp 5037 PizzaCutters
