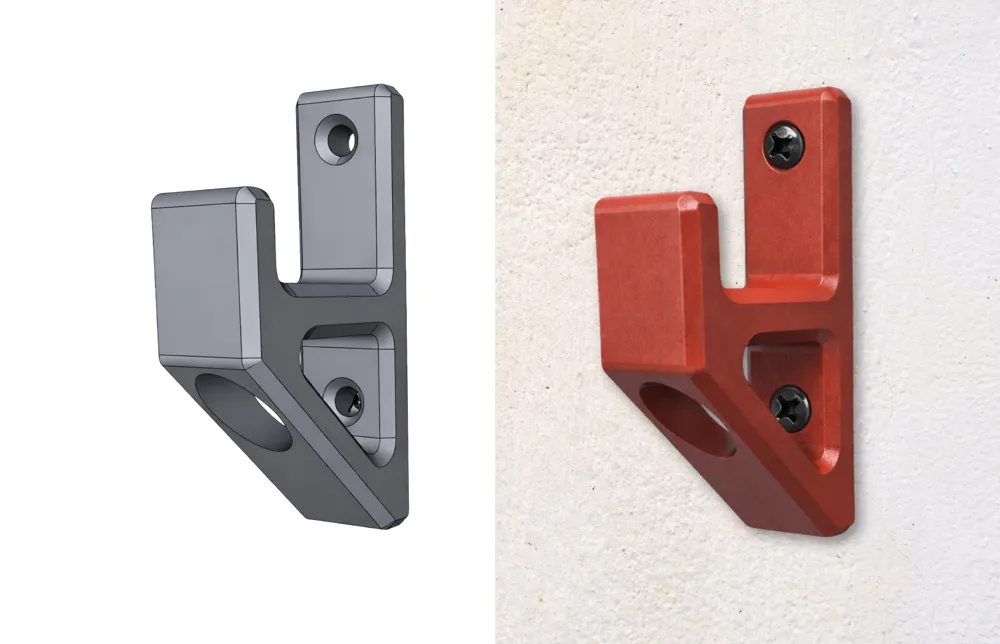

This is an alternate version of my Heavy Duty Wall Hook / Utility Bracket designed to accommodate standard drywall screws for a cleaner, flush-fit install.
The original model has done very well in real-world garage and workshop setups. This variant keeps the same compact reinforced geometry but adjusts the mounting holes to better fit commonly available drywall screw head sizes.
🔗 Original Model:
https://makerworld.com/en/models/2292319-heavy-duty-wall-hook-utility-bracket-compact

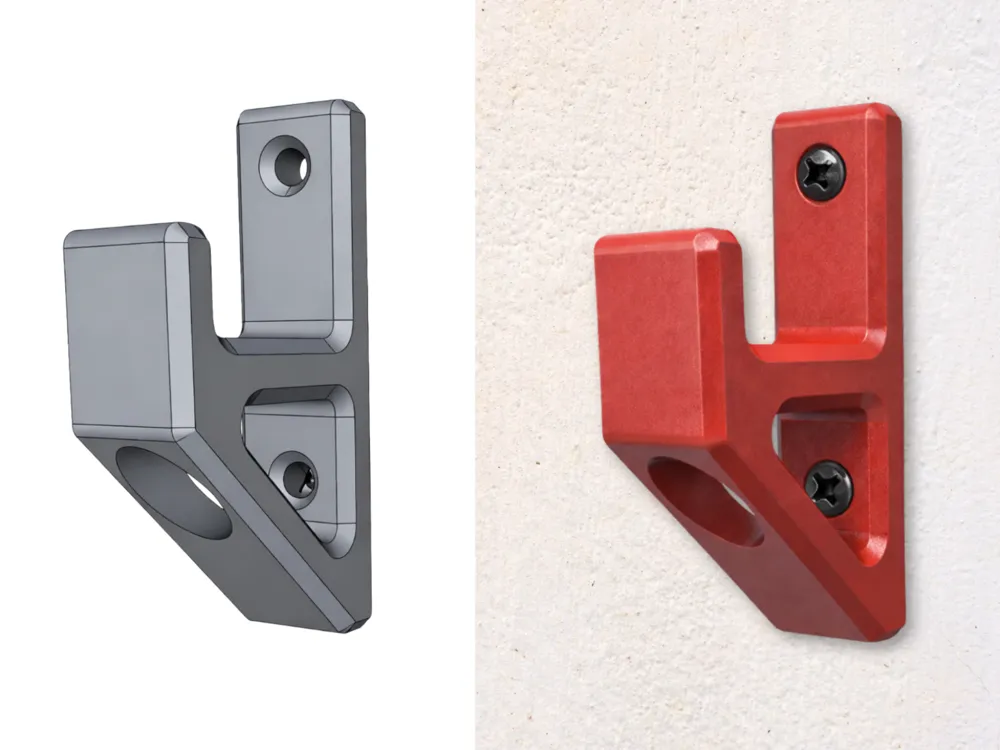

This allows screw heads to sit flush within the mounting holes for improved wall contact and easier installation using hardware most people already have on hand.
Boost Me (for free)
Boost Me (for free)
If you find this model useful and it fits into your setup, a Boost on MakerWorld is hugely appreciated.
No obligation — but if this saves you time, filament, or frustration, a Boost is the easiest way to say thanks.
Design Highlights
- Two-screw wall mounting for a secure, non-rotating install
- Triangular reinforced structure for strength without bulk
- Rounded edges & chamfers
- Compact footprint with excellent load distribution
- Countersunk mounting holes sized for common drywall screws
- Flush-fit install for improved wall contact

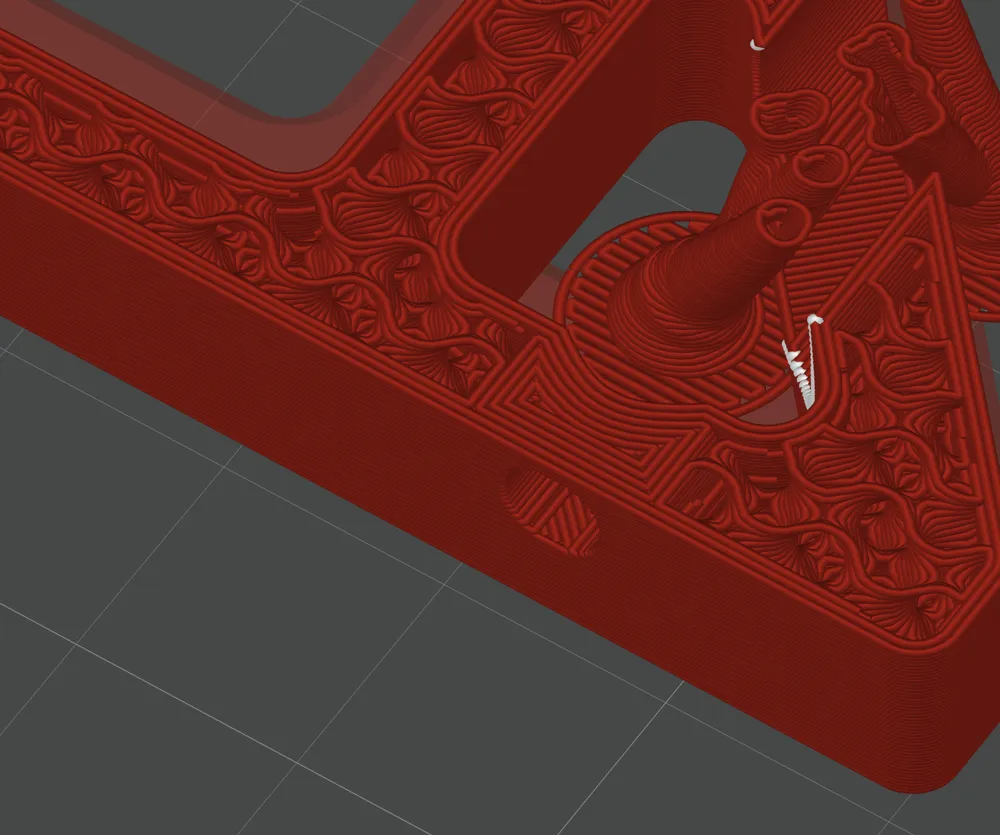

- BONUS: The included 3MF file contains modifier geometry that reinforces the screw mounting areas with localized 100% infill for added strength.
Use Cases
Hat hook (ball caps, snapbacks, trucker hats)
Garage or workshop wall hook
Hanging light gear, cords, headphones, or accessories
Utility hook for closets, mudrooms, or storage areas
Printing Notes (Important)

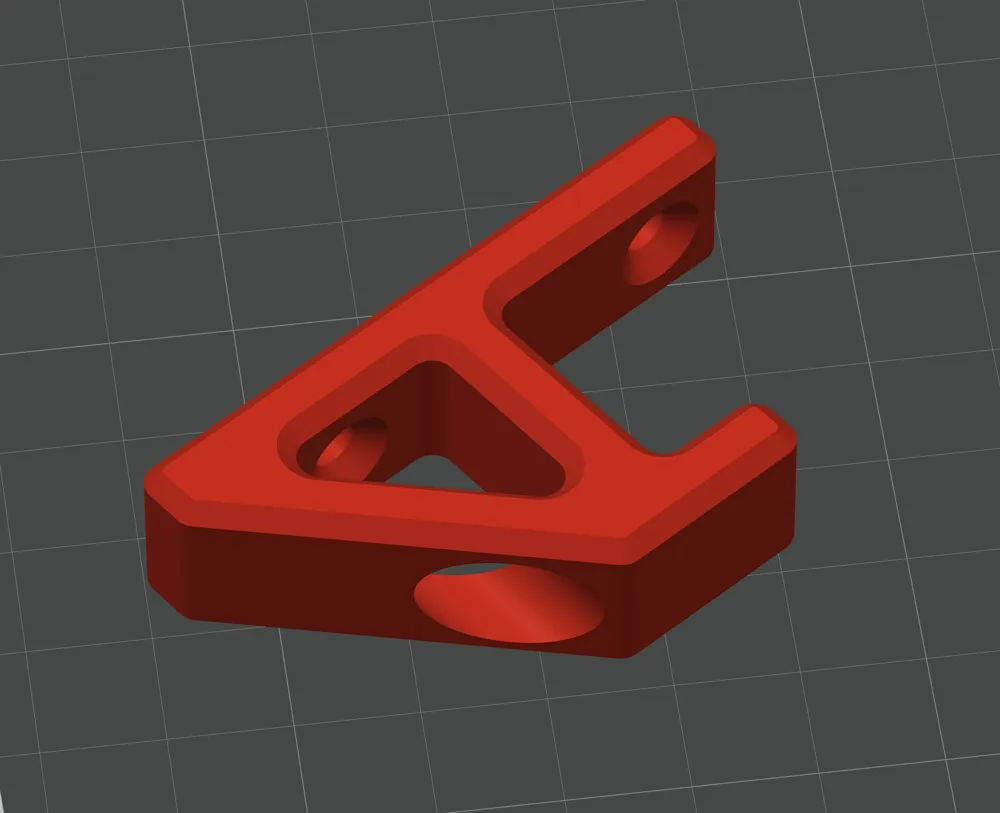

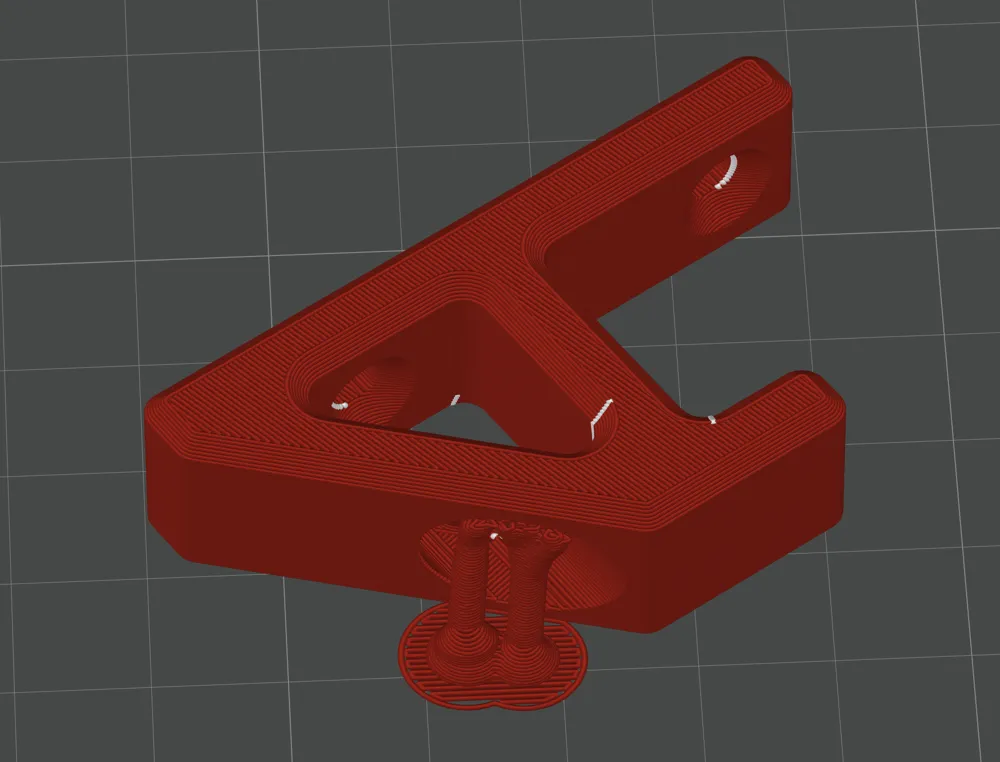

Orientation:
Print flat on side.
Supports:
Not required for most slicers
Recommended material:
PLA+ for general indoor use
PETG or ABS for garages or warmer environments
Layer height: 0.16–0.28 mm

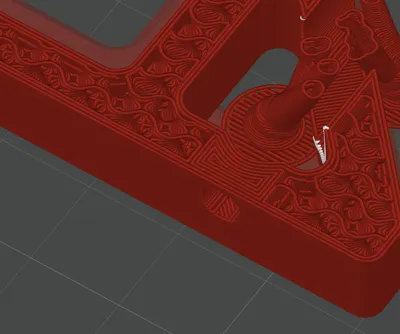

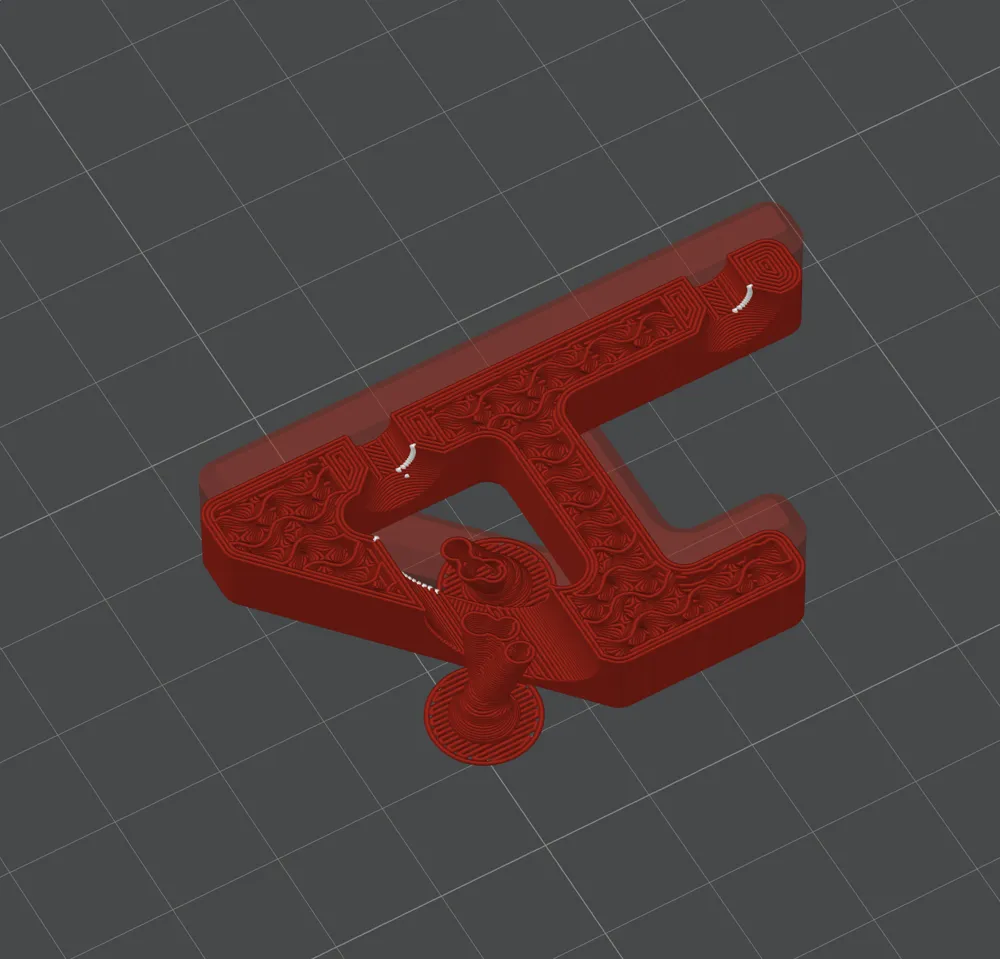

Infill: 20–30% gyroid, cubic or support cubic
Walls: 3-4 perimeters recommended for strength (modified regions account for added stability and robustness)

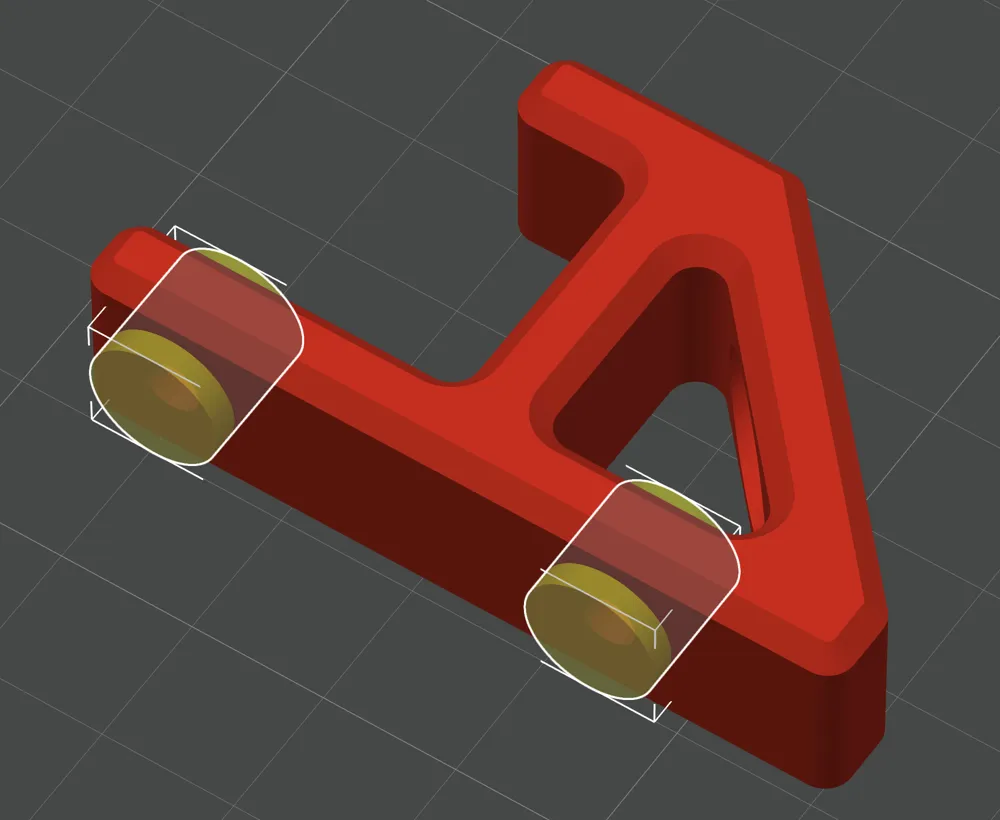

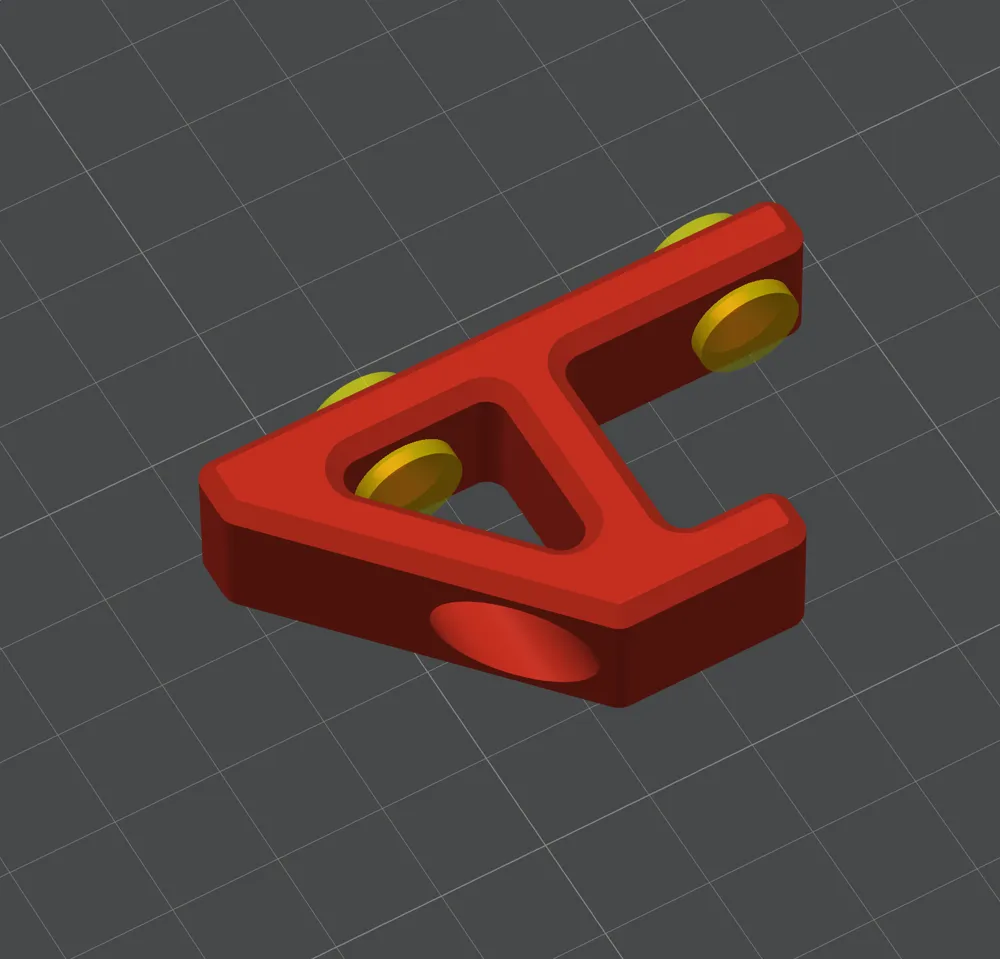

Modifiers: Leave Sparse Infill Modifiers at 100% to reinforce screw mounting areas (yellow cylinders in model rendering)
⚠️ Disclaimer: Load capacity depends on print settings, material choice, wall anchors, and installation surface. Always test before hanging valuable or heavy items.
