🔧 Miter Saw Bench Dust Funnel (HT40 / HT50)

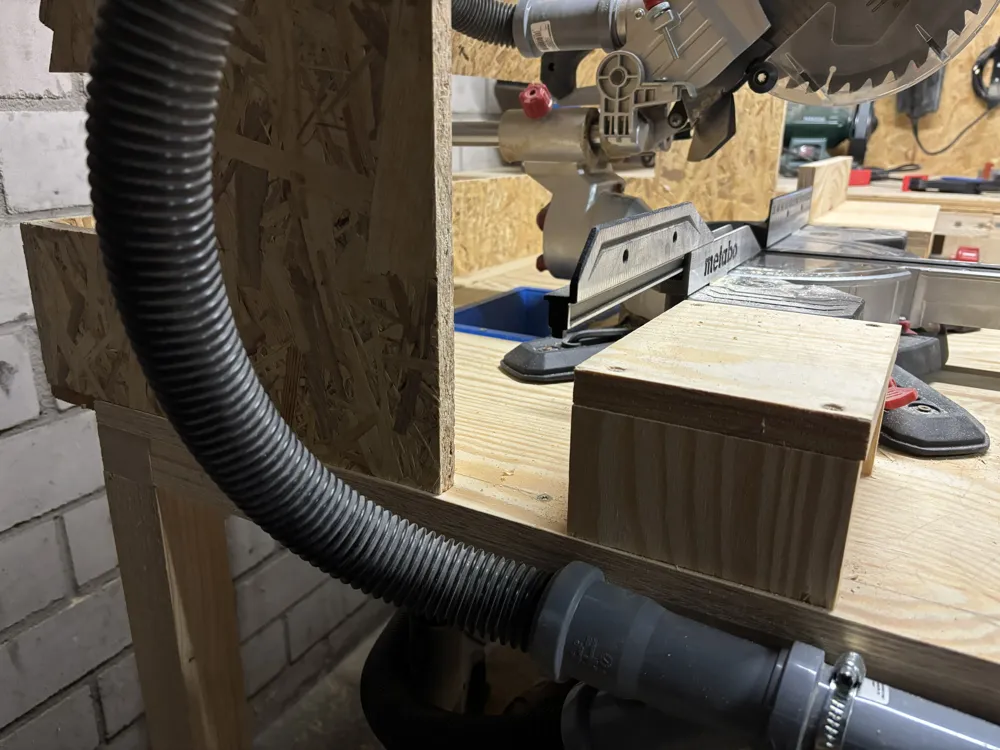

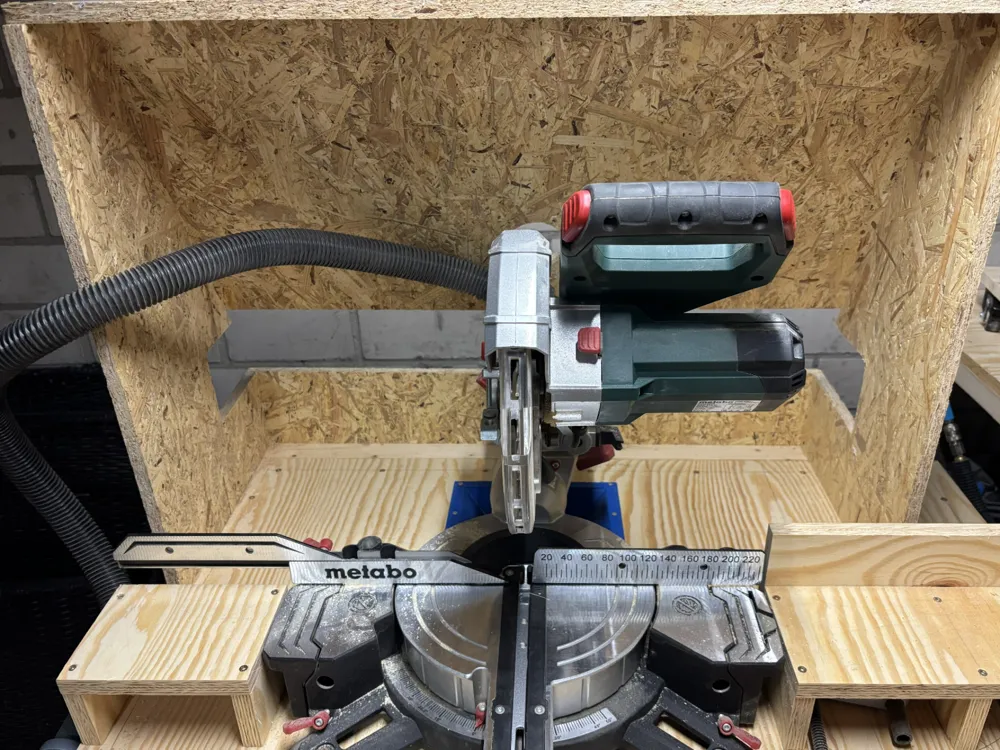

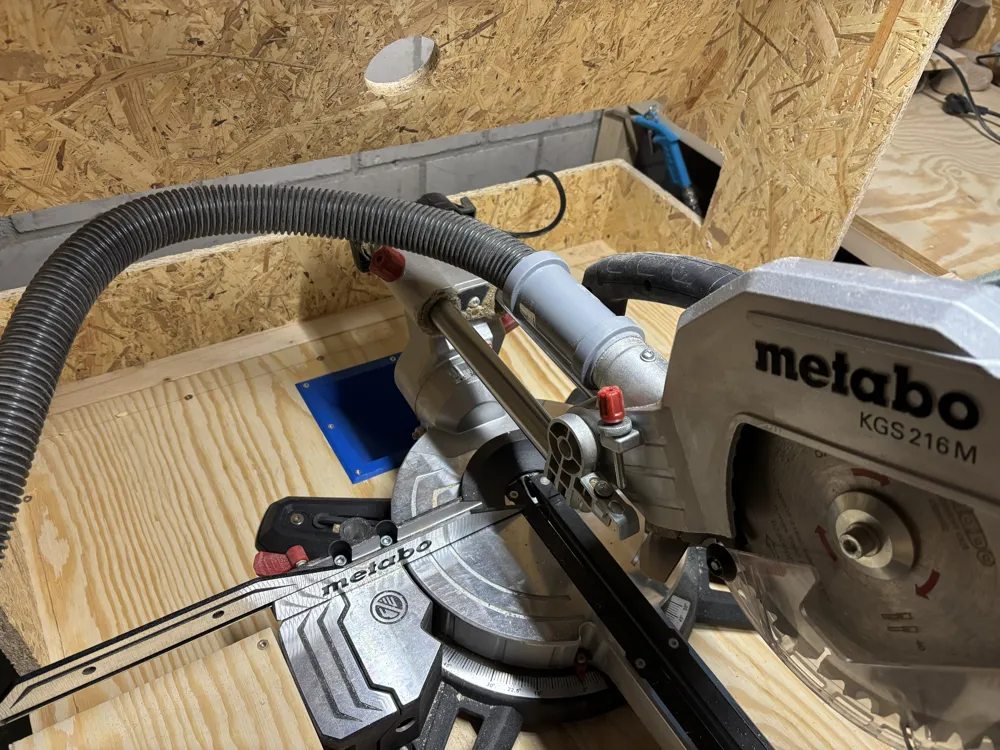

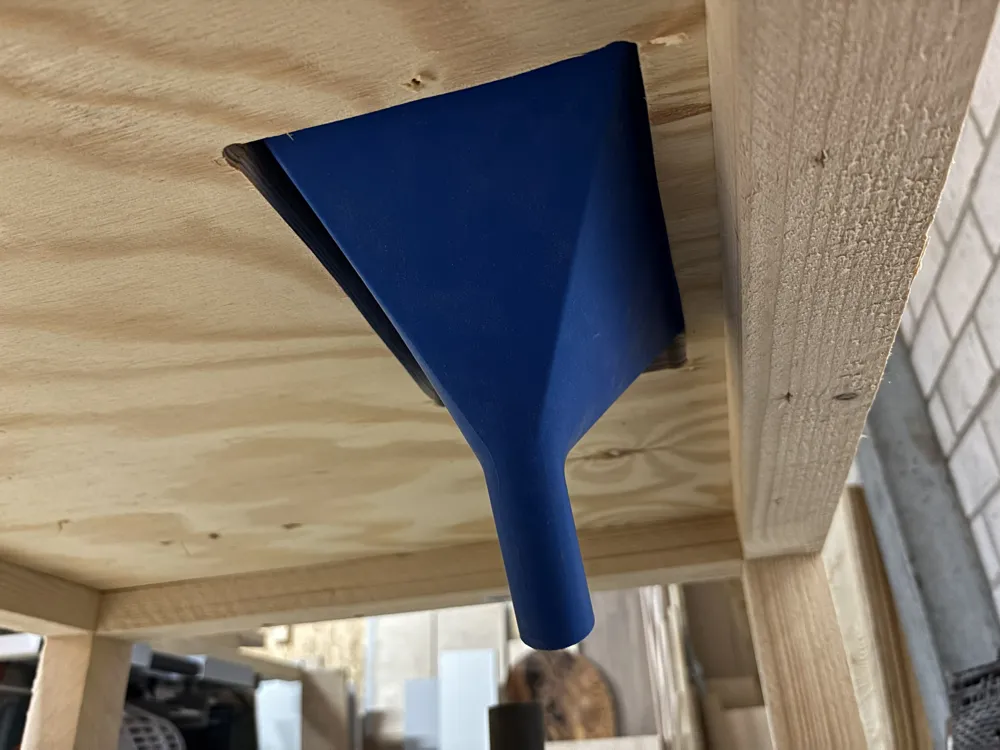

Flush-mounted dust funnel designed for installation behind a miter saw. Directs chips into an HT pipe system and significantly improves dust control at the workbench. Works best in combination with the saw’s original dust port. Also makes cleanup easier — simply sweep debris into the opening while the vacuum is running.
Two versions included:
- HT40 (press fit)
- HT50 (press fit)
📐 Dimensions
- Overall size: 230 × 160 mm
- Inner opening: 195 × 125 mm
- Height (including outlet): 160 mm
✅ Features
- Universal design (user-defined positioning)
- Large intake opening behind the saw

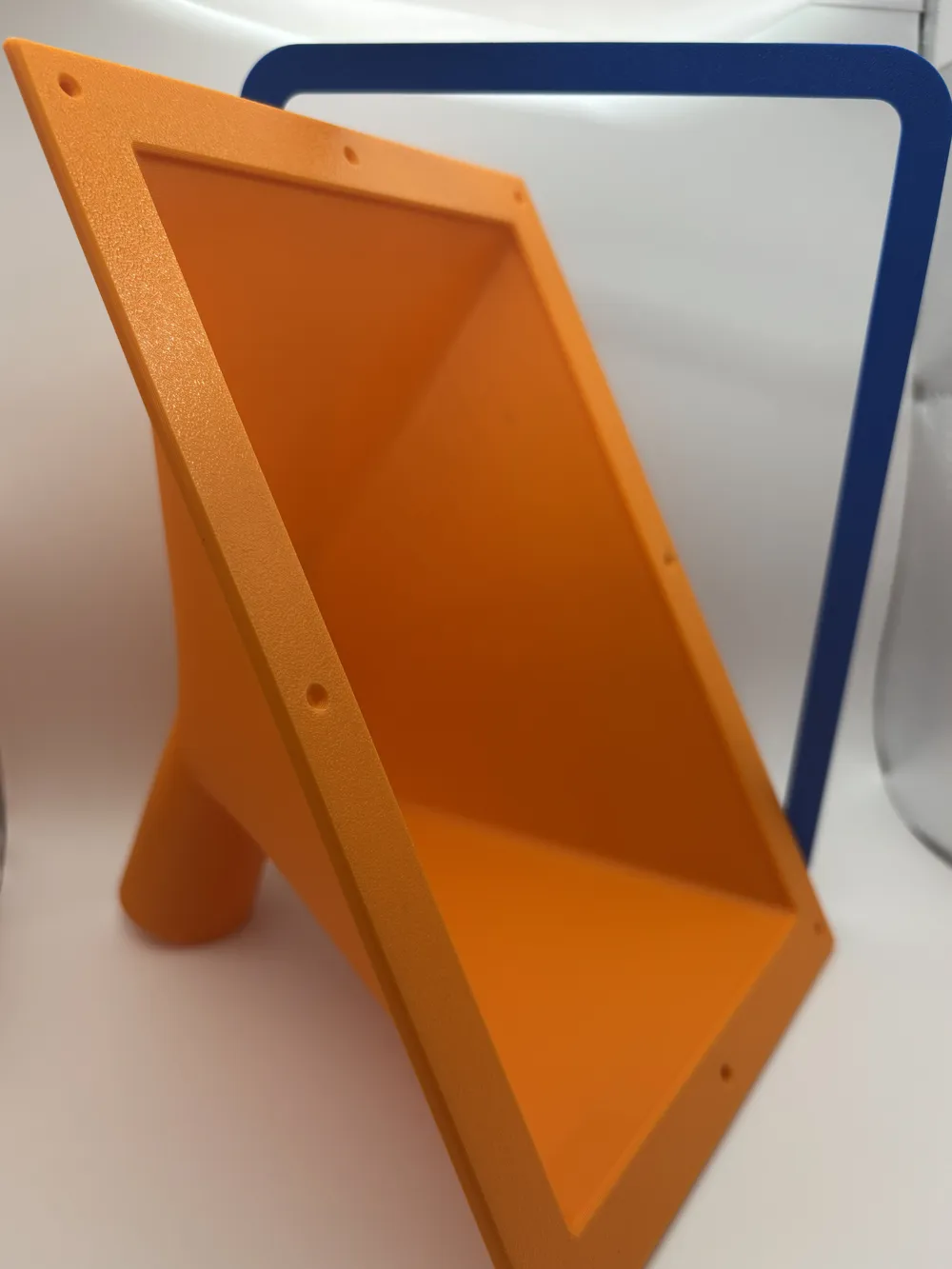

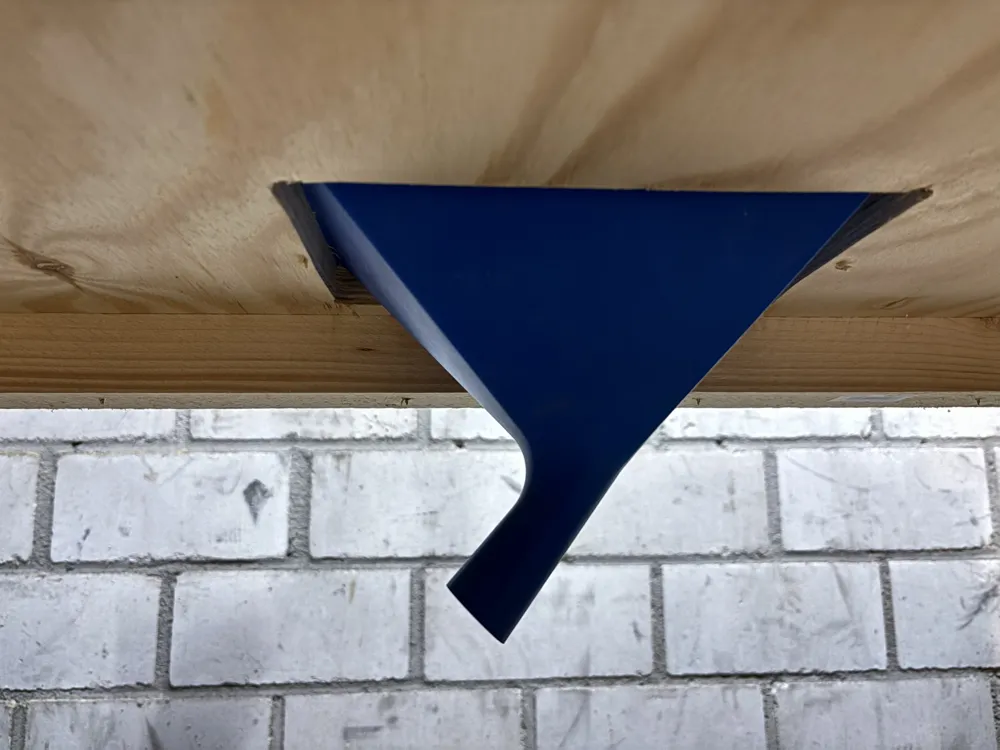

- Conical funnel design for improved airflow

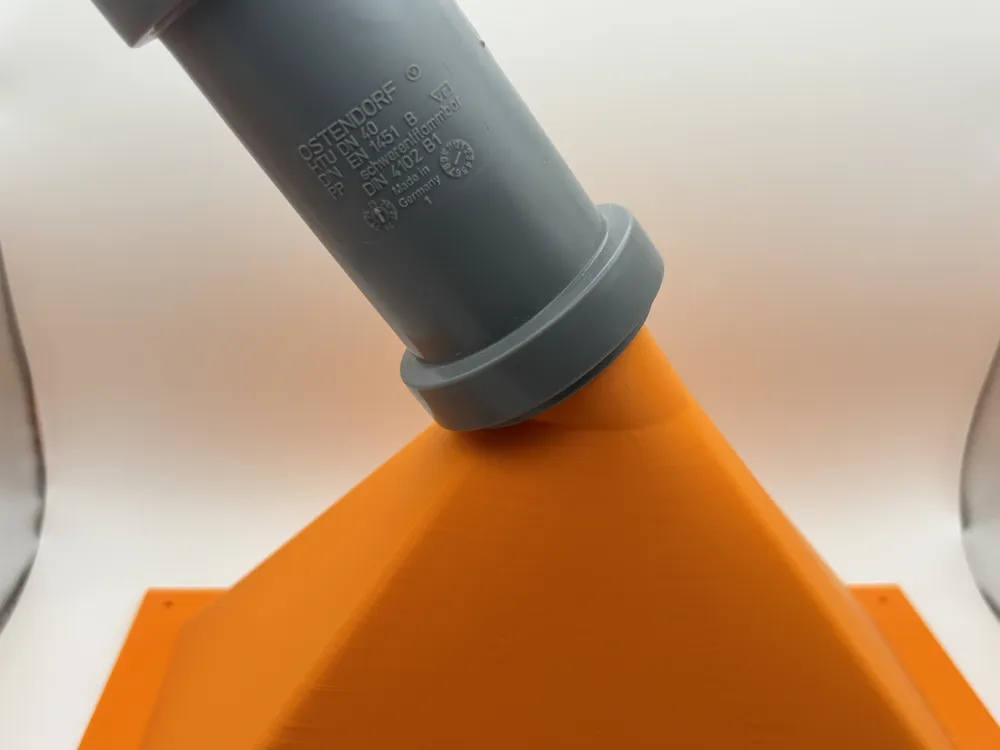

- Press-fit connection for HT40 or HT50 pipes
- Flush integration into the workbench
- Designed for fixed workshop setups
- Makes manual cleanup significantly easier
🖨️ Print Settings
Material:
- PLA / PETG (recommended)
Settings:
- 3 wall lines
- 15 % Gyroid infill
- Support-free print

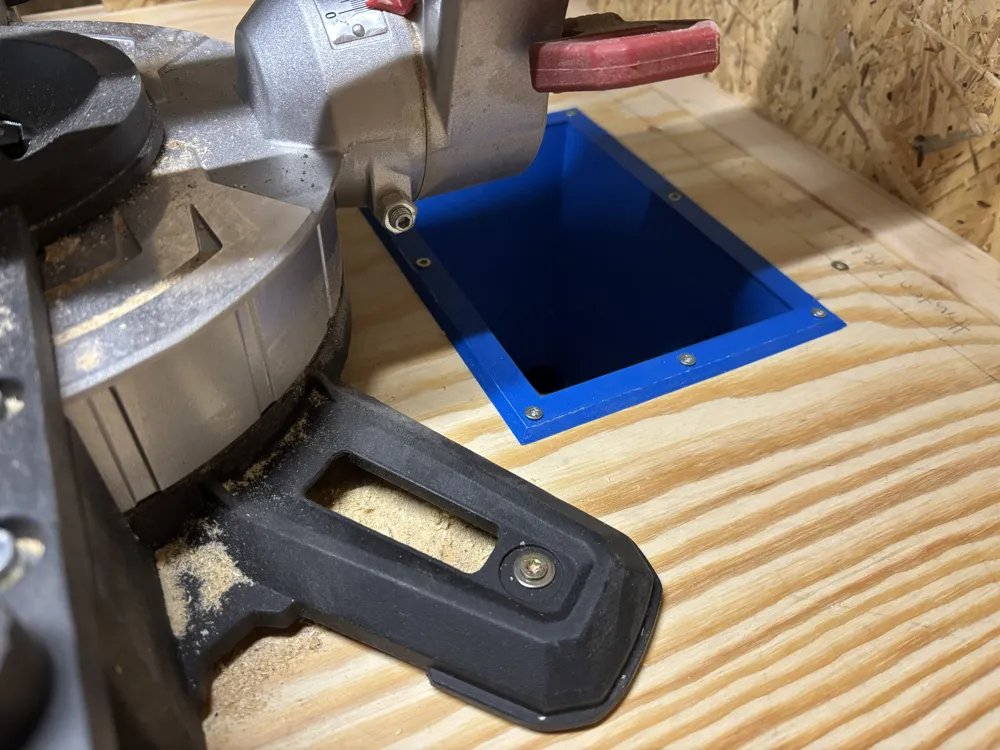

🔩 Installation

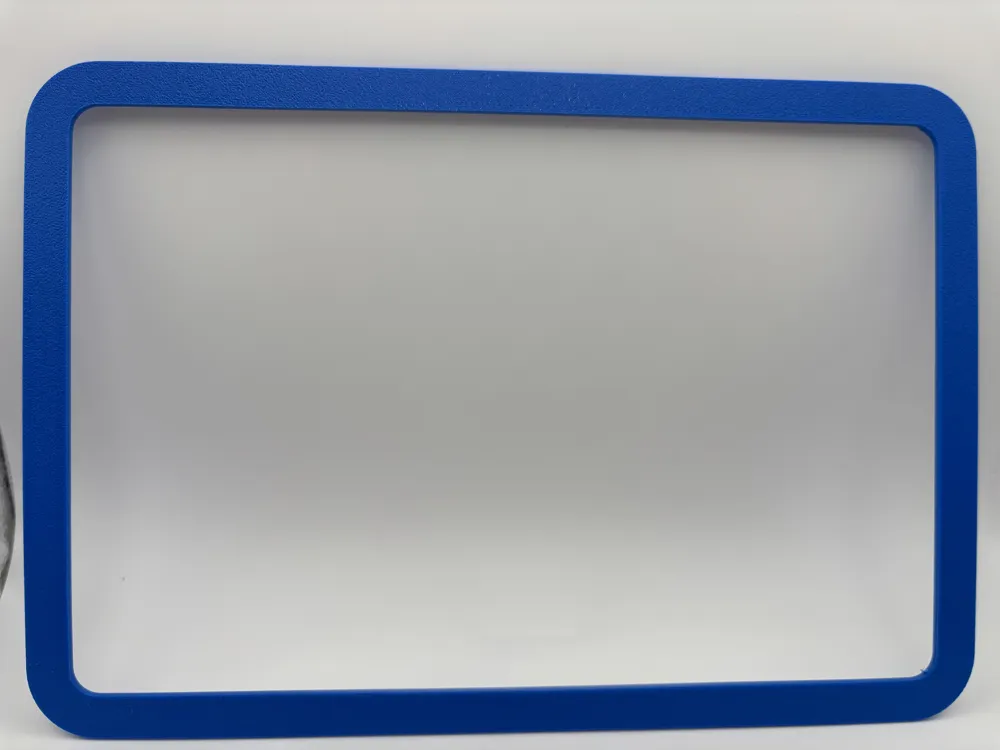

Mark position using the template, cut opening, insert funnel and secure with 3 mm screws or glue.
Press-fit pipe connection.
💬 Custom Adjustments
If you need a different pipe diameter or adjusted dimensions, feel free to reach out.
I’ll be happy to see what can be done.
🇩🇪 German Description:
🔧 Dust Funnel for Miter Saw Station (HT40 / HT50)
Flush-mounted dust funnel designed for installation behind a miter saw. Directs chips directly into an HT pipe system and significantly improves dust control at the workbench. Ideal in combination with the saw's original dust extraction. Also makes cleanup easier: turn on the vacuum cleaner and simply sweep chips into the opening.
Two versions included:
- HT40 (press fit)
- HT50 (press fit)
📐 Dimensions
- Overall size: 230 × 160 mm
- Inner opening: 195 × 125 mm
- Height (incl. outlet): 160 mm
✅ Features
- Universal design (user-defined positioning)
- Large intake opening behind the saw
- Conical funnel for improved airflow
- Press-fit connection for HT40 or HT50
- Flush installation into the workbench
- Ideal for fixed workshop setups
- Also makes manual cleanup easier
🖨️ Print Settings
Material:
- PLA / PETG (recommended)
Settings:
- 3 wall lines
- 15 % Gyroid infill
- Support-free print
🔩 Installation
Mark position using the template, cut opening, insert funnel and secure with 3 mm screws or glue.
Press-fit pipe connection.
💬 Custom Adjustments
If you need a different pipe diameter or adjusted dimensions, feel free to reach out.
I’ll be happy to see what can be done.
