Power Supply for 2 or 4 AMS 2 Pro
Print Profile(7)
Description
Description:

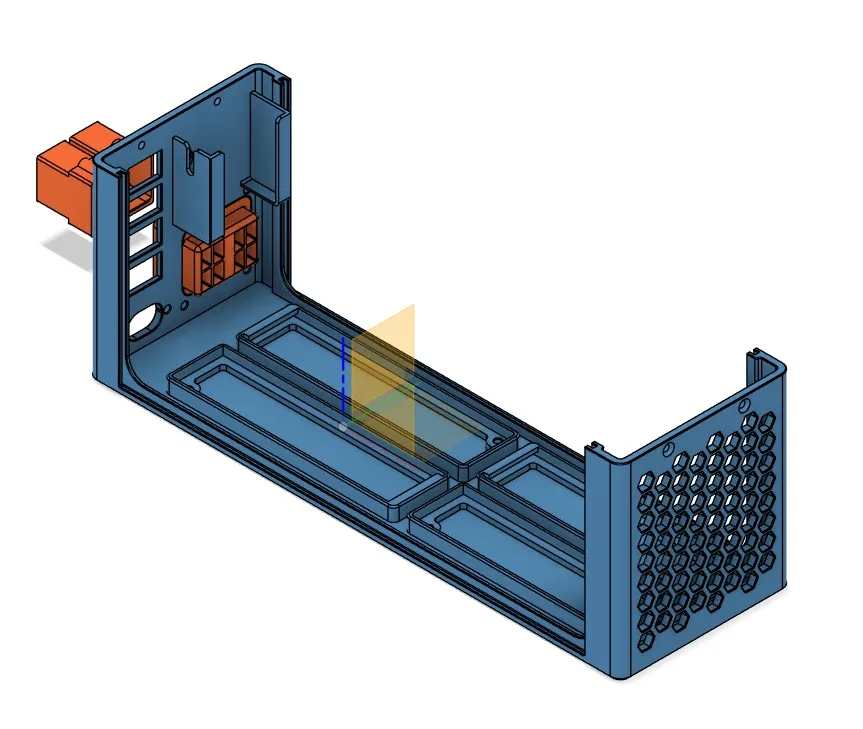

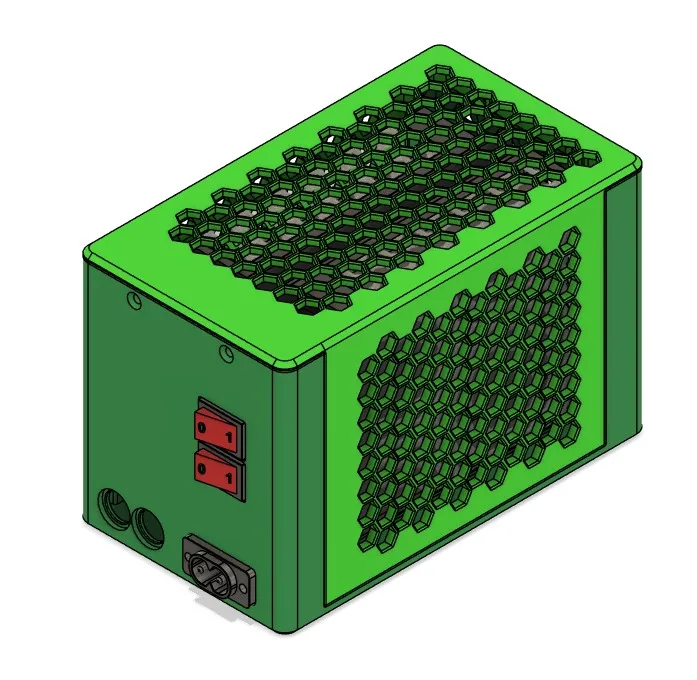

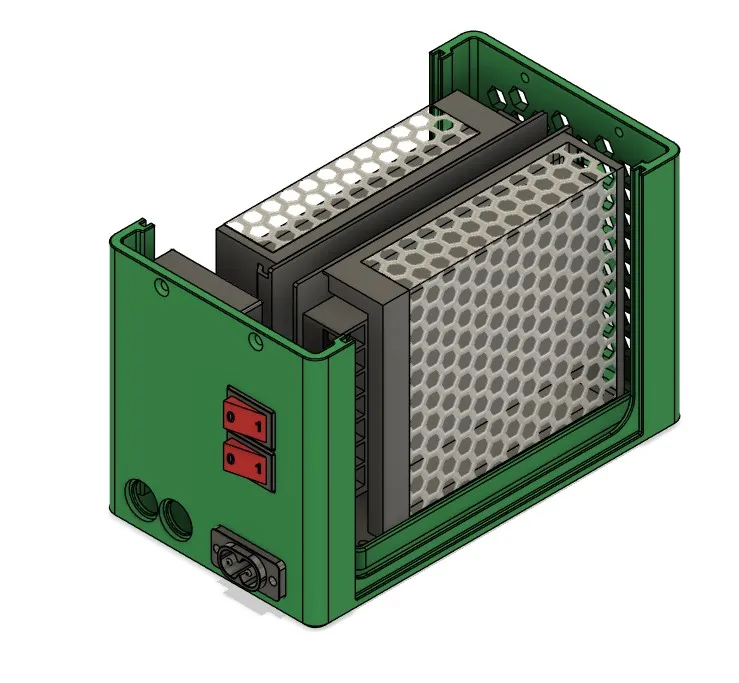

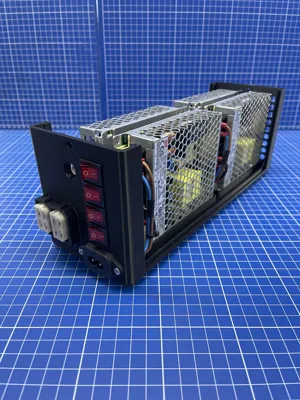

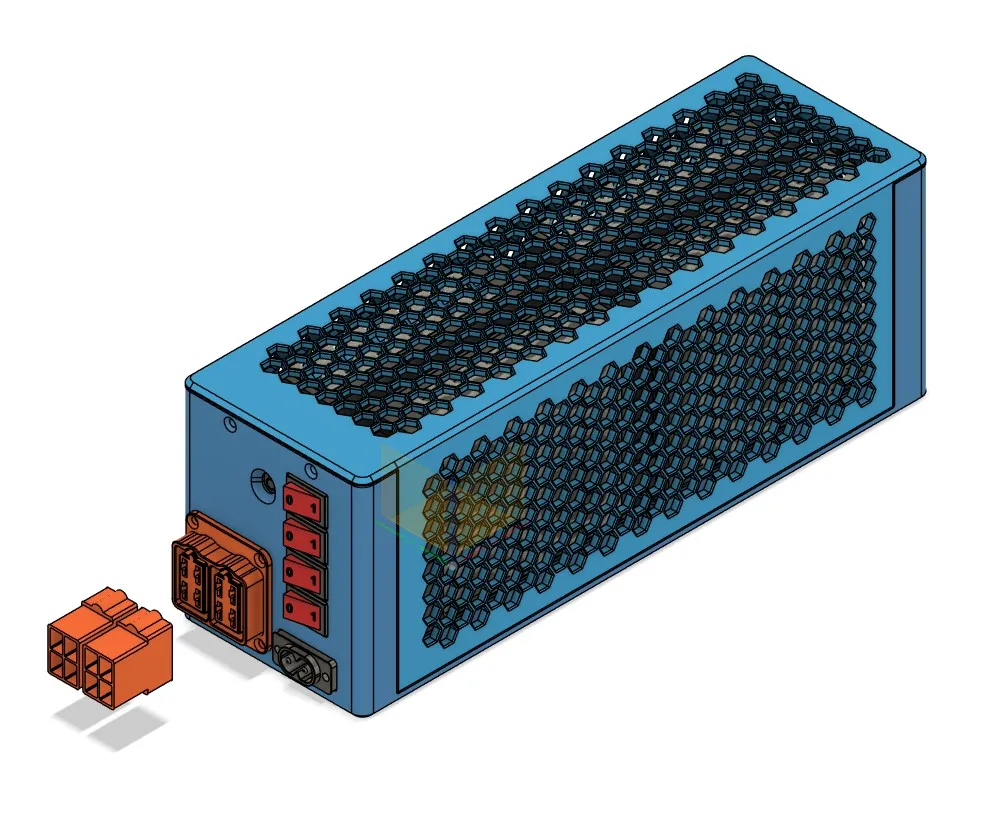

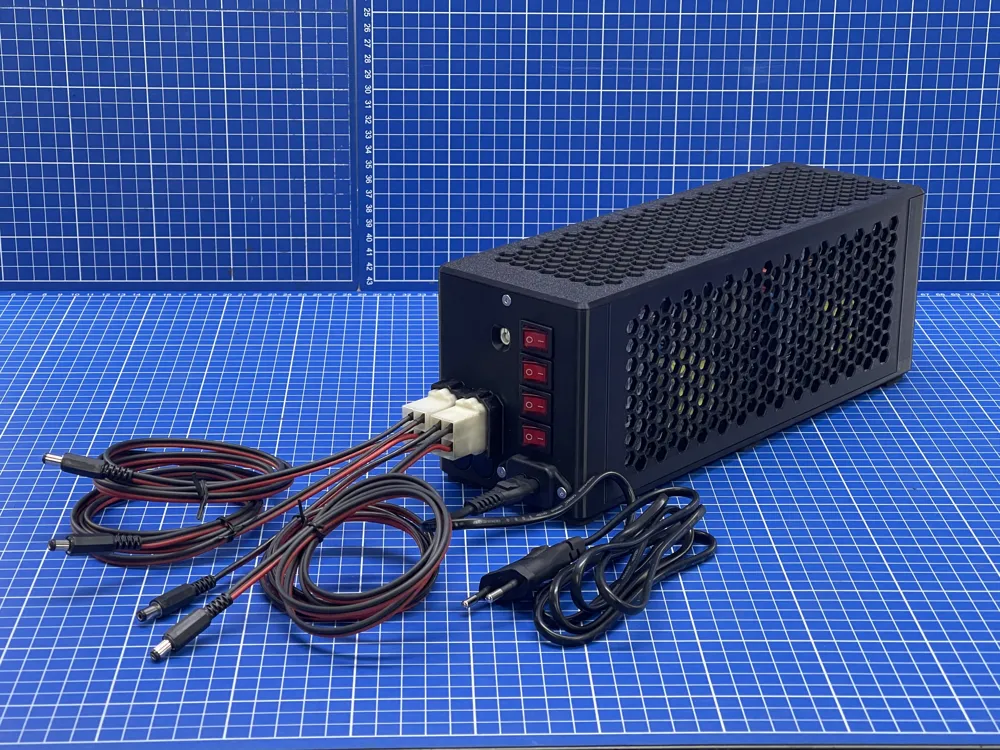

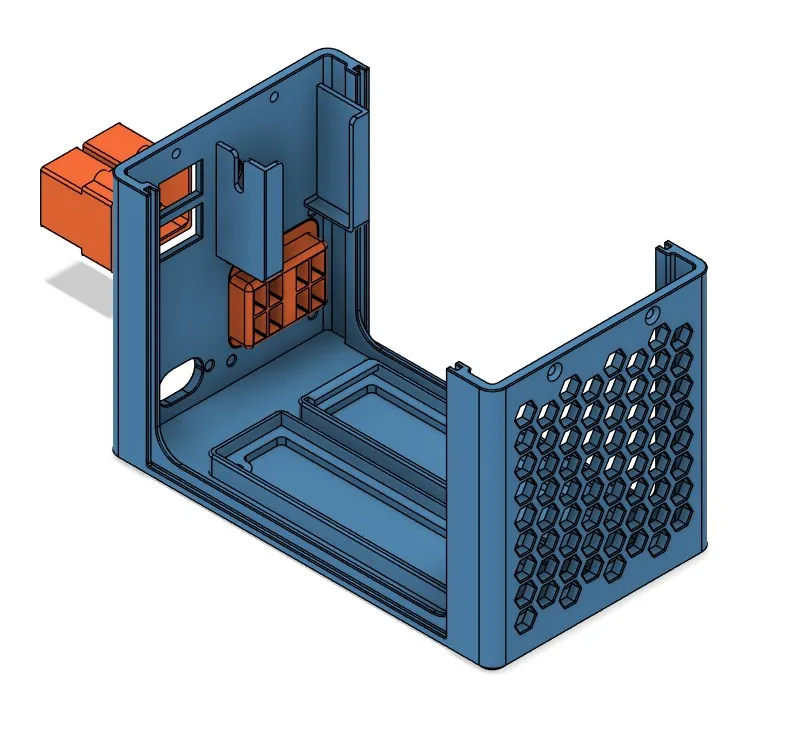

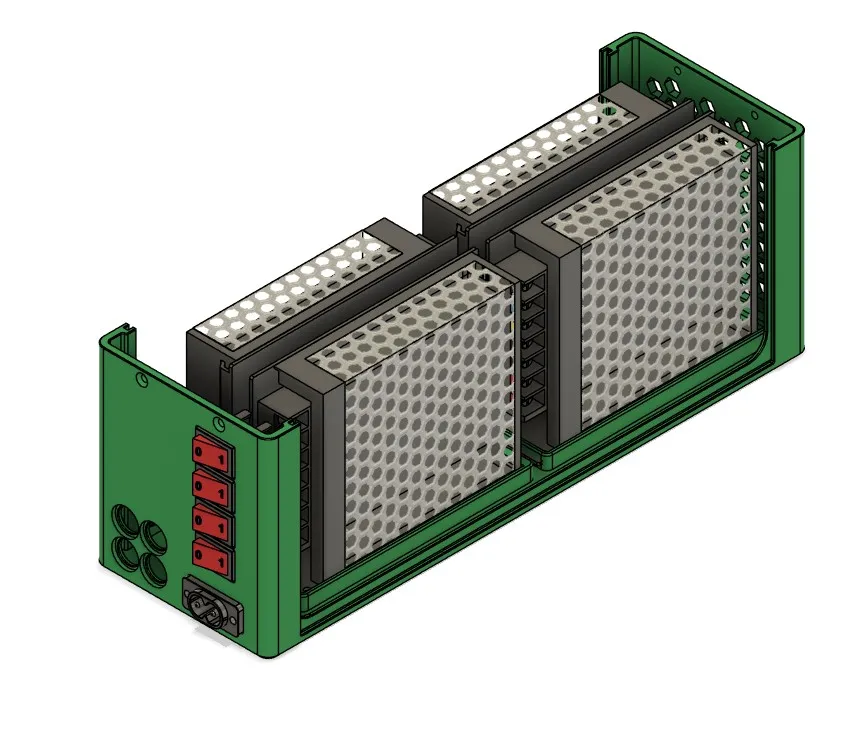

I designed four versions of this power supply unit for 2 or 4 AMS units in a single enclosure,
available in Smart (Home Automation) or Basic versions.

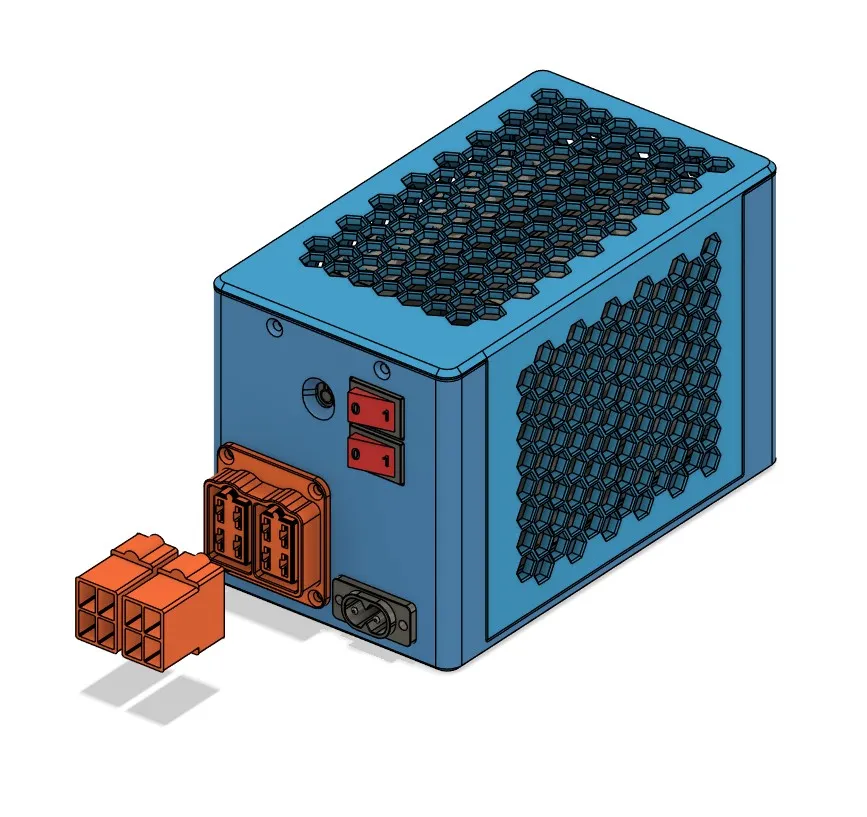

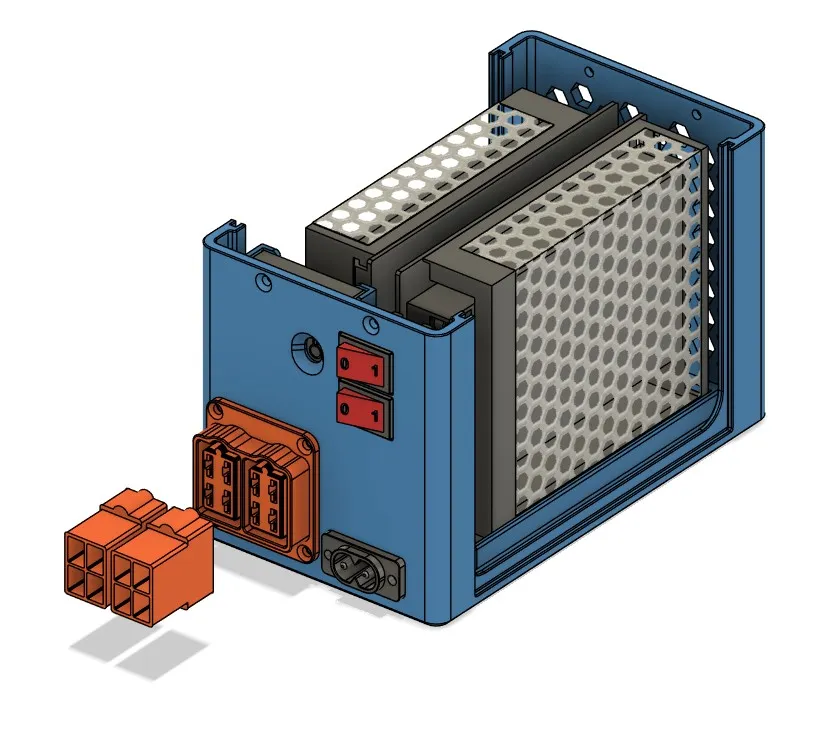

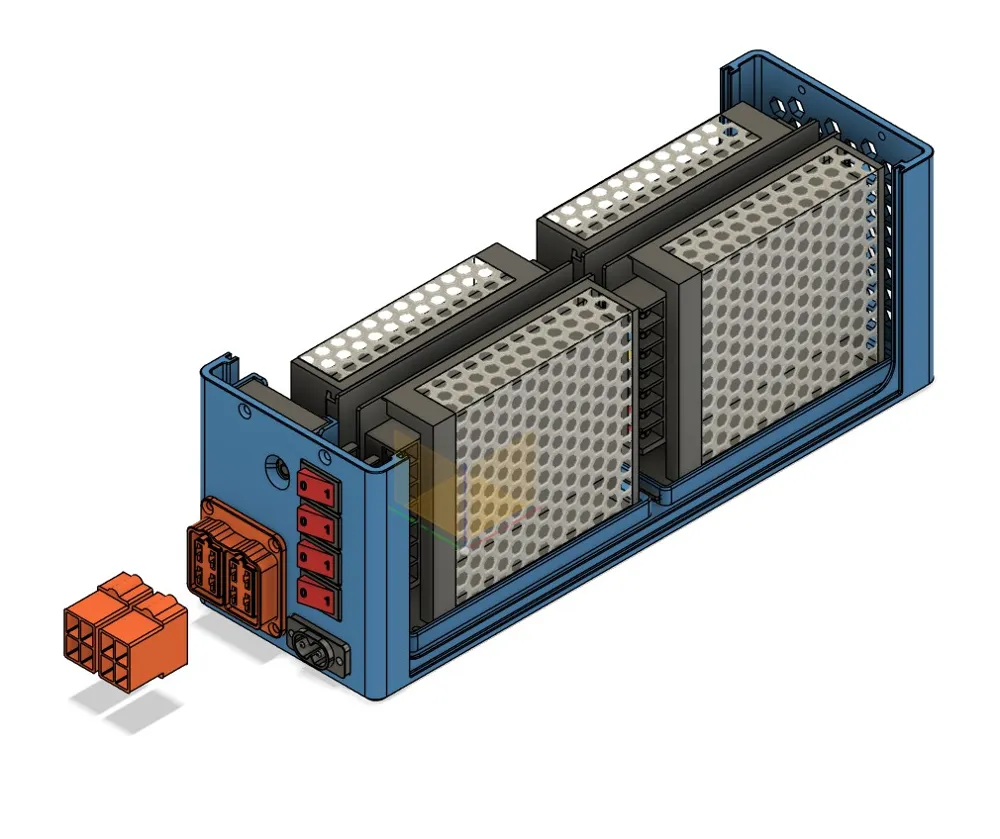

Compared to the Basic version, the Smart version includes a Sonoff Mini inside the enclosure,

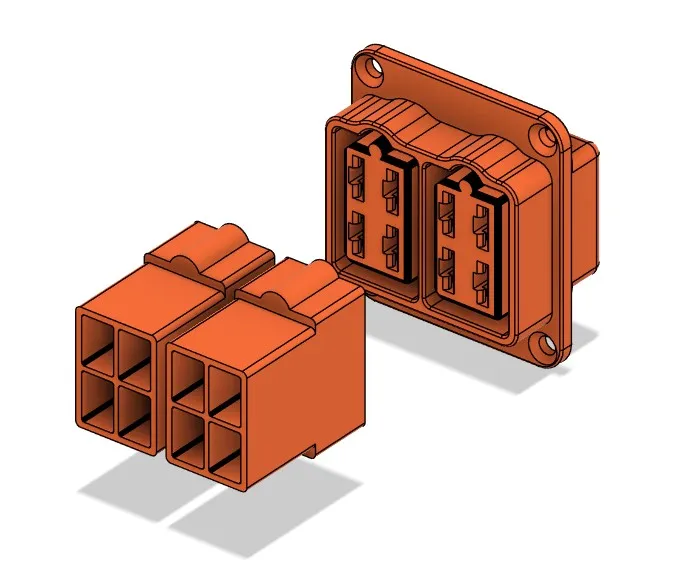

allowing the unit to be controlled via app. It also features connectors that allow the 24V output cables to be disconnected when needed.
This solution provides significant cost savings compared to the original Bambu Lab power supplies, while also reducing the number of power cables and plugs in your workspace.
-You will also find the electrical diagram attached to the project.

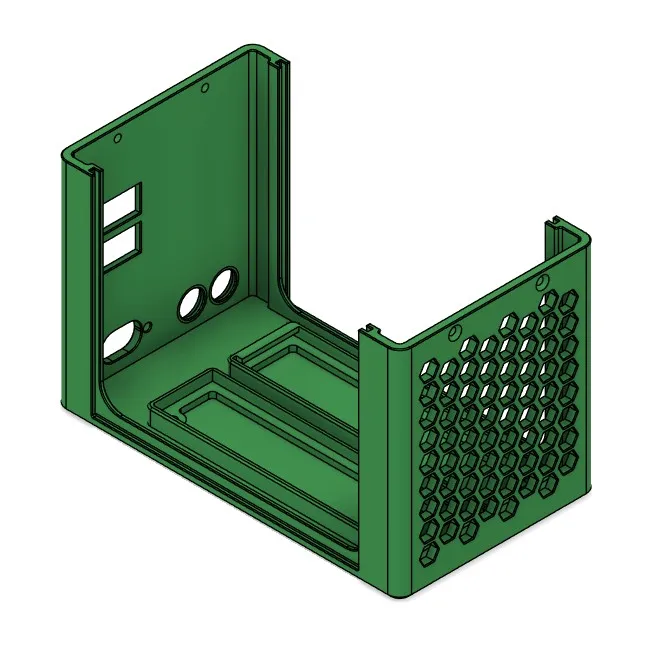

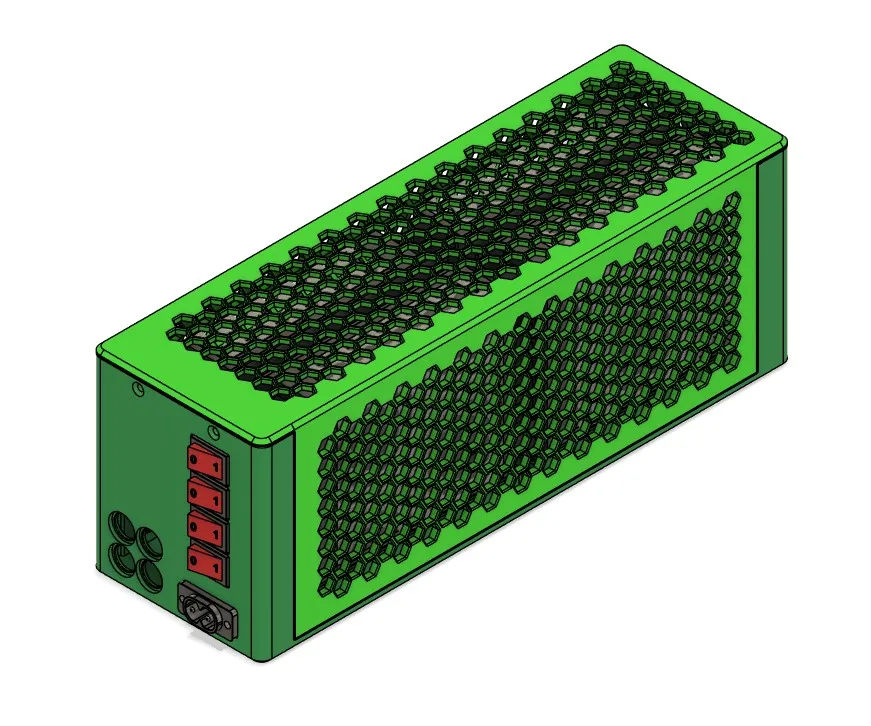

-The Fusion 360 (.f3d) source file is included,
allowing easy modification of dimensions to adapt the holders to different socket sets.
Here is the list of all the materials needed:

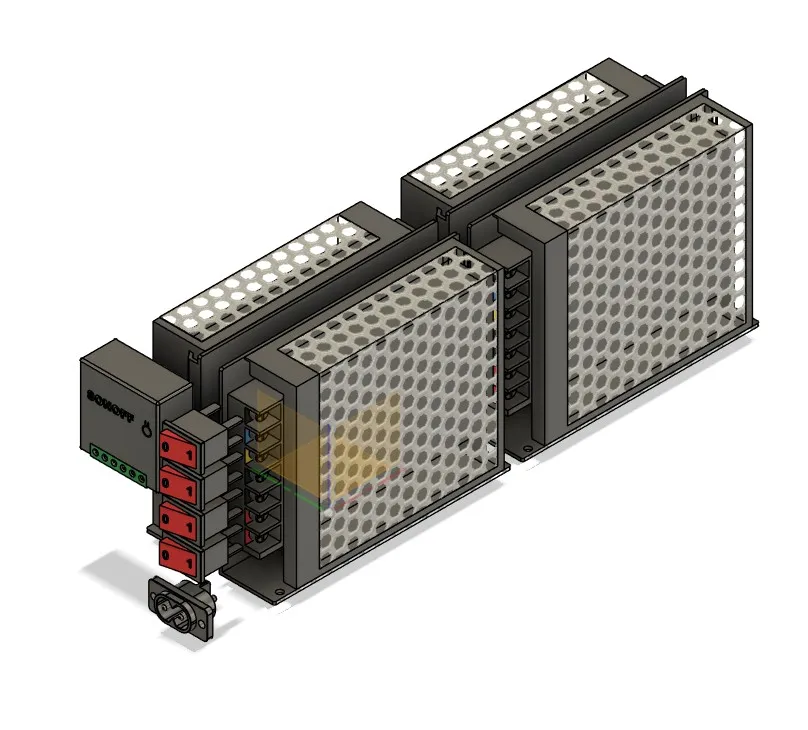

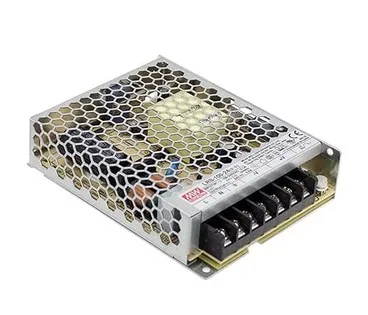

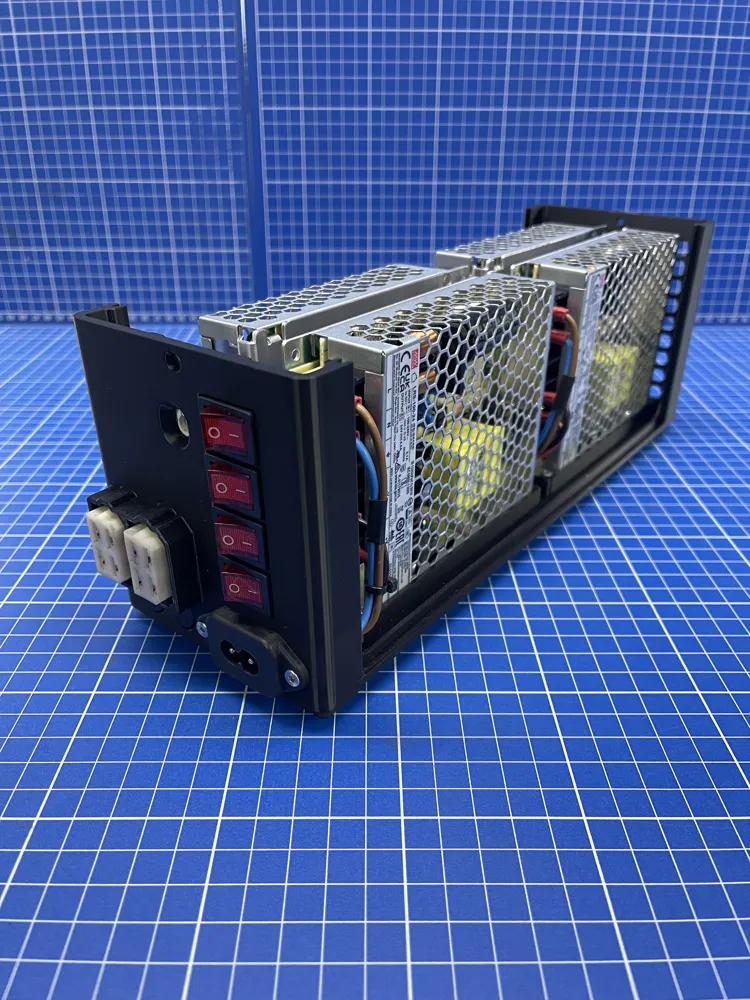

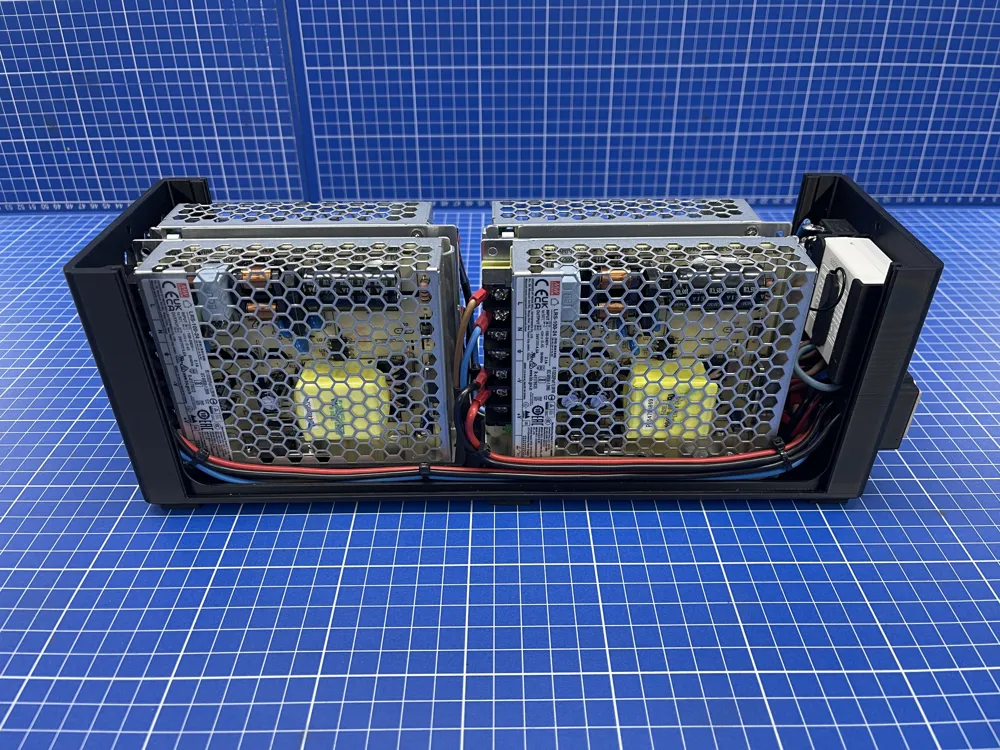

-4 Mean Well LRS-100-24 power supplies capable of delivering 4.5 Amps,
https://www.amazon.it/dp/B01N5XUF61?ref=ppx_yo2ov_dt_b_fed_asin_title&th=
https://it.aliexpress.com/item/1005008341654245.html?spm=
-1 Sonoff to remotely turn the power supply on and off
https://www.amazon.it/Control-integrazione-progettazione-migliorata-sicurezza/dp/B0D97MXQK5/ref=
https://it.aliexpress.com/item/1005009785763941.html?spm=

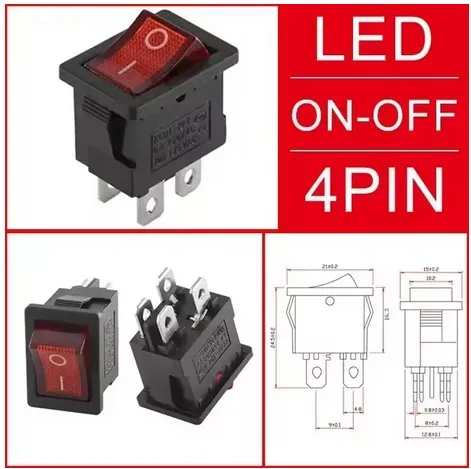

-4 4-Pin Bipolar Switches to Turn Individual Power Supplies On and Off
https://www.amazon.it/VEXUNGA-Interruttore-Interruttori-Pulsantiera-Elettrodomestici/dp/B0CS9GSPD6/ref=
https://it.aliexpress.com/item/1005008390806669.html?spm=
-1 IEC320 C8 C7 230 volt line input power socket
https://www.amazon.it/dp/B0DRTTQZ82/?coliid=
-1 Power Cord
https://it.aliexpress.com/item/1005007805525495.html?spm=a2g0o.productlist.main.1.578bC8xzC8xzKx&algo_pvid=
https://www.amazon.it/Xahpower-Metri-Cavo-Alimentazione-IEC320/dp/B0G1C4DCPH/ref=
-8 Gold Male Connectors For 24v Output Cables.
-8 Gold Female Connectors For 24v Output Cables.
https://it.aliexpress.com/item/1005010568645823.html?spm=
-16 Red 6.2mm Fork Terminals for Power Supply Connections
https://www.amazon.it/ERGAOBOY-connettori-forcella-terminale-elettrico/dp/B0F4QXFY34/ref=
https://it.aliexpress.com/item/1005006970430473.html?spm=
-4 5.5x2.1 connectors for connection to AMS
https://it.aliexpress.com/item/1005005823520040.html?spm=
-4 Cable grommets for 12mm hole
https://www.amazon.it/dp/B0FBRZSF37/?th=

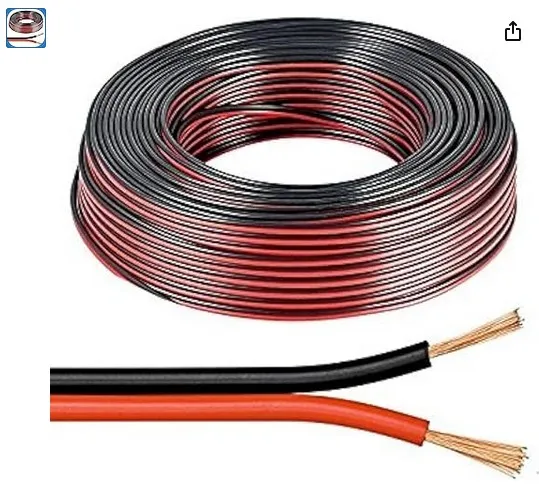

-8m. Red/Black Bipolar Cable 2x1mm 18AWG
https://www.amazon.it/Electrosmart-rosso-89-Strand-speaker-autoradio/dp/B06ZYB5XQF/ref=
https://it.aliexpress.com/item/1005009014635843.html?spm=

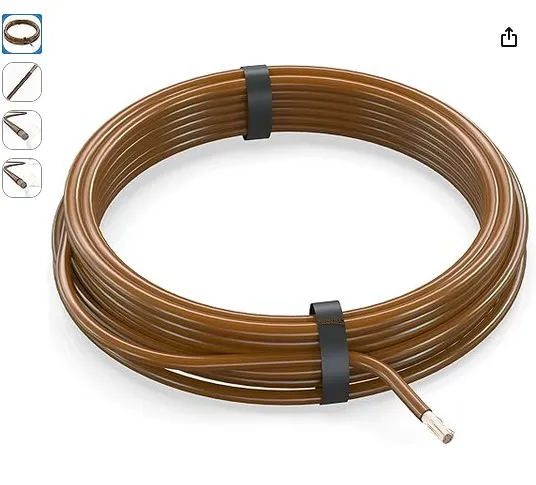

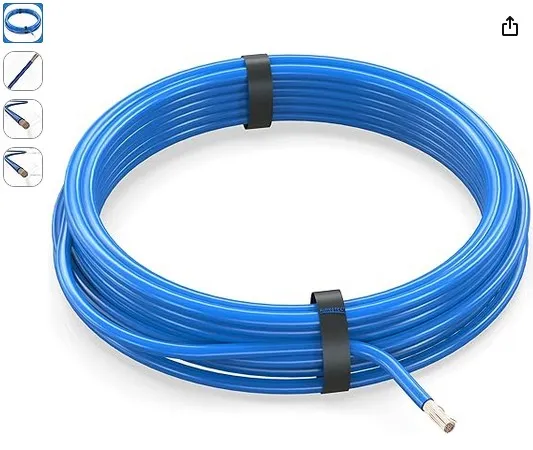

-2m. Brown Single Core Cable 1x1mm/18AWG
-2m. Blue Single Core Cable 1x1mm/18AWG
https://www.amazon.it/Auprotec%C2%AE-unipolare-FLRY-B-elettrico-anello/dp/B01FHJ4M48/ref=
https://it.aliexpress.com/item/1005006467312913.html?spm=
-14 M3 nut
https://www.amazon.it/Lyeteung-Esagonali-Esagonale-Filettato-Trasparente/dp/B0FWVWDVXT/ref=
https://it.aliexpress.com/item/1005010368441424.html?spm=
-4 Stainless Steel Countersunk Head Allen Screw M3x12mm for Cover Fixing
https://it.aliexpress.com/item/1005002044837898.html?spm=
https://www.amazon.it/BOUMVID-svasata-incassato-filettatura-completa/dp/B0DC6T96MY/ref=
-4 M3x8mm Round Head Allen Screw for Power Supply Fixing
-6 M3x12mm Round Head Allen Screw for Power Socket and Output Socket Fixing
https://it.aliexpress.com/item/1005006999030038.html?spm=
https://www.amazon.it/ProRaje-cilindrica-esagonali-incassati-inossidabile/dp/B0F81PMNND/ref=

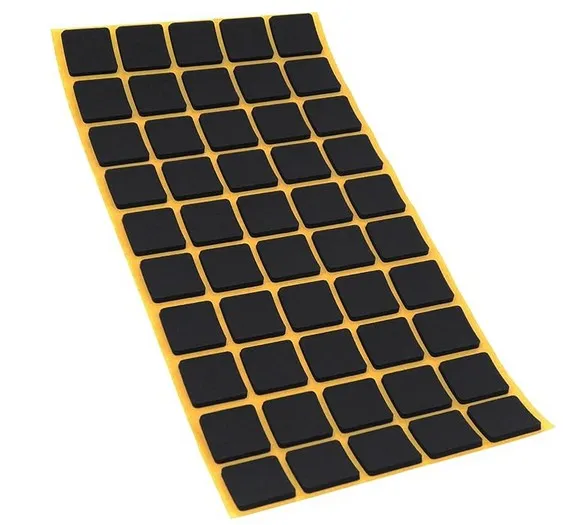

-4 20x20 Rubber Adhesive Foot
https://www.amazon.it/Dischetti-antiscivolo-disponibili-autoadesivo-superiore/dp/B06Y3PMSSZ/ref=
