Microphone insert for Western Electric 500/MAX4466
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
23 min
1 plate
Open in Bambu Studio
Boost
0
1
0
0
5
3
Released
Description

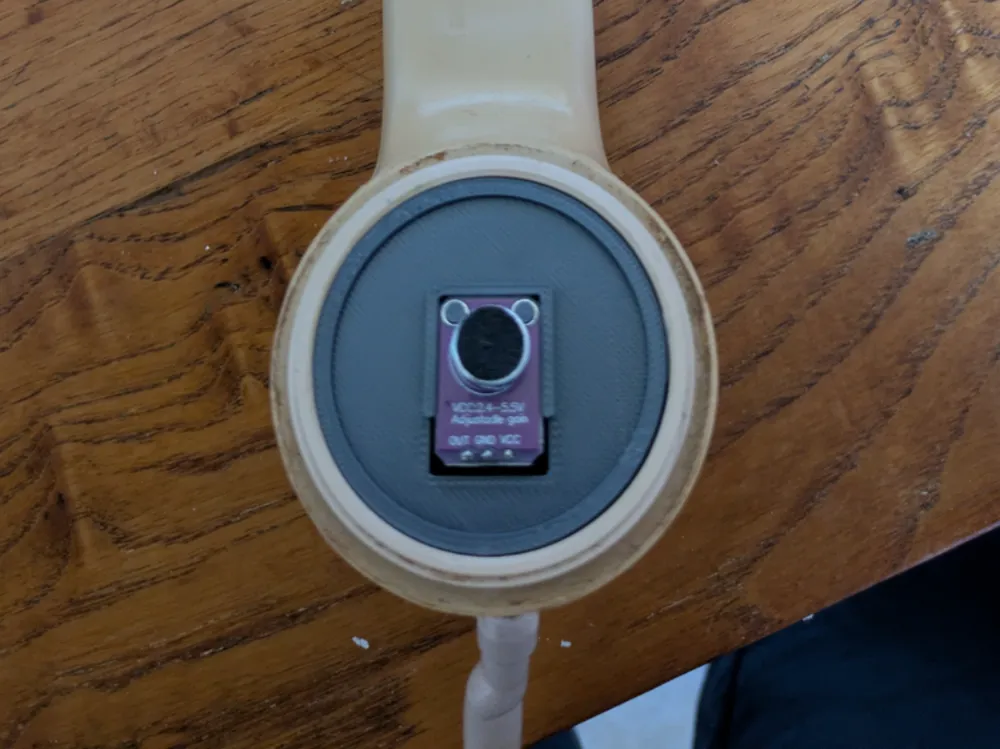

This is a simple part to replace the existing microphone element and insert in a Western Electric 500 handset with a MAX4466 module and integrated electret microphone. The initial design fits within the cup on the handset and allows the cover to be threaded. There are mounting pins in the design and a 3 sided wall to flush secure the MAX4466 element with the microphone element being centered.
This part was designed with AI assistance.
