Replacement Clasp for Slow Close Slide

Print Profile(1)

All
H2C
H2S
P2S
H2D Pro
P1P
X1 Carbon
A1 mini
X1
H2D
X1E
A1
P1S
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
39 min
1 plate

Open in Bambu Studio
Boost
0
0
0
0
0
0
Released

Description

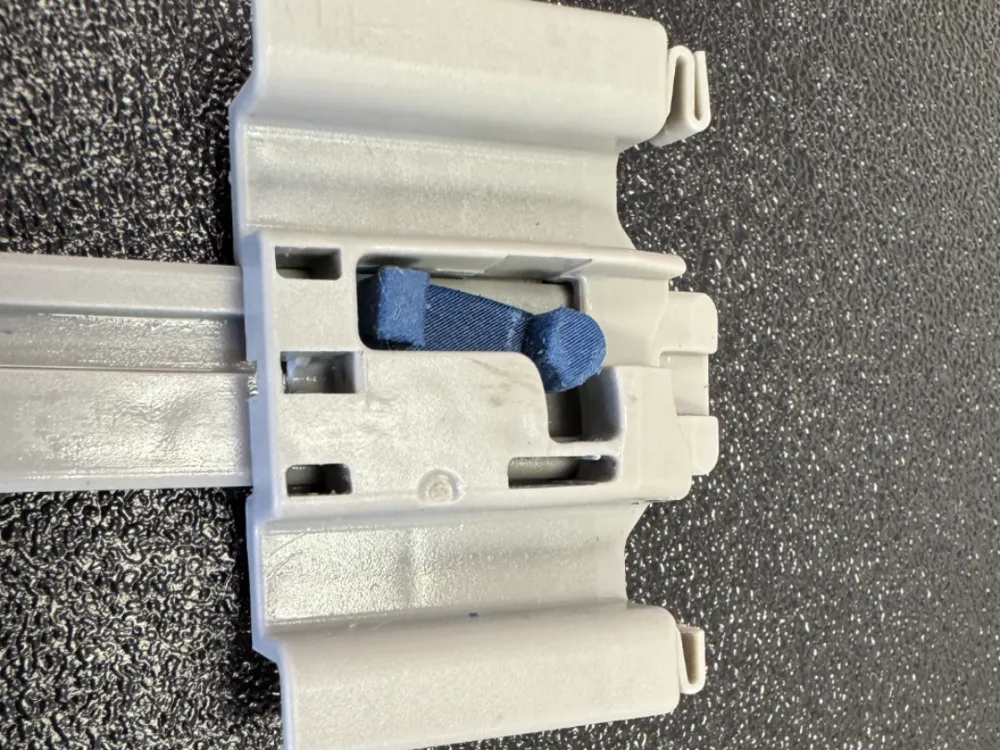

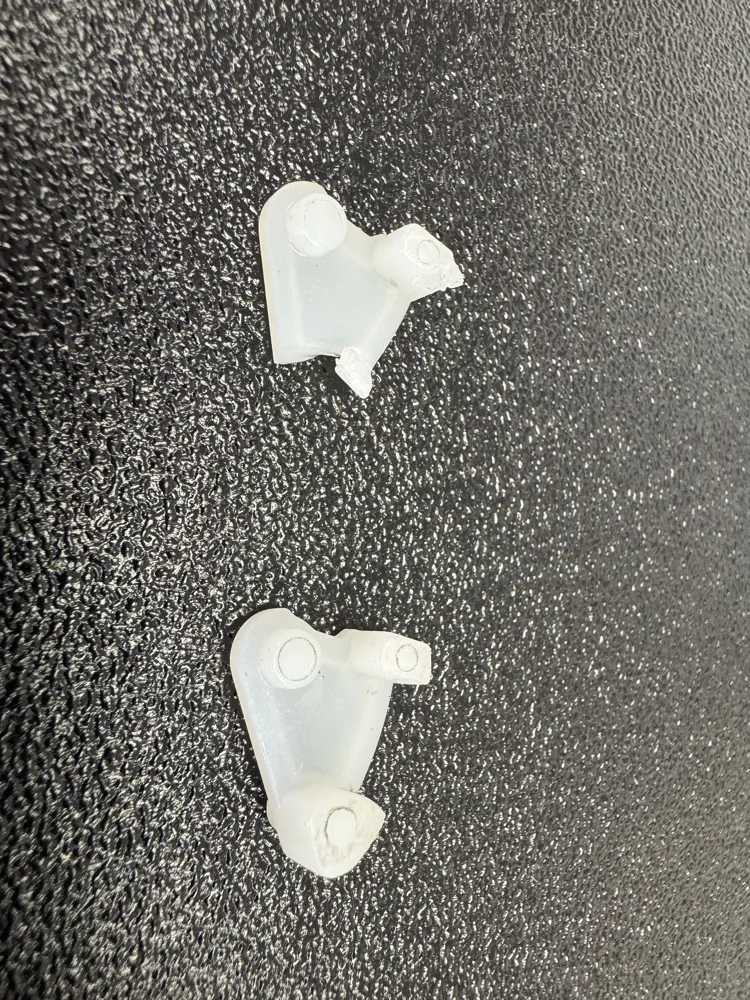

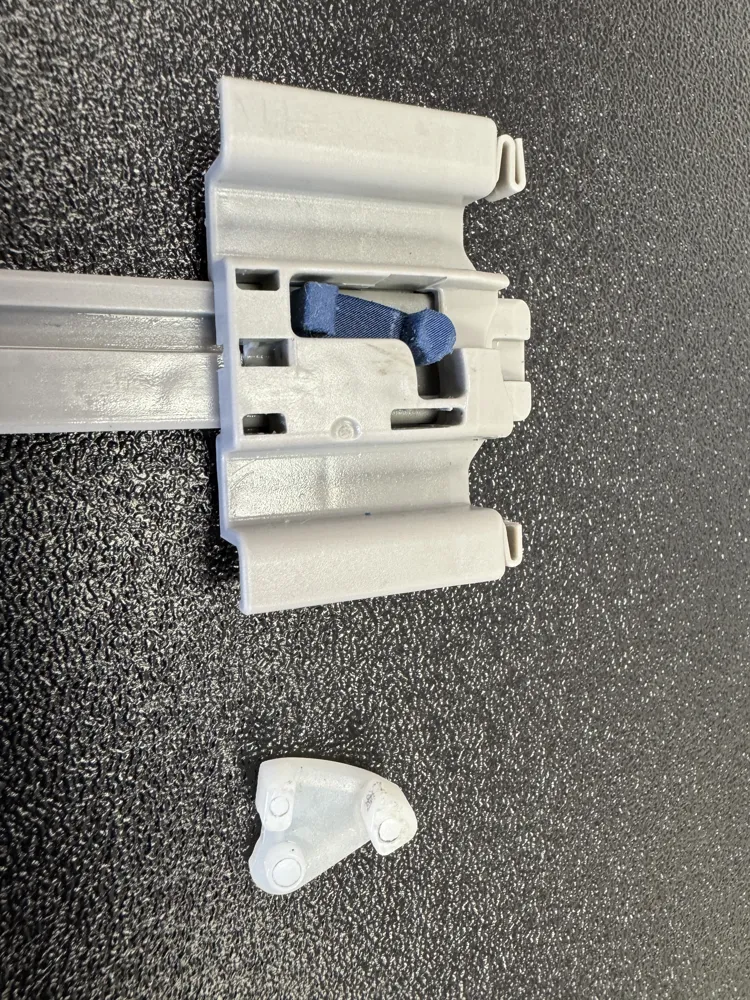

I have a Rev-a-shelf trash can in my kitchen. This gets extreme use and abuse.  Over the course of 1.5 years the slow close mechanism stopped working and the drawer would not stay closed.  I looked online for replacement parts, a new slide and after a while gave up.  Eventually, I took apart the whole slide to repair the slide and found a small what looks like nylon part was the culprit.  The part has some annoying geometry to model but I got something close enough that works for me.  I actually ended up sla printing mine with a tough resin as I was concerned about layer adhesion long term but this model should work.  You could probably print it out of whatever you want.  I prototyped in PETG-CF but if trying to use I would recommend PA or PC.
