Heat-set insert aid with modular tool holder
Print Profile(1)
Description

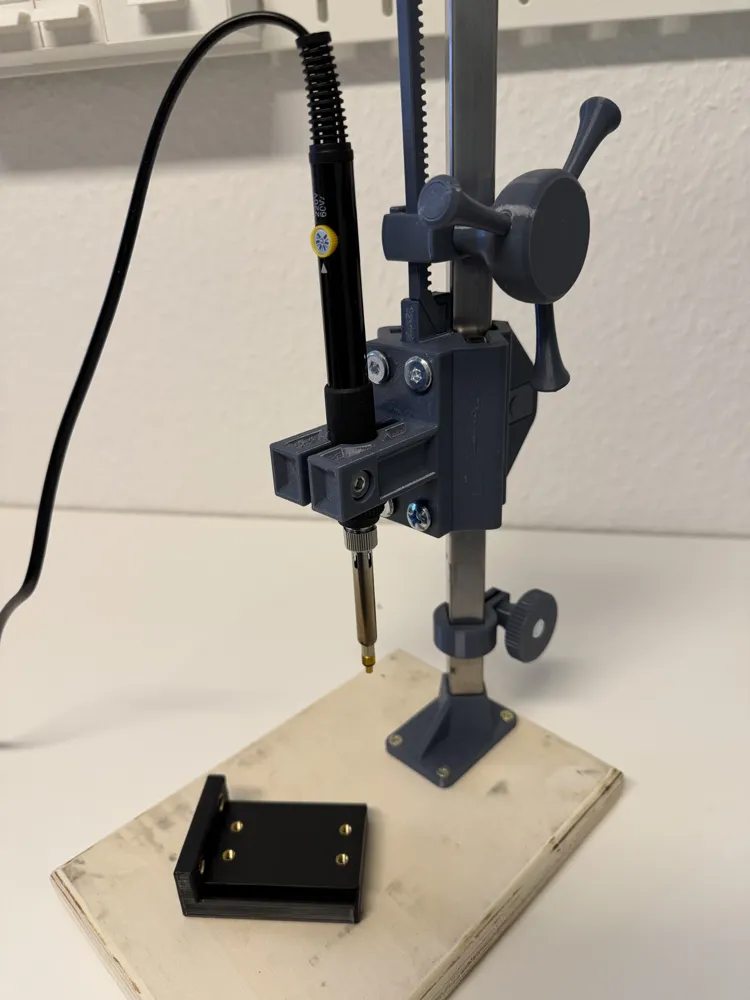

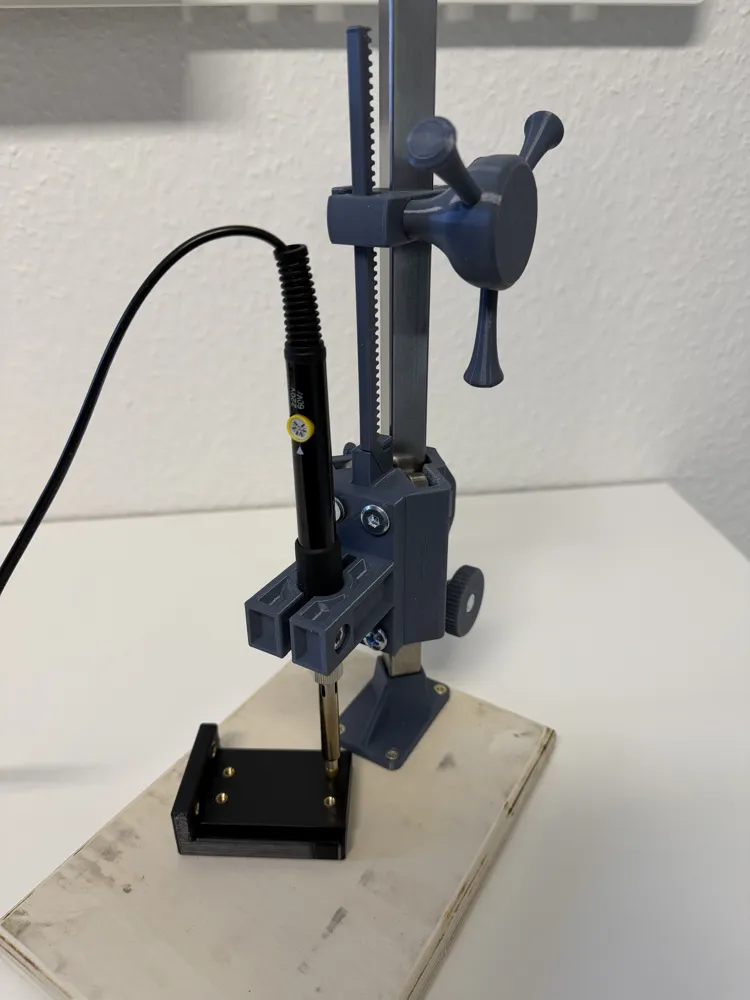

Tool stand with modular tool holder.

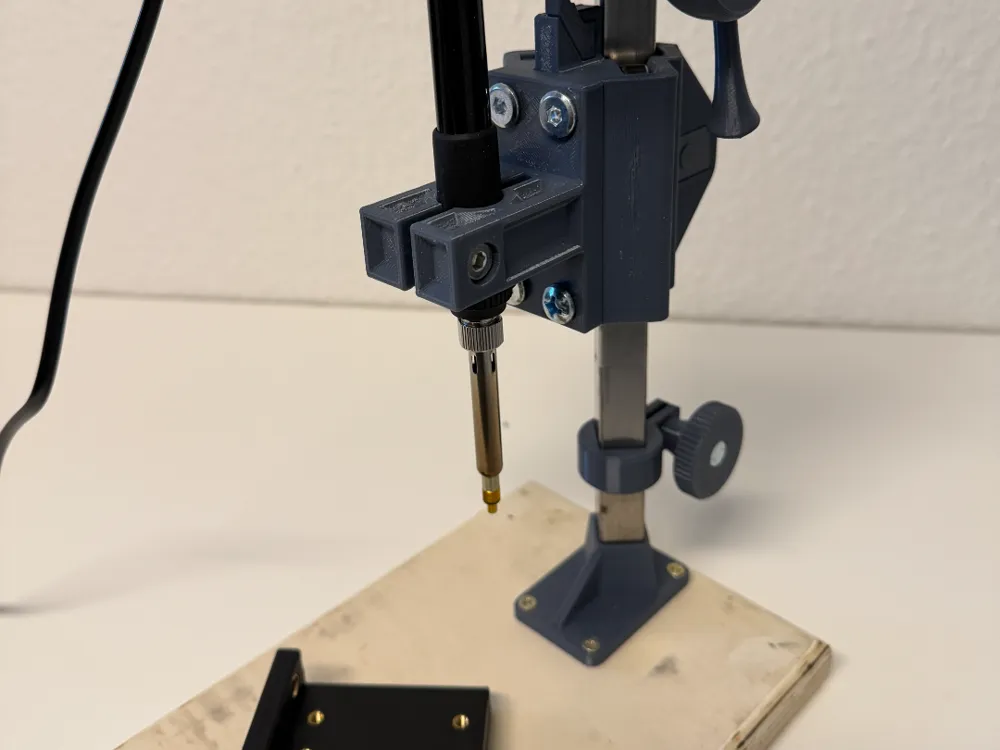

In this version, it serves as a holder for a heat-set/soldering iron (17mm diameter) for melting threaded inserts into components. If other diameters are needed, please let me know. Assembly should be easy. Depending on the tolerance of the tube/printer, different clamping plates are needed. I have created two identical ones each in sizes 13.5mm, 14mm, and 14.5mm. Just try out which ones fit.
Accessories:
5 x Ball bearings 8x22x7
3x Hexagon screw M6 x 30mm
4x Hexagon screw M6 x 16mm
3x Hexagon nut M6
1x 16mm square tube (example length 375mm)
1x Wooden plate approx. 200mm x 140mm
Have fun with the build!
