Mulin 4.5 Resin Curing Washer

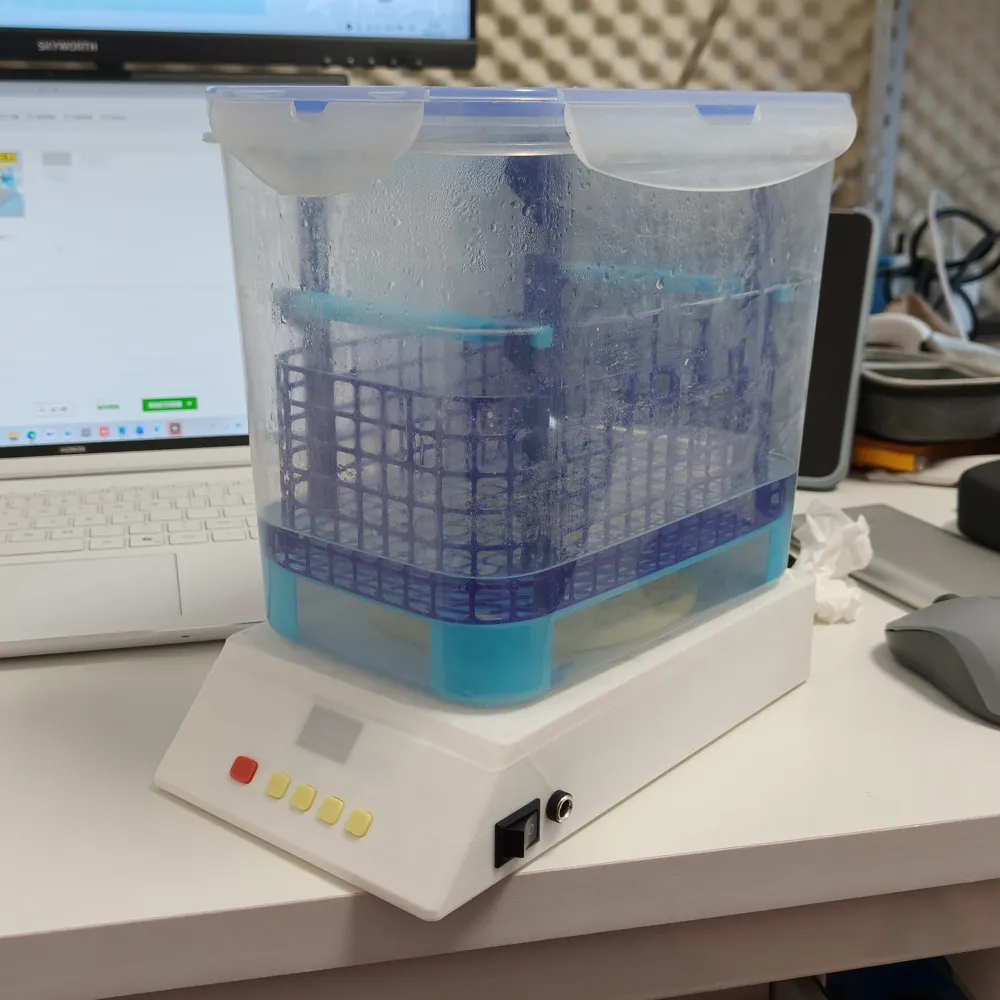

Resin Curing Washer 4.5th Generation

Built upon the 4th generation platform, a low-cost washer solution replicated by nearly a hundred people. For details, see Bilibili/Douyin @遇见小锐

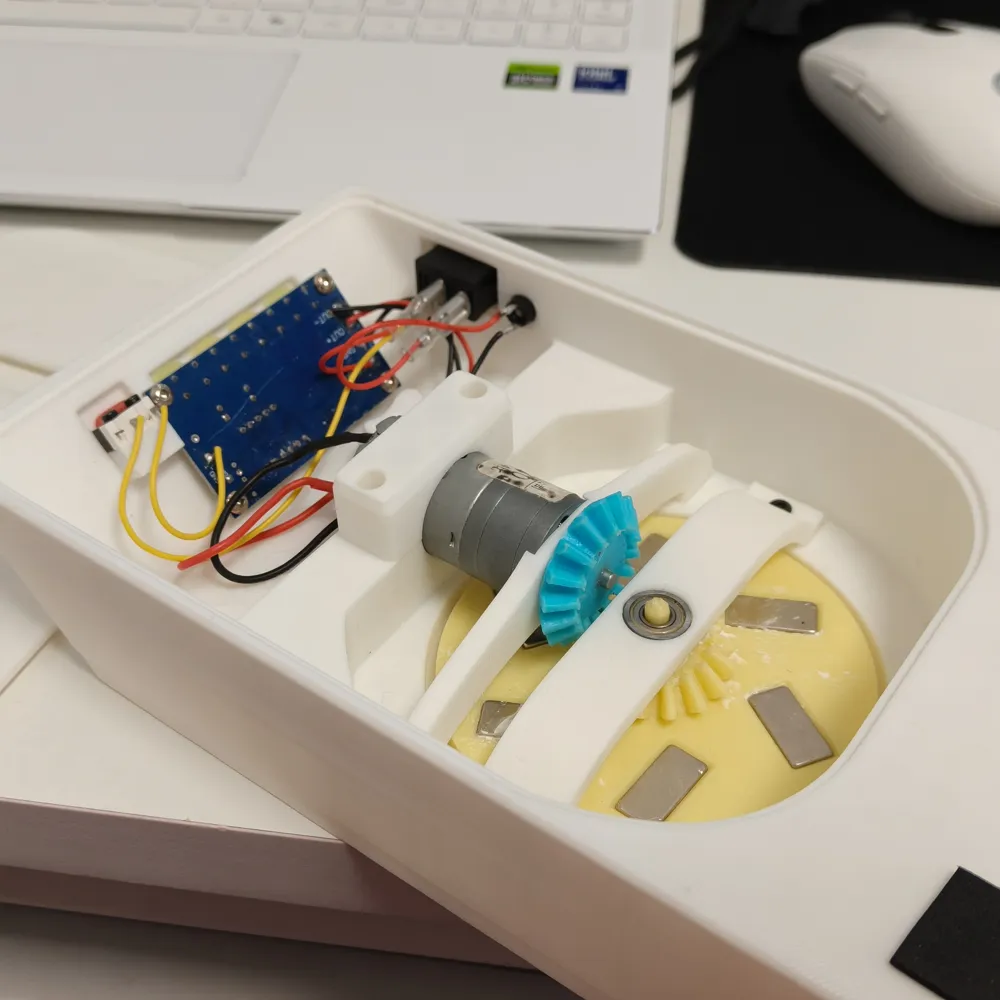

The 4th generation platform uses a magnetic drive impeller. The impeller uses stacked POM water-lubricated plastic bearings, making it more stable and reliable. Below, a helical gear drive achieves an ultra-thin base, 40% thinner than the 3rd generation

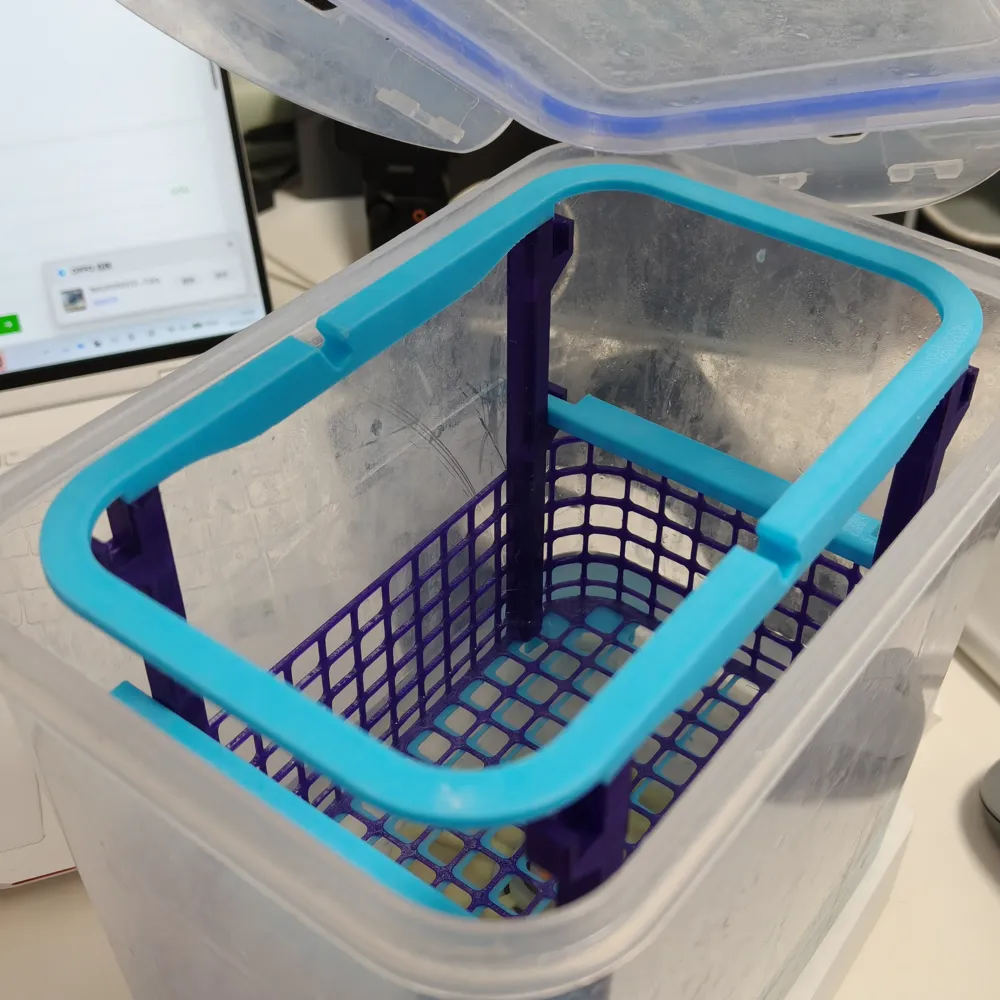

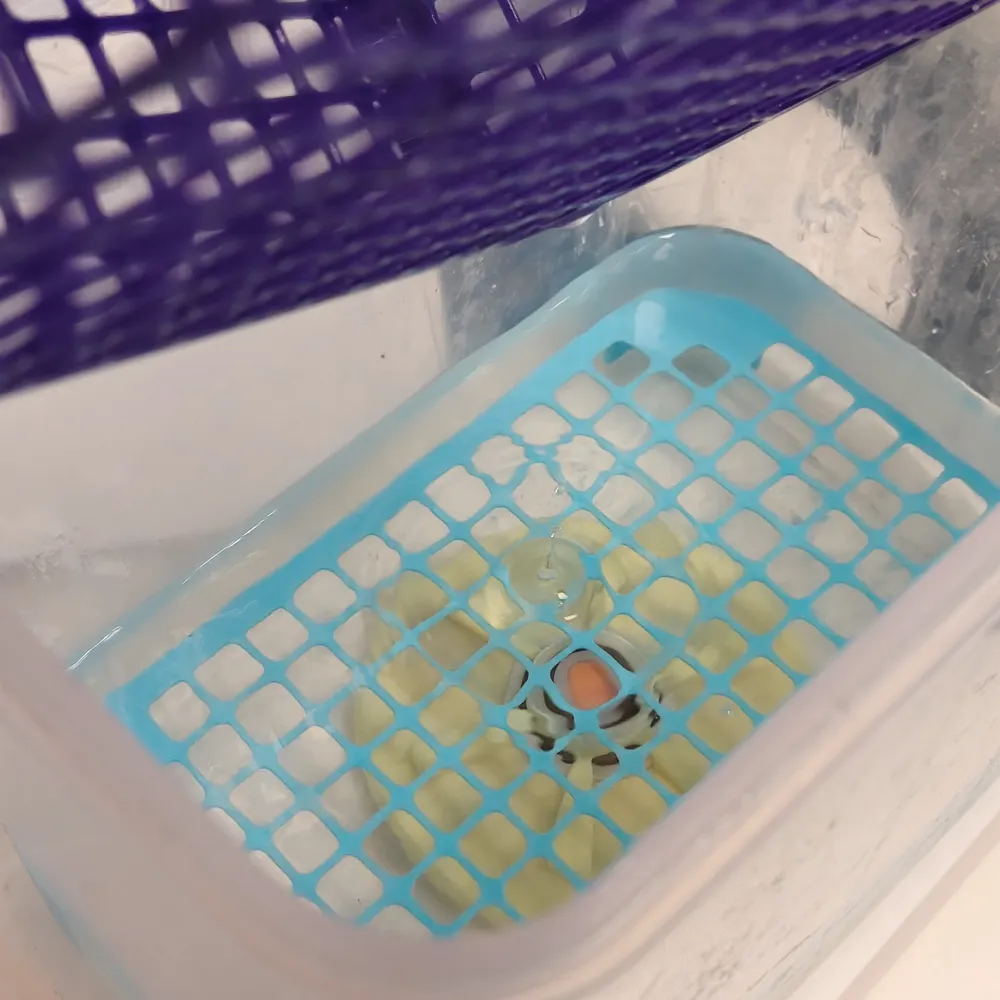

The 3D Printed optimized basket has detail thicknesses strictly adhering to 0.4 integer multiples in design, ensuring good strength and easy printing. Printing with PETG material is recommended, with PLA used by default

###The Delay MOS module needs to have its terminal blocks removed###

Soldering or using pliers both work to make the screen higher than other components for a more aesthetically pleasing built-in effect

No-opening single-layer wall design for stronger integrity

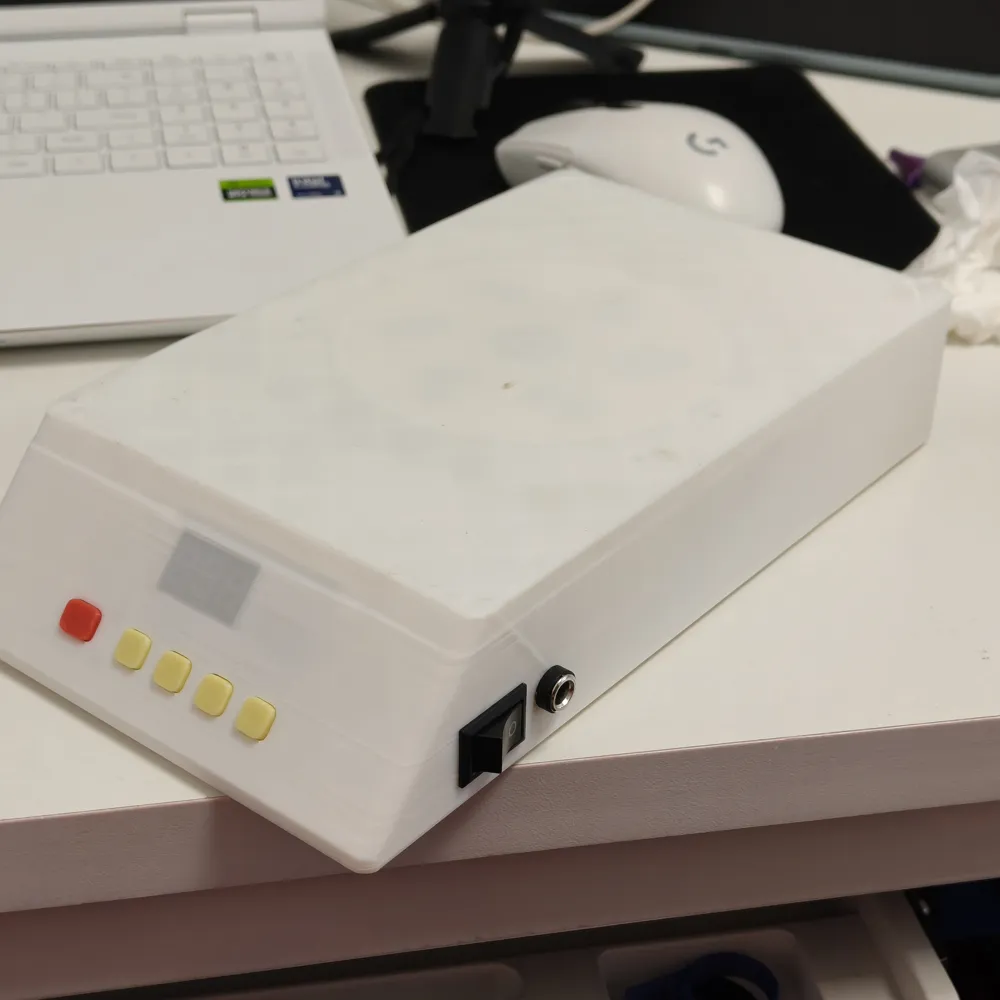

Attention! Do not print the main shell with black material! The screen content will be invisible!

The 4.5th generation resolves the noise and damage caused by motor skipping in the 4th generation, and uses thicker materials for a better experience

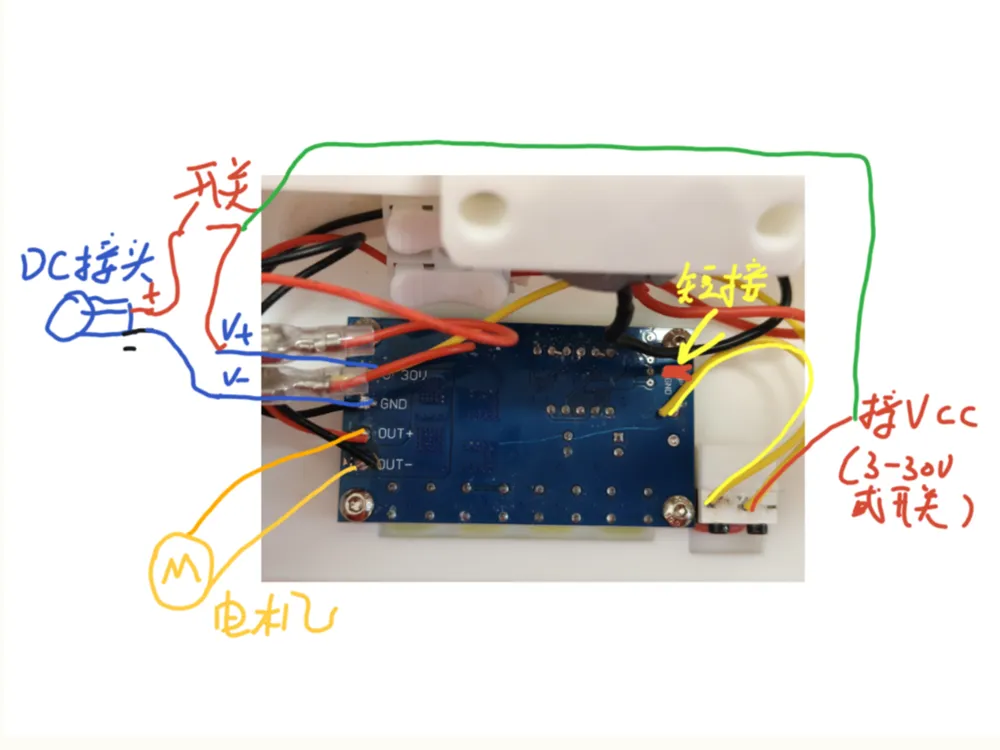

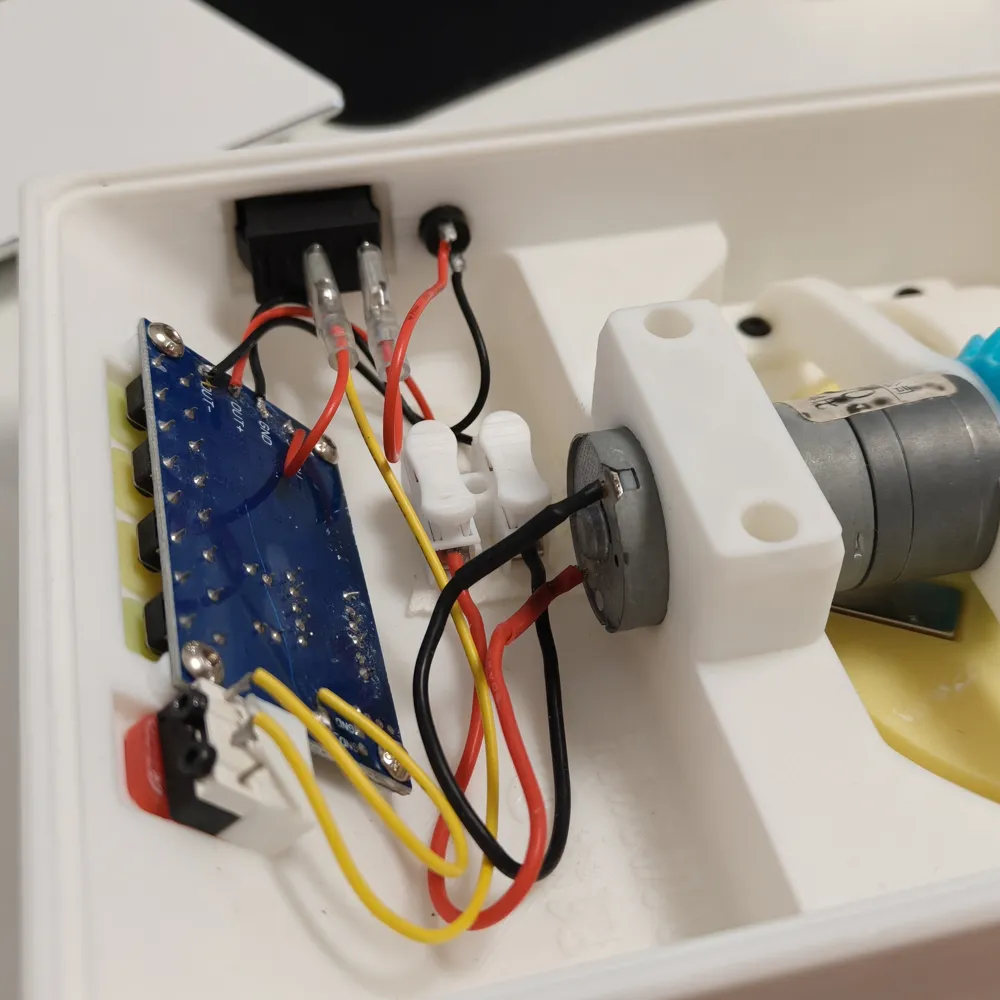

The wiring diagram is in the pictures, followed by the BOM list

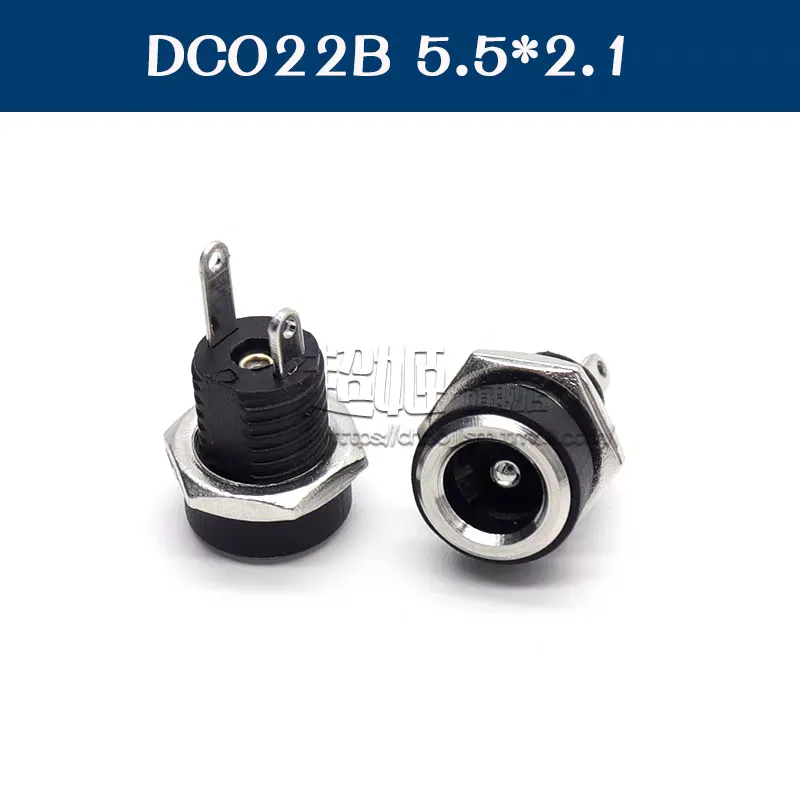

The DC plug requires a 022B specification, with the corresponding diagram in the pictures. The main shell's thread will be quite tight, use pliers to screw it in

Bearings
605zz flanged bearing *2
6002 POM bearing *1
608 POM bearing *1

Magnets
20*10*5 rectangular magnet 12pcs

Fasteners
m3*6 4pcs
m3*8 6pcs
m2*10 self-tapping 2pcs
401 glue 1 tube

Electrical Components
DC5521 plug (DC022B) *1
12V 370 geared motor 1364 RPM *1
Delay MOS module *1
Micro switch (without shrapnel) *1
Rocker switch *1
