BMW Motorrad Oil Funnel - Thread-In
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
Support more motorcycle tools!

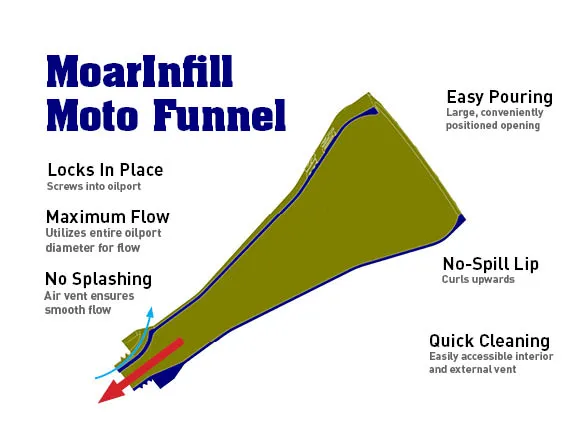

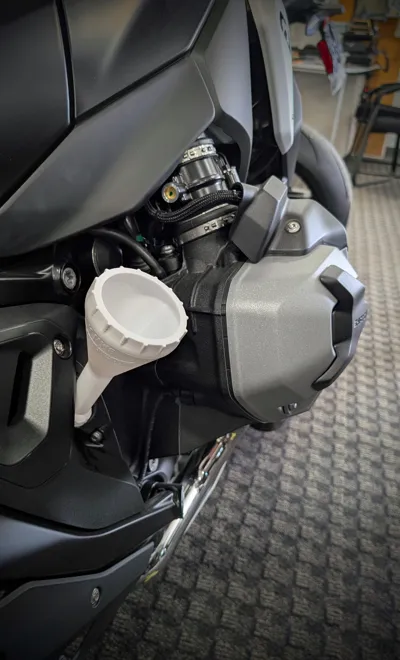

No more spills or needing a second pair of hands during oil changes. Maximum flow area and vented for fast, smooth oil filling. Threads directly into the oil fill port on BMW's M and S-series inline engines, G310, R1300, and K1600 (2021+).
Confirmed fitment: S1000RR, S1000R, S1000XR, M1000RR, M1000R, HP4, G310R, G310GS, R1300GS, R1300GS Adventure, R1300RT, and K1600B/GT/GTL (2021+).
Does NOT fit: R1200 or R1250 models (GS, RT, R, RS, R NineT) — these use a different, larger oil fill port (see our BMW Boxer Funnel ). F-series (F700/750/800/850/900) → BMW F series Funnel. Does not fit K1200, K1300, F650GS, or pre-2021 K1600.
Find K1200, K1300, F650GS, or pre-2021 K1600 Funnels, plus more brands and models here: complete funnel set for all makes and models available
Print guidelines:
- PETG or other higher temperature material
- 0.4mm nozzle
- 0.2mm layers for the main body, 0.1mm layers for the threads
- Slow down for threads
- 3 wall loops
- Arachne (This ensures fast printing and structural integrity for the main body)
- 20%+ infill
- No support
