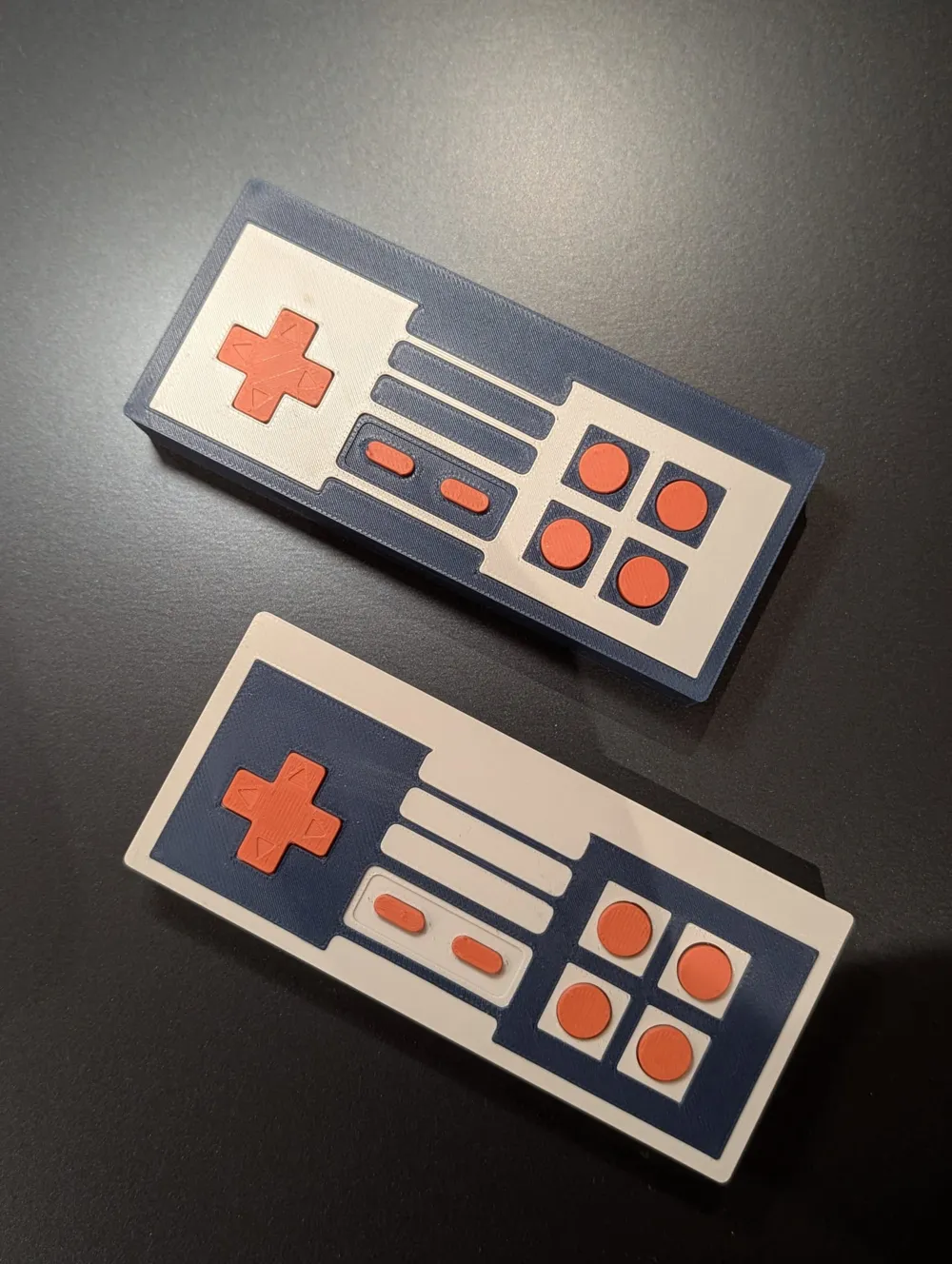

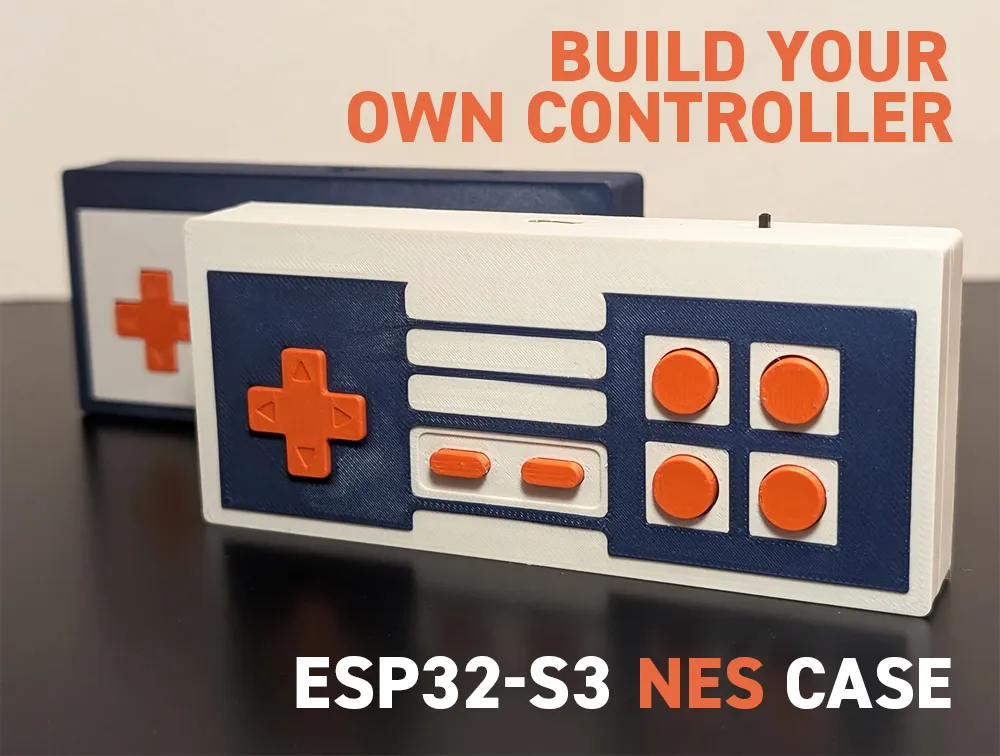

Turn an ESP32-S3 Super Mini into a retro Bluetooth controller with an iconic NES look.

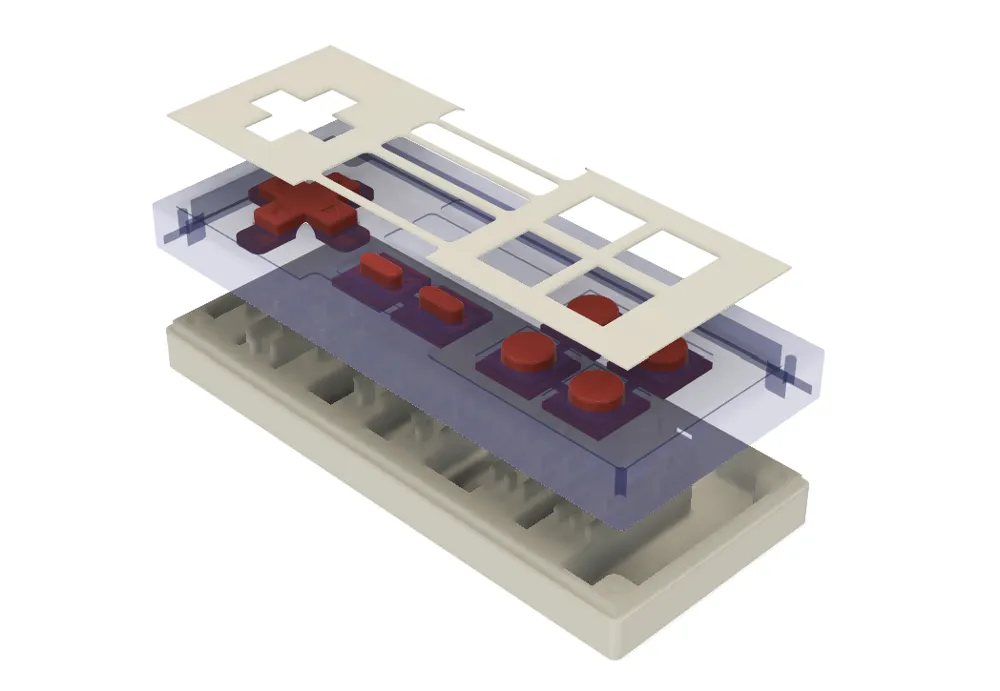

This compact enclosure lets you easily build:
- 🎮 A BLE gamepad for PC & Android
- Android & PC compatible controller – BleGamepad compatible. .ino code included in documentation.
- 🚗 A custom RC remote
- 🤖 A robot controller
- 🛠 Any ESP32-S3 button-based project
Features

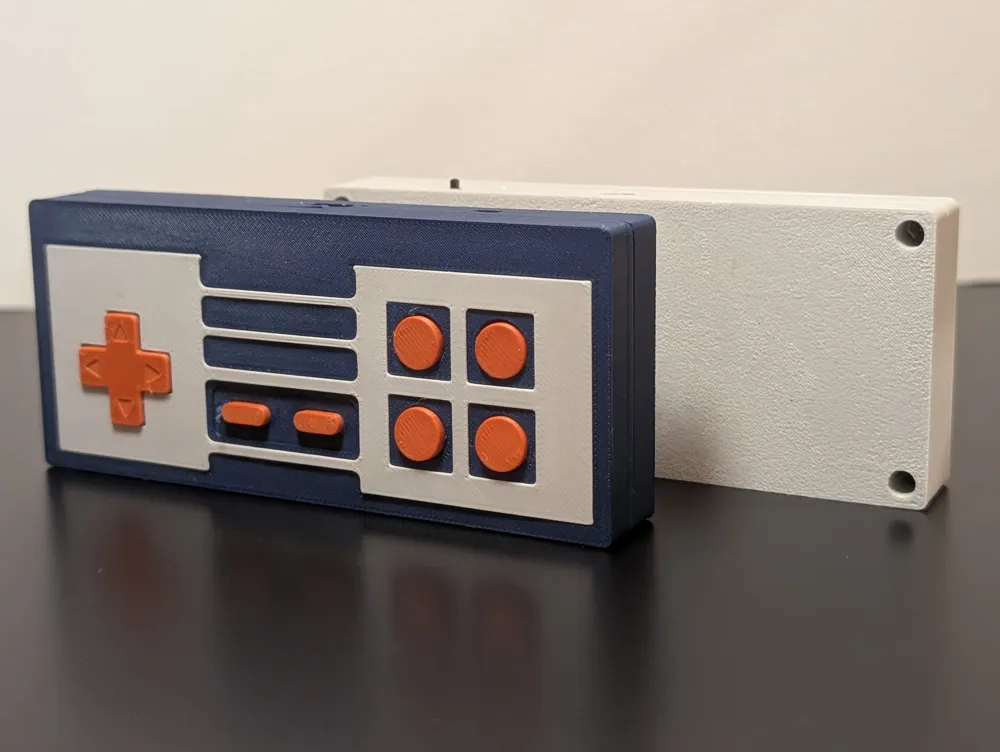

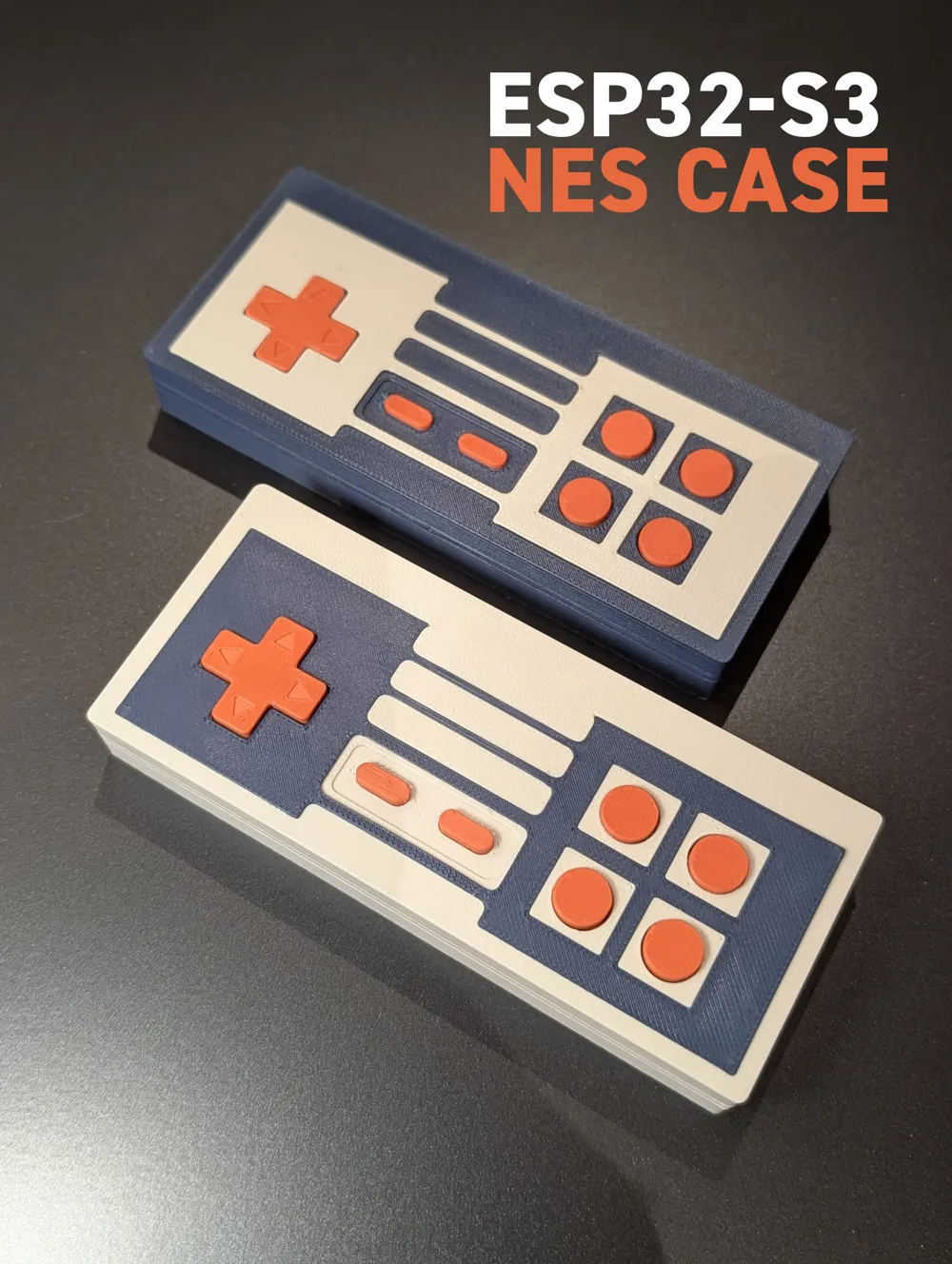

- NES-inspired design
- D-pad + 4 action buttons + Start & Select
- Integrated LiPo battery compartment

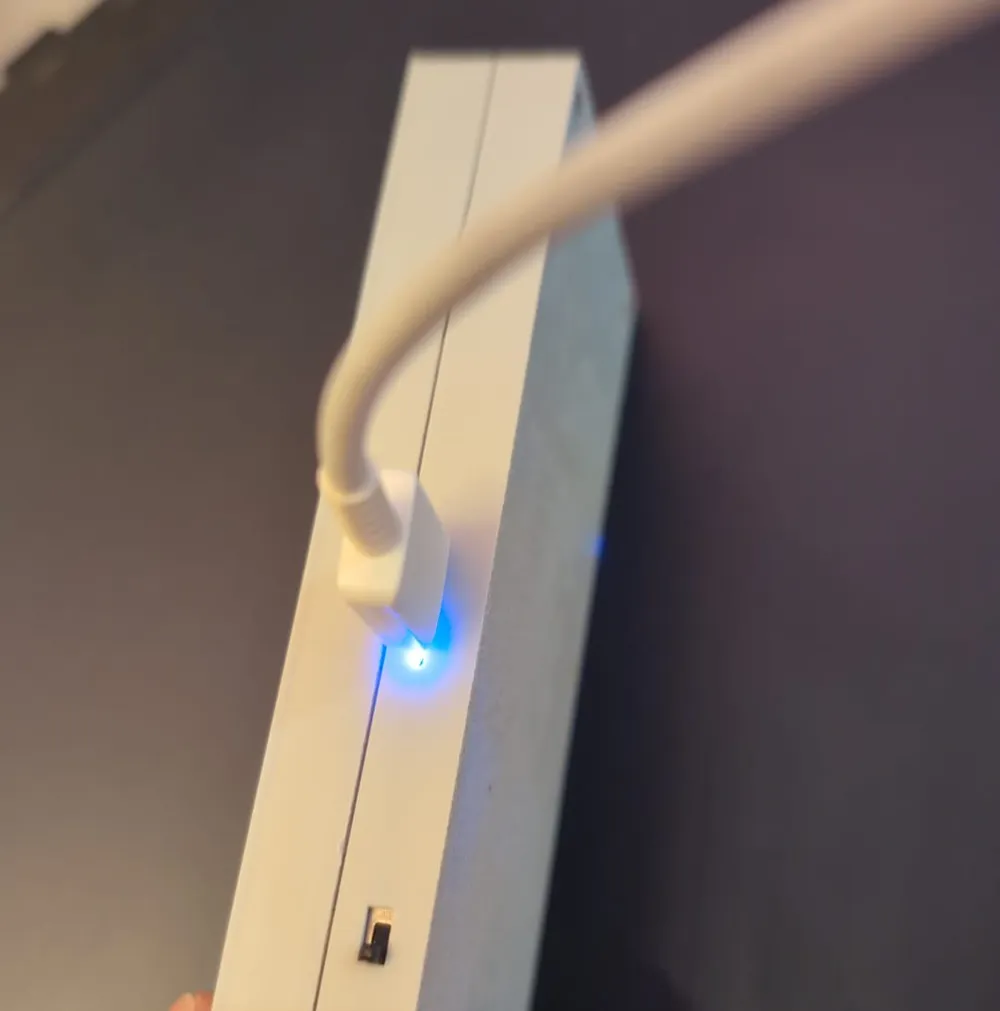

- Designed for ESP32-S3 Super Mini (with onboard charging)

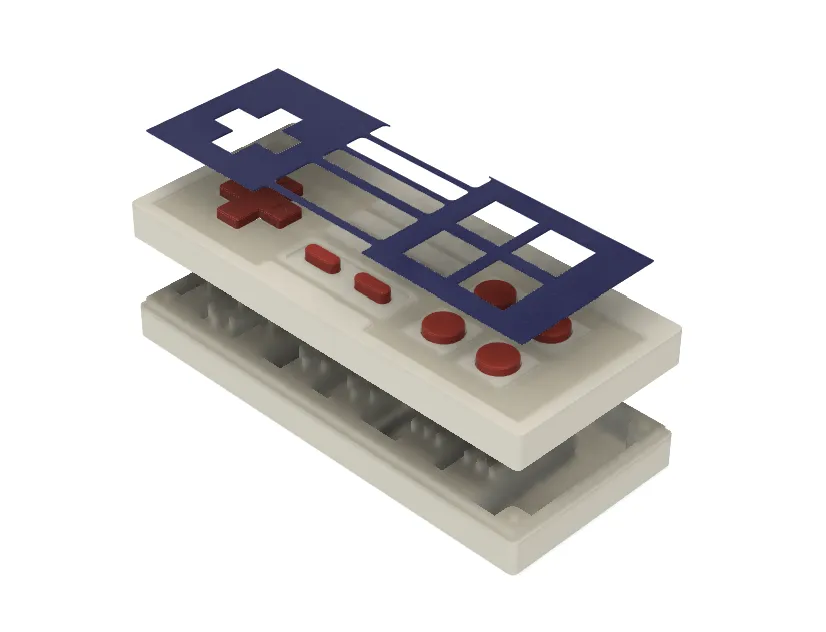

- Easy assembly with standard screws

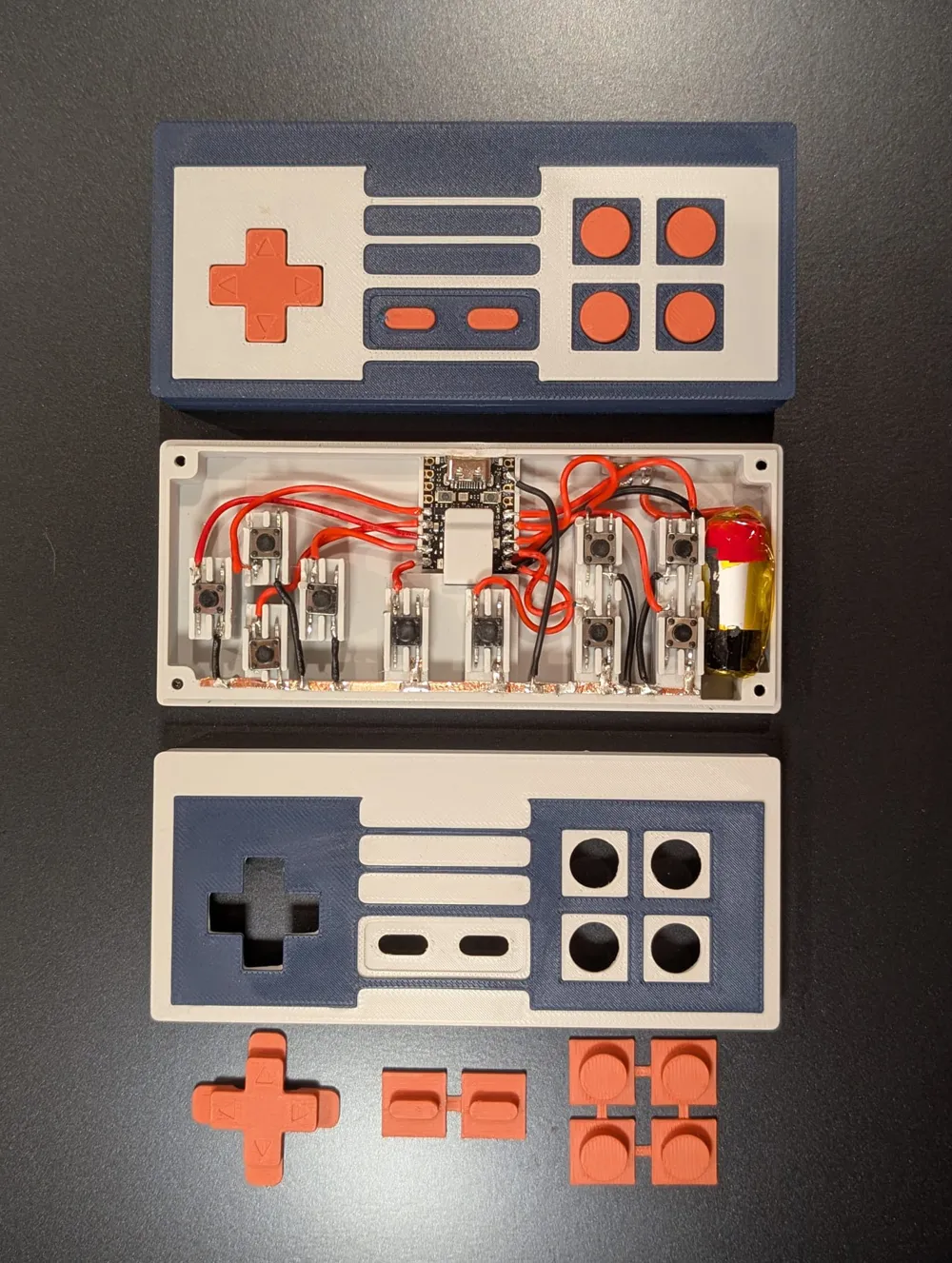

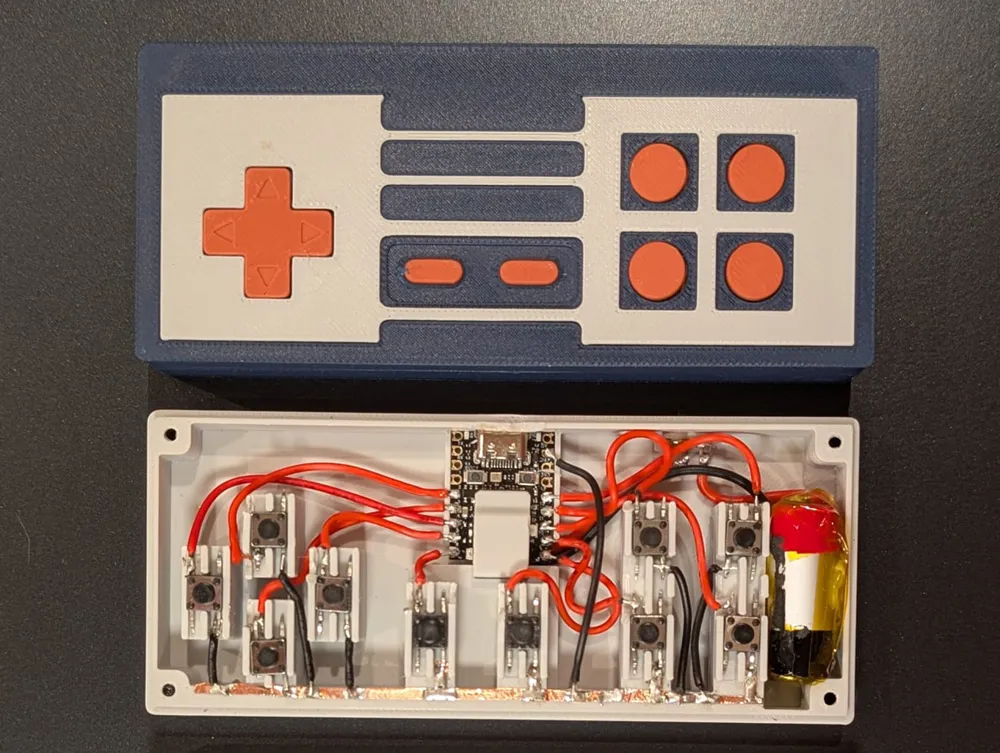

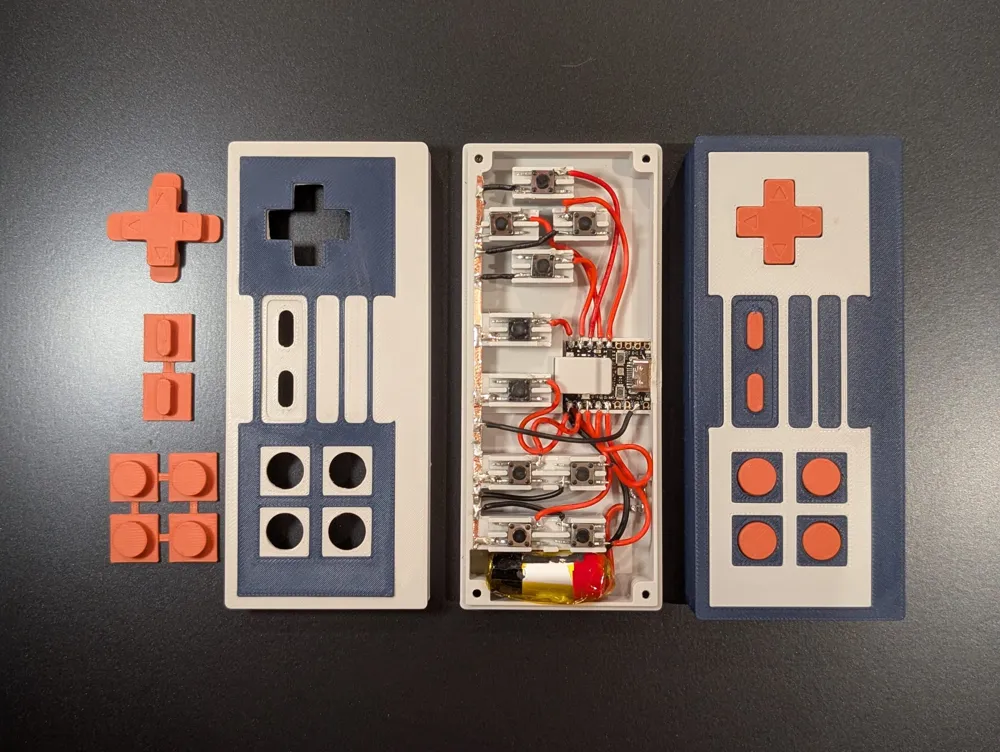

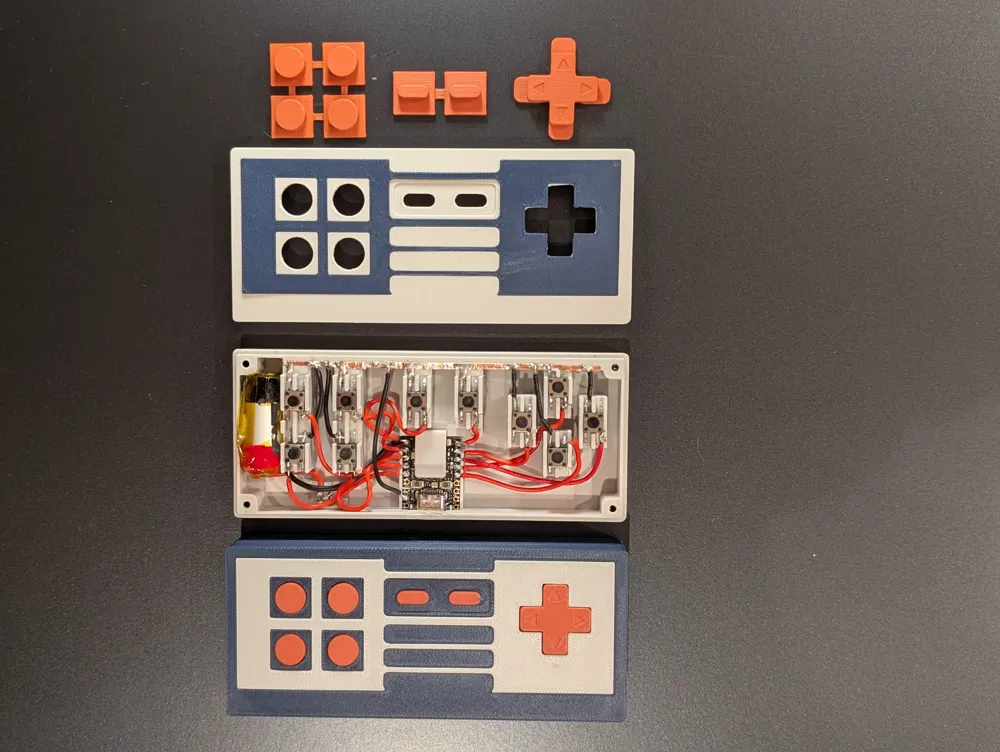

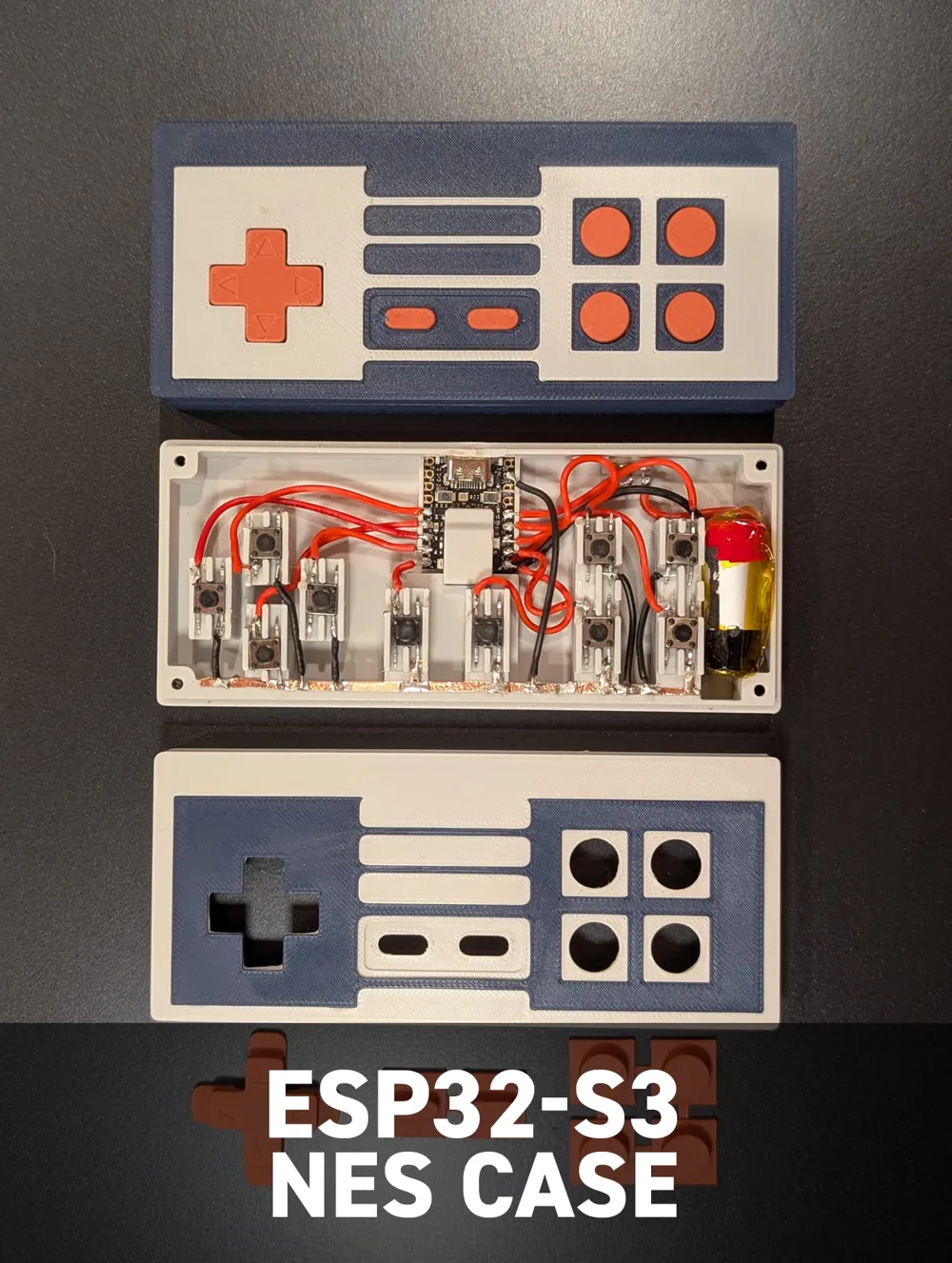

The internal layout supports 6x6 mm tactile switches and simple pull-up-to-GND wiring.
🔧 Hardware Required
- ESP32-S3 Super Mini
- 10x 6x6 mm tactile switches
- 1x ON/OFF switch (small slide switch recommended)
- 3.7V LiPo battery
- Wires / soldering
- M2 / M2.5 screws
- Copper tape (optional, simplifies wiring)
