Blink Adjustable 45° Offset Mount

This mount was designed to solve a common limitation with the stock Blink mount: limited angular range when installing on adjacent walls or ceilings.

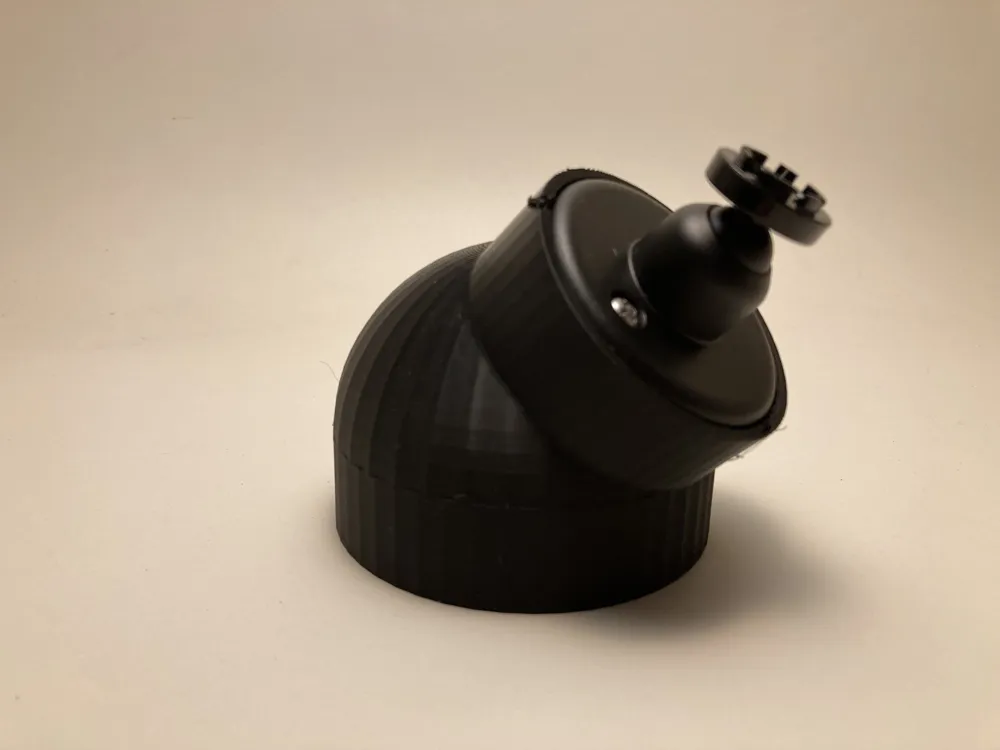

Unlike fixed wedge mounts, this design uses a hemispherical base with a centered single-screw pivot, allowing precise rotational adjustment before final tightening.

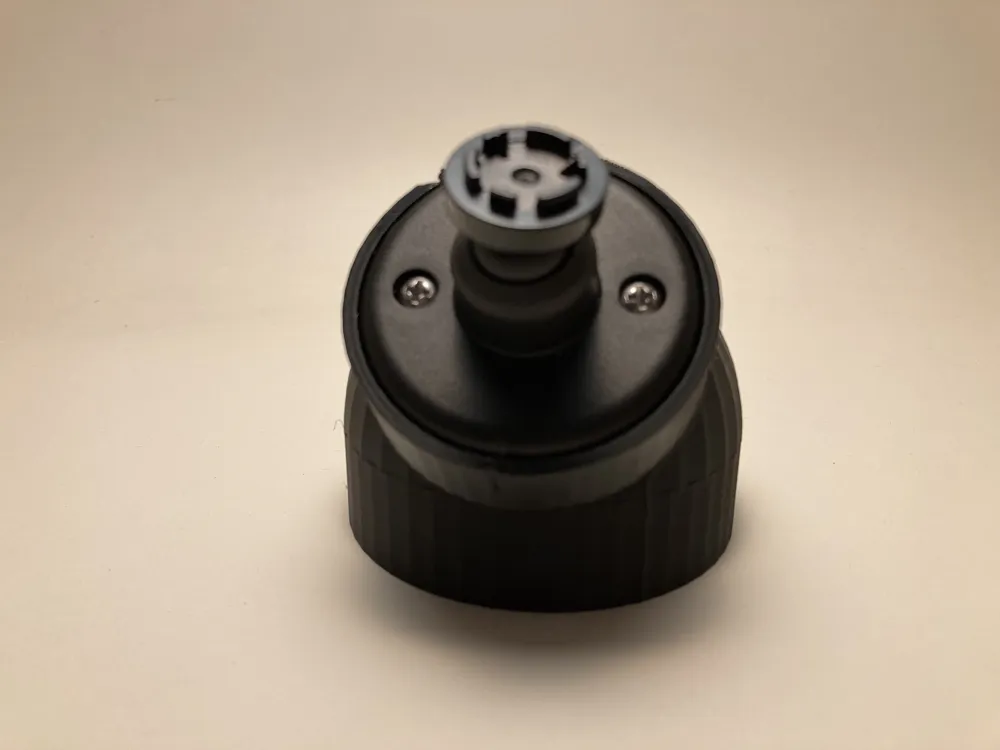

A key feature is the recessed inset lip around the mating surface. The original Blink mount snaps tightly into this pocket, self-centers, and locks into place before fastening. This creates a clean, integrated fit and prevents lateral movement during installation.

Features

• 45° offset for adjacent wall or ceiling installs
• Centered single-screw pivot for fine rotational adjustment
• Recessed snap-fit inset for OEM mount compatibility
• Self-centering interface for clean alignment
• Supports full 90° camera rotation without interference
• Optional foam/rubber gasket for added friction and weather sealingVersions Included

• 10mm Offset (Recommended)

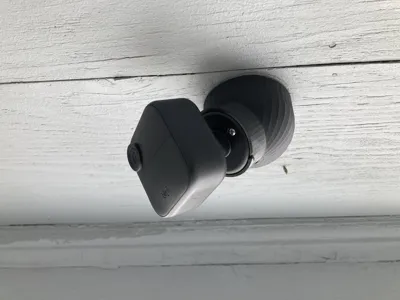

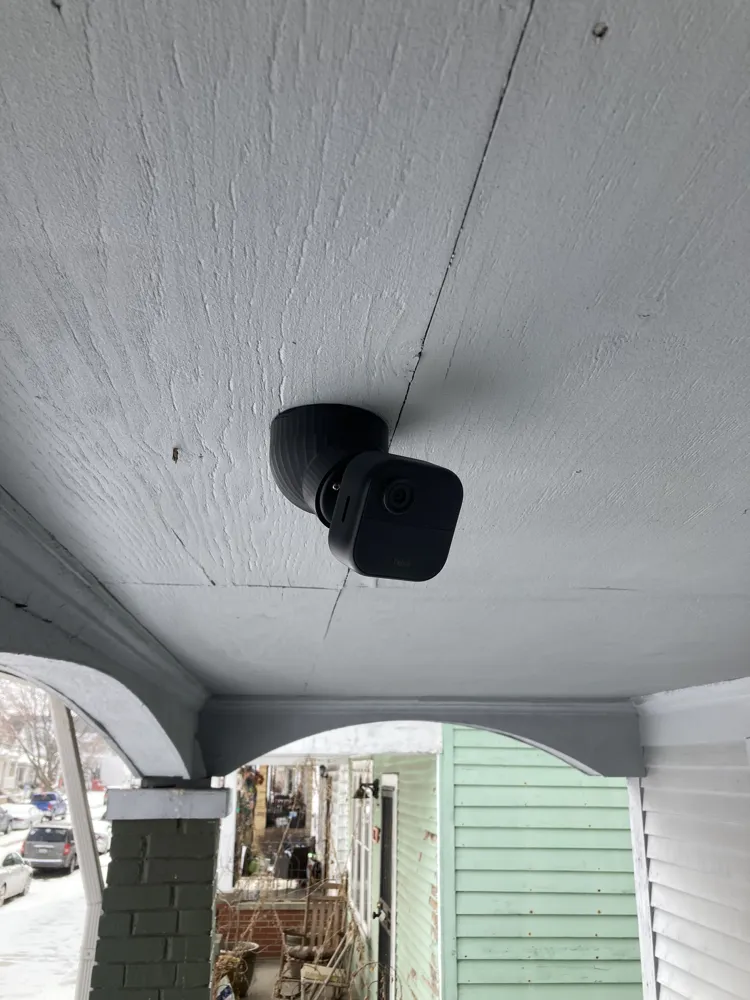

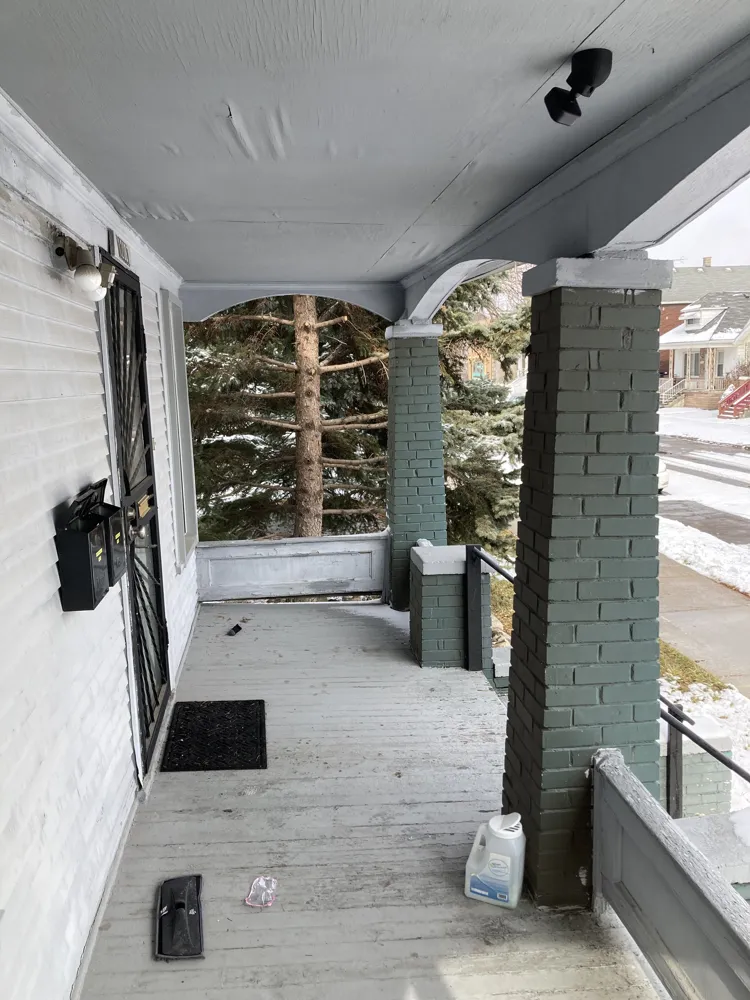

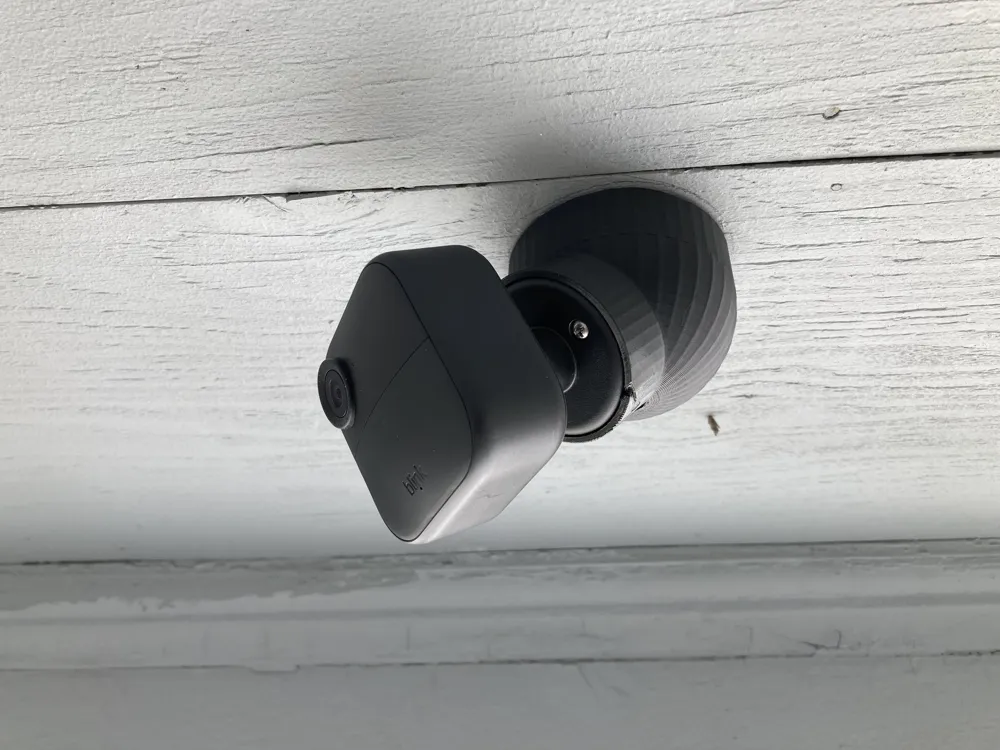

• Optimized for ceiling installs and improved tilt clearance.
  Provides additional separation from the mounting surface, reducing ceiling intrusion in frame and improving angle flexibility.

• Flush Version

• Compact profile for minimal projection installs.

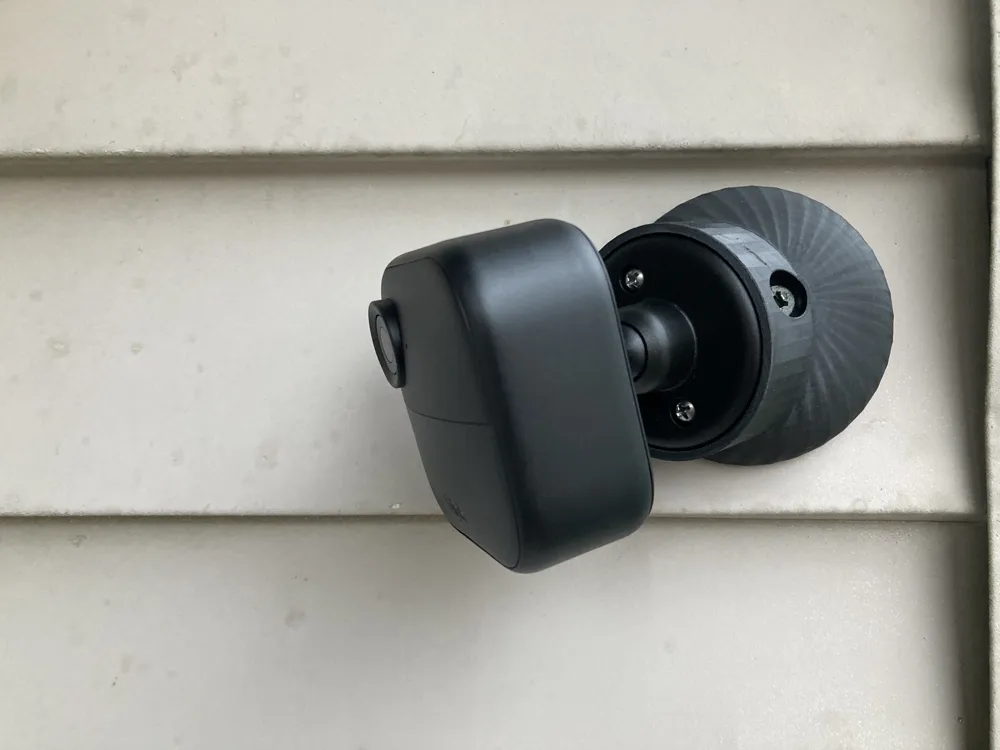

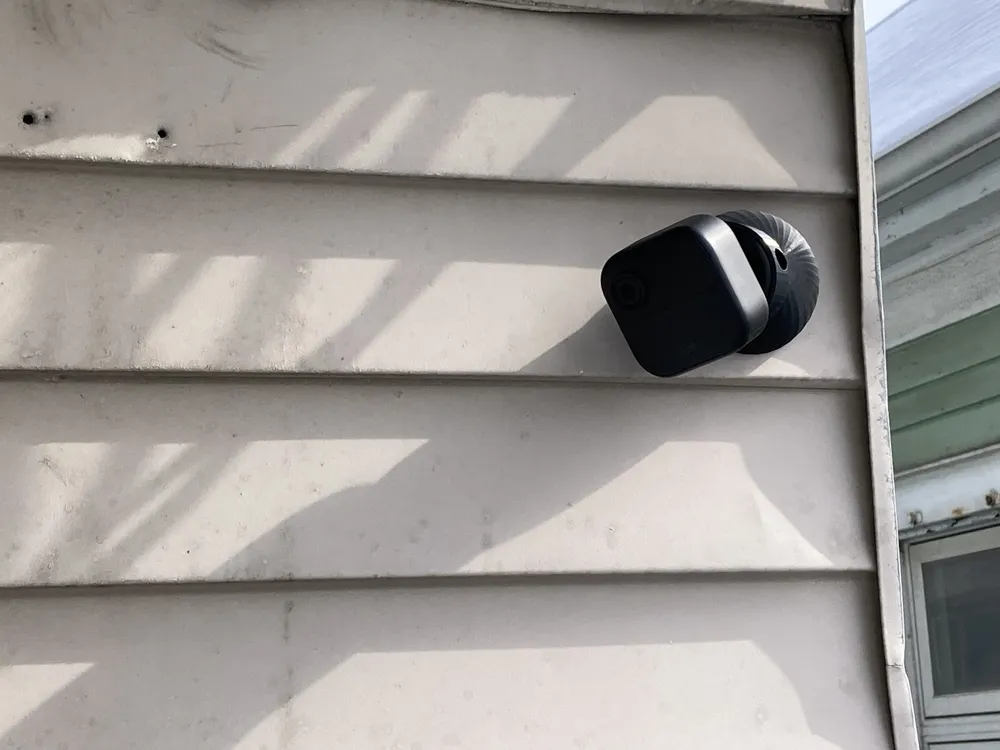

  Best suited for wall mounting where additional clearance is not required.

  Print Recommendations (PETG)

• 0.2mm layer height
• 4–5 perimeters
• 15–20% infill (triangles recommended)
• 5–6 top layers

• PETG recommended for outdoor durability.

  Installation Notes

• Mount using a single center construction or deck screw into solid framing.
• Hand-tighten to allow final angle adjustment before locking position.
• Adding a thin craft foam or rubber gasket between the mount and wall increases friction and provides weather sealing.
