Bambu Lab P2S → Elegoo Mars Mate Exhaust Adapter
Print Profile(2)
Description
Boost Me (for free)
If you found this design helpful or inspiring, please leave me a Boost! It’s a great way to show me support and helps me keep creating more designs like this. Thank you so very much!
Connect your Bambu Lab P2S with the official exhaust add-on to an external Elegoo Mars Mate air filtration system and finally get serious about ABS/ASA fume control.
This print set creates a sealed, efficient airflow path between the printer and the filter using 2.5-inch flexible hose, turning two great standalone products into one clean, quiet ventilation system.
What this solves
The P2S exhaust module is designed to vent fumes, and the Mars Mate is designed to filter them — but they don’t natively connect.
This adapter kit bridges that gap so you can:
- Capture ABS/ASA fumes at the source
- Route them directly into a high-capacity carbon filter
- Reduce smell and airborne particles
- Keep your printing space comfortable
Included Adapter Parts

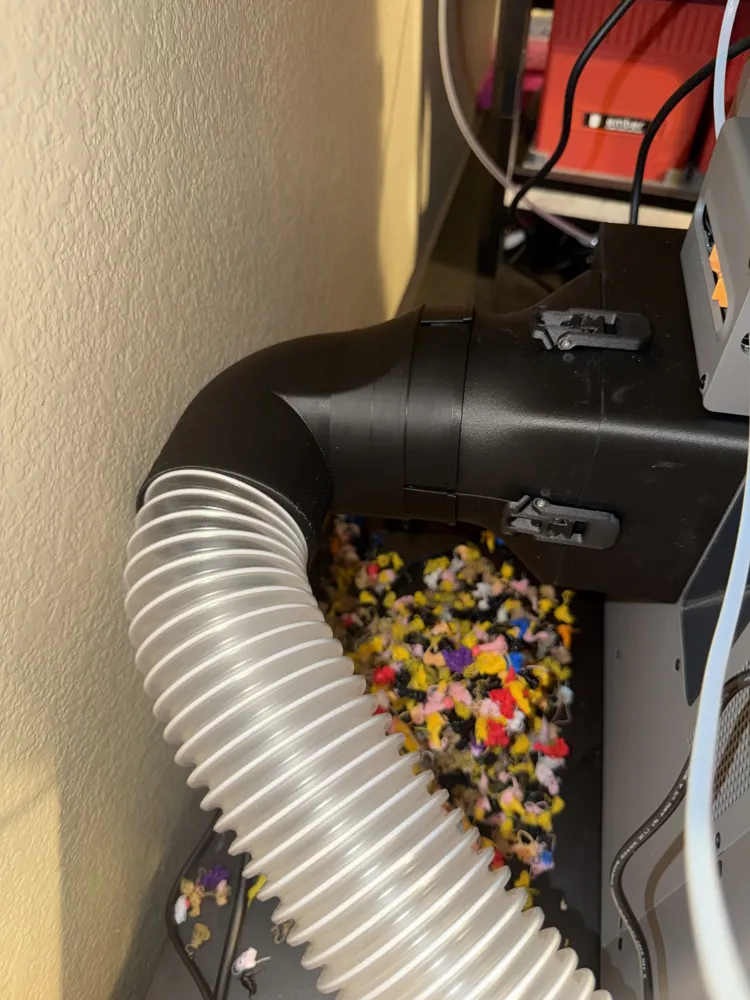

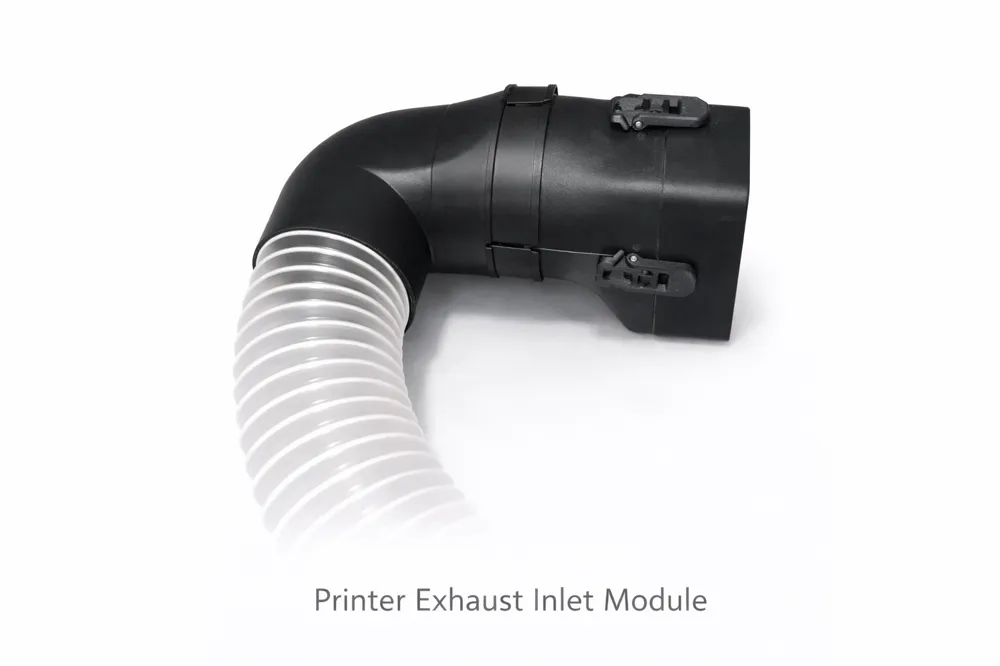

1. Printer Exhaust Adapter (2 versions)
Connects directly to the Bambu Lab P2S exhaust module.
You get two options:
Straight Adapter
- Best airflow performance
- Lowest resistance
- Recommended when you have space behind the printer

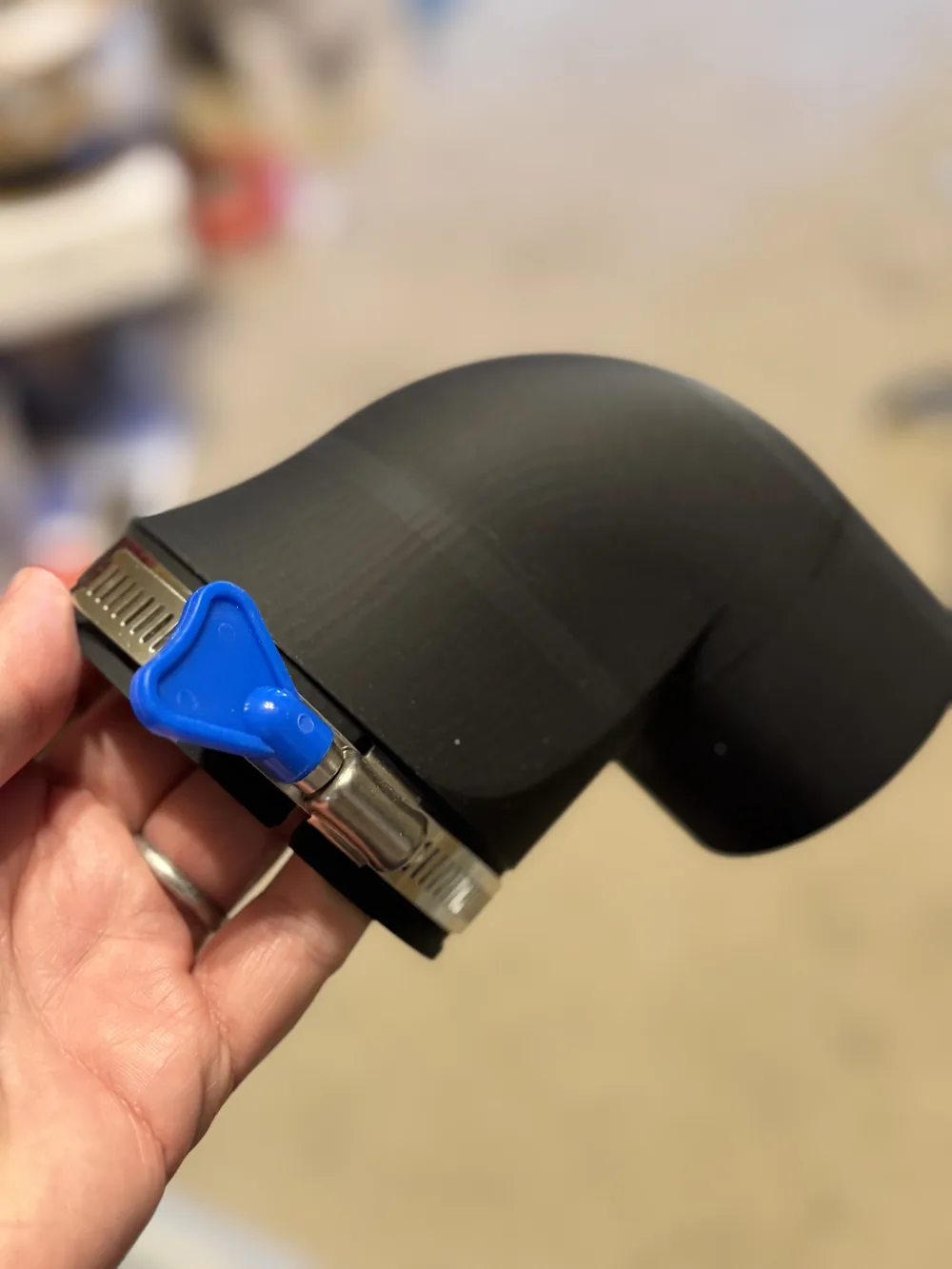

90-Degree Adapter
- For tight spaces against walls or shelves
- Cleaner cable/hose routing
- Slight airflow reduction, but still very effective
Both versions:
- Snap securely into the P2S exhaust add-on. The system is also designed to use 4" hose clamps like those linked below:
https://www.amazon.com/dp/B08PY7S6G1?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 - Designed for a reliable seal
- Accept standard 2.5" flexible hose. Link to the one I used below:
https://www.amazon.com/dp/B0C8M5MGC4?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

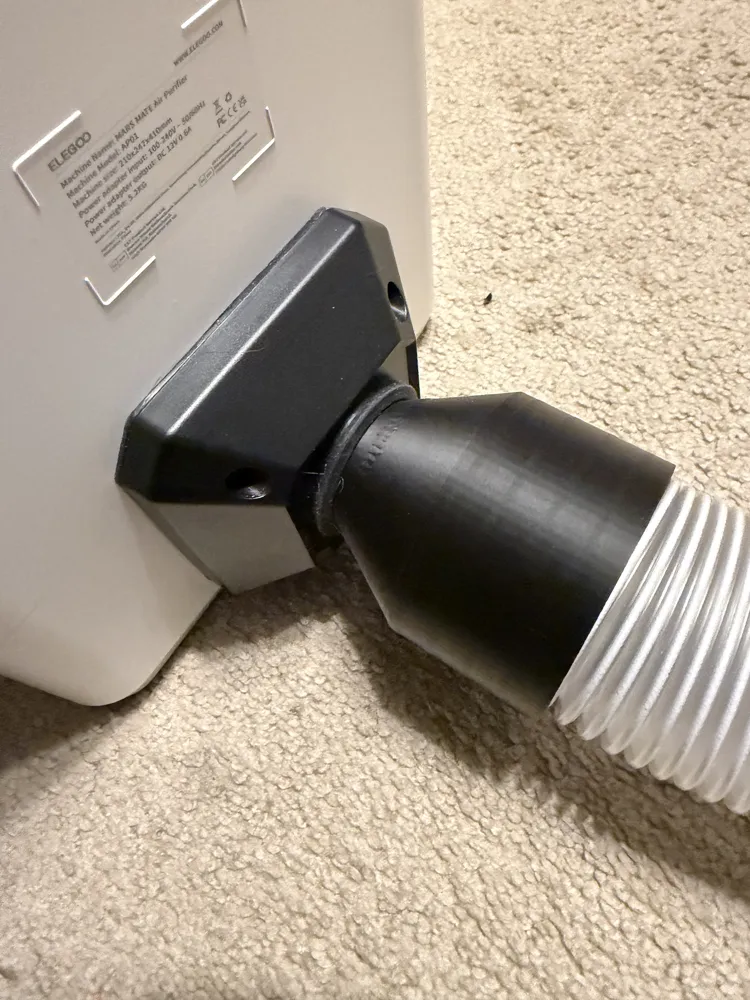

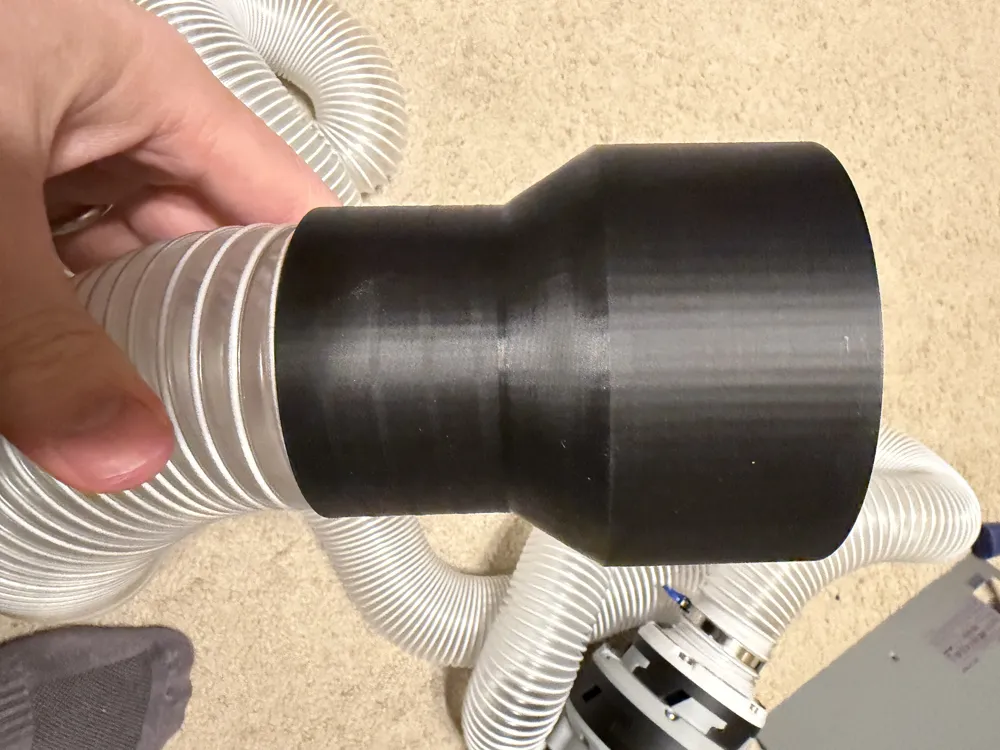

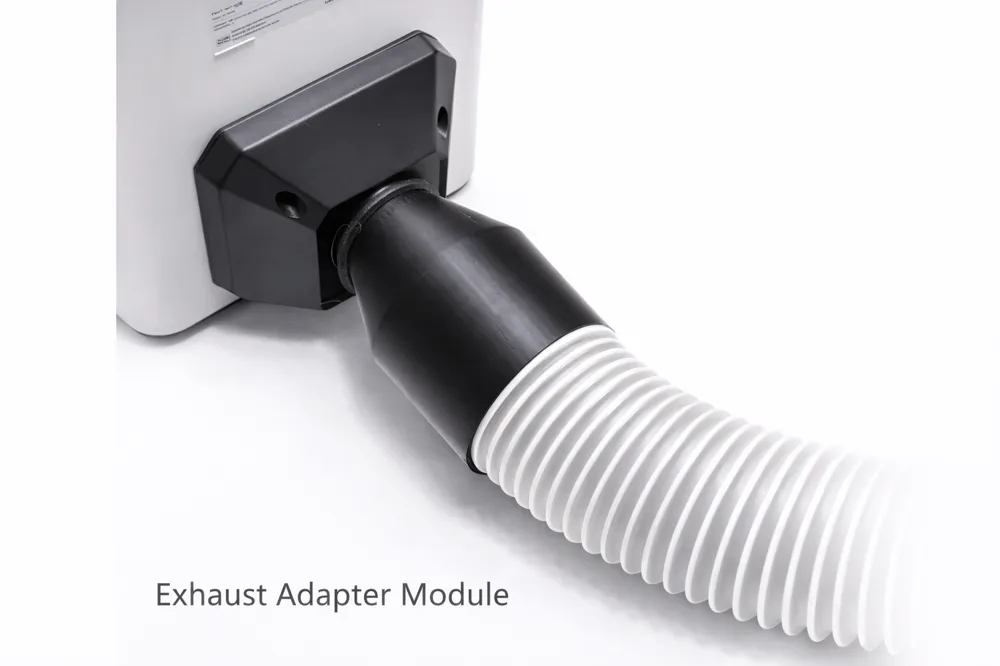

2. Mars Mate Intake Adapter
Connects the hose to the Elegoo Mars Mate intake port.
- Clean mount to the filter housing
- Maintains airflow efficiency
- Designed to look like it belongs there
Hose Size
This system uses 2.5-inch flexible hose throughout.
Why 2.5"?
- Excellent balance of airflow vs noise
- Easy to source
- Flexible routing
- Fits typical hobby spaces
Printing Recommendations
Material
- Any rigid material: PLA, PETG, ABS etc
Settings
- 2+ walls
- 15% infill
- No supports required except on the 90-dg adaptor - there I would recommend tree supports.
- Print adapters upright
Who this is for
This is for makers who:
- Print ABS/ASA on a P2S
- Already own (or plan to use) a Mars Mate
- Want proper fume handling
- Care about airflow efficiency
- Like clean, purpose-built solutions
If you’ve been venting into the room or using loose ducting, this gives you a proper system.
Design Goals
- Minimal airflow restriction
- Clean aesthetic
- Easy install
- Modular components
- Maker-friendly printing
Installation Overview
- Attach 2.5" flexible hose to both adaptors
- Connect hose to Mars Mate adapter
- Attach printer adapter into P2S exhaust module
- Turn on filter
- Print without the ABS smell taking over your house
Notes
- Designed specifically for Bambu Lab P2S + official exhaust add-on
- Designed for Elegoo Mars Mate
- Choose straight or 90° version based on space
Why two printer adapters?
Airflow vs space.
If your printer sits in the open → use the straight adapter.
If your printer is against a wall → use the 90°.
I included both so you don’t have to reprint later.
Feedback welcome
If you build this setup, I’d love to see it.
Post a make and let me know:
- Straight vs 90° preference
- Hose routing
- Any tweaks you’d like
Happy printing — and breathing.
