Parametric Phone Case Generator with Hinged Lid

Welcome to my MakerWorld page!

Here you will find high-quality, cleanly designed, and everyday 3D models – developed with a focus on function, reliability, and straightforward printing.

📱 Parametric Smartphone Framework – "The Final Boss" Lid Edition

Everything is customizable! Literally EVERYTHING!!!

Optimized for all materials: PETG, PLA, TPU, ASA, ABS, and more.

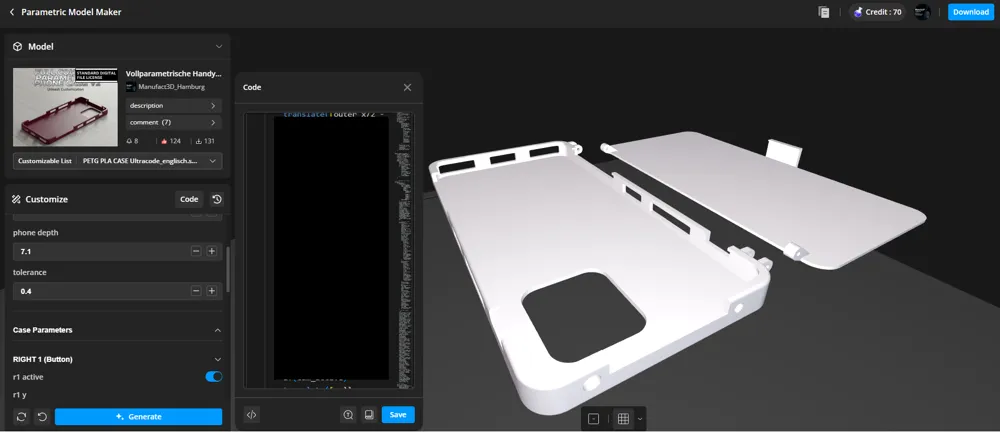

This OpenSCAD script is the ultimate evolution of 3D-printed phone protection. It features a fully integrated, hinged armor lid with a secure snap-lock mechanism. Take total control over every millimeter and axis.

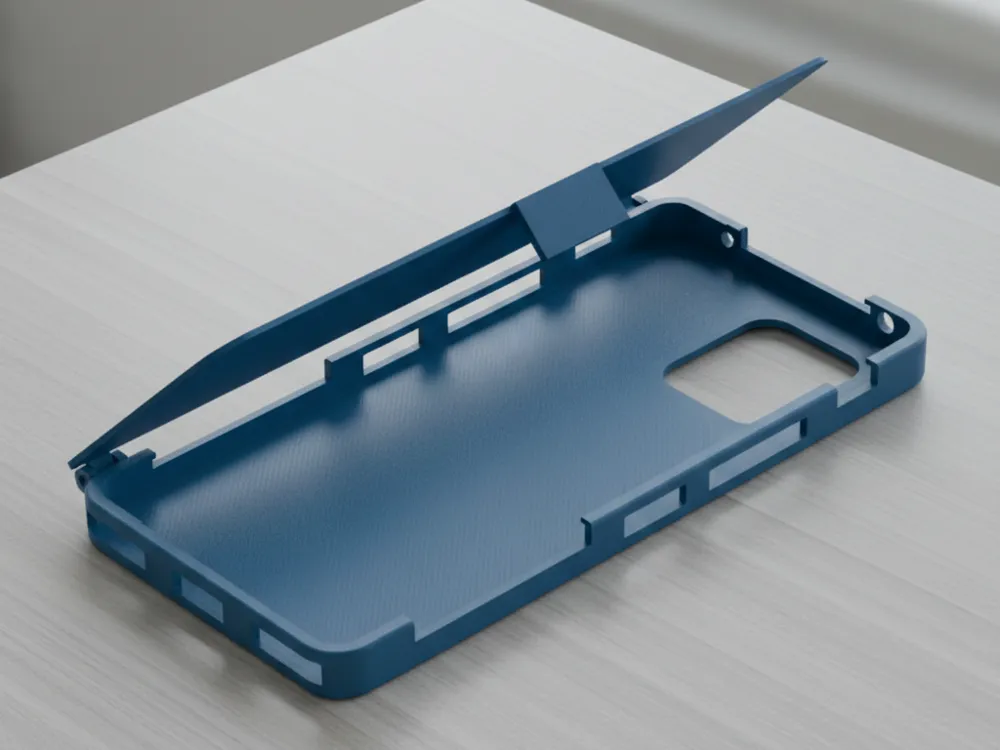

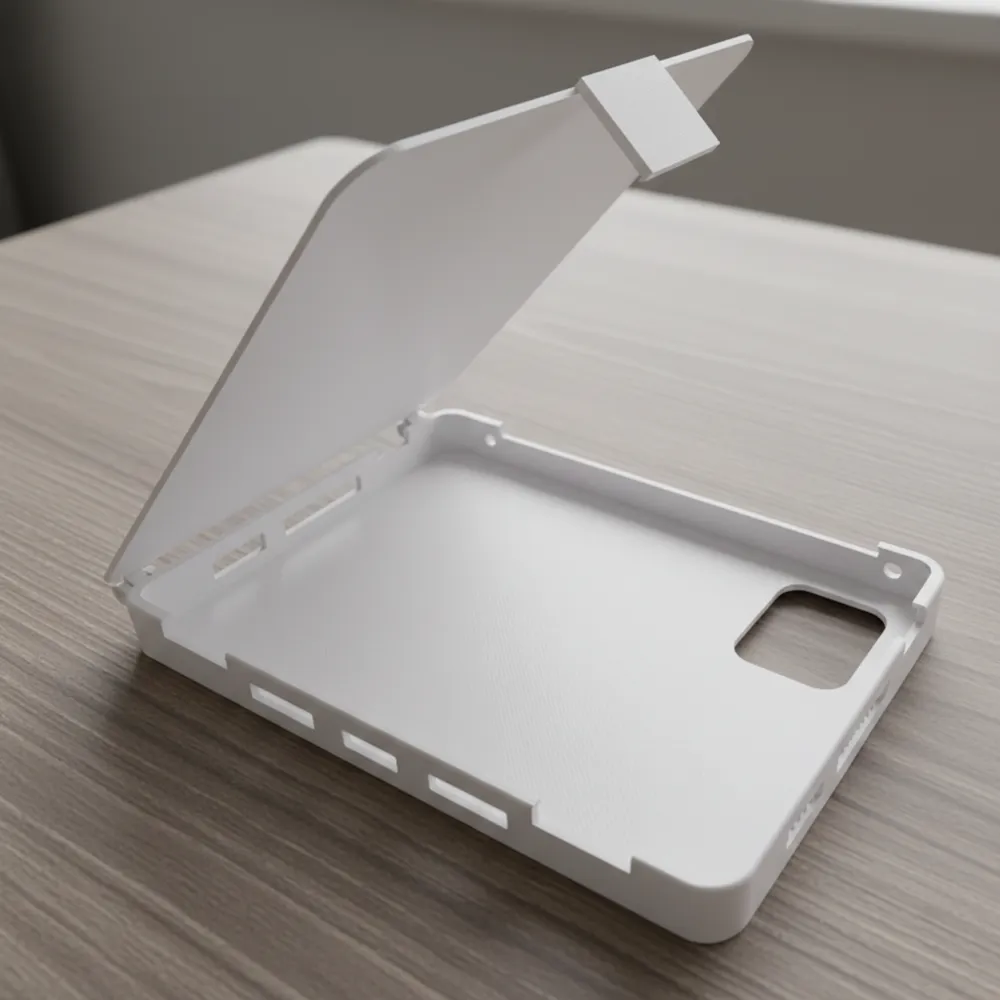

1. Integrated Armor Lid & Hinge System 🛡️

The standout feature: A rugged, flip-to-open protective cover.

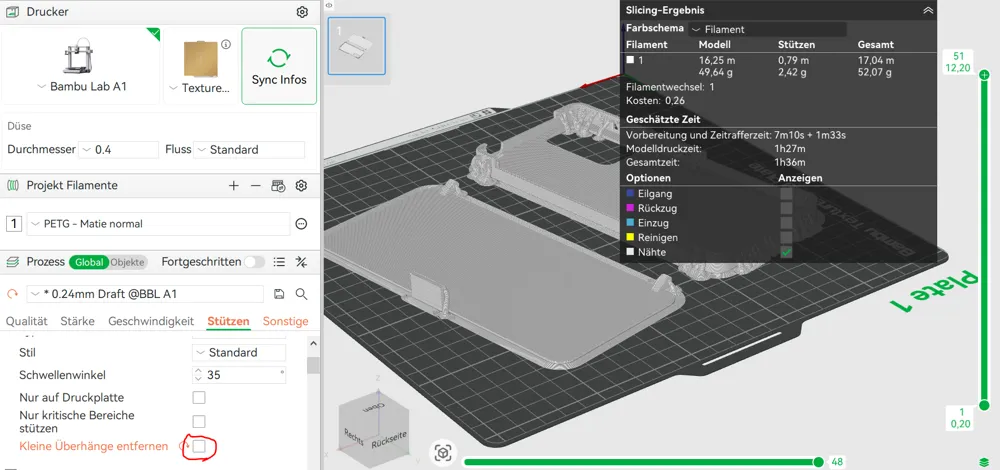

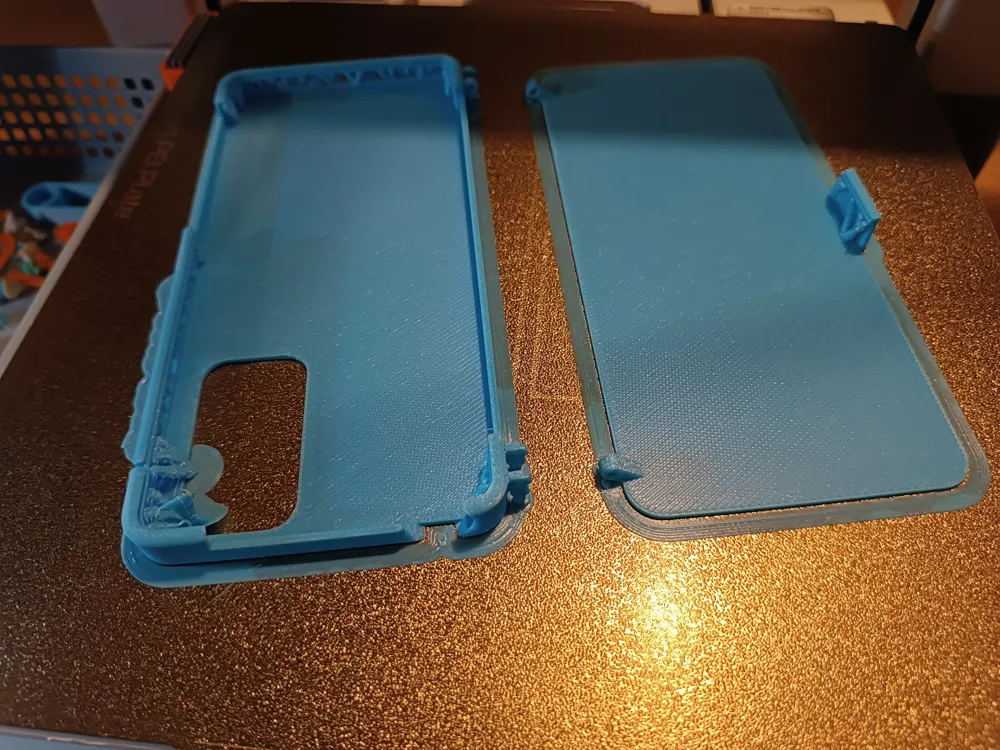

• Flip-to-Print: Optimized 180° flat-lay orientation for clean, support-free printing.
• Precision Hinges: Adjustable hinge length, diameter, and clearance for a smooth swing.

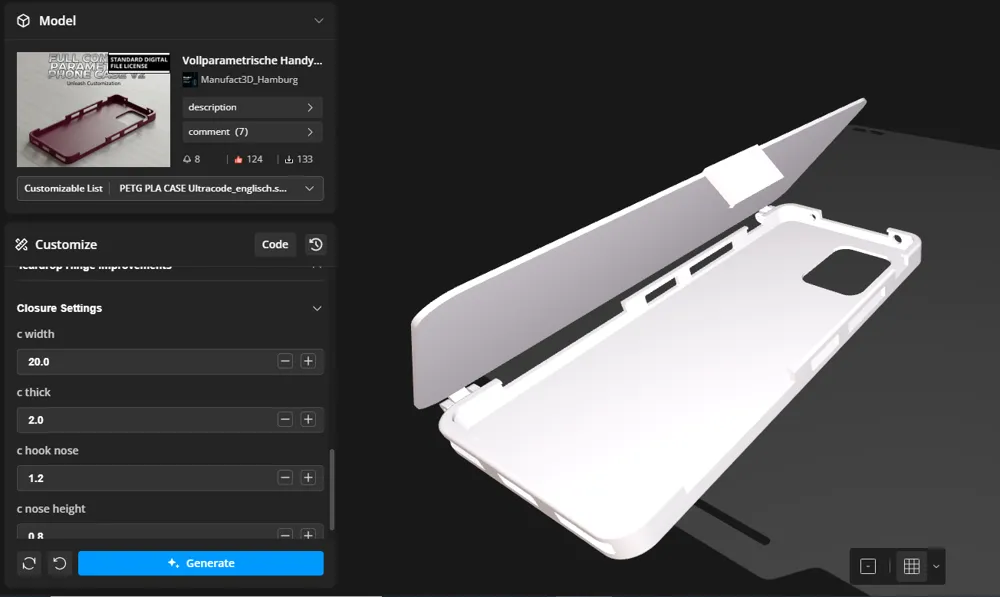

• Secure Snap-Lock: A reinforced tactical latch keeps the lid closed during drops.

2. Comprehensive XYZ Position Control 🕹️

No cutout is fixed. Every element (Buttons, USB, Speakers, AUX, IR) has its own dedicated sliders:

• X-Axis: Lateral shifting (e.g., for off-center USB ports).
• Y-Axis: Precise button positioning along the frame.
• Z-Axis: Vertical offset. Port too low? Just slide it down by 0.5 mm.

3. Dynamic Dimensioning (L x W x H) 📏

From tiny mute switches to massive volume rockers:

• Individual Specs: Define length, width, and height for every button slot separately.
• Radius Control: Tune the roundness of cutouts for a premium look and feel.

4. Smart-Flex Zone with Structural Integrity 🦾

The case balances flexibility with maximum protection:

• Reinforced Corners: Critical zones remain solid for peak drop protection.
• Automatic Bridge Guards: The script identifies button/port locations and maintains safety bridges to prevent stretching or snapping.

5. Professional Finish & Ergonomics ✨

• Global Scoop Slider: Controls the ergonomic "depth" of all buttons for perfect tactile feedback.
• Smooth Spherical Edges: All internal cutout edges are rounded via spherical algorithms—no sharp edges for your fingers.
• Minkowski Finish: The entire exterior is organically rounded for the best in-hand feel.

The Bottom Line: You no longer adapt to the design – the design adapts to your phone. Enter your dimensions, and in seconds, you have a custom-armored case that fits better than any mass-produced product.

Thank you for visiting!

If you like my models, I appreciate every Like, Download, Make, or Feedback. Let’s improve the MakerWorld community together, one step at a time!

– Happy Printing! :)
