Tactical Grenade - No AMS

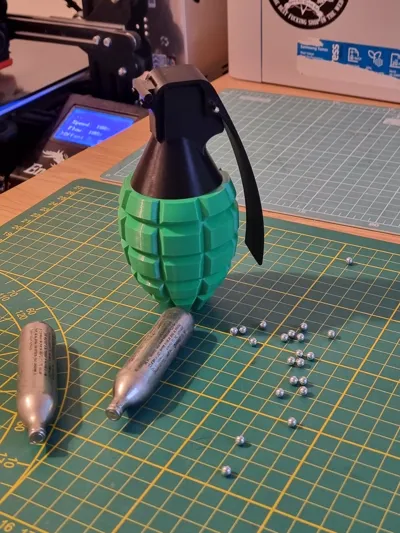

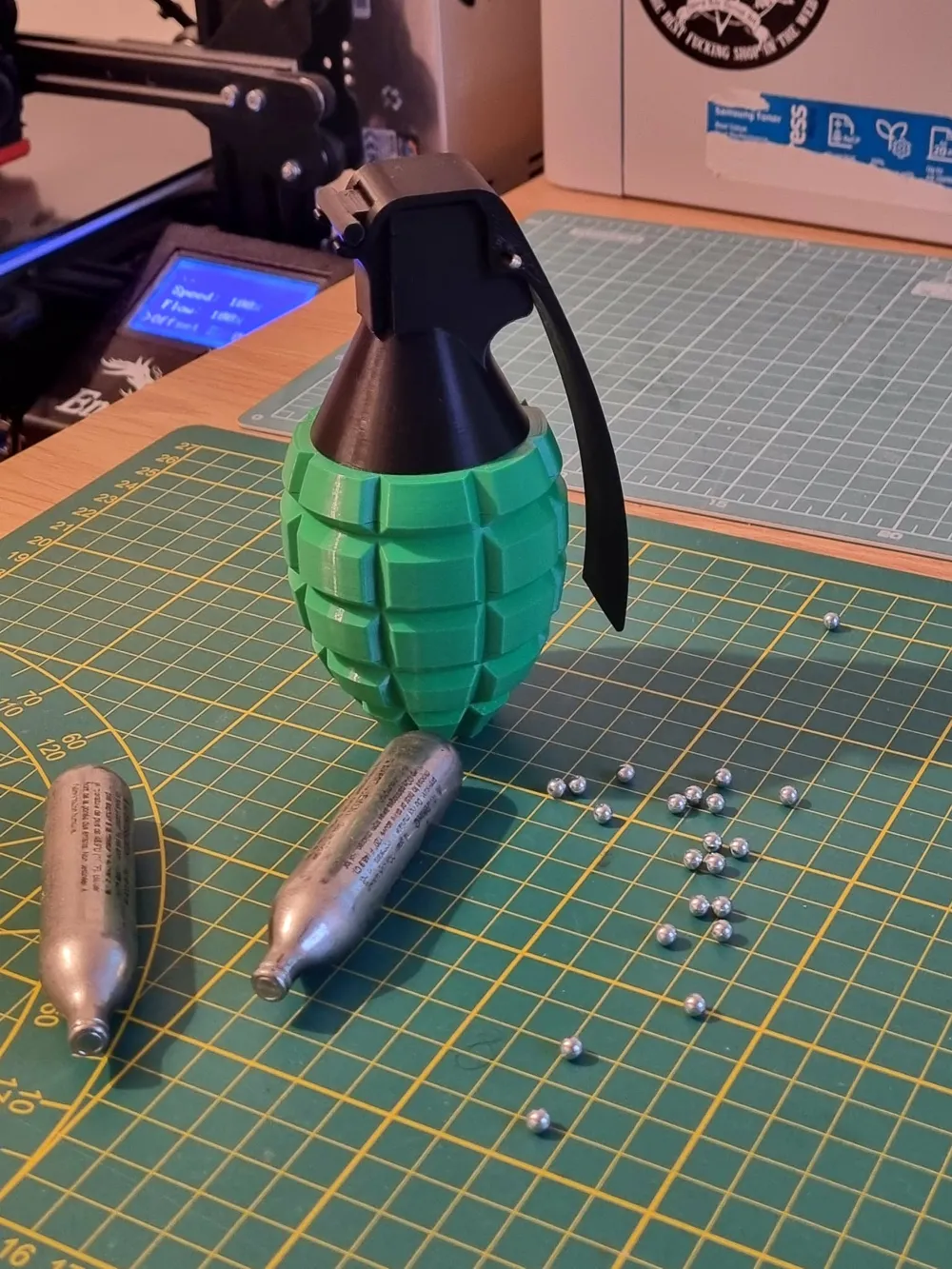

This tactical grenade-style container is a functional and stylish storage solution designed primarily for 4.5mm airgun BBs, but it can also store other small items up to 7.5 mm in diameter. The model combines realistic appearance with practical functionality, making it a great accessory for airsoft setups, workshops, or collectors.

The design includes a working spoon mechanism secured by a pin, adding realism while keeping stored items safely contained.

Specifications:

• Type: 4.5 mm BB storage container / small parts holder
• Design: Realistic grenade-style container with functional spoon lock
• Assembly: Requires gluing and additional hardware
• Function: Secure storage and controlled dispensing of small items

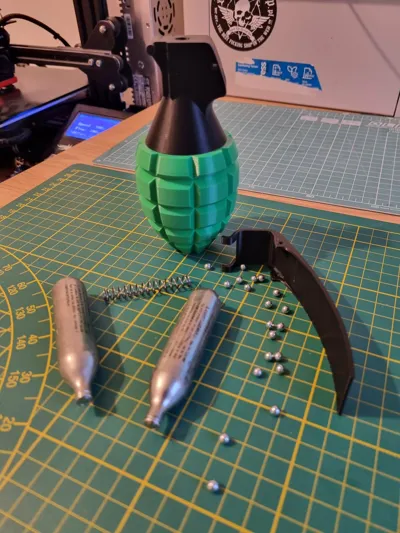

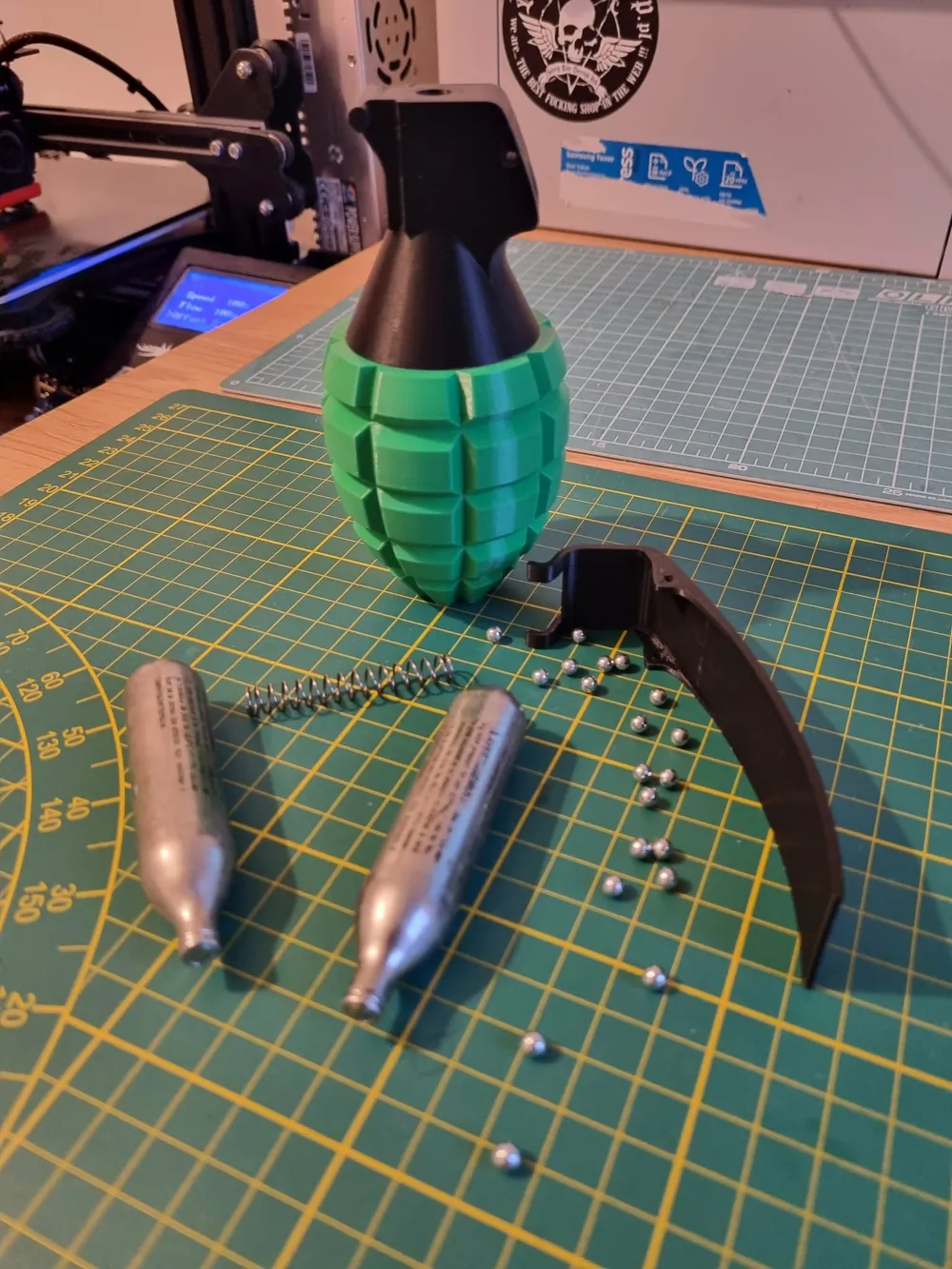

Model Components (3 Parts):

• Main Body (green) – primary storage container
• Top Cap (black) – includes filling hole; must be glued to the main body (gel glue recommended)
• Spoon / Lever – prevents accidental spilling of stored BBs

Additional Components Required (for full functionality):

To achieve realistic operation and proper spoon return mechanism:

• Hair pin (used as the safety pin)
• Spring — same type used in the cannon project - with the following specifications:
  • Wire diameter: 0.7 mm
  • Spring length: 50 mm
  • Spring diameter: 8 mm
  • Cannon project link: https://makerworld.com/en/models/2306912-historic-field-cannon-modular-3d-model#profileId-2518250
  • Purchase link: https://pl.aliexpress.com/item/1005005402716572.html

⚠️ It is recommended to glue the spring into the dedicated mounting hole to prevent it from ejecting together with the spoon after removing the pin.

Recommended Print Settings:

• Layer Height: 0.2 mm
• Infill: 15–20%
• Walls: 3
• Supports: Required (depending on printer capability)
• Material: PLA or PETG recommended
• Assembly: Glue top cap to the main body after printing

Applications:

• 4.5 mm airgun BB storage
• Small parts container (screws, balls, components)
• Workshop organizer
• Tactical prop or display piece
• Unique desk accessory

Download, print, and add a functional tactical-style accessory to your setup!
