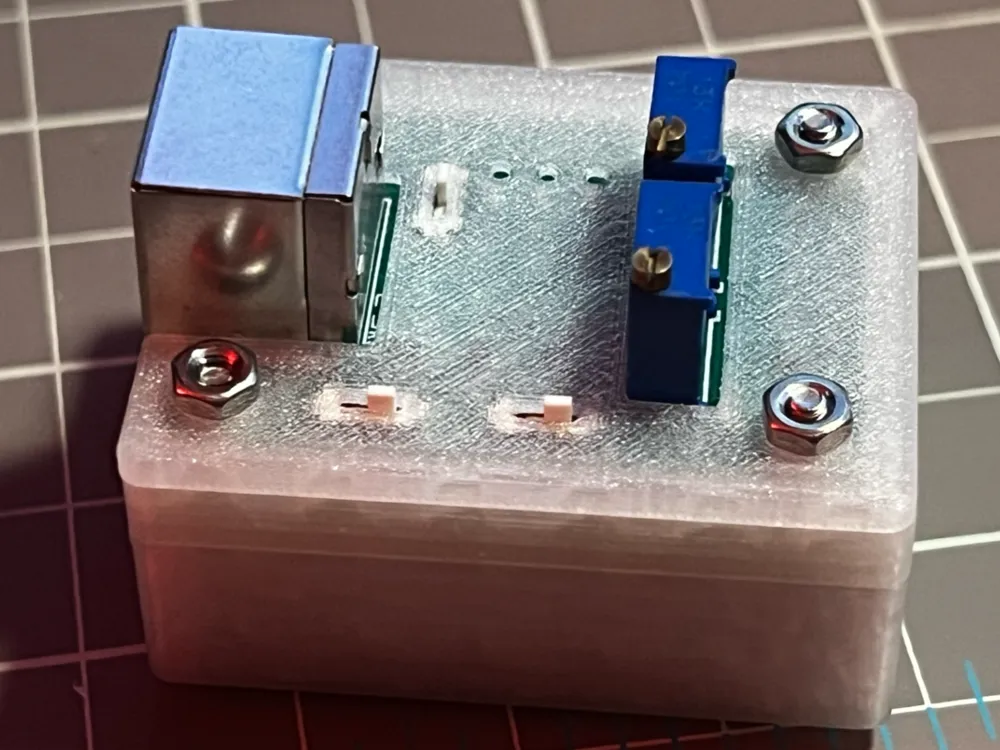

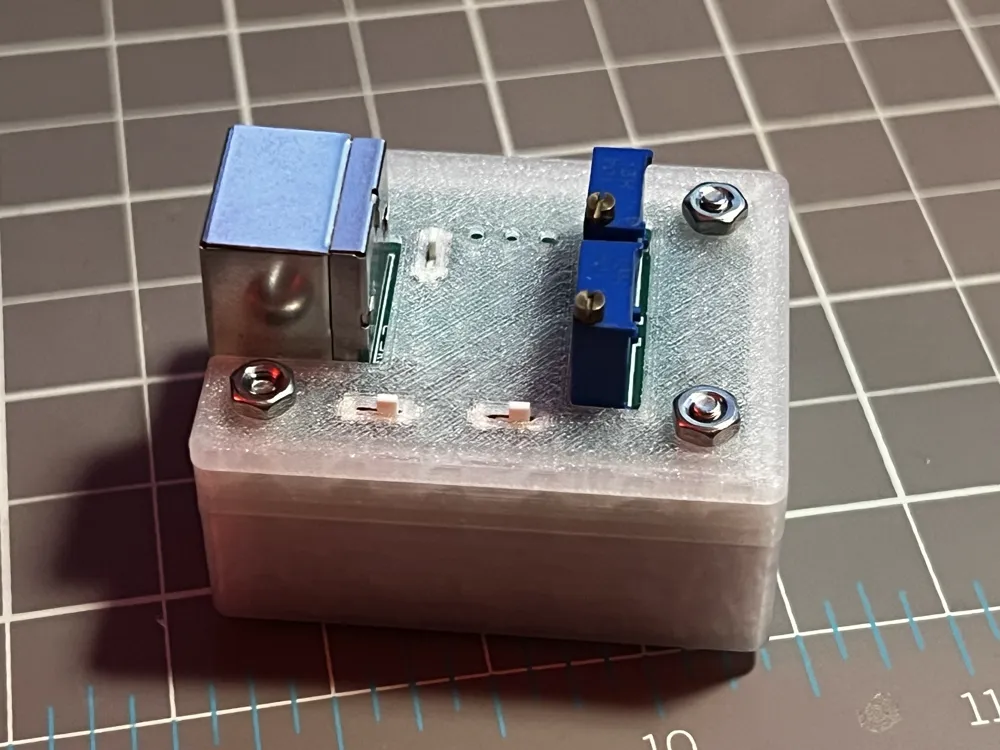

TOADs DI w/ Daughter Board.
Print Profile(1)
Description
The bottom print of the Daughter Board needs to be printed with the hooks up. It will need supports for the bottom side and for the hooks. Everything else prints pretty easily. I would recommend printing this as fine of layers as you can. It will help with how the TOADs DI and the Daughter boards click in. I used M2 machine screws. To hold the DI board in I used M2-5X6 with M2-5 nuts. Then for the Daughterboard I used I used 2 M2-5X10 Machine Screws, 2 M2-5X12 Machine screws, and 4 M2-5 nuts. I bought them as a kit from Amazon. I use them for many other things.
If you would like to get a TOADS DI board and either of the Daughter boards you can purchase them here.
https://temporarilyoffline.com/products/toads-digital-interface?variant=42091745378438
https://temporarilyoffline.com/products/toads-di6-daughterboard?variant=42293443690630
This will fit either one of the Daughter Boards at this time, the DI6 or the Xiegu variant.
