Compact Pi 5 case with Geekworm X1001 NVME Shield
Print Profile(1)
Description
This Raspberry Pi case is made for the Geekworm X1001 PCIe to M.2 NVMe SSD Shield (top version) for the Raspberry Pi 5.
Yes, I know the real-life photos aren’t great, I was honestly too lazy to take better ones.

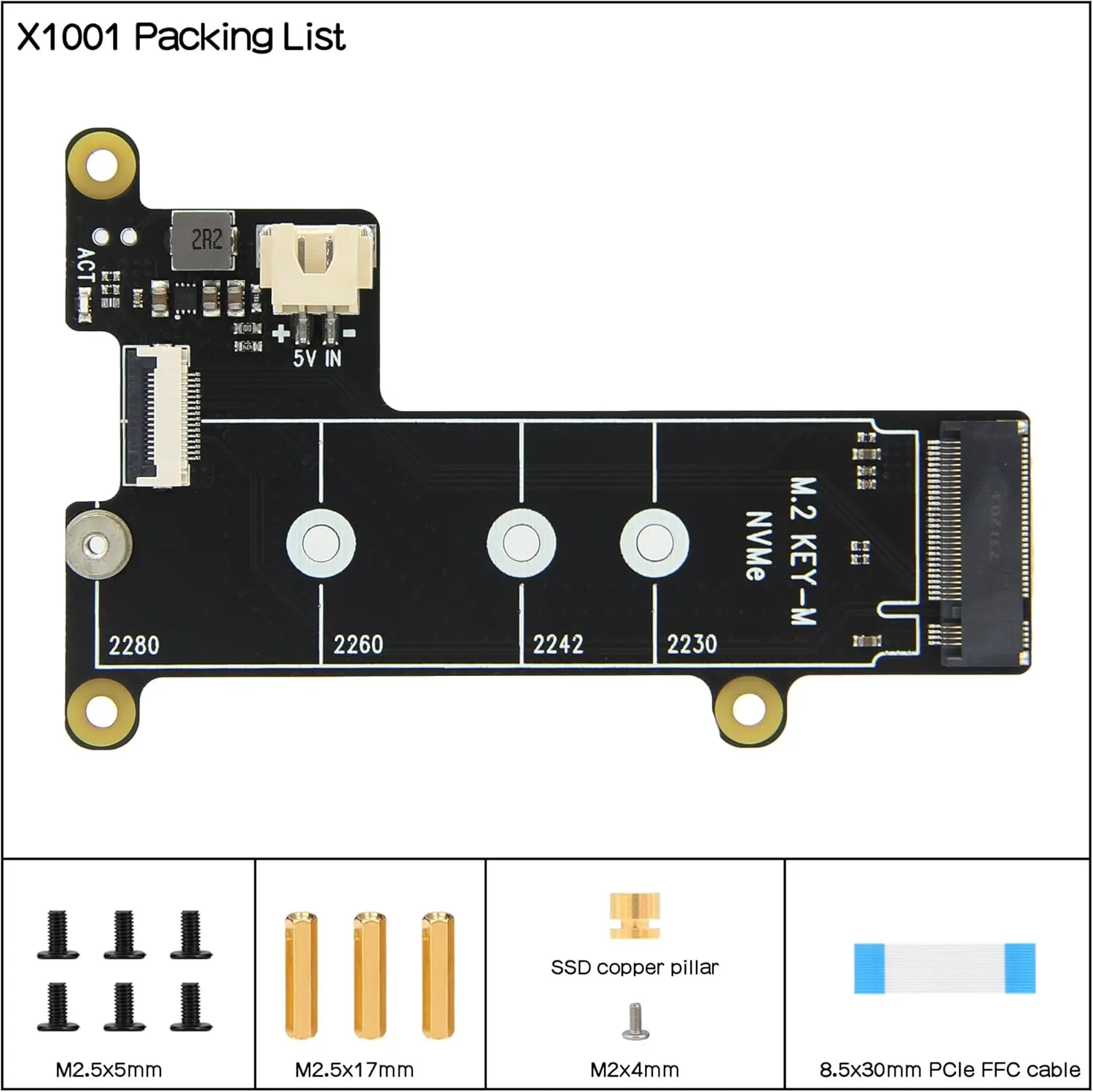

There’s a photo of the X1001 below this description so you can clearly see which board this case is designed for.
BOM
Case parts:
- 4× M2.5 × 6 mm male–female standoffs
- 3× M2.5 × 10 mm male–female standoffs
- 1× M2.5 nut
- 1× 30 × 30 × 7 mm fan
Included with the X1001:
- 7× M2.5 × 5 mm screws
- 3× M2.5 × 17 mm female–female standoffs
I originally designed this as a compact travel case. I recently bought a newer shield (Geekworm X1002), so I’ll be designing a smaller and more compact case for that one.
If you’re interested, let me know then I’ll share that design as well.
