Thumb‑Style Rear Grip Mod for TX16S mk1 mk2
Print Profile(1)
Description
Boost Me (for free)
Your BOOST would really motivate me to keep creating 3D data—thank you in advance!

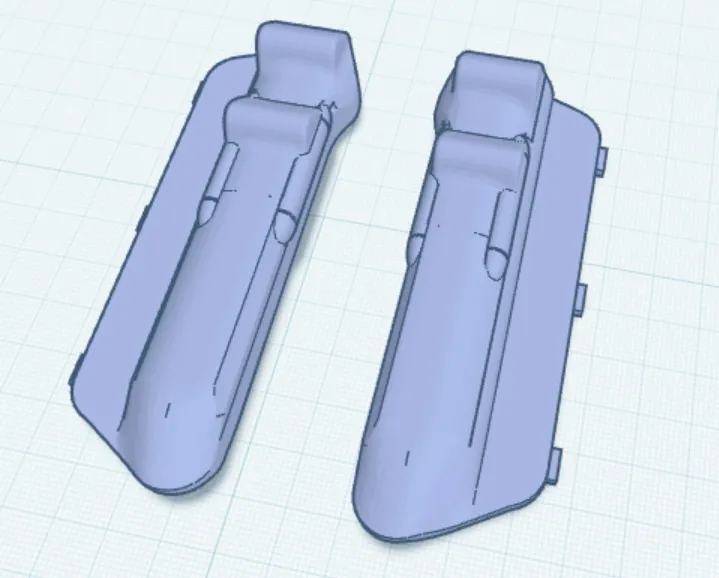

I created grip parts for the Radiomaster TX16S.
They are designed to improve the fit between the transmitter and your palm, allowing for more precise stick control when flying in a thumb‑style grip.

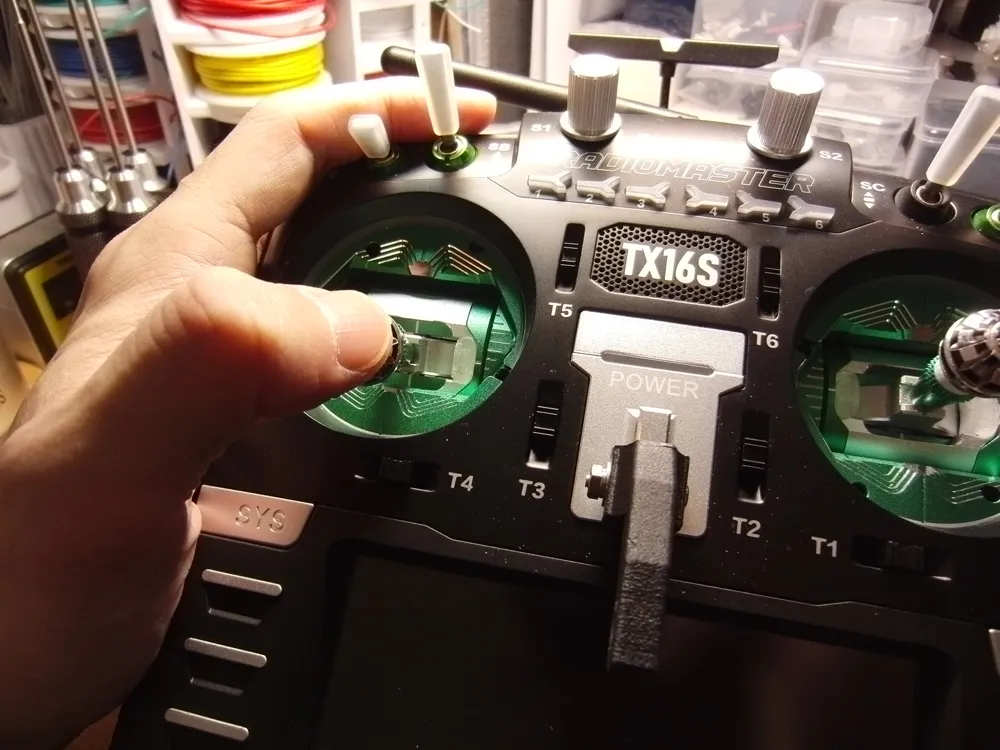

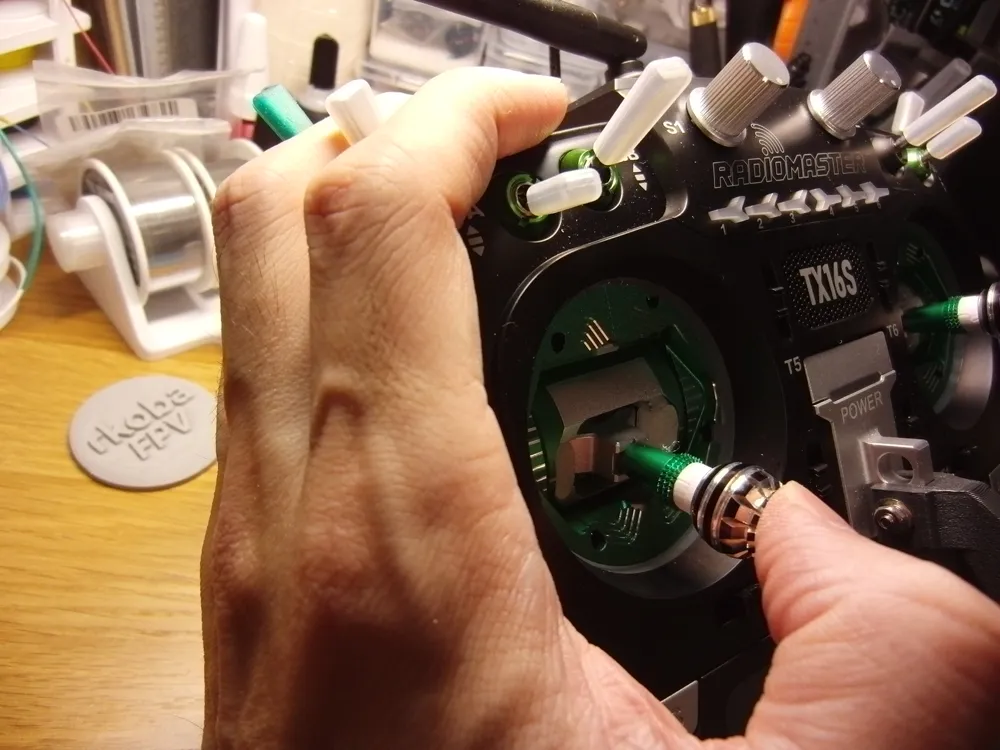

Please refer to the photos for the recommended way to hold the transmitter.

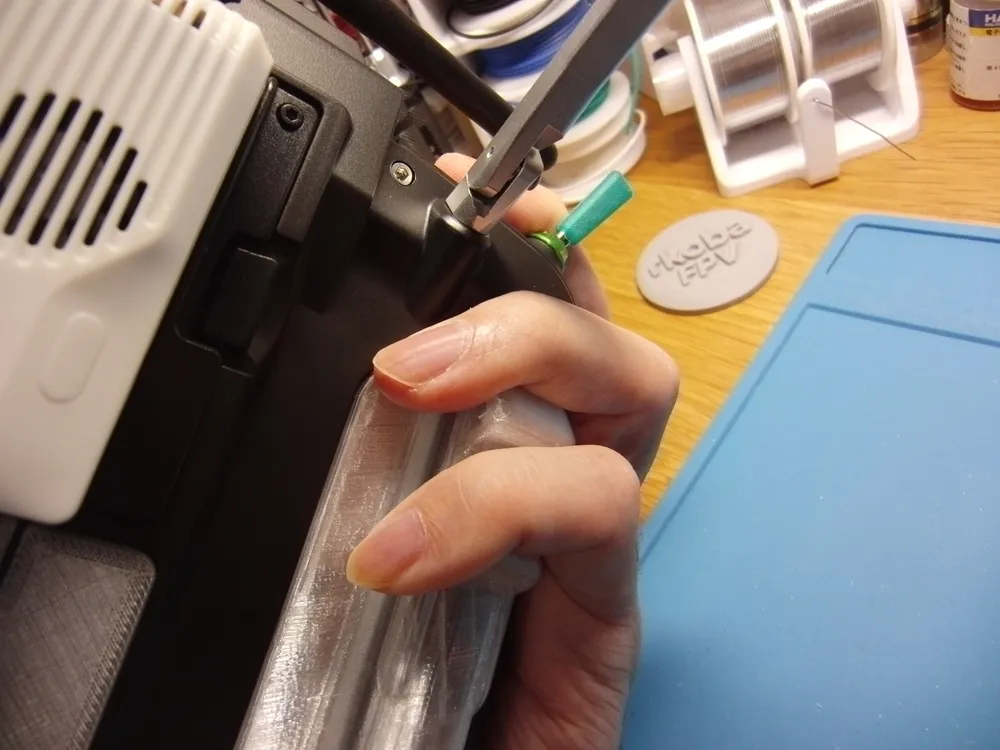

If you support the top of the transmitter with your middle finger, please disable the SE and SG toggle switches and fold them forward to secure enough space.
Assign the SE and SG functions to other switches as needed.
Print the parts in TPU with supports enabled.

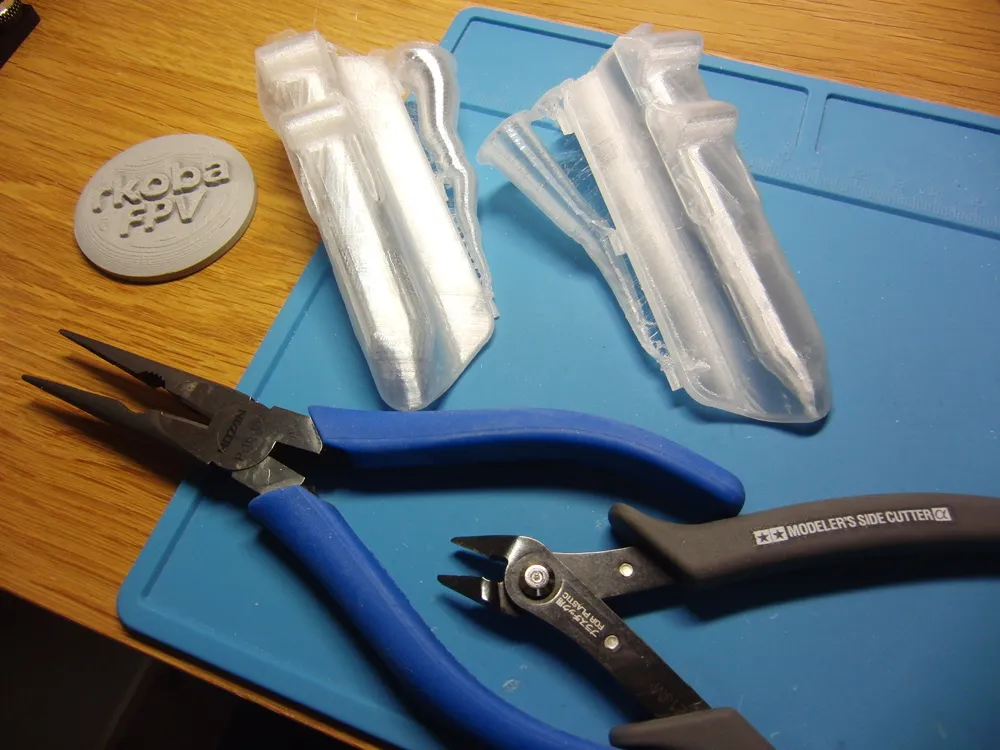

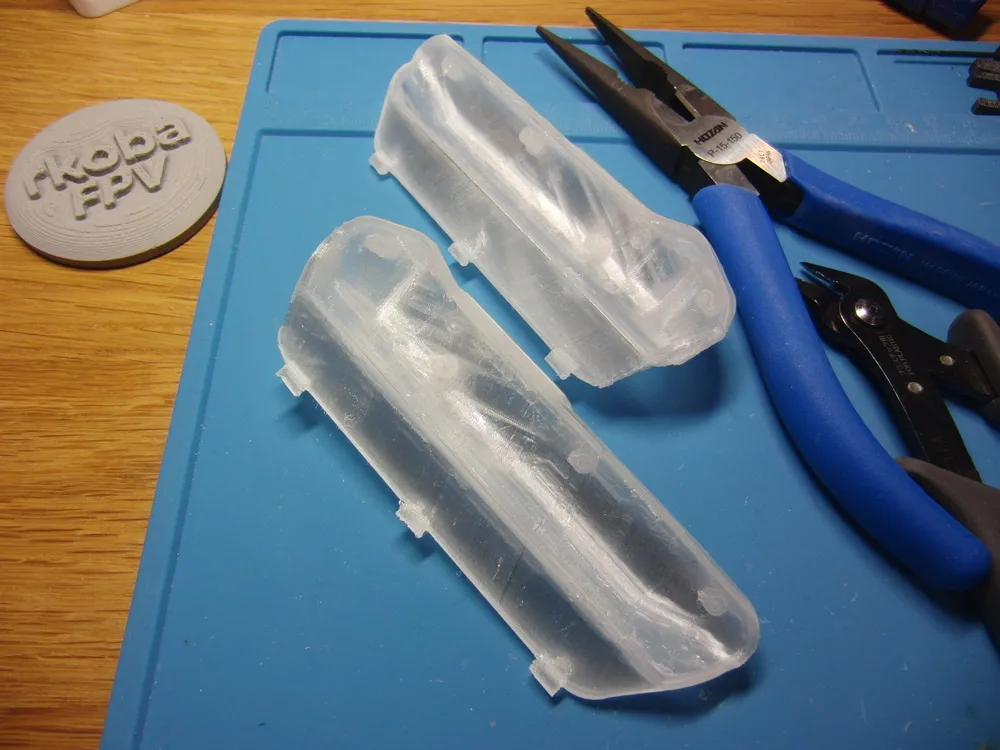

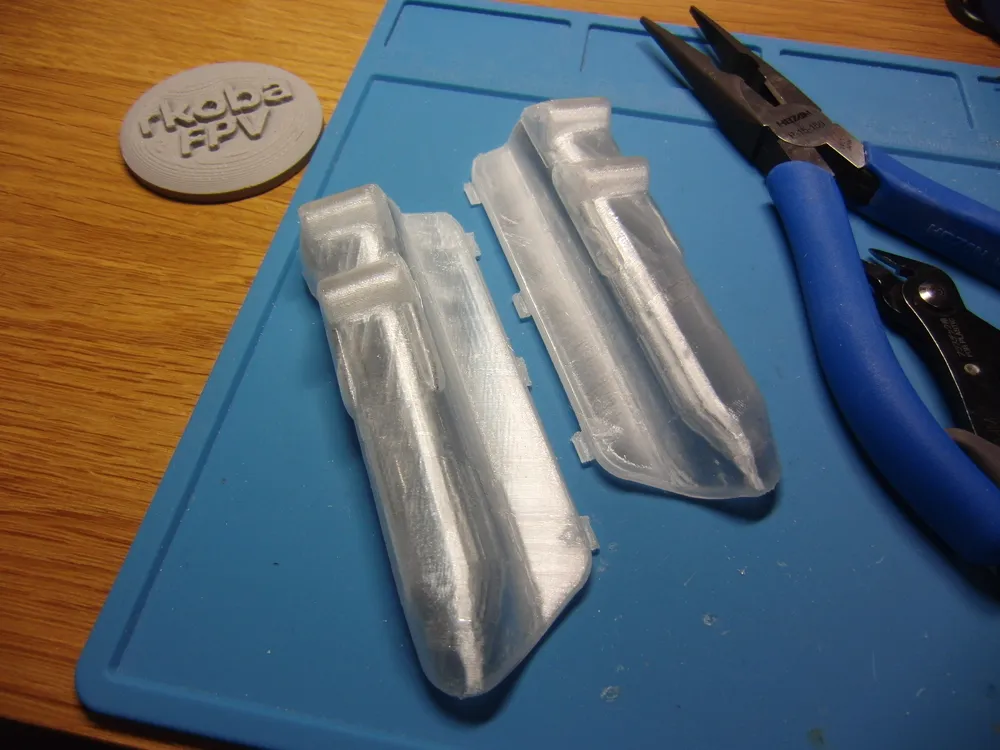

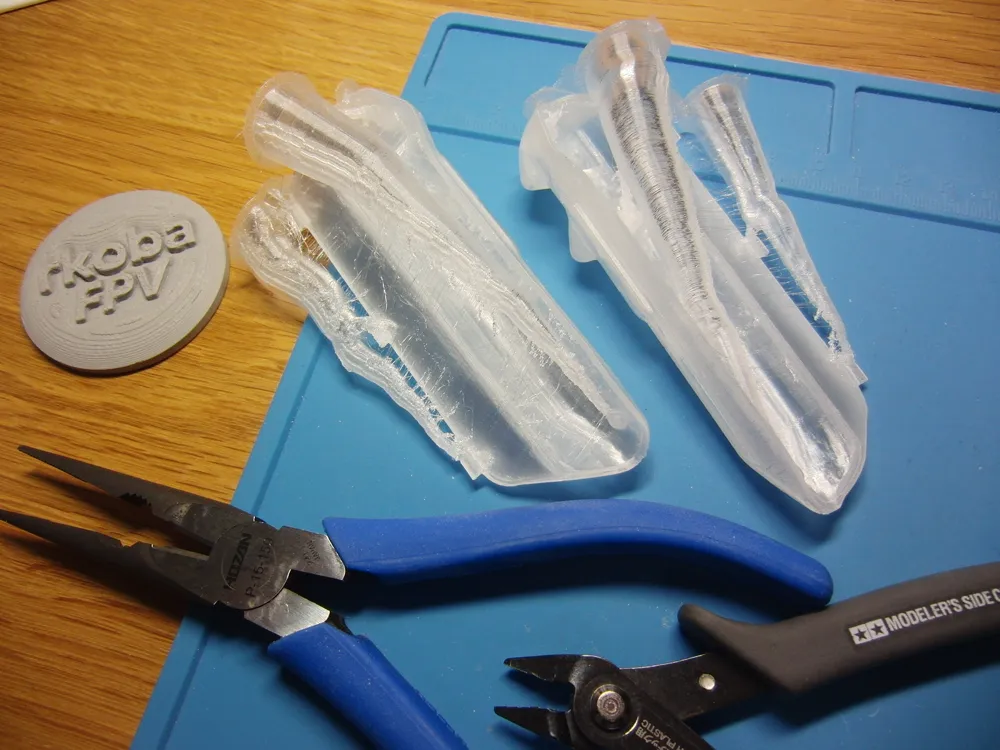

After printing, remove the support material and any stringing using needle‑nose pliers or nippers.Trimming the inner protrusions and the clip tabs with nippers will improve the fit.
Applying a glue stick for build plates to the build plate before printing can improve adhesion, so try this if the print tends to detach during the process.

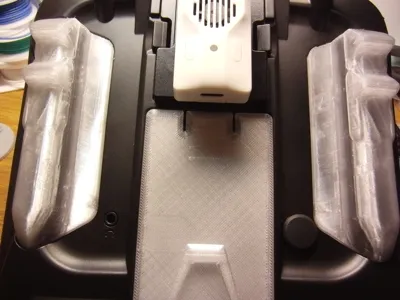

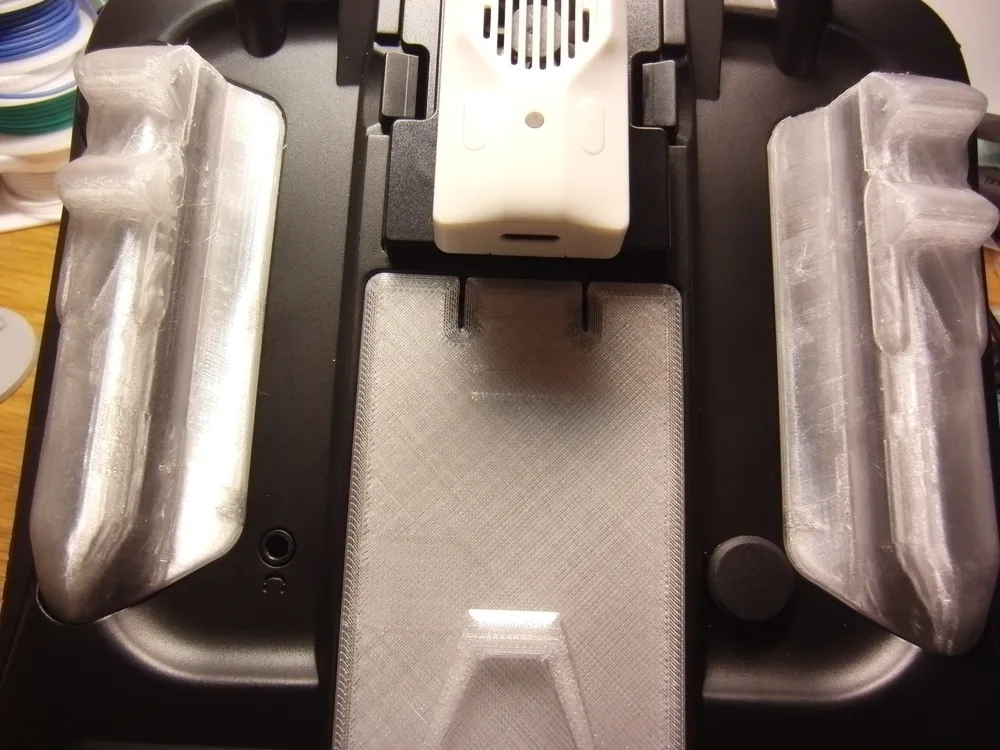

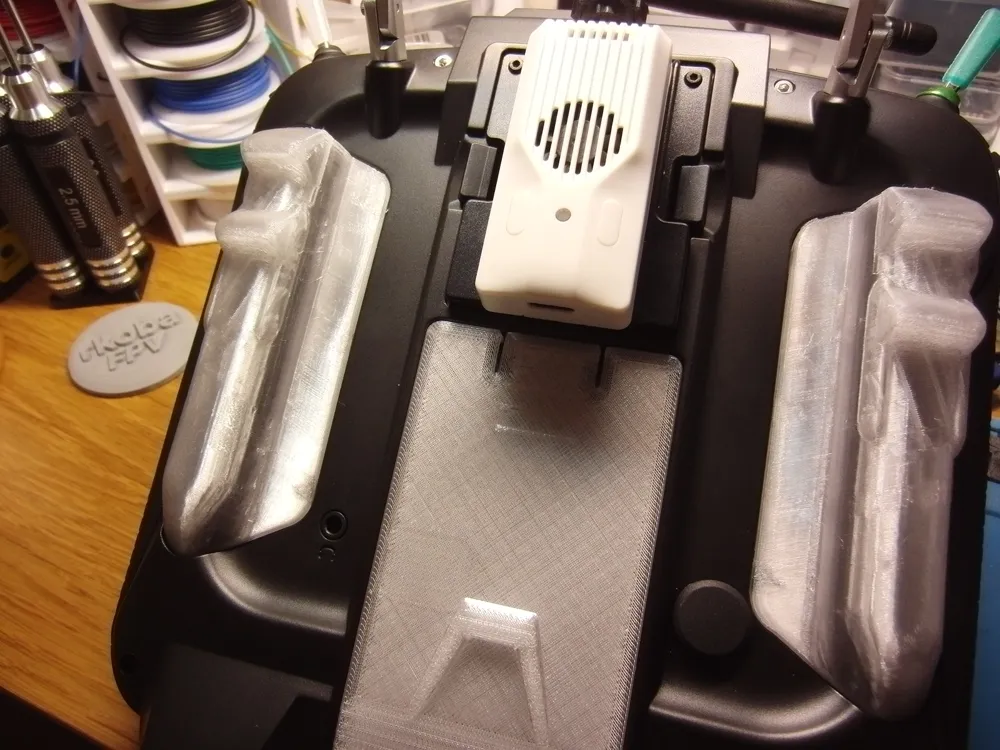

The grips can be mounted onto the transmitter without any adhesive after printing.
Remixed from ‘RadioMaster TX16s - Rear Grips’ by RadioMasterRC (CC BY).
Source: https://www.thingiverse.com/thing:4445969
This remix is shared with proper attribution.
