Description
Content has been automatically translated.

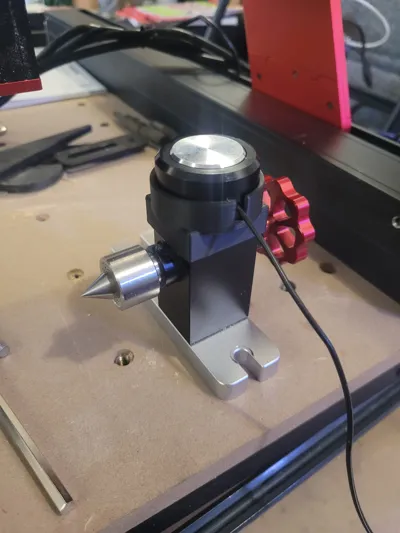

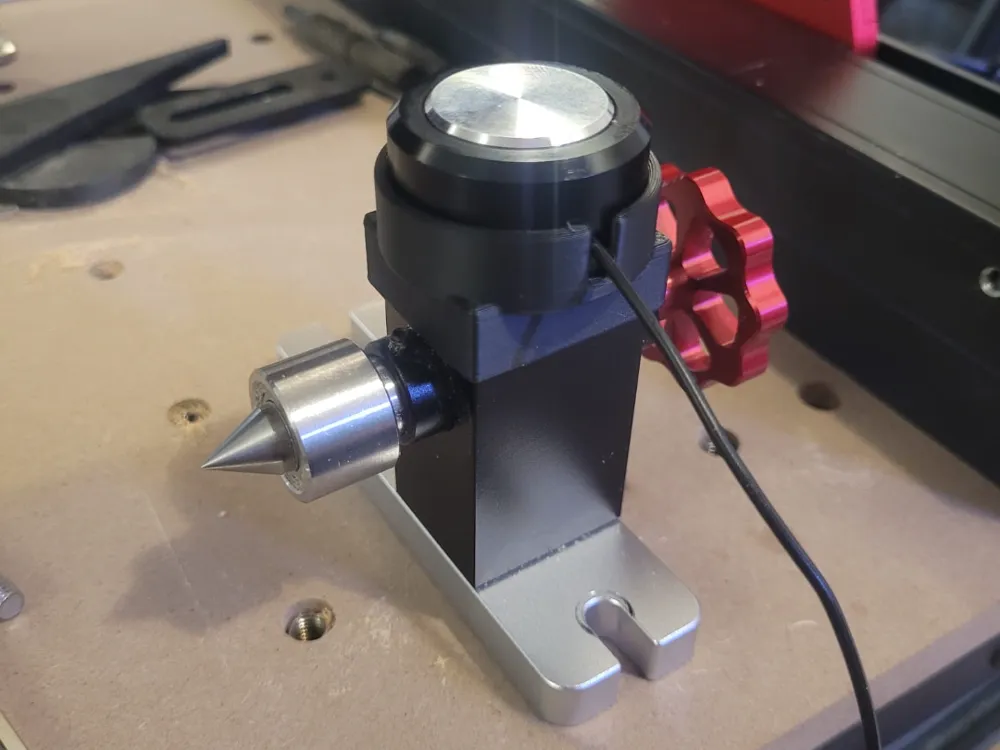

After I treated myself to a TTC 450 - Pro from Two Trees + the corresponding rotation tool, I realized that it would be difficult to home the Z-axis if the workpiece was round. A fixed position for measuring the tool length was needed. Since the tailstock is always in the same position, I created a connecting part to firmly attach the sensor (but it can always be easily removed) to the tailstock. This way, measurements can simply be retaken between milling steps.
I look forward to comments, likes, and suggestions for improvement.
