Pokémon Kanto badges & display

Pokémon Kanto badges & display

DISCLAIMER: This model was created as a personal project in honor of the series and I share it
for free for exclusively personal use, commercial use is prohibited.

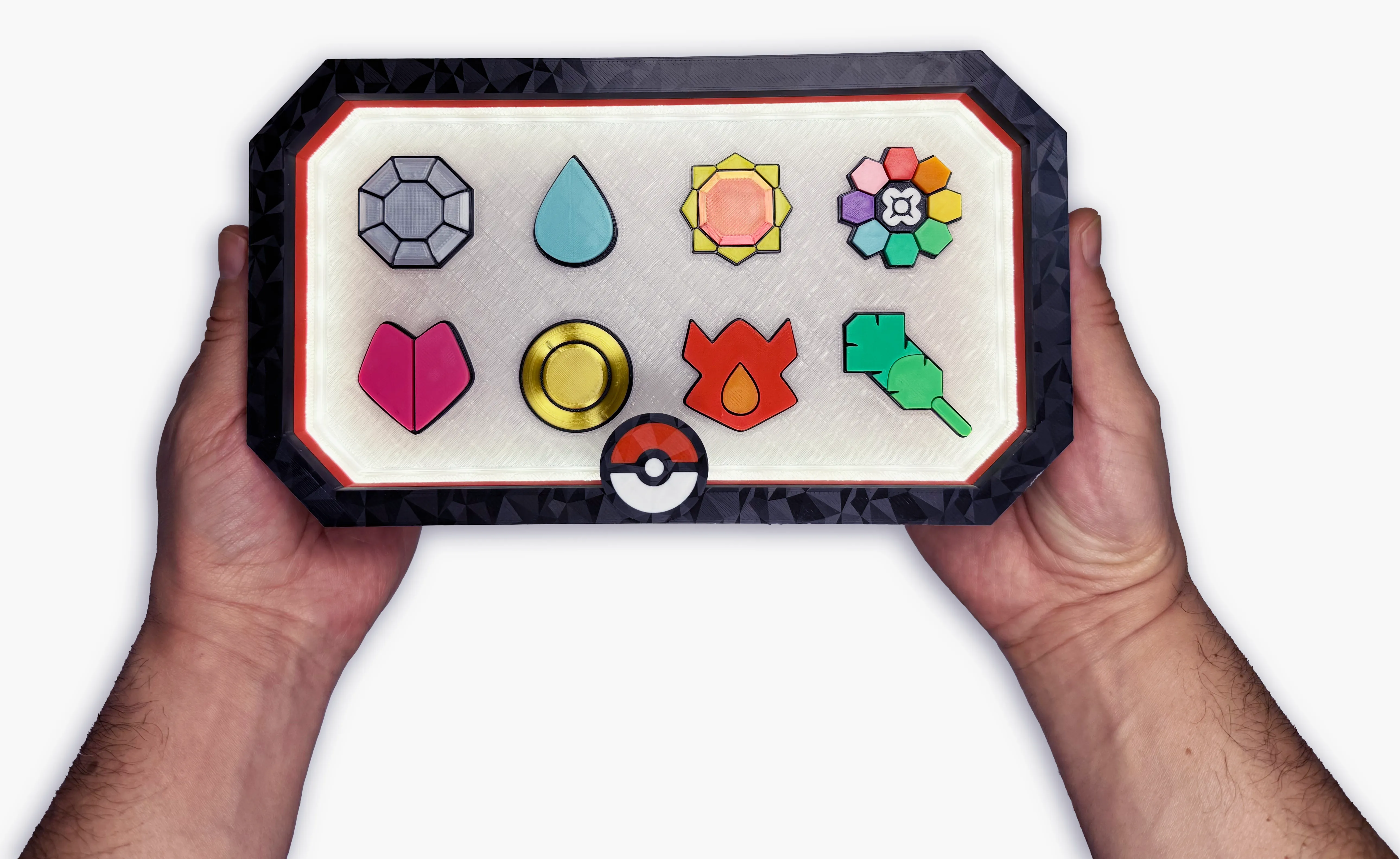

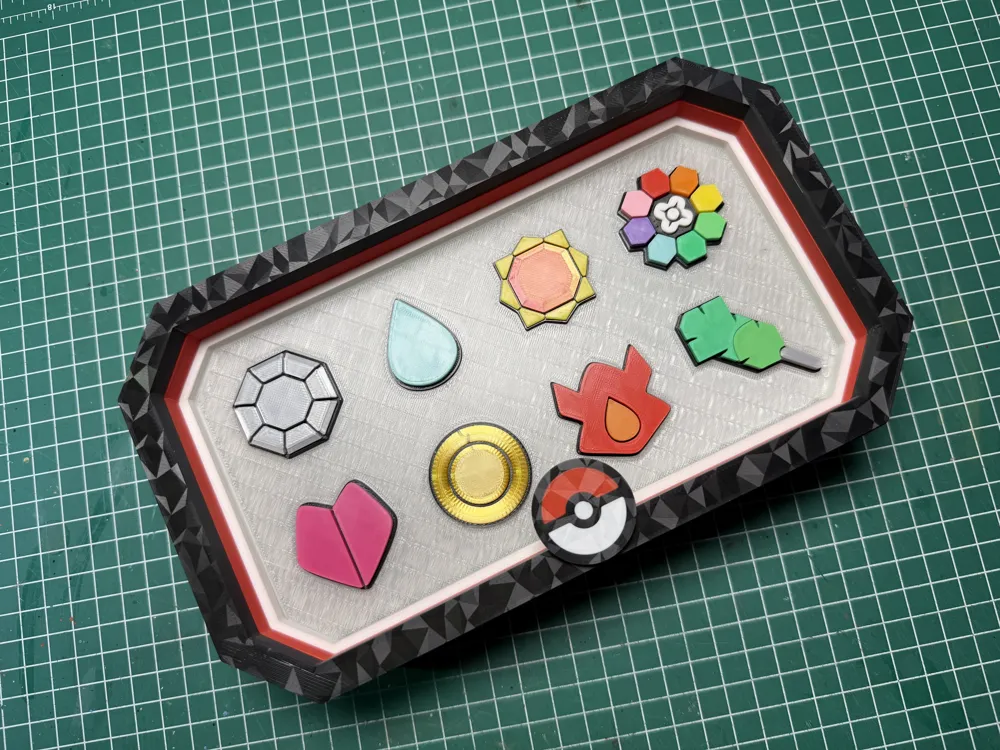

Become a Pokémon master with the set of 8 Kanto badges completely made with 3D printing.

Although many of the pieces fit perfectly, it is recommended to use glue (cyanoacrylate) to fully join the display and ensure it is well assembled, especially the lid which has more tolerance than the other pieces.

For better results with the badges, I recommend printing them with a layer height of 0.12mm

The display prints without issues at 0.2mm

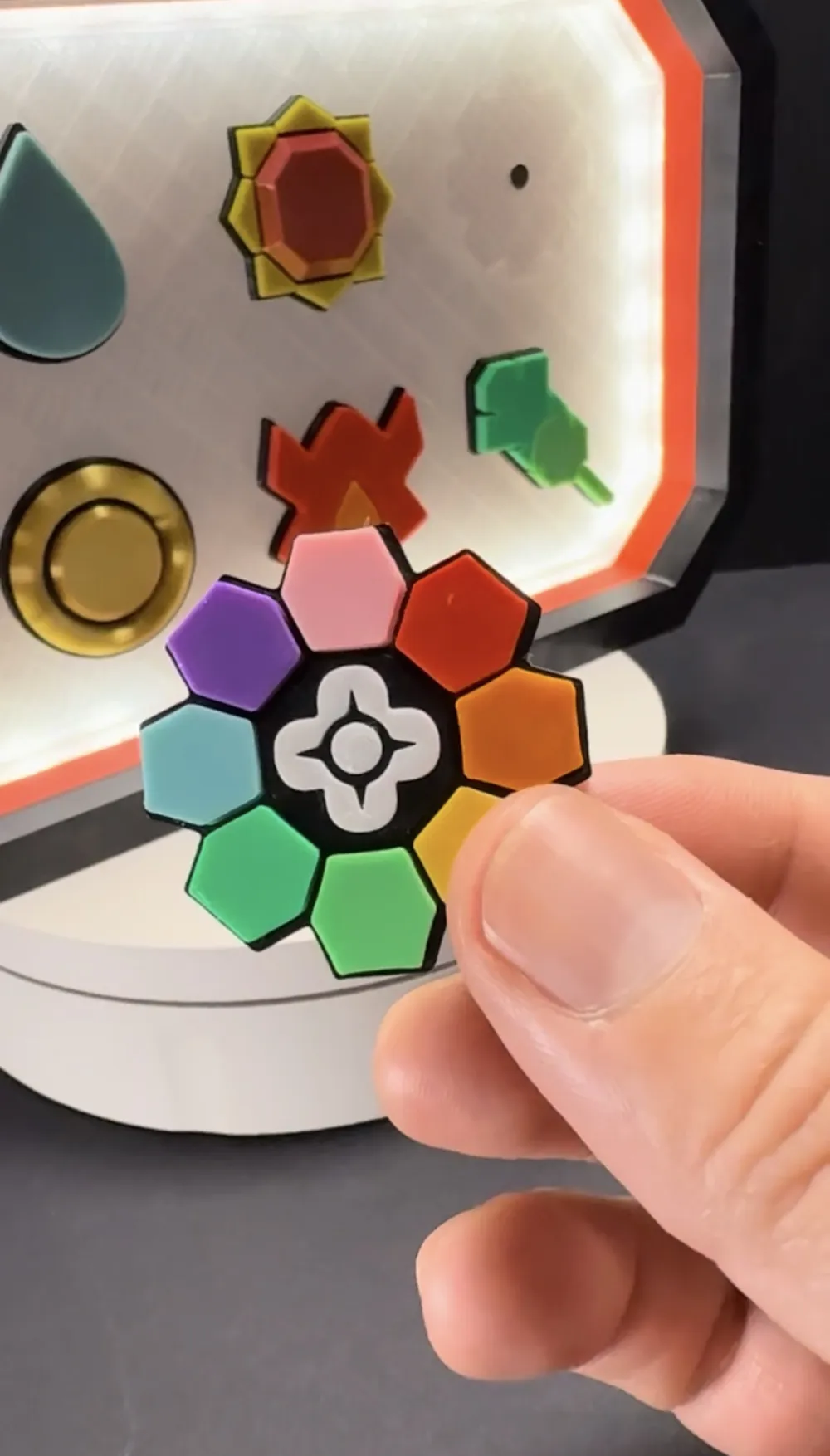

The magnets used for the base and badges are 5 x 1.5 mm

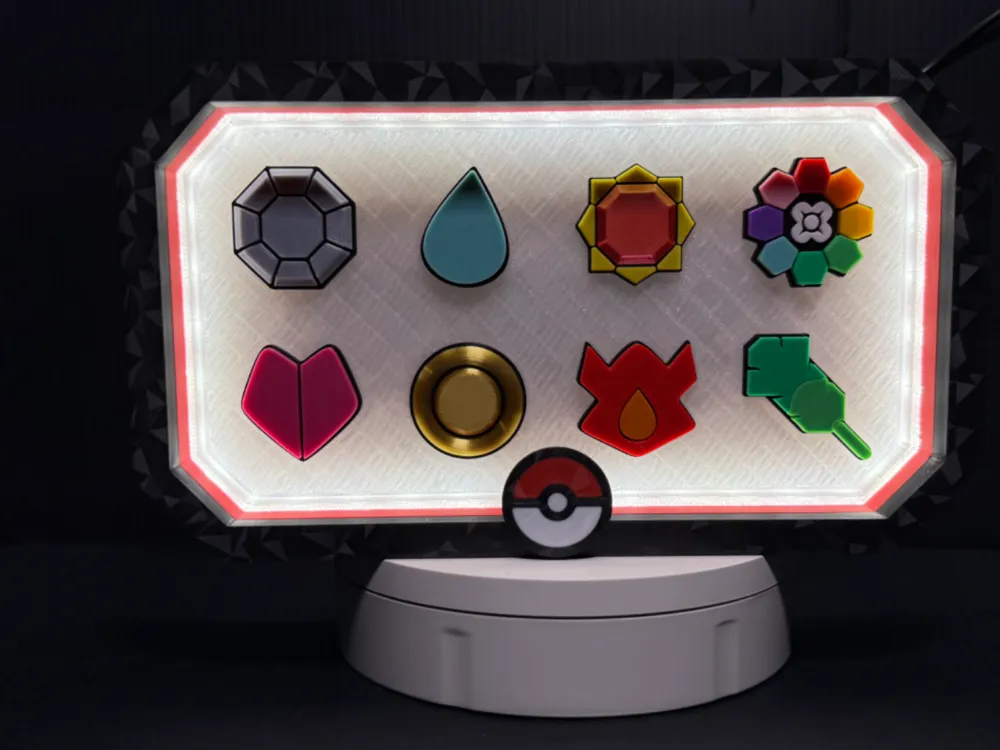

For light installation, you will need:

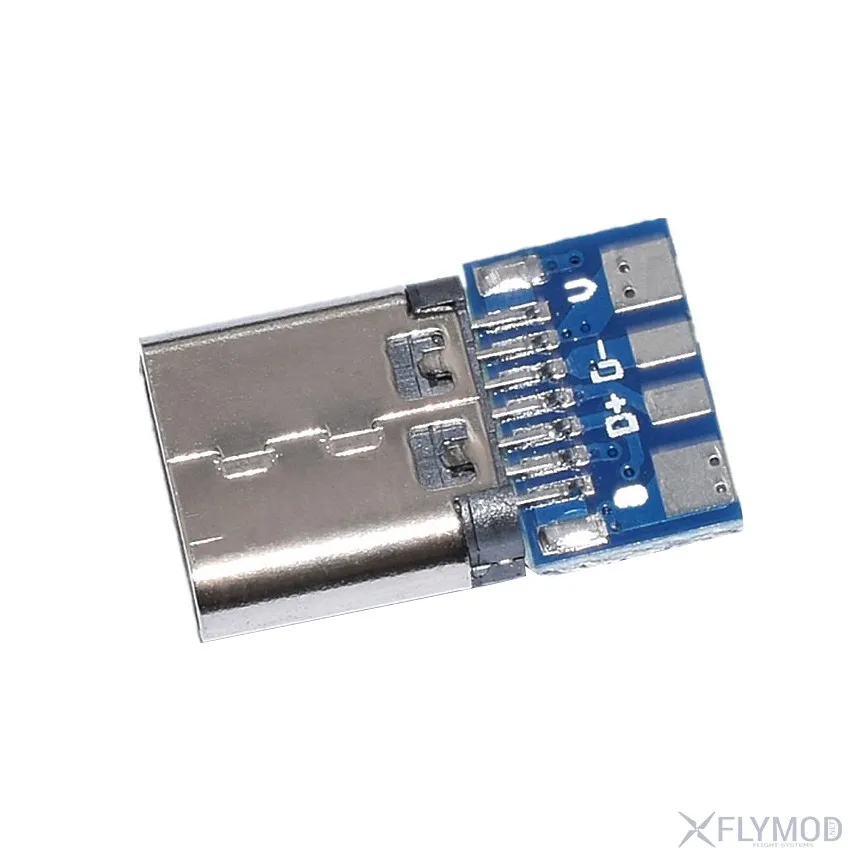

1. 1 USB-C 3.1 female PCB connector



2. 1 5V LED strip
3. Wire for soldering terminals
4. 1 USB-A to USB-C cable (it is very important to use this type of cable to power the display because otherwise, the USB-C port will not allow power to pass through to the LED strip and you will think the circuit is not working, also you can connect it to any USB A port to turn it on)

The circuit is very simple even if you have no electronic knowledge, you just need to solder the negative terminal of the USB C port to the negative port of the LED strip, the same with the positive terminals.

The model's parts work with or without light installation.

To see a more exact guide on how to assemble it, you can watch my video:

If you print this model and use it for content on your social media don't forget to give credit to the model.
