Volkswagen Bora Lavida Sagitar Magotan Headlight Dust Cover

Print Profile(1)

All
A1
P1P
X1
A1 mini
X1 Carbon
P1S
X1E
H2D
P2S
H2C
H2D Pro
H2S
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate

Open in Bambu Studio
Boost
0
1
0
0
2
2
Released

Description

Content has been automatically translated.
Show original

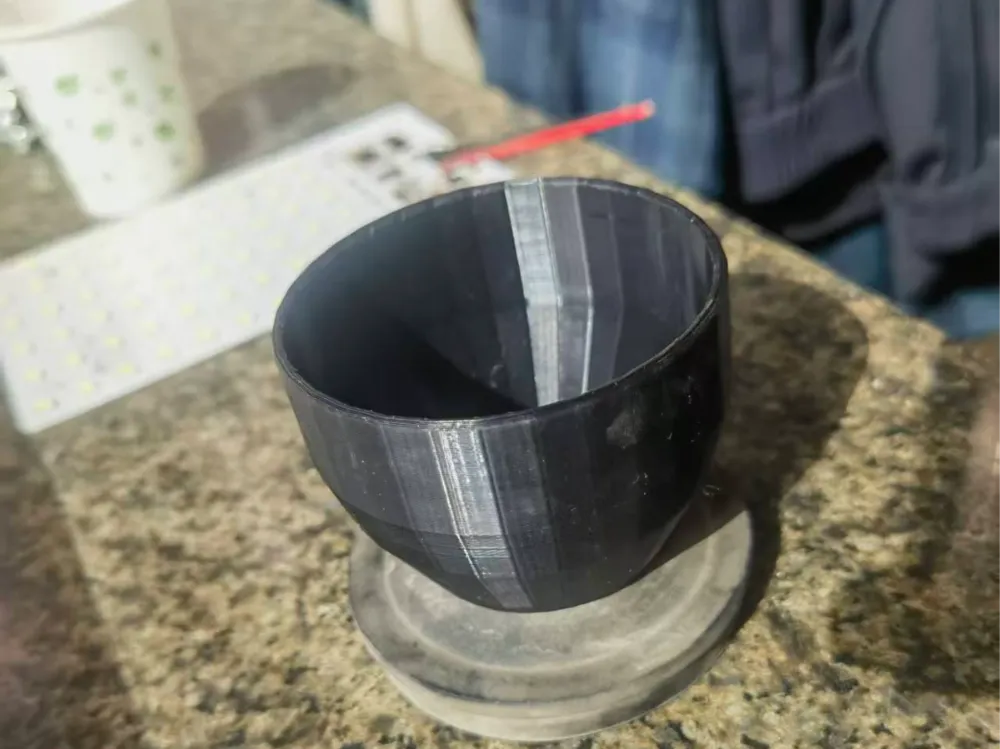

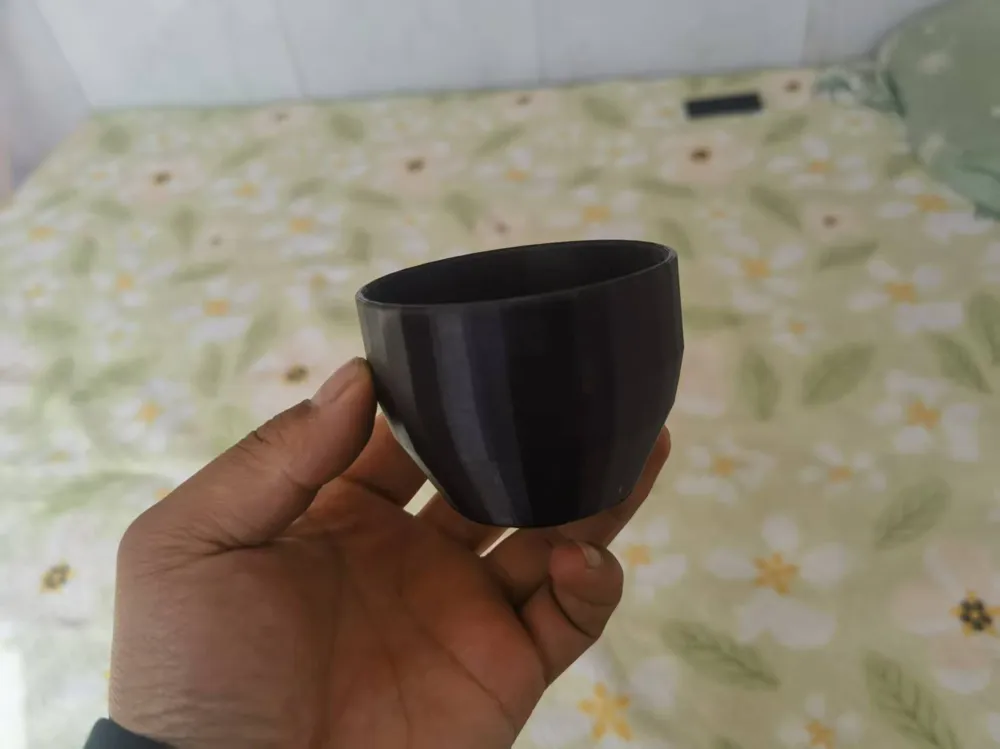

The original car halogen lamps were dim and could not illuminate the road clearly. After replacing with LED headlights, the original headlight dust cover could not cover the lamp housing. Therefore, this extended headlight dust cover was designed to perfectly house the driver and decoder and close the back cover. The dust cover has a height of 55mm and requires a bit of force to push it in during fastening. The dust cover has been tested for 20,000 kilometers and is safe and secure.

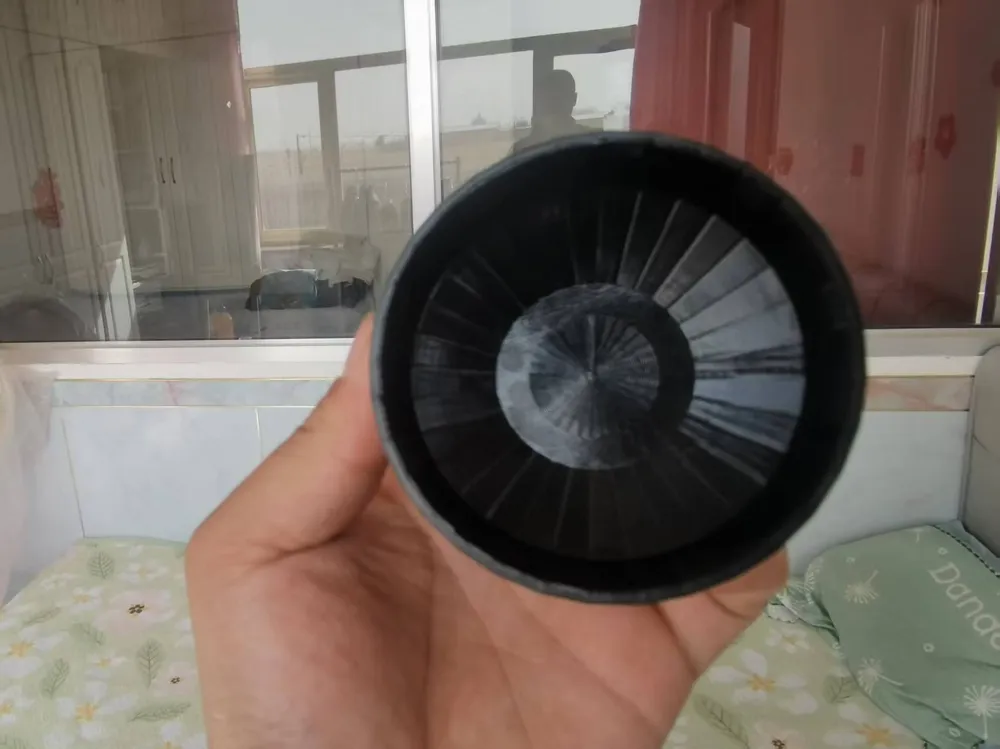

Conical protrusions have been specially added to the bottom of the dust cover to help the LED fan quickly blow out hot air, speeding up air circulation and providing better heat dissipation.

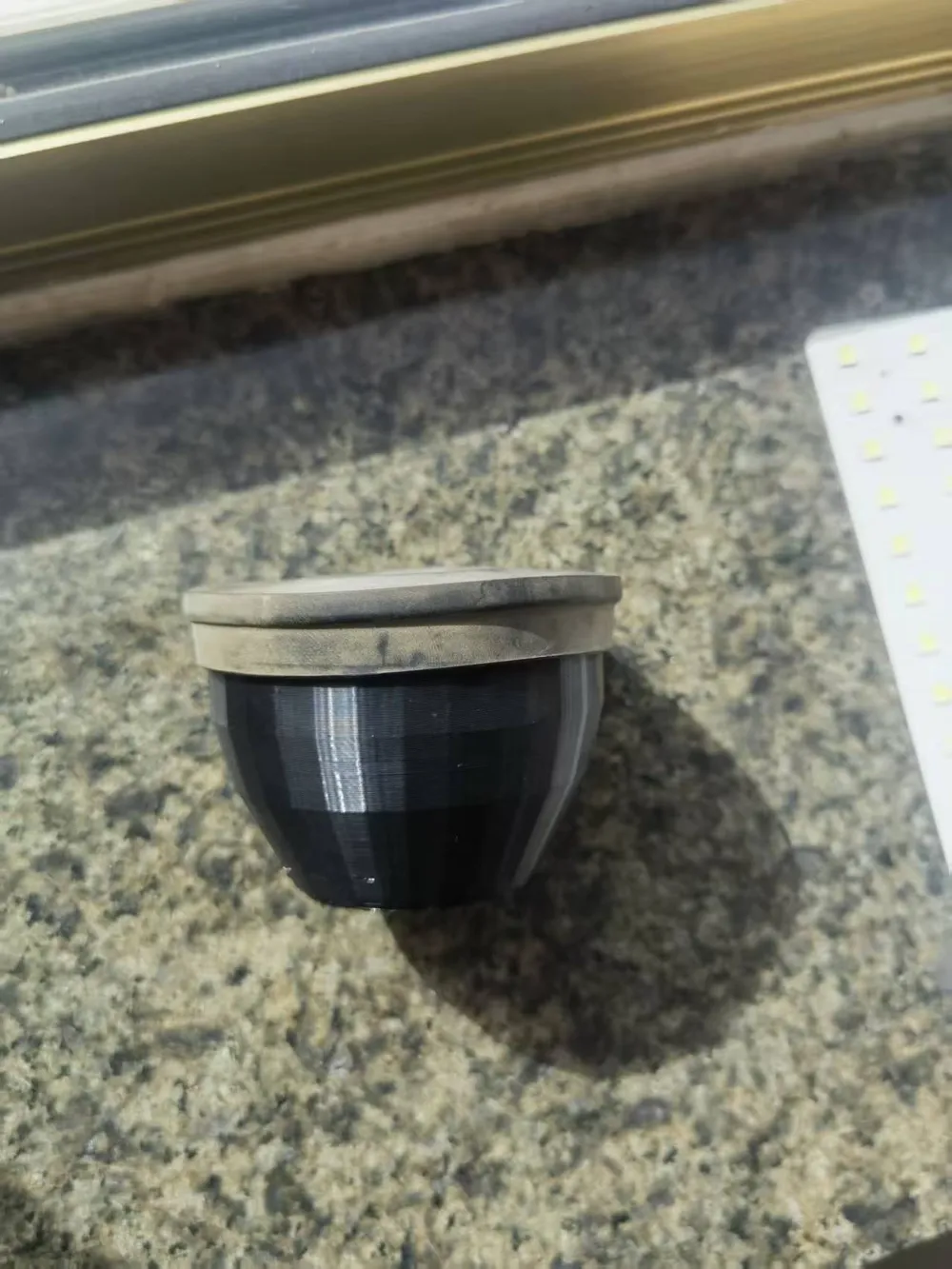

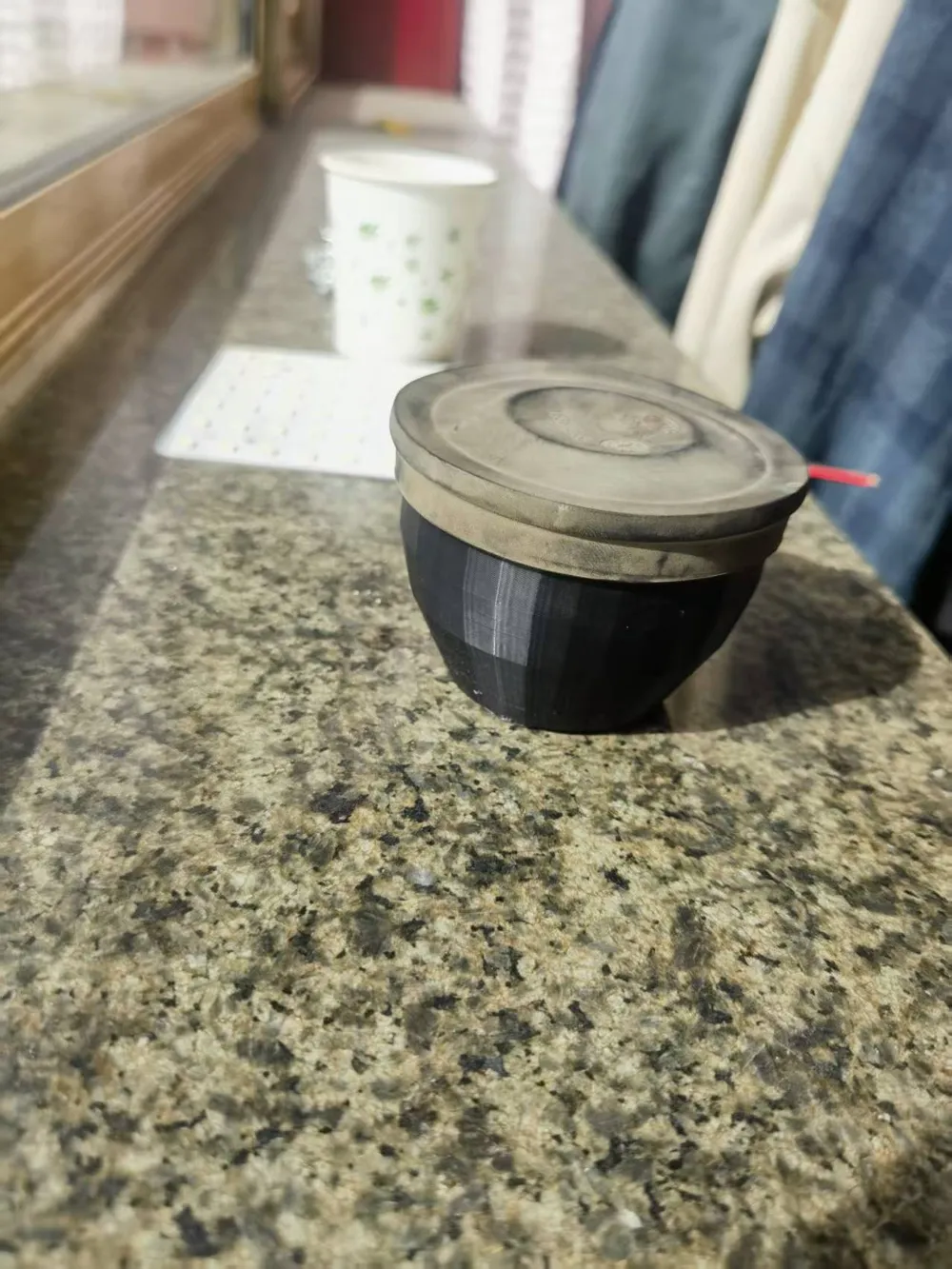

Regarding the problem of difficulty in storing the removed halogen bulbs and lamp holders, you can solve it by printing an additional dust cover and combining it with the original dust cover to store the aforementioned parts inside, as shown in the picture above.
