Motorcycle bar end weight clamp 18mm
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 35% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
7
18
0
0
13
6
Released
Description

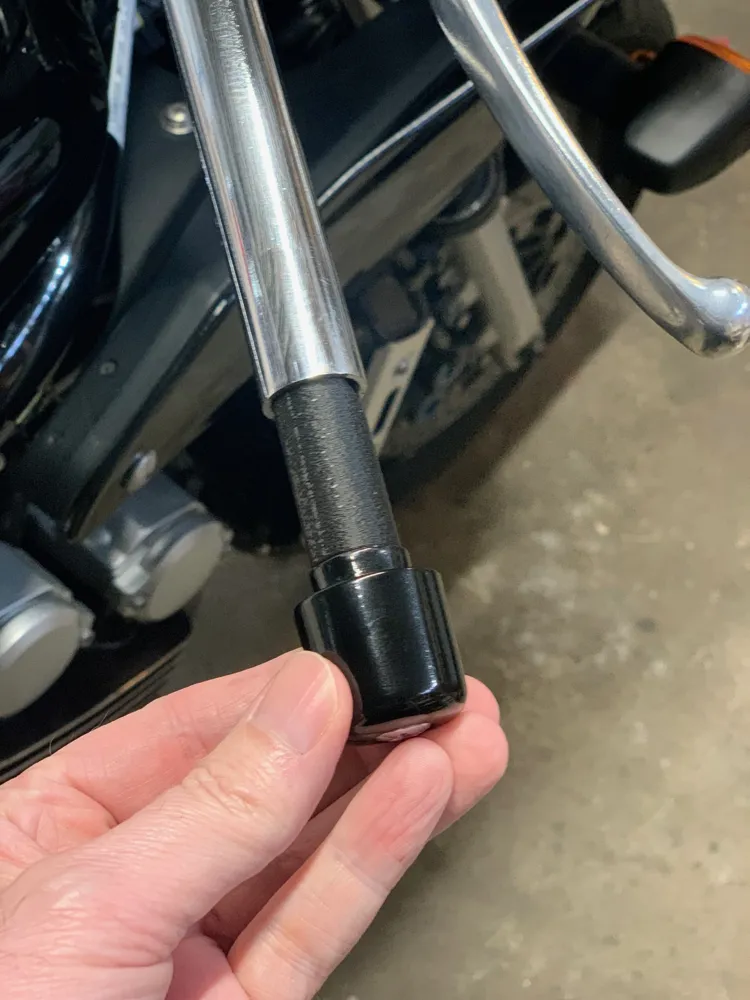

Motorcycle bar end weight clamp to fit standard 22mm handlebars, inner diameter of 18mm. Designed to use OEM bar end weights (in this case YAMAHA FZS 600) with aftermarket handlebars.

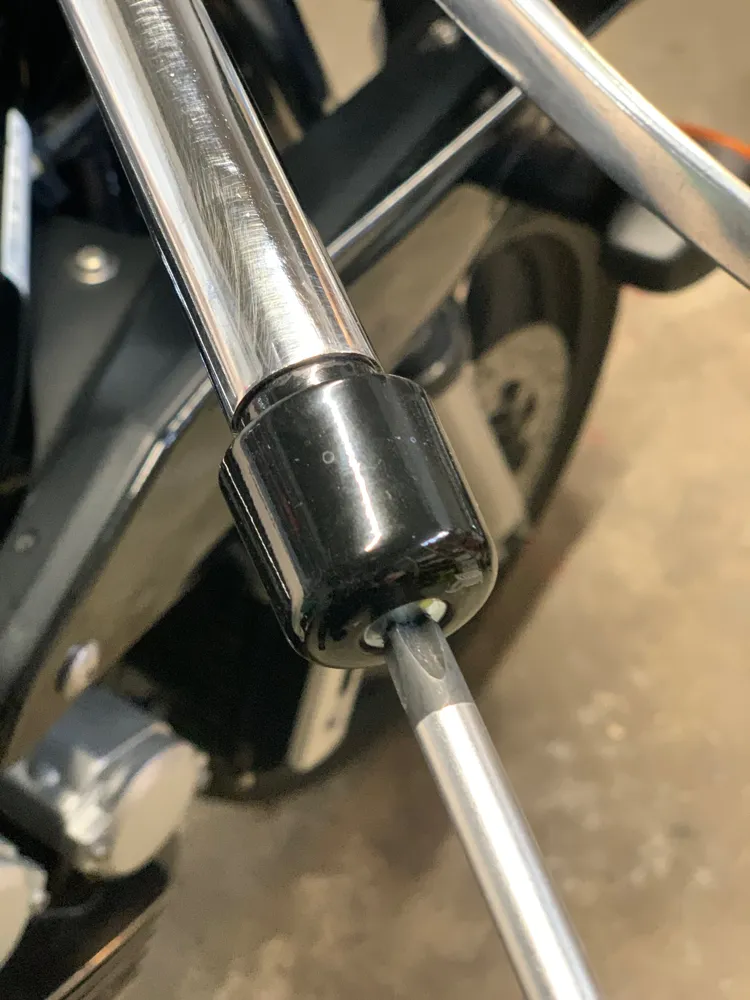

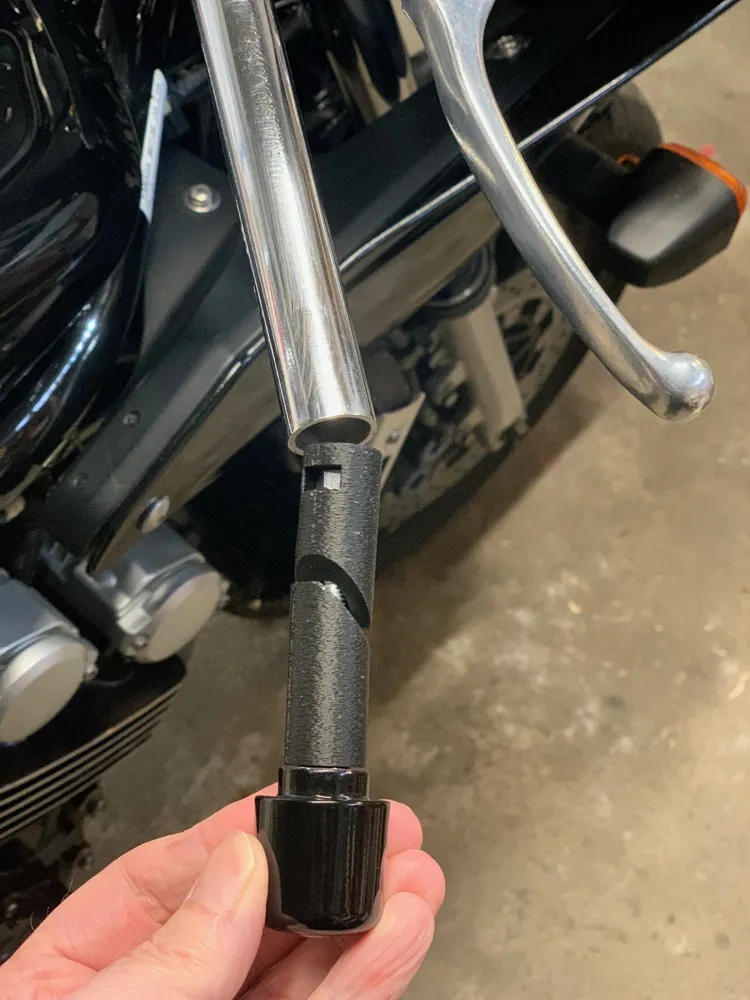

Quill style clamp expands inside the tube when tightened. The nut is embedded in the part to aid removal if it gets a bit stuck. Just undo the bolt a few turns and gently push to release the stiction between two parts. It has a light fuzzy skin to aid with grip. Works well printed in PLA or PETG.
Overall dimensions- 18mm diameter, each part is 40mm long. Combined length approx 68mm.

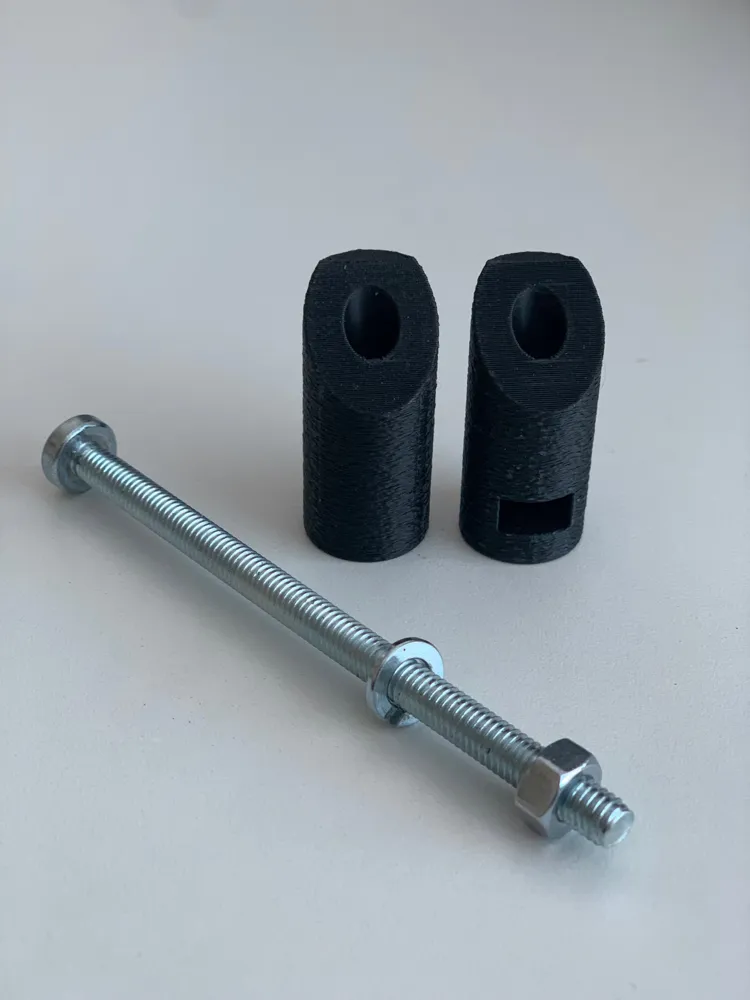

Hardware needed:
- x2 M6 bolt 100mm long
- x2 M6 nut
- x2 Spring washer (recommended to prevent loosening)
