3D Printed Origami

3D Printed Origami - The Tsuru

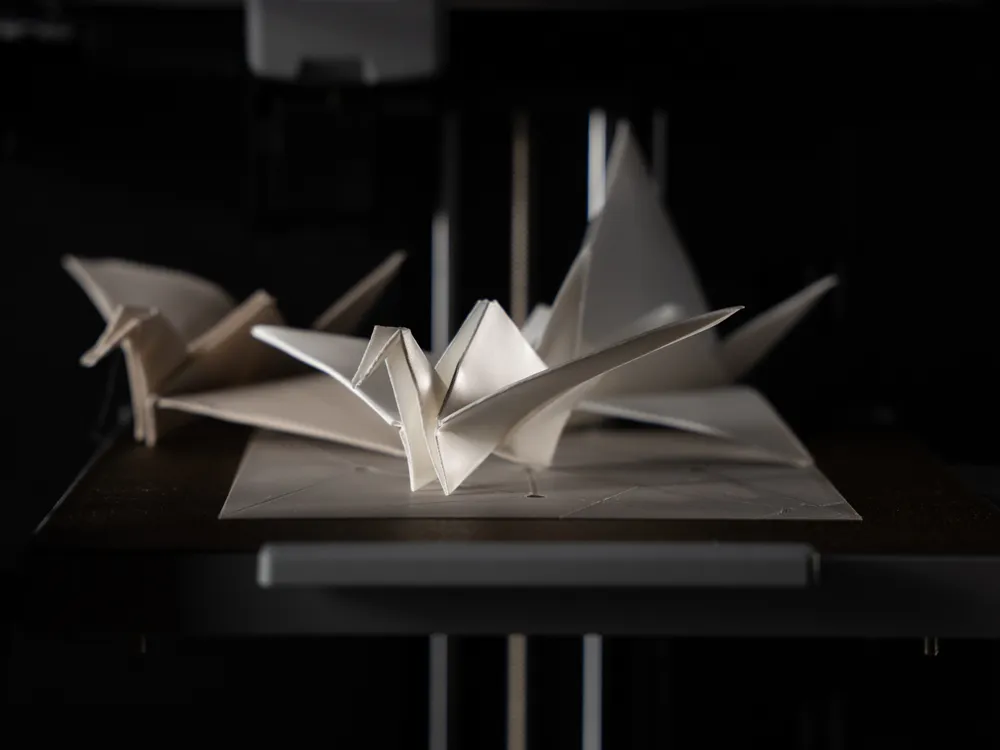

You won't believe this is 3D printed. I’ve designed a way to print a super-thin sheet with built-in crease lines that functions exactly like real paper. It creates a perfect origami bird that flaps, is waterproof, impossible to tear, and incredibly satisfying to fold.

Design & Concept:

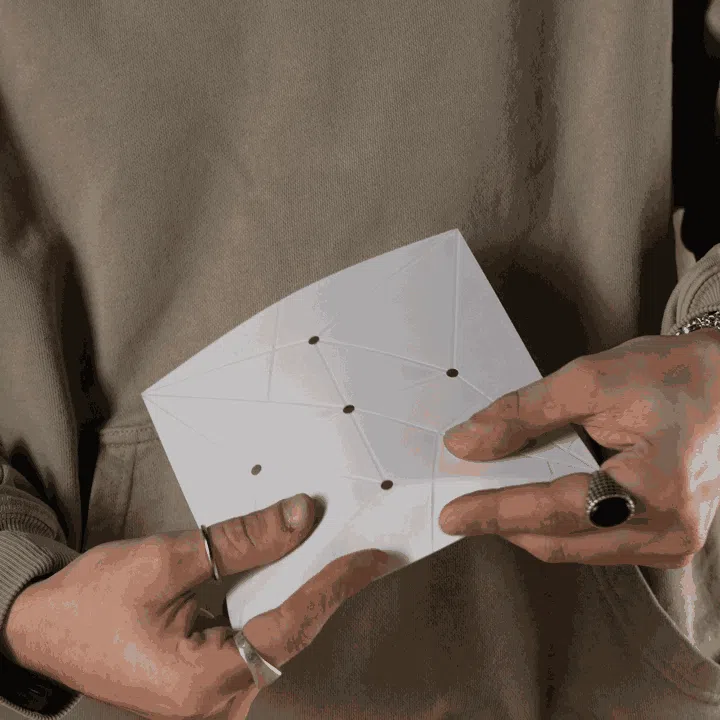

The concept is simple but surprisingly technical. Instead of printing a solid object, I created a thin, flexible sheet with "crease lines" engineered directly into the mesh. These pre-made grooves guide your folds, making the process easier than traditional origami while ensuring the final shape is crisp. The result is a model that looks like delicate paper but has the resilience of rubber.

Key Features:

• Waterproof & Durable: Unlike paper, this bird can be submerged in water or handled without tearing.
• Pre-Creased Guide: The geometry includes fold lines, so you know exactly where to bend the material.
• Zero Waste: Prints as a single flat layer (mostly), using very little filament.
• Interactive: Once folded, you can pull the tail to make the wings flap, just like the classic paper version.

Hardware Required:

• None. Just your printer and the right filament.

Printing Recommendations:

• Material: TPU (Flexible Filament) is better.
  • NB You can use PLA or PETG but thay could break.
• Layer Height: 0.1mm (Standard).
• Infill: 100% (Since it is a thin sheet, it should be solid).
• First Layer: Ensure your Z-offset is perfect. A smooth first layer equals a better-looking "paper" finish.

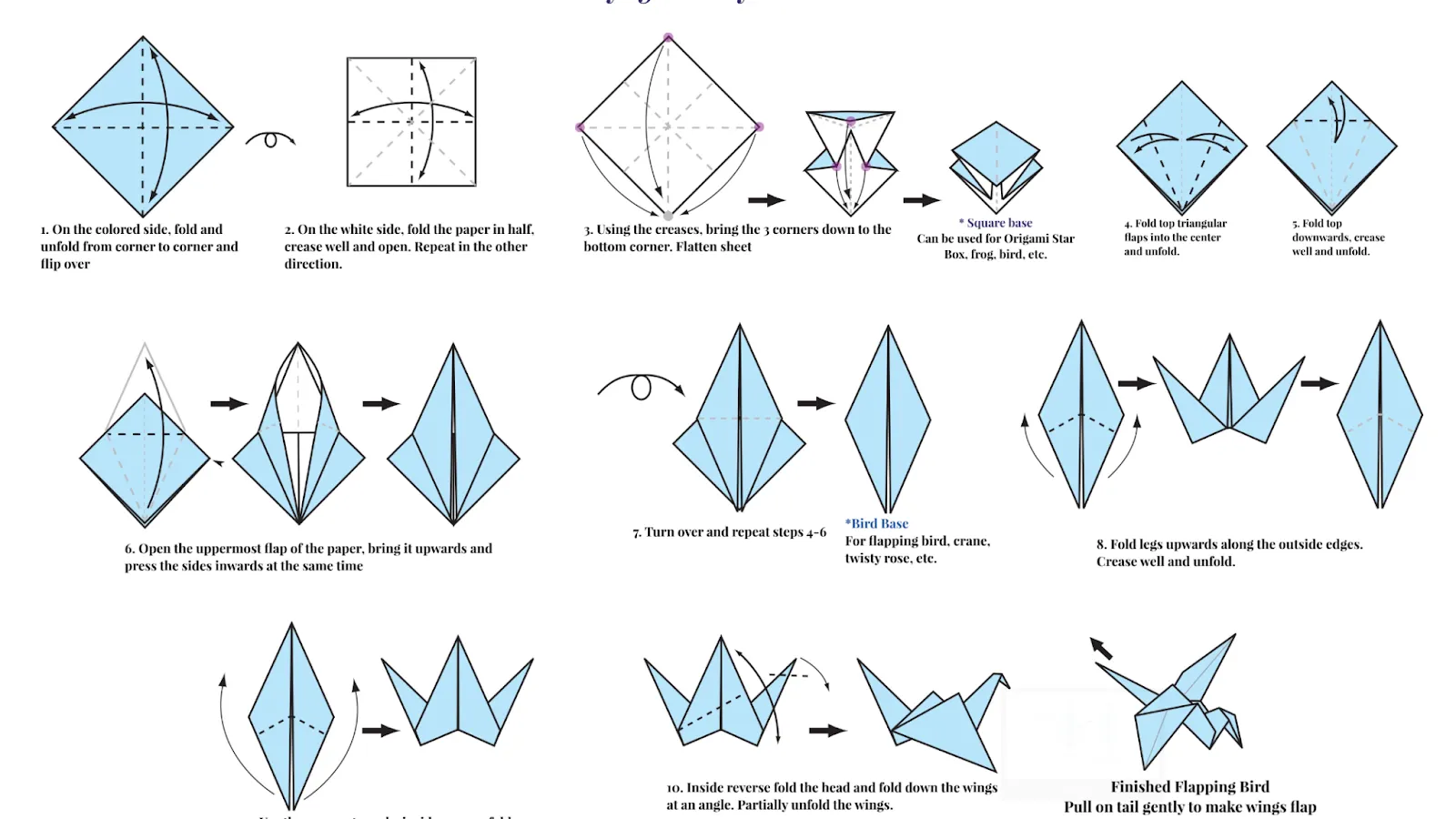

Folding Instructions: Once printed, remove the sheet from the plate and let it cool. Follow the visual guide below to fold your Flapping Bird.

1. Start: Place the textured/colored side up and follow the arrows.
2. Base: Create the "Square Base" and then the "Bird Base".
3. Finish: Fold the head and tail as shown in the diagram.
4. Action: To make it flap, hold the front of the chest and pull the tail gently!

Commercial License:

The downloaded files are for personal use only. If you are interested in selling physical prints of this design, please visit www.collecticraft.co to find details about my commercial license and subscription plans.

Download the 3D Printed Origami today and start folding! Tell me in the comments: which animal should I turn into a print next?
