The Magic Crescent Flexure Joint
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 10% infill
Designer
5.6 h
4 plates
0.6mm nozzle, 0.3mm layer, slightly shorter, base only
1.6 h
1 plate
Open in Bambu Studio
Boost
454
1237
61
24
615
399
Released
Description

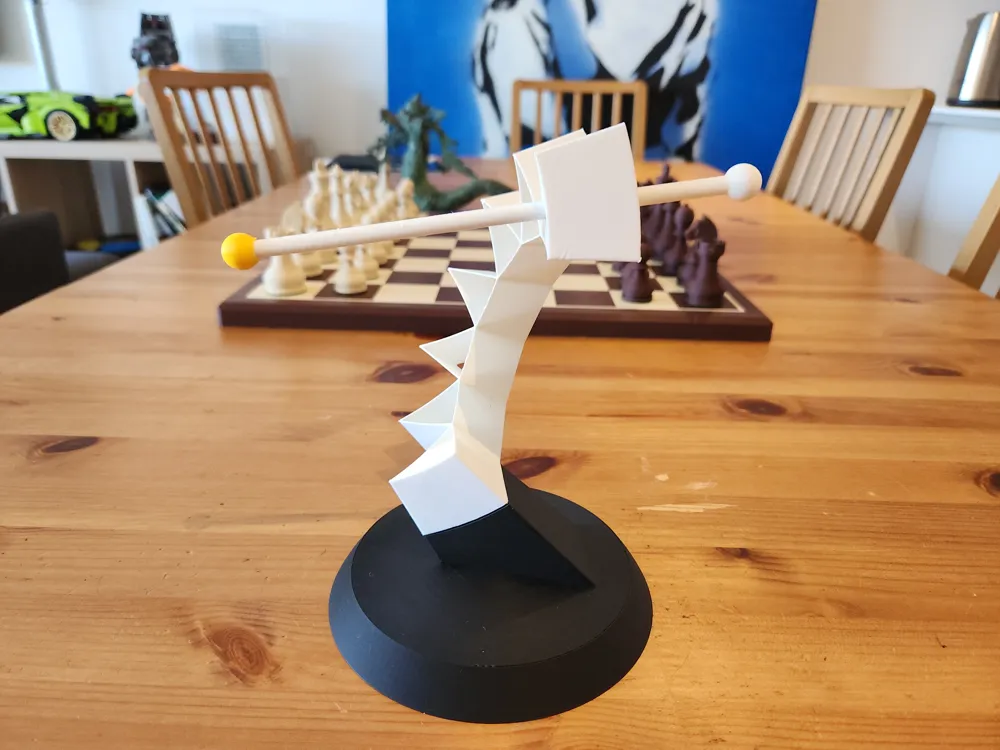

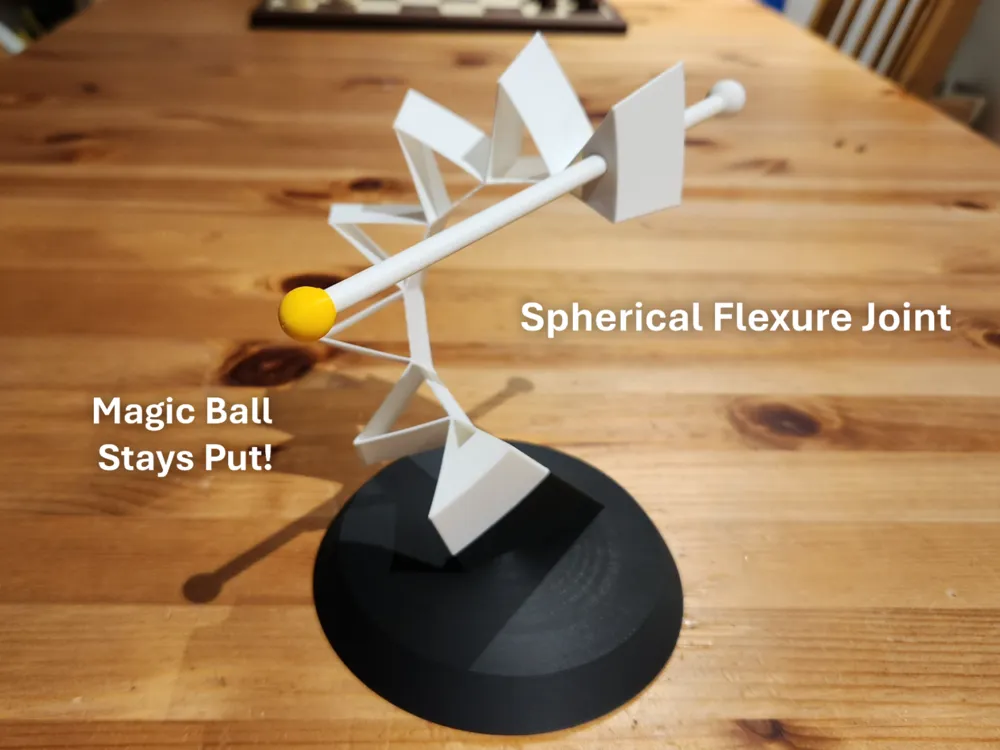

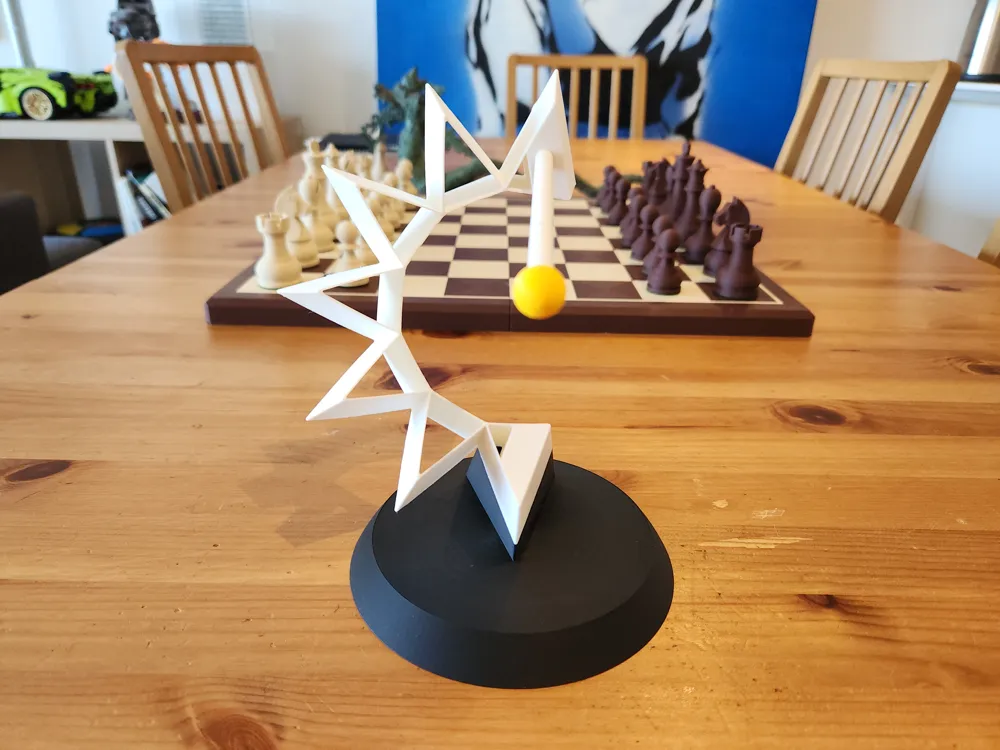

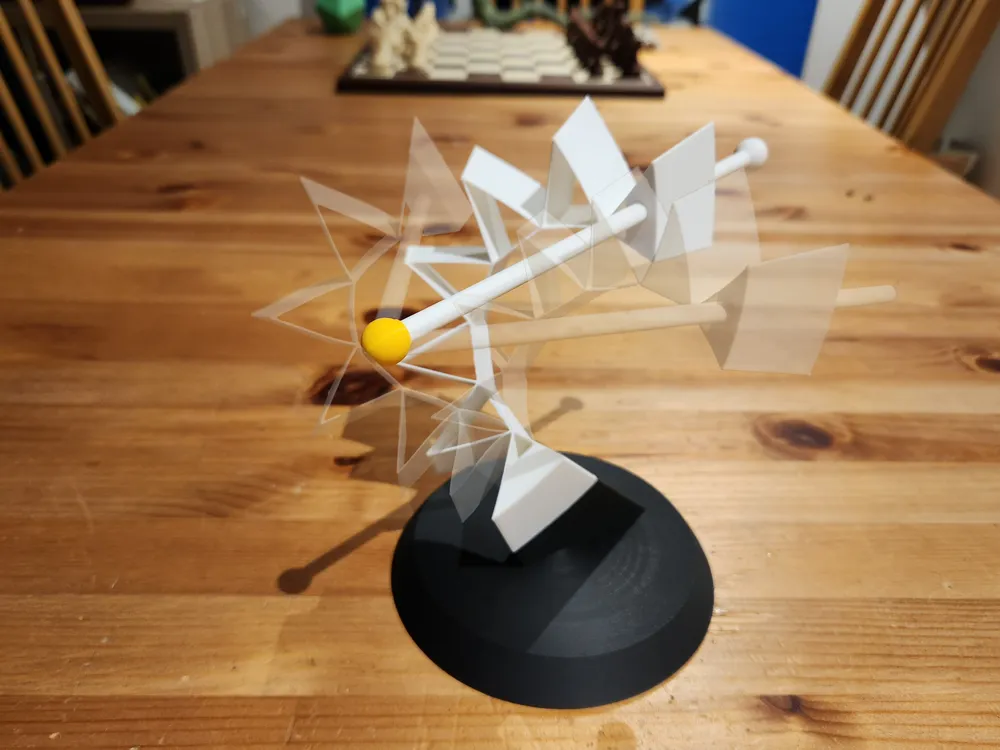

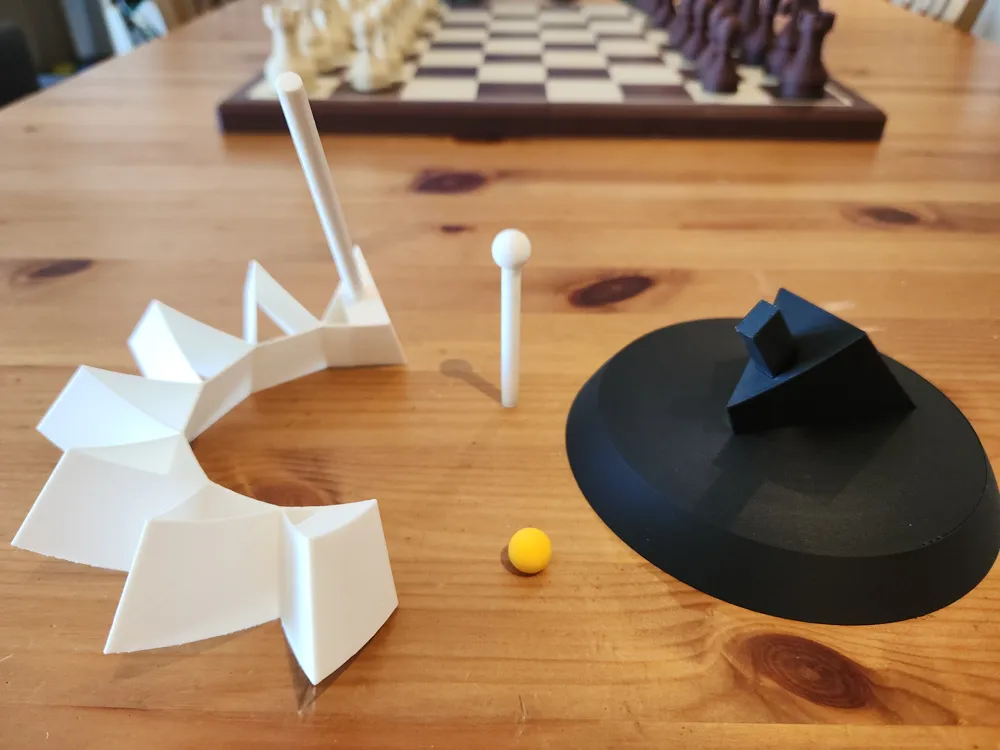

Crescent shaped Spherical Flexure Joint: no matter where you move the end of the arm, the ball magically stays in position! Fun engineer/mathmatical fidget toy for your desk. Printed in parts: push fit together.
This is based on a research paper A new type of spherical flexure joint based on tetrahedron elements - ScienceDirect. You may have seen my previous model Spherical Flexure Joint which is a remix of a Thingiverse model by one of the authors. This a whole new design using those same principles but designed with both asthetics and awesomeness!
