Smith & Wesson model 41 22LR Magazine Pouch

Summary

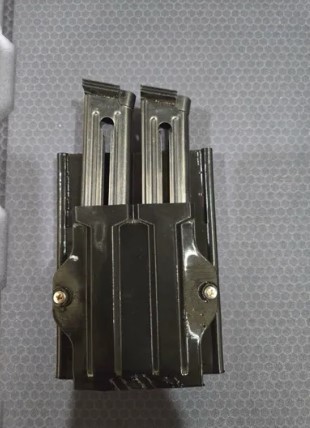

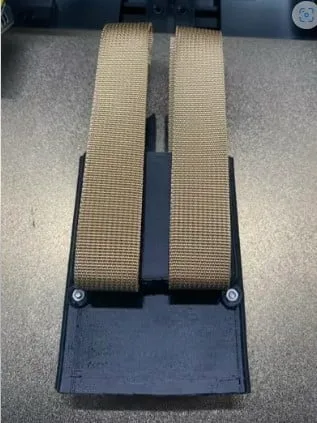

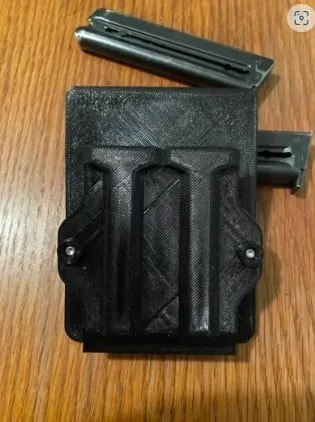

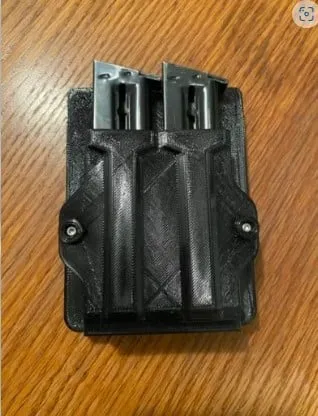

This is a magazine pouch for S&W model 41 .22LR magazines. It is a bit larger than the pouch I made for my Colt Woodsman and Colt Match Target pistol. It may be worn on a belt or mounted on molle gear with the use of molle straps.

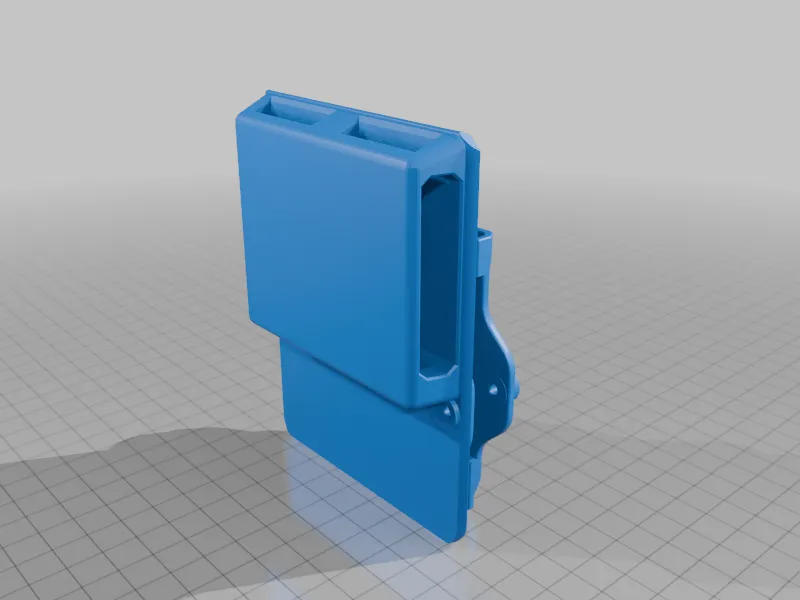

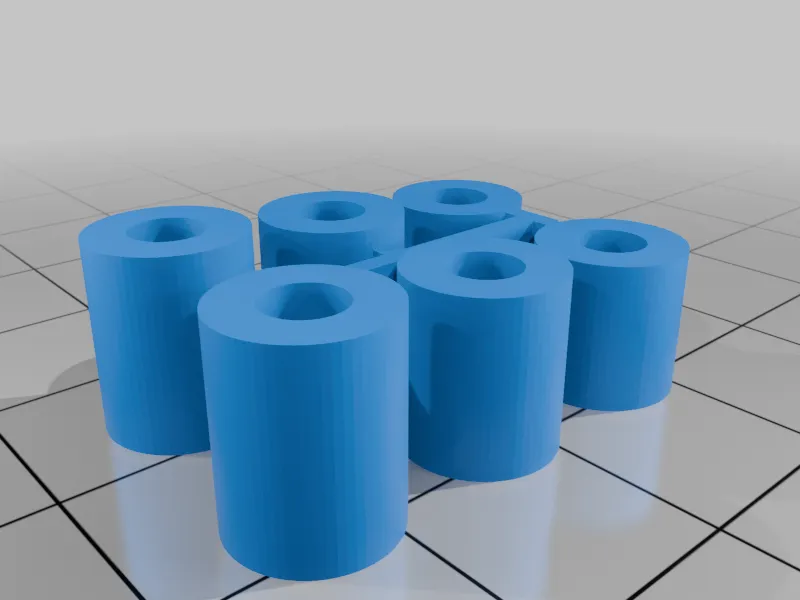

I printed this in Overture High Speed TPU and it prints best in the vertical orientation. Because of the narrow footprint, I highly recommend a brim in TPU to improve build plate adhesion. In addition to the pouch STL, there is one that prints a pair of 10, 9, and 8mm bushings to cover the center section of the M3 20mm screw. The 10mm bushing was best, the shorter ones make the mags very snug.

Print Settings

Rafts:

Yes

Supports:

Yes

Resolution:

0.28

Infill:

100

Filament: Overture High Speed TPU                Black


Notes:

Best printed upright as in STL.  Brim to improve build plate adhesion and needs supports.  Reduced support density will assist removal
