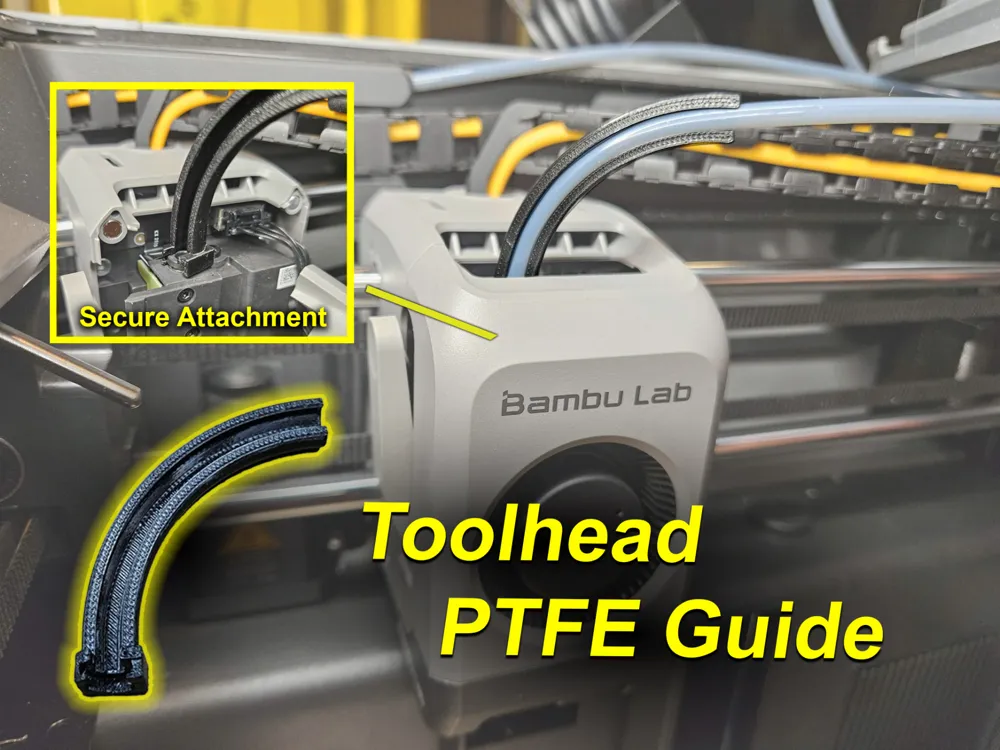

P2S Toolhead PTFE Guide - Smooth Filament Path

Keep your filament feeding clean, smooth, and reliable with this simple and fast Toolhead PTFE Guide.

Designed to reduce any harsh bends and PTFE rubbing the glass lid, this guide helps maintain an optimal filament path into the extruder — minimizing resistance and potential feeding issues during prints.

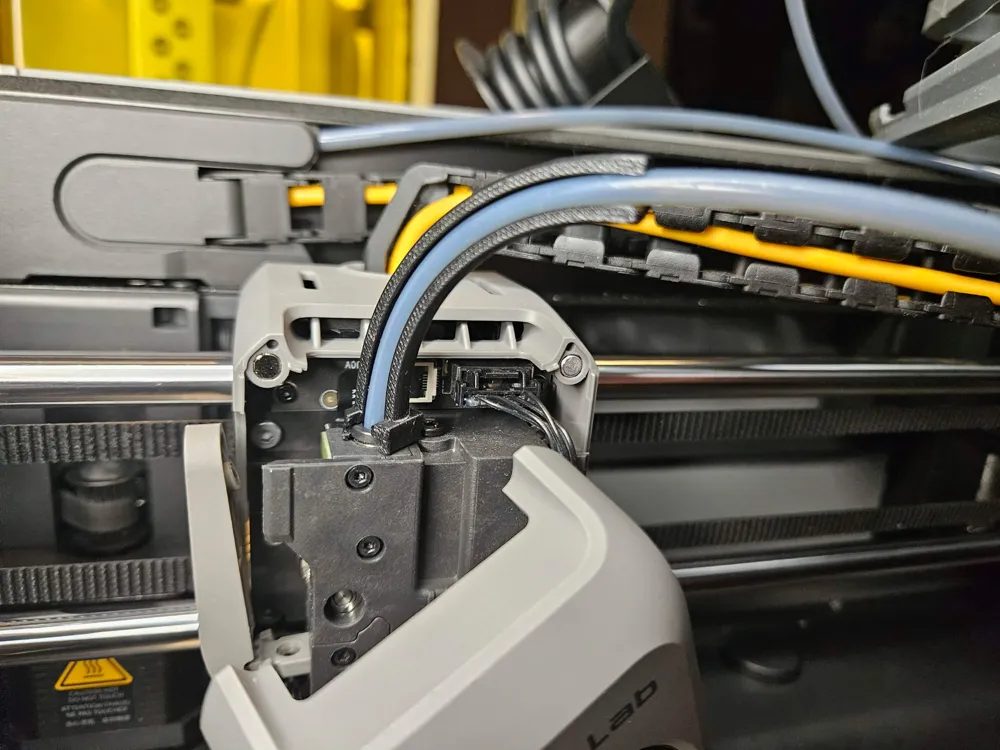

The guide slides securely onto the PTFE inlet on the toolhead, holding position while still allowing the it to pivot freely. This controlled movement keeps the filament path aligned without restricting motion as the toolhead travels.

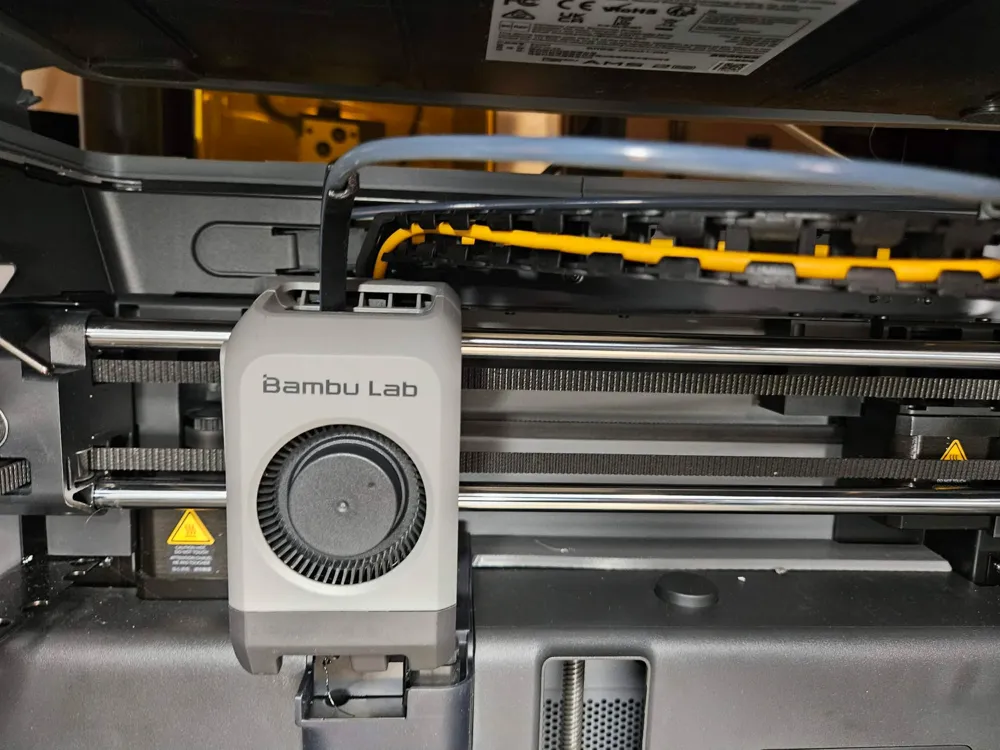

An added benefit is protection for your printer’s glass lid. By guiding the PTFE tube away from the top surface, it prevents constant rubbing and wear that can occur during normal printing operations.

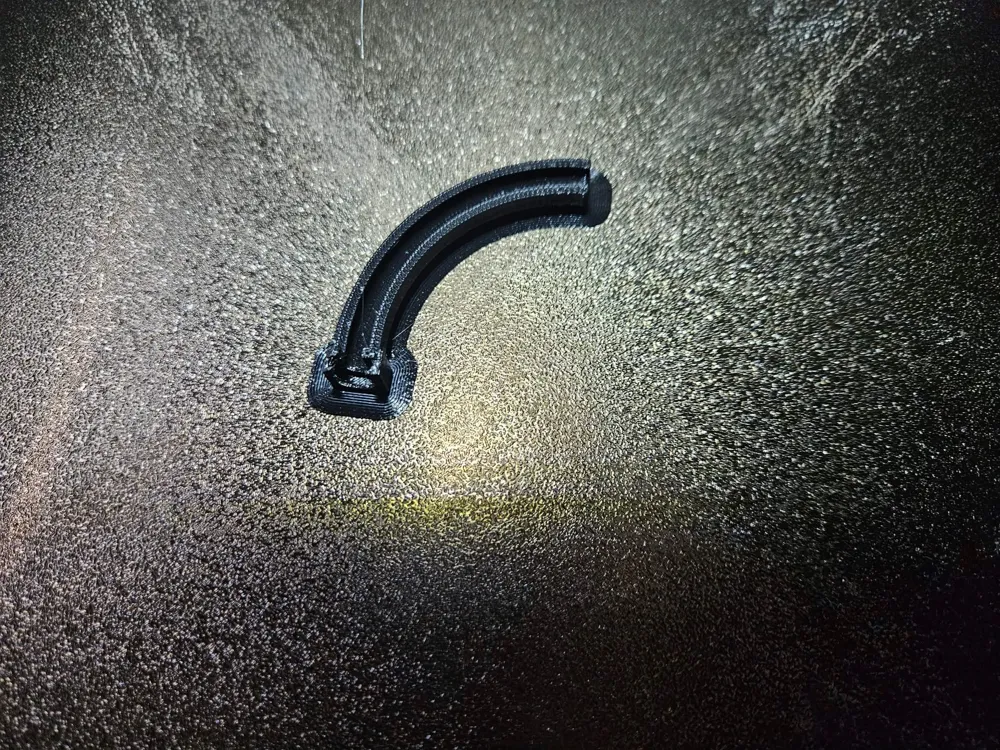

Make sure to use high temp filament for this guide. PETG or Better (ABS, ASA…etc)

Easy Installation

-Open toolhead cover

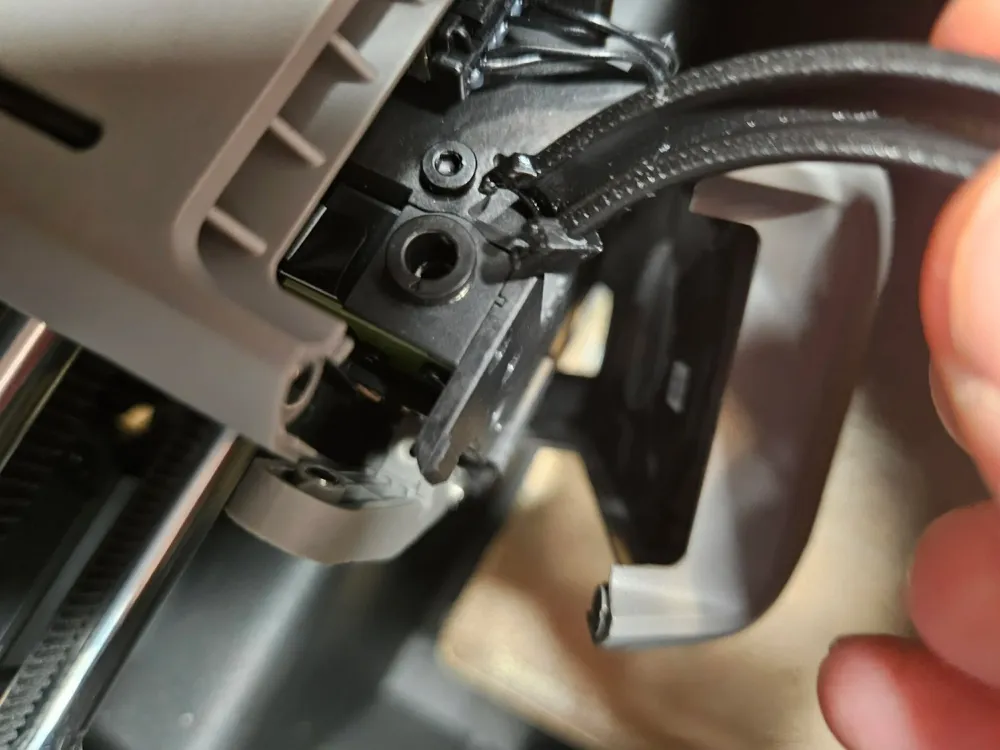

-Press down on the black PTFE inlet coupler to remove PTFE tube

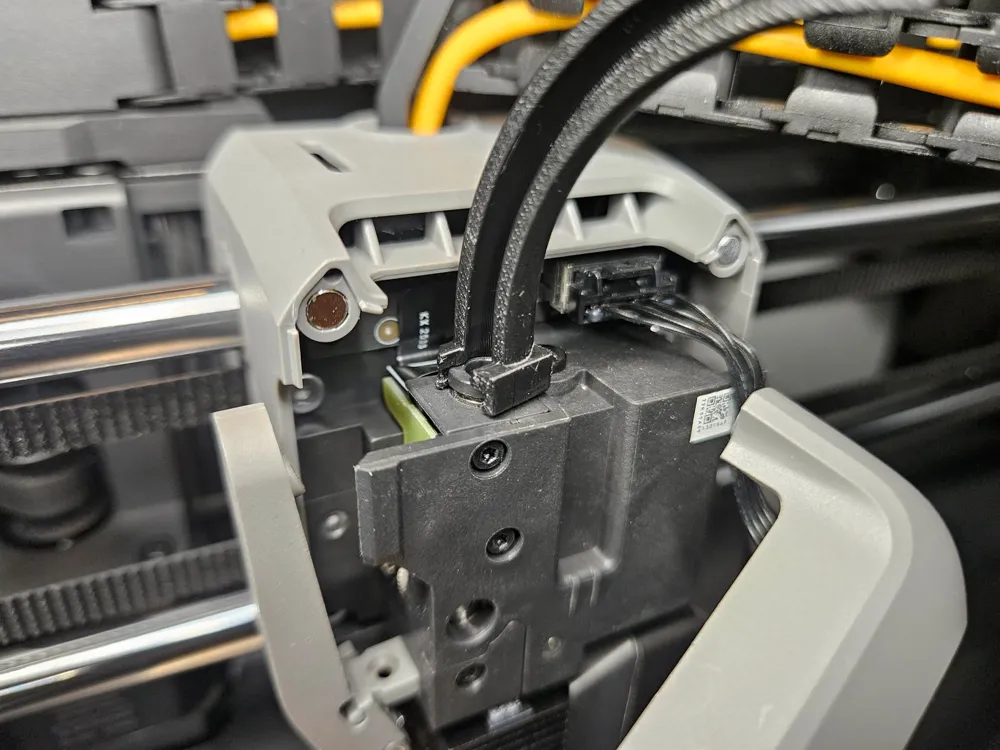

-Slide on this guide

-Slide PTFE tube into the guide back down in to the inlet coupler

-Reattach toolhead cover

✨ Key Features

Smooth filament path — Reduces hard angles and kinks

Improved feeding reliability — Less resistance to the extruder

Slide-on installation — Secure hold with no tools required

Free pivot design — Maintains movement without strain

Glass lid protection — Prevents PTFE tube rubbing

Low-profile & lightweight — Quick print and won’t interfere with printer operation

Look out for a P1 / X version coming soon as well.
