Gorilla Cart Cup Holder and Stake
Print Profile(0)
Description
Summary

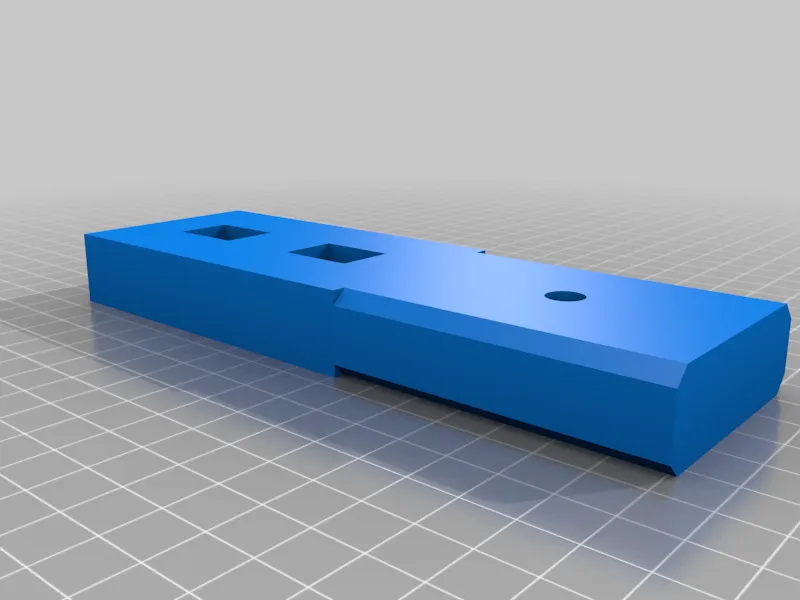

Note 3/23/2026 The stake length has been adjusted to improve fit in cart stake holes.

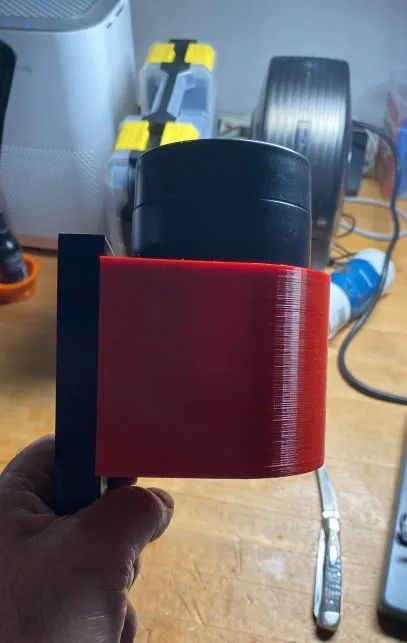

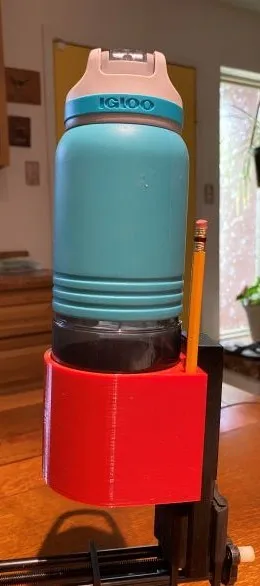

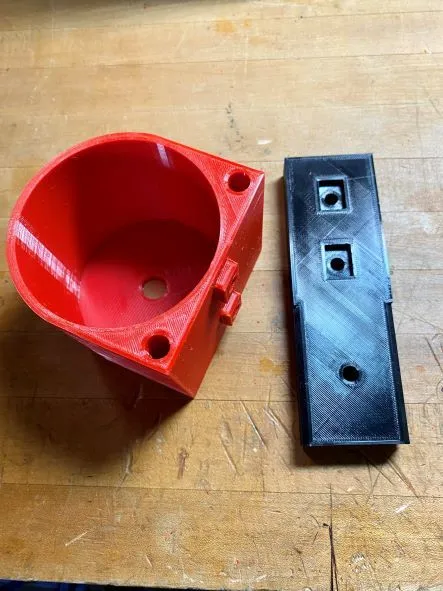

This is a cup or water bottle holder for the Gorilla Cart. It includes a stake for mounting in the carts stake pockets. It will hold anything up to a 32 oz Igloo Chug. the holder opening is about 87mm diameter so anything up to that dimension will fit. The holder fastens to the stake with M6 or 1/4" screws. If using 1/4" screws, you will need button head screws or cap screws it fit the head recess. I prefer cap screws as they do not stand as proud of hole as a cap screw will. Depending on manufacturer, you may have to take about 1mm off of a 1/4" button screw head's diameter. There are two vestigial screw holes, to either side of cup holder back, remaining from Plastic Innovations original design that I left in. I enlarged them a bit to accommodate pencils or a small flag.
Boost Me (for free)
I'm just a geezer doing 3D printing and design to keep my brain active until I start CTD or become DRT. A little positive attention keeps me going. For you non old school emergency personnel, or those who only know modern approved abbreviations:
CTD is Circling the Drain and DRT is Dead Right There
Cheers!
Print Settings
Rafts:
No
Supports:
Yes
Resolution:
.2
Infill:
30%
Filament: Overture PETG Red
