Description

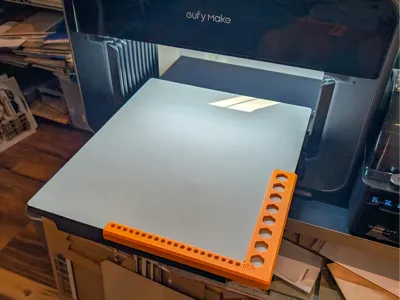

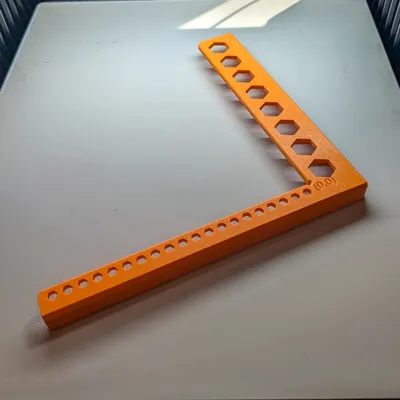

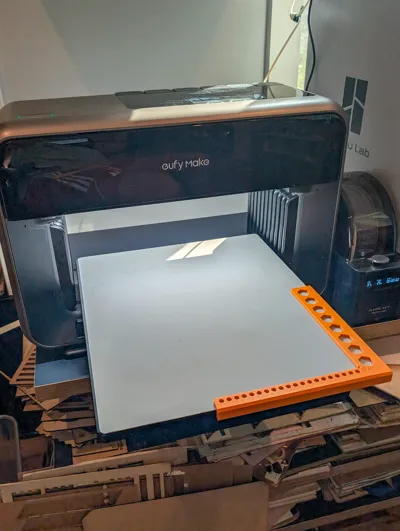

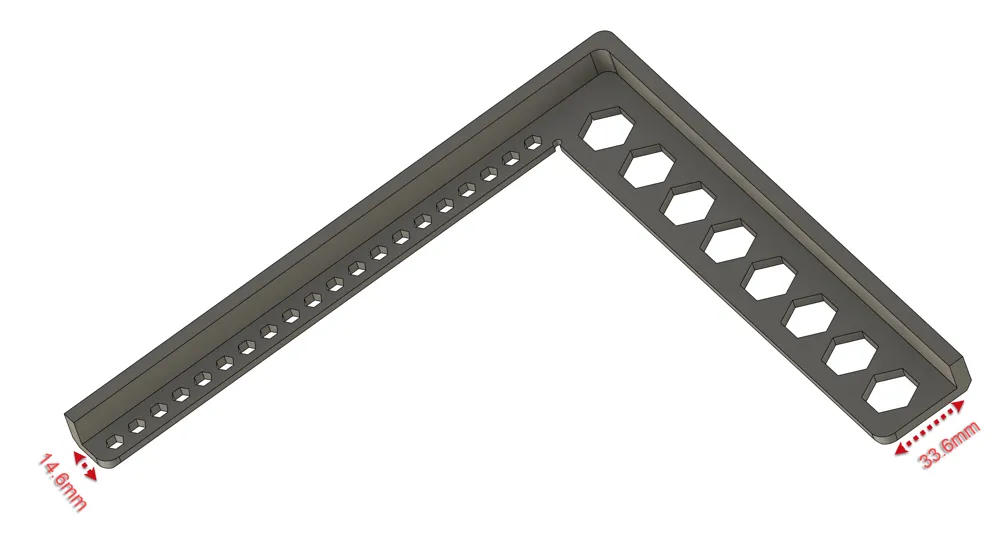

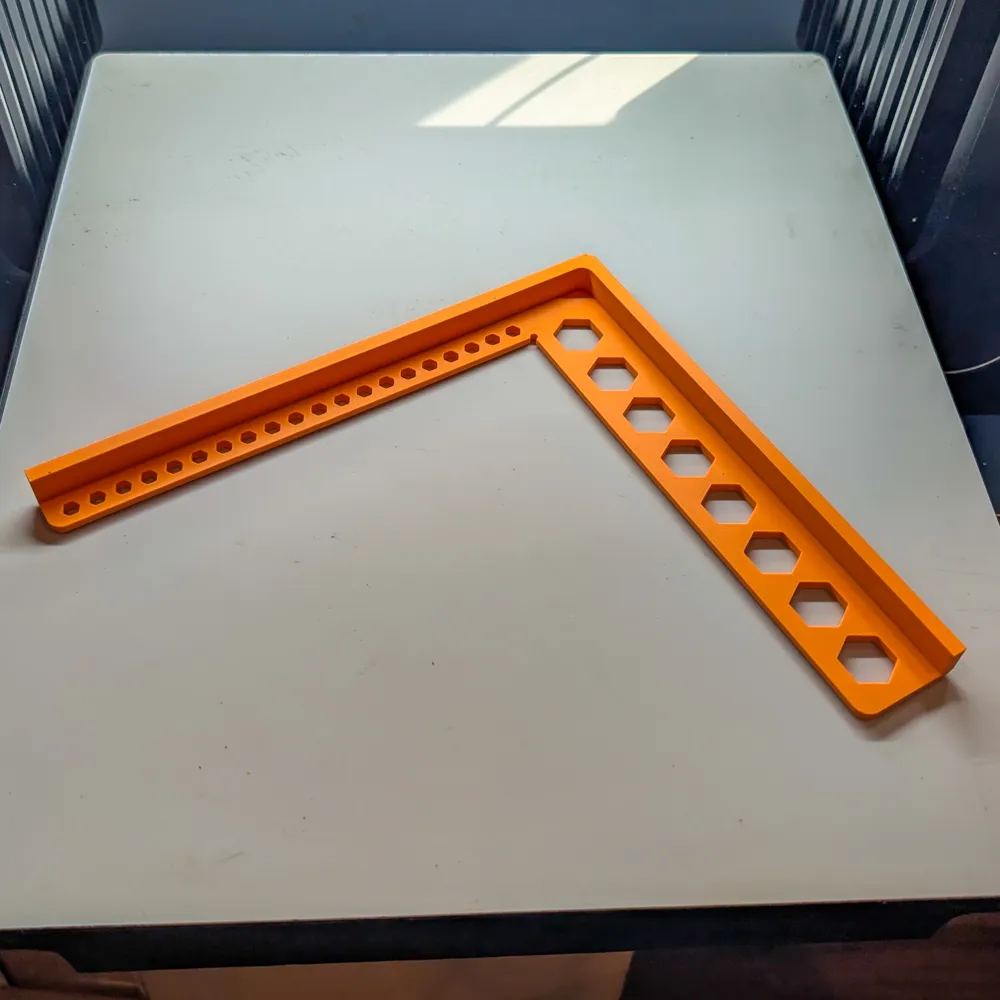

This jig is intended to be used on the eufyMake E1 UV printer with the standard size plate using the Zero Point Alignment setting. The X offset is 14.6mm from the edge, and 33.6mm for the Y axis. Please note that this is what works for my printer and your calibration may be different. This jig will get you to a starting point to perform repeatable prints, but setting up each job requires testing. This jig doesn't automagically know what you are printing, but will make repeating a successful job quicker and reliable.

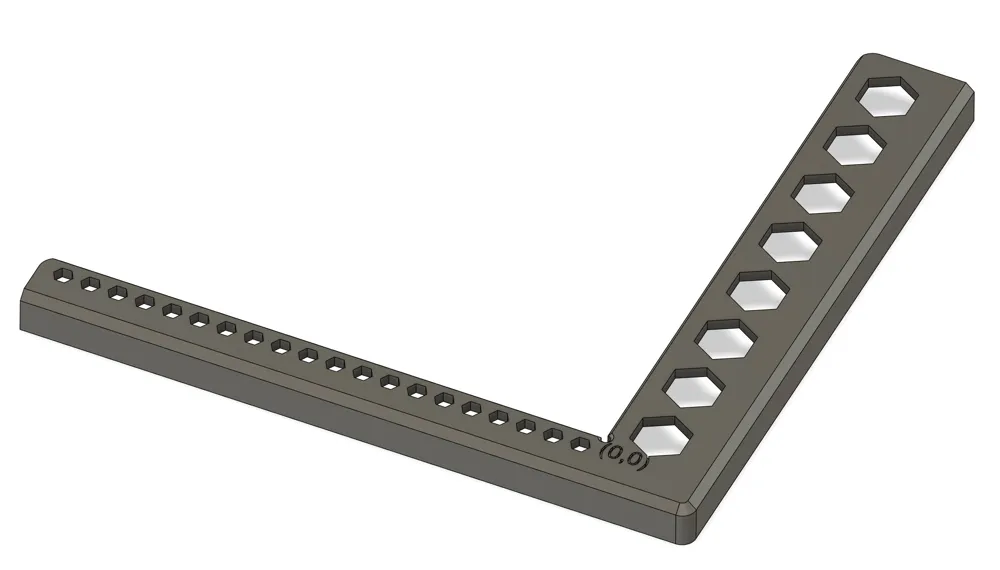

Use the included zero point cross hair.png image to print on some scratch paper alignment lines at the 0,0 point to see where your 0,0 point is.
