Supports for BSM-150 Table Extension | V1

First printable upgrade released by BricoTools for the BSM-150.

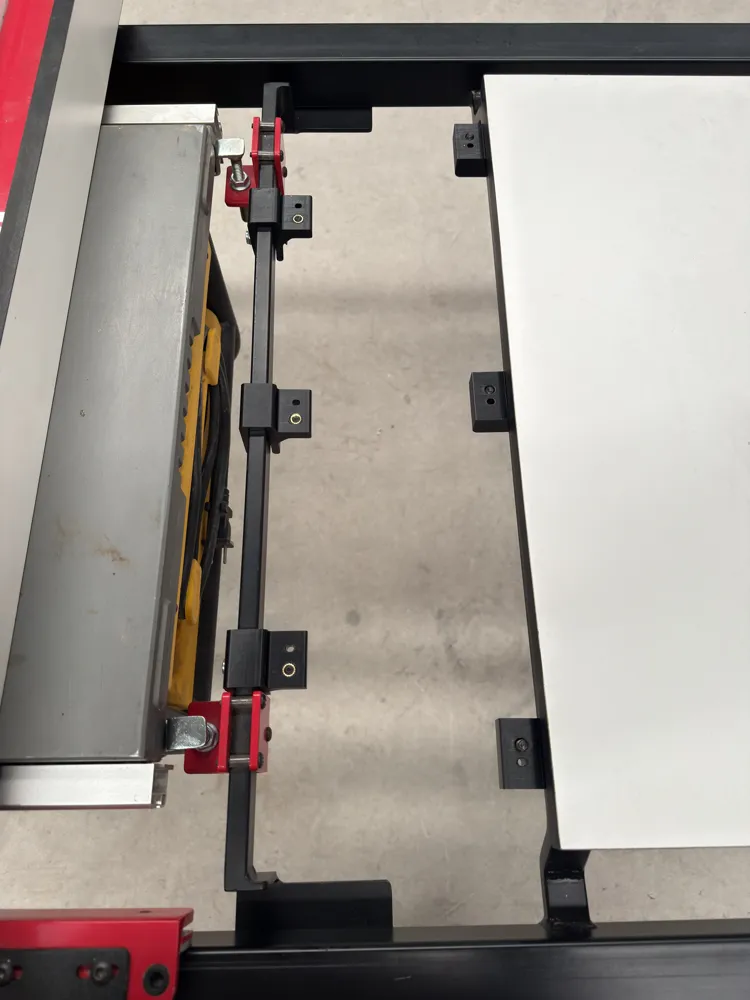

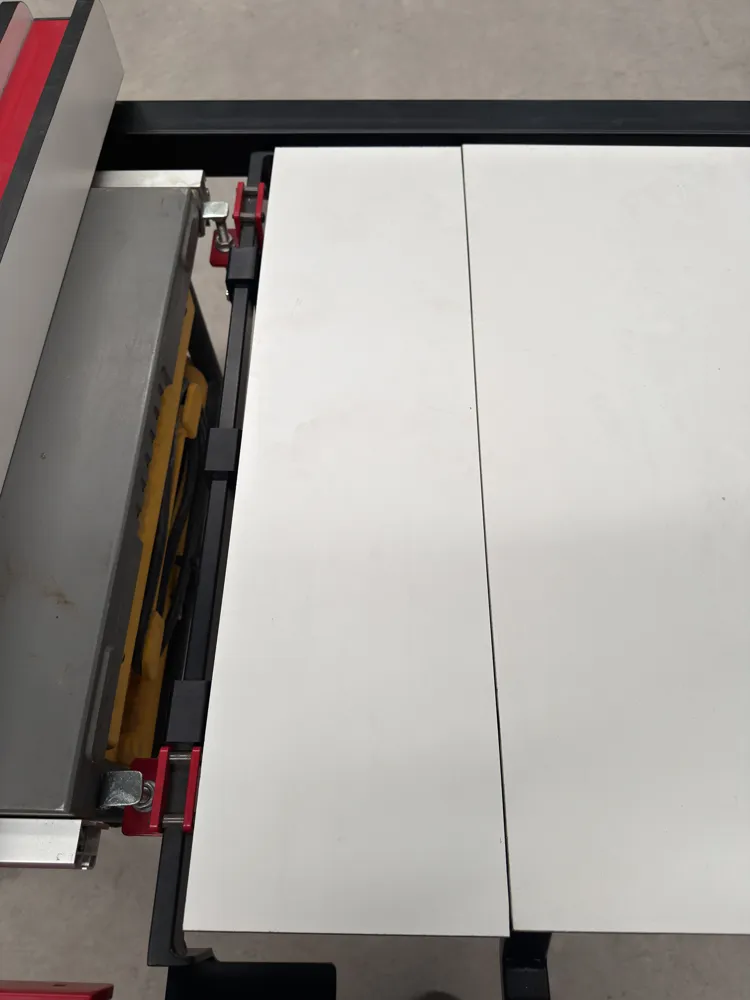

This support system allows for an additional extension in the gap between the saw and the auxiliary table, maintaining the modularity of the original design.

The BSM-150 was designed to adapt to multiple portable saws on the market. This flexibility means that the space between the saw and the auxiliary table can vary. These supports allow users to utilize this space if they wish to extend it.

📦 What's included?

• Support A (install 3 pieces)
• Support B (install 2 or 3 pieces)


🧩 Installation

🔹 Support A

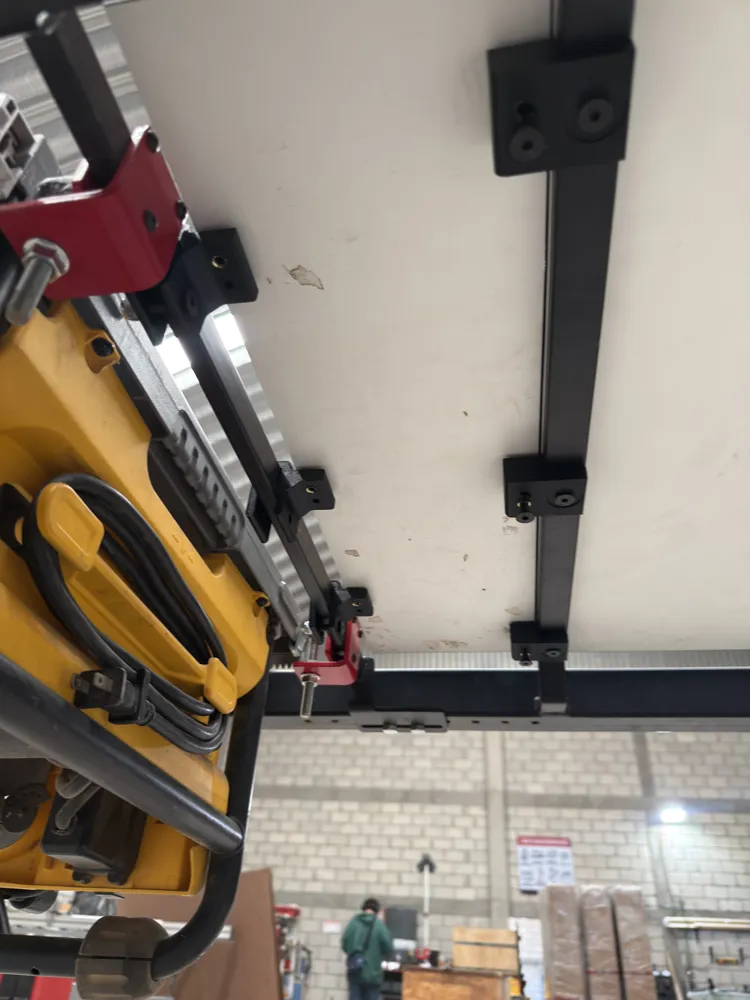

It is installed on the screws that hold the auxiliary table on the left side.

• Recommended: 3 supports (one per screw)
• Replace original screw with 1/4” x 1 ½” screw

🔹 Support B

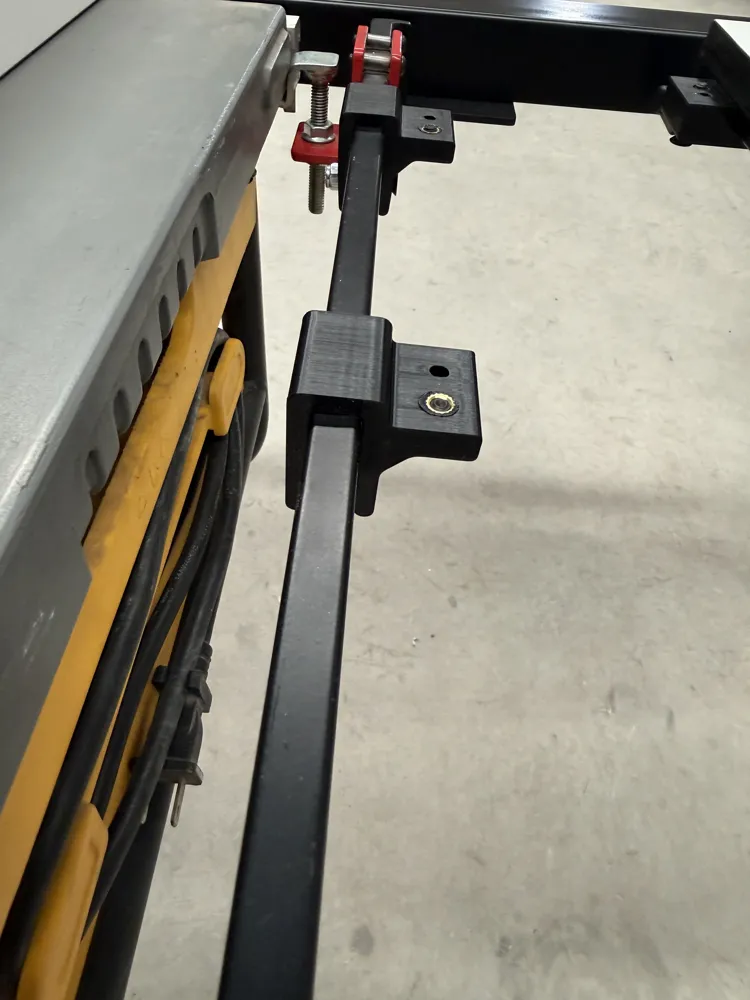

It is installed on the profile of the Dimension System (structure that allows extending the space for larger saws).

• 2 or 3 supports can be installed

• Fastening with 1/4” x 1 ¼” screw and 1/4” nut



📐 Smart Height Adjustment

Each support is designed 2 mm below the auxiliary table's load level.

Why?

Early BSM versions used 15 mm melamine.

Current versions use 18 mm.

This design allows the user to use:

• 15 mm
• 16 mm
• 18 mm
• 19 mm

Without alignment issues.

🔩 Fine Adjustment

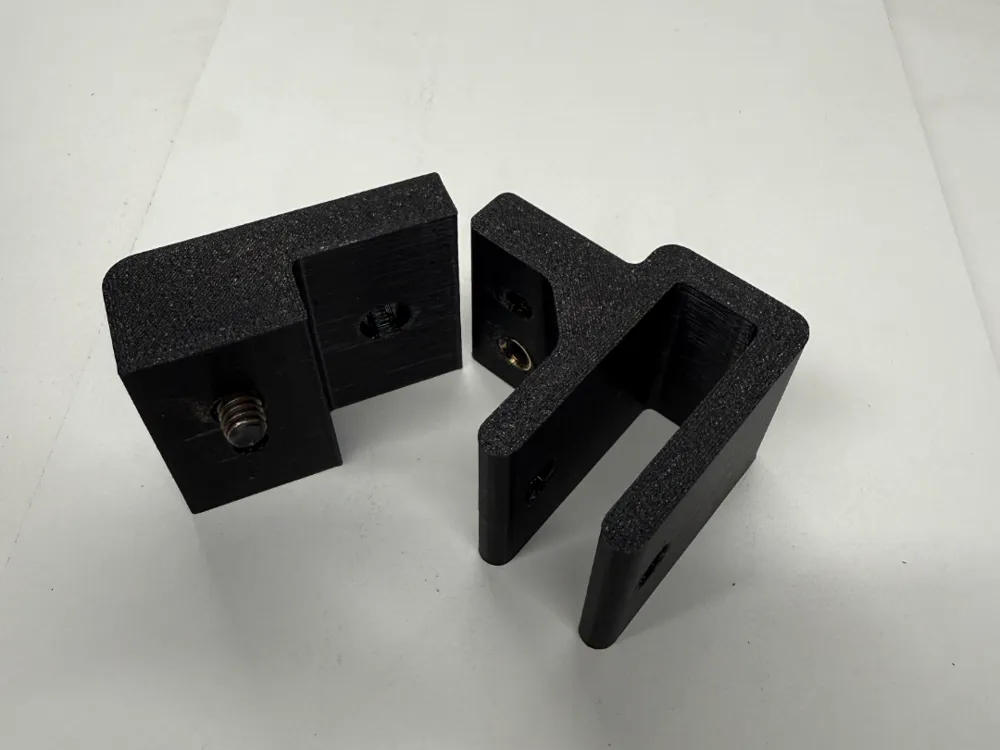

Each support includes a housing for a brass insert:

• 1/4”-20 insert (10 mm length / 8 mm outer)

• Compatible with:



  • 1” screw
  • 1/4” x 3/4” grub screw

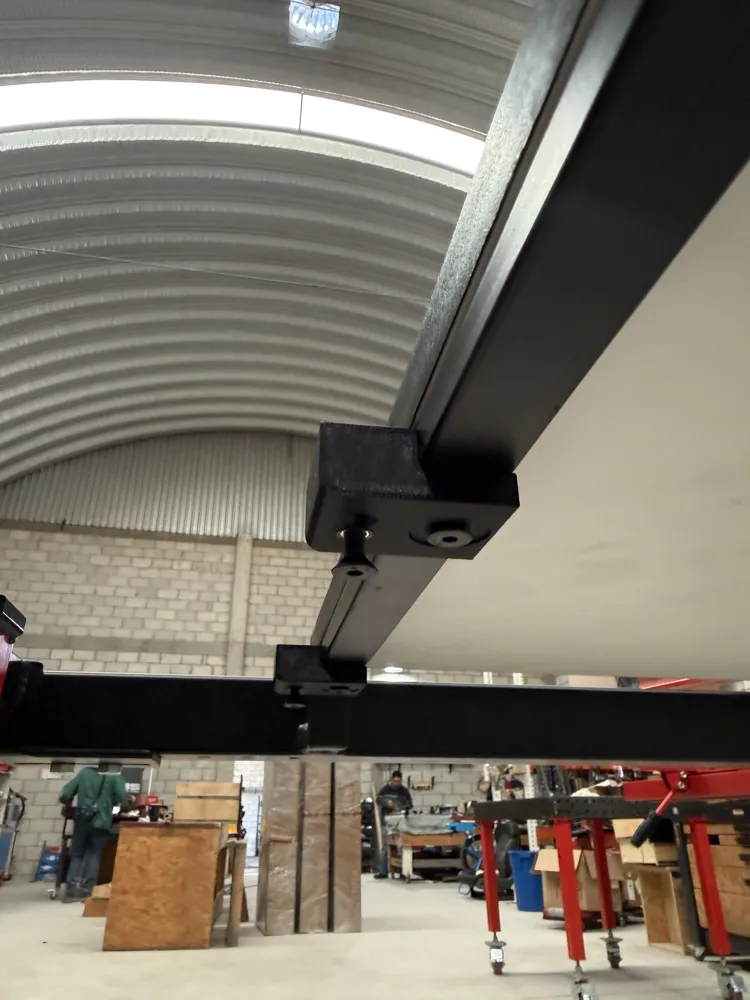

This screw or grub screw is what actually bears the load of the extension, allowing the height to be adjusted until it is perfectly flush with the auxiliary table.

The other two holes allow the extension to be secured with screws or wood screws.


🖨 Print Recommendations (IMPORTANT)

Recommended material:

• PETG or higher (DO NOT use PLA)

Minimum suggested settings:

• 4 walls
• 25% – 50% infill (use only 25% if using all 6 supports)
• Orientation: print on edge
• Metal insert mandatory for the adjustment point.

⚠️ Safety

This model has been tested under real workshop conditions.

However, the user is responsible for:

• Using appropriate material
• Correct settings
• Safe installation

BricoTools is not responsible for failures resulting from inadequate printing or incorrect use.


🧠 Philosophy

This is the first official printable upgrade for the BSM-150.

The idea is for the tool to evolve together with the community.

If you have suggestions for improvement, please share them.
