Flexible Mini Water System for Hydroponics & Garden

This modular connection system is the perfect solution for anyone who wants to connect water containers precisely and flexibly. Originally developed for hydroponics systems, it is ideal for smaller setups where standard garden accessories are too bulky

System Overview:

• Compact Dimensions: Requires only a 14mm bore hole (installation diameter)

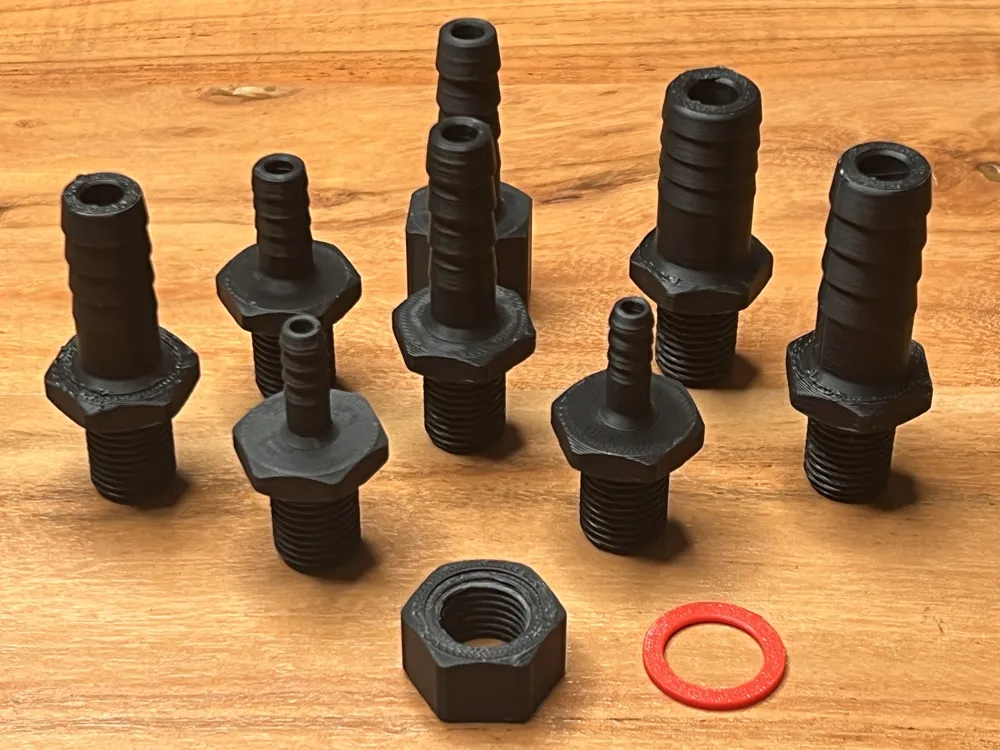

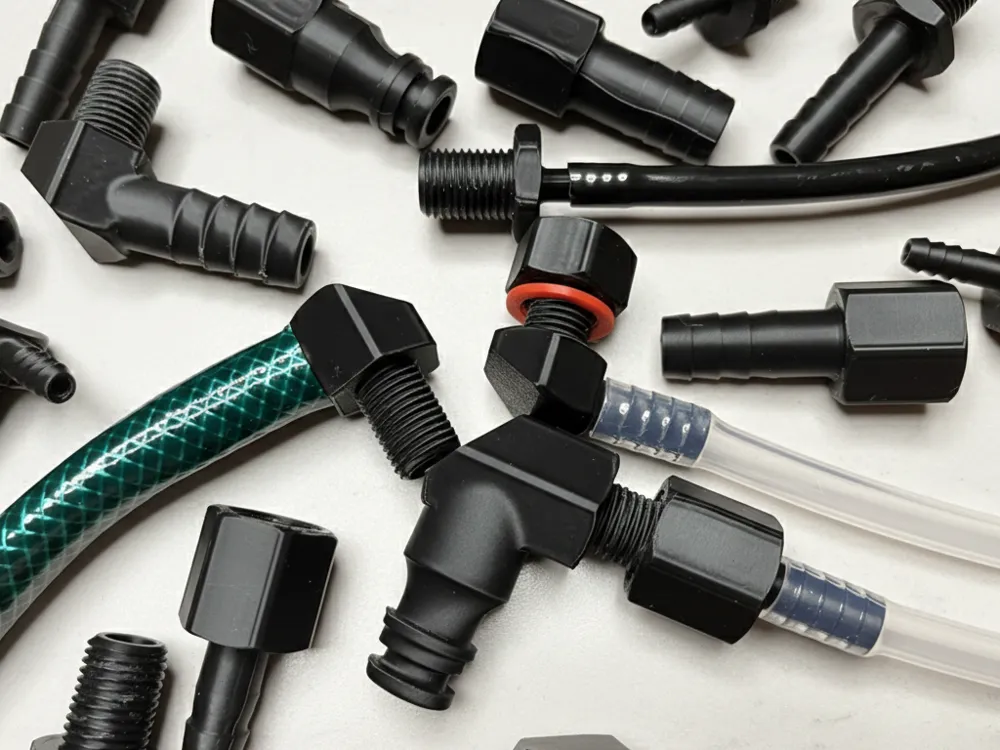

• Versatile Connections: Suitable for hose inner diameters D6, D8, D10, D12, D13, D15 and Gardena

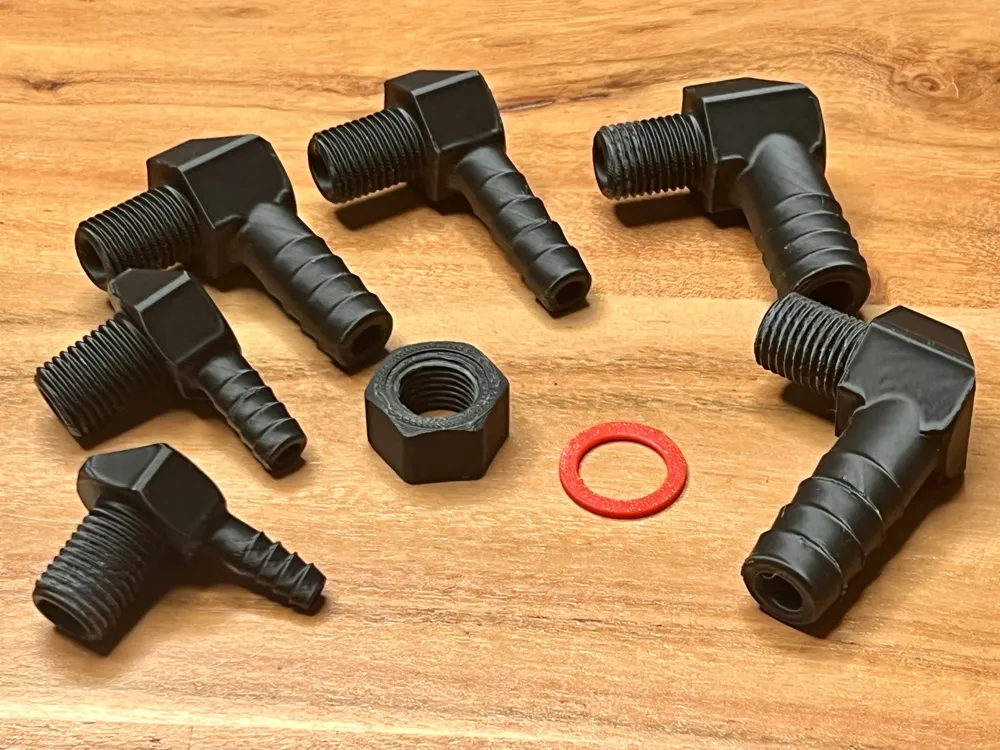

• Maximum Flexibility: All adapters are available in both straight and angled (90°) versions

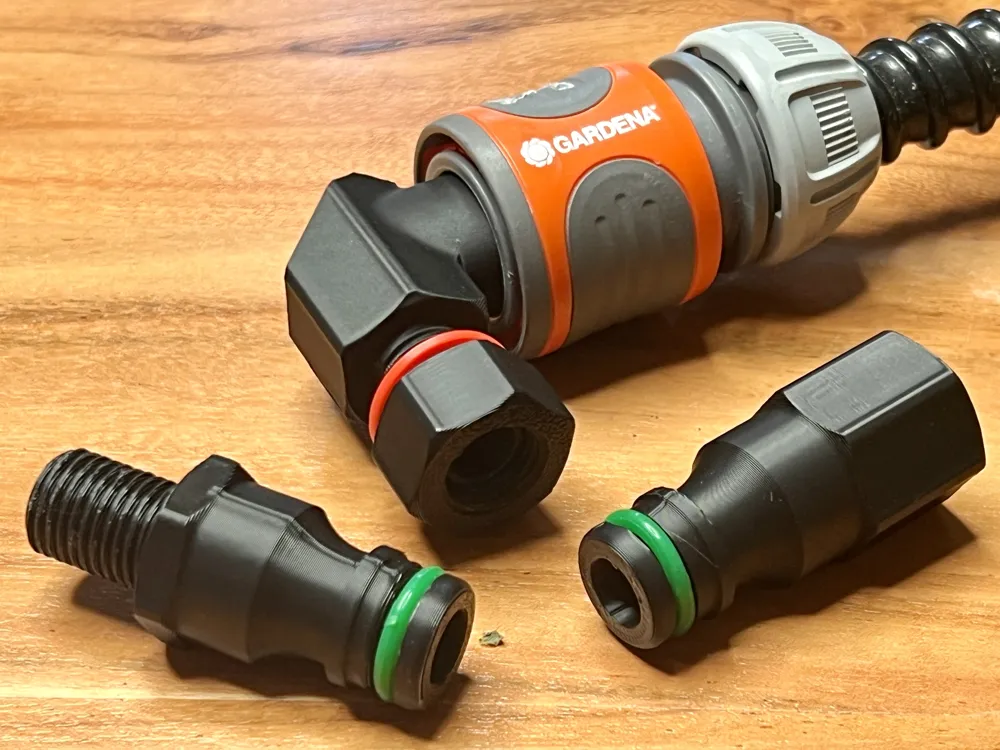

• Gardena-Compatible: Includes an adapter for the common Gardena coupling system

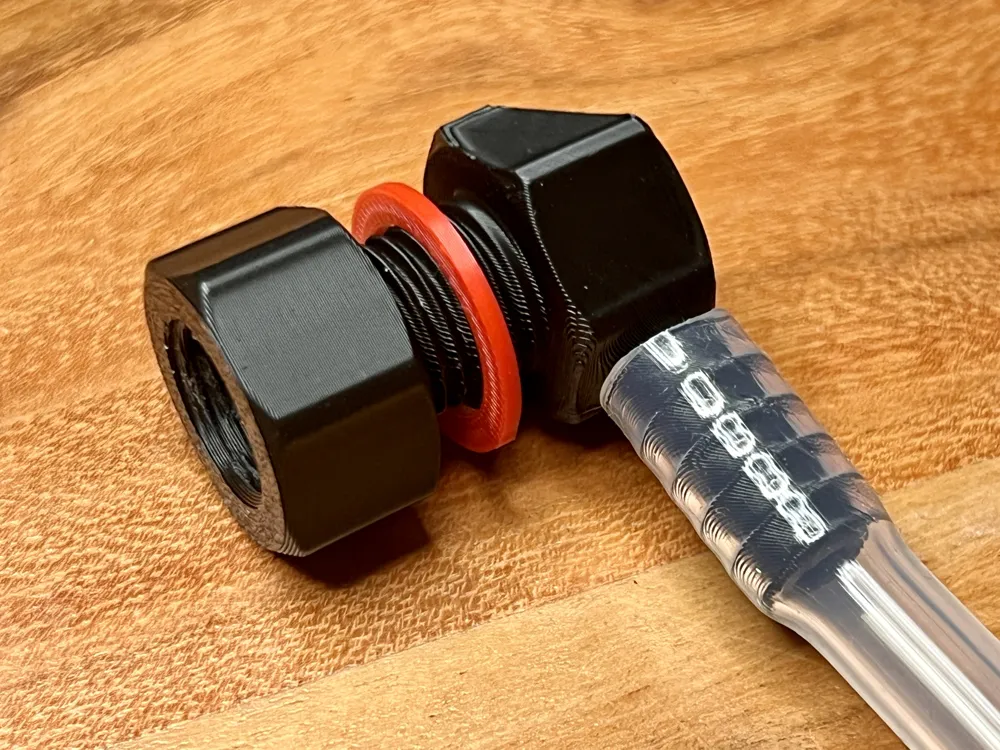

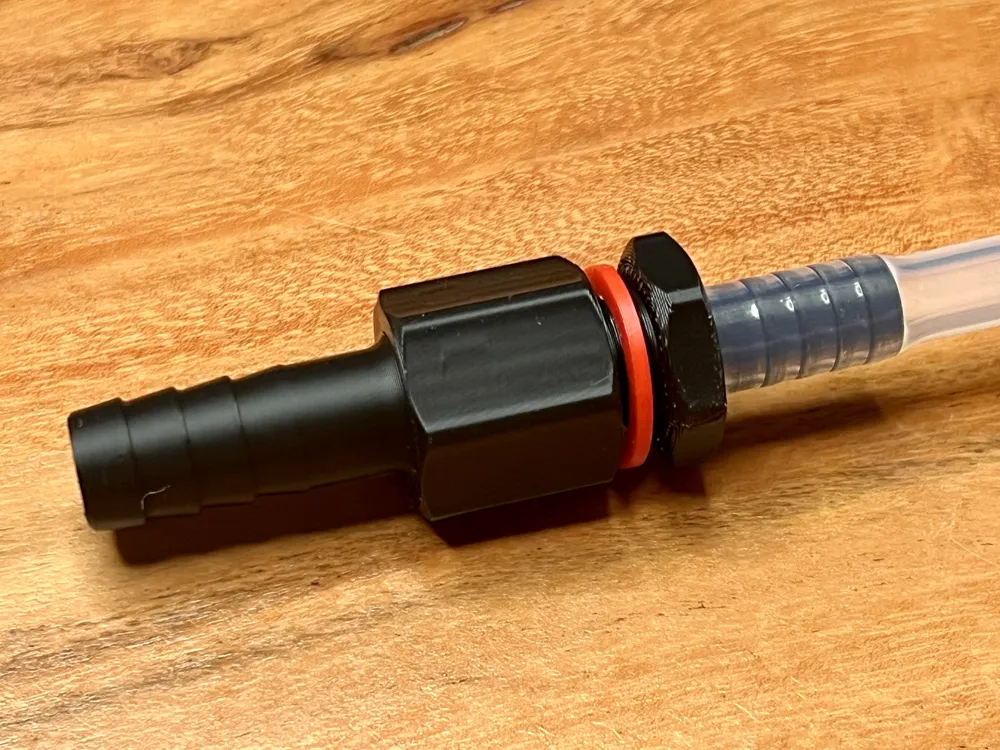

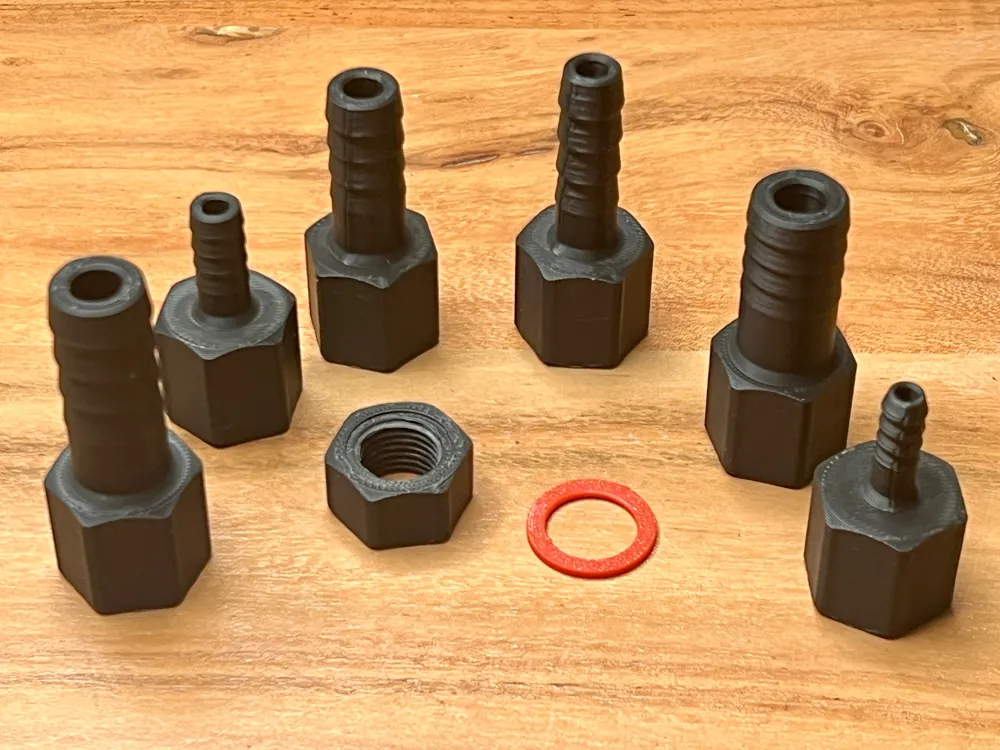

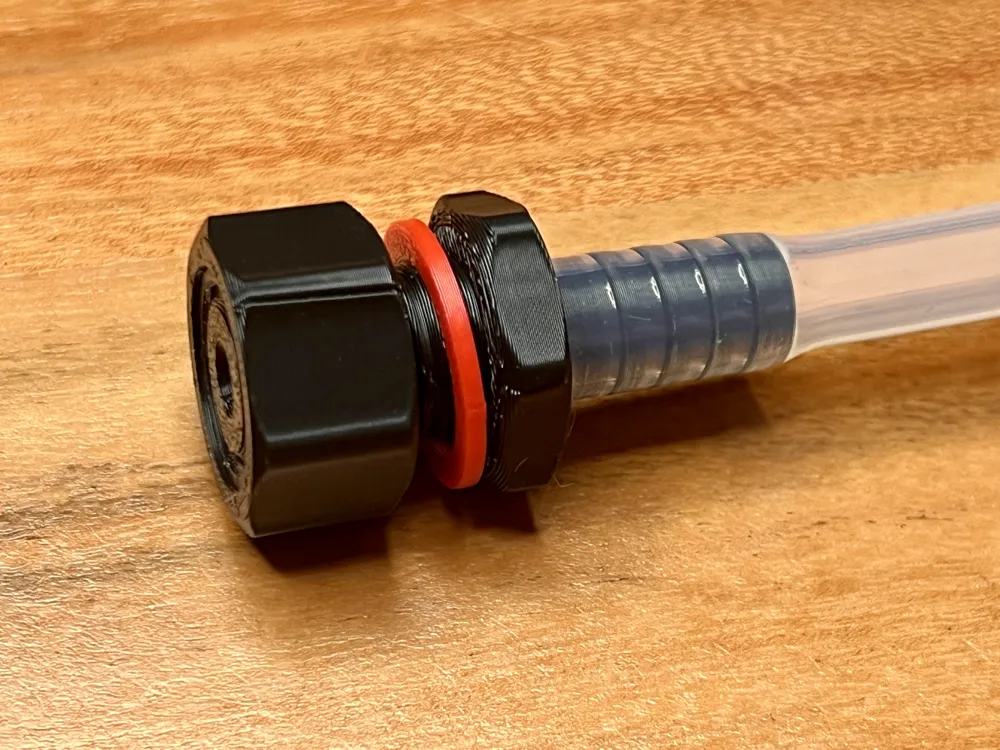

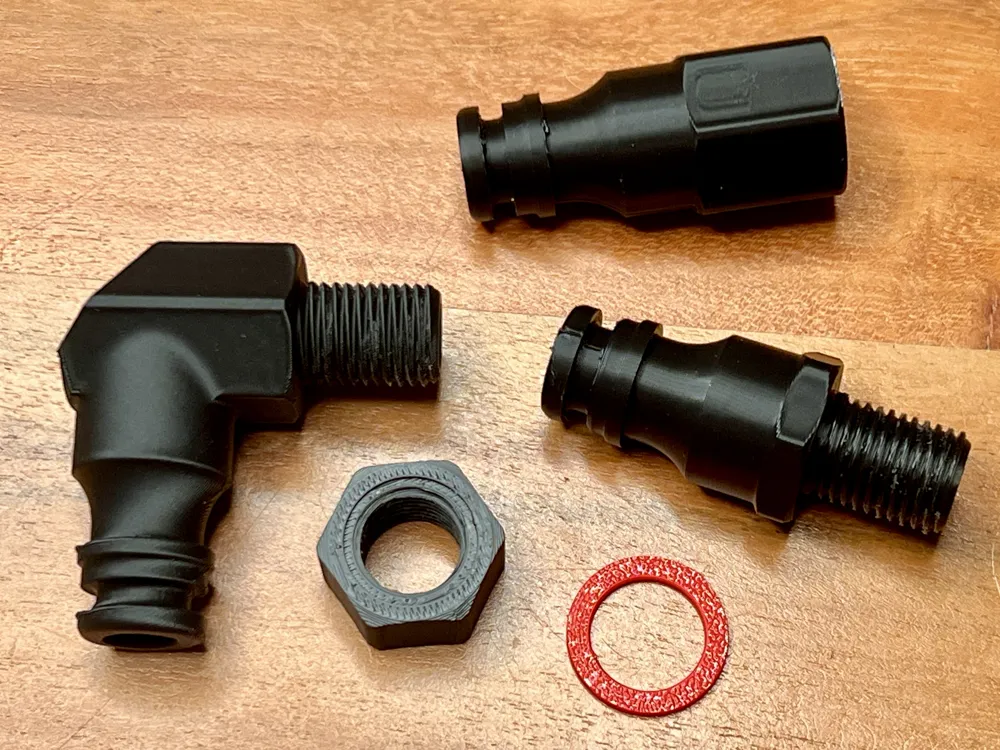

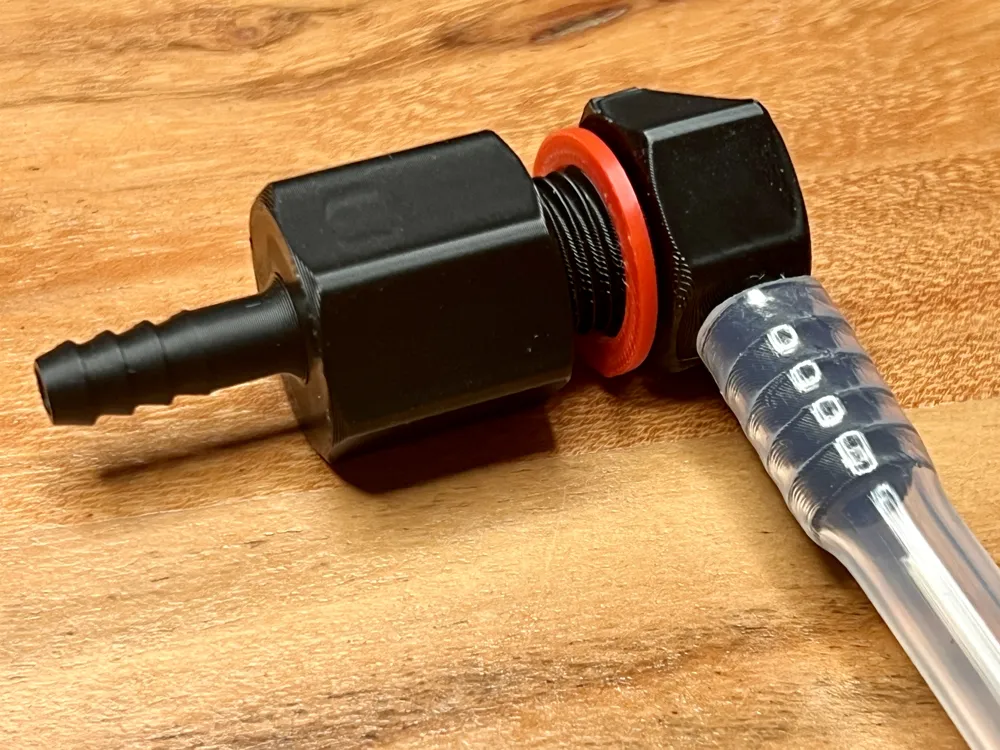

• Two-sided Connection: Thanks to the special nut with integrated hose connection you can connect hoses on both sides of the container wall

Applications:

1. Connection: Connects multiple tanks or nutrient solutions
2. Drain/Inlet: Precise water or air connection for pumps or overflows
3. Hydroponics Special: Ideal for DIY systems (DWC, NFT etc) to neatly guide lines through container walls

Printing & Assembly Instructions:

• Thread: Robust M14 thread with suitable, printable nut
• Seal: Often works without a seal with clean prints – for 100% reliability, an O-ring or some silicone can be used

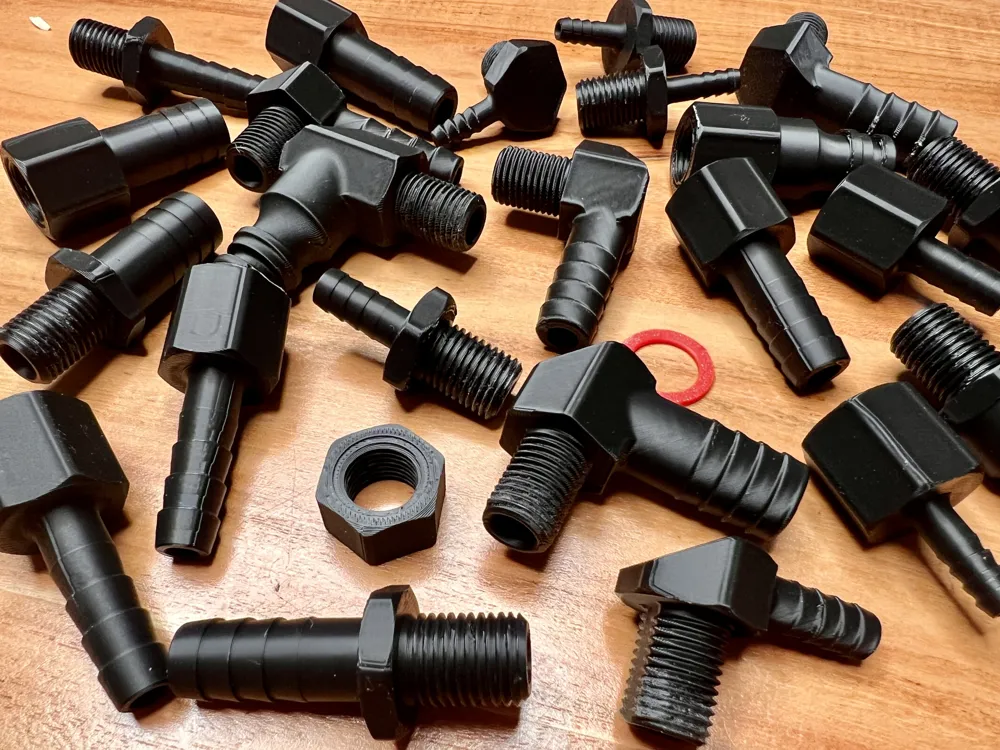

• Modular: Print exactly the combination (e.g. outer Gardena angled / inner D10 straight) that you need for your project

Assembly Note for Gardena Connection:

For a 100% seal, a standard Gardena sealing ring (rubber ring) is required

Gardena Standard        Dimensions: 16 x 11 mm (outer diameter x inner diameter) / Cord thickness: 2.50 mm
