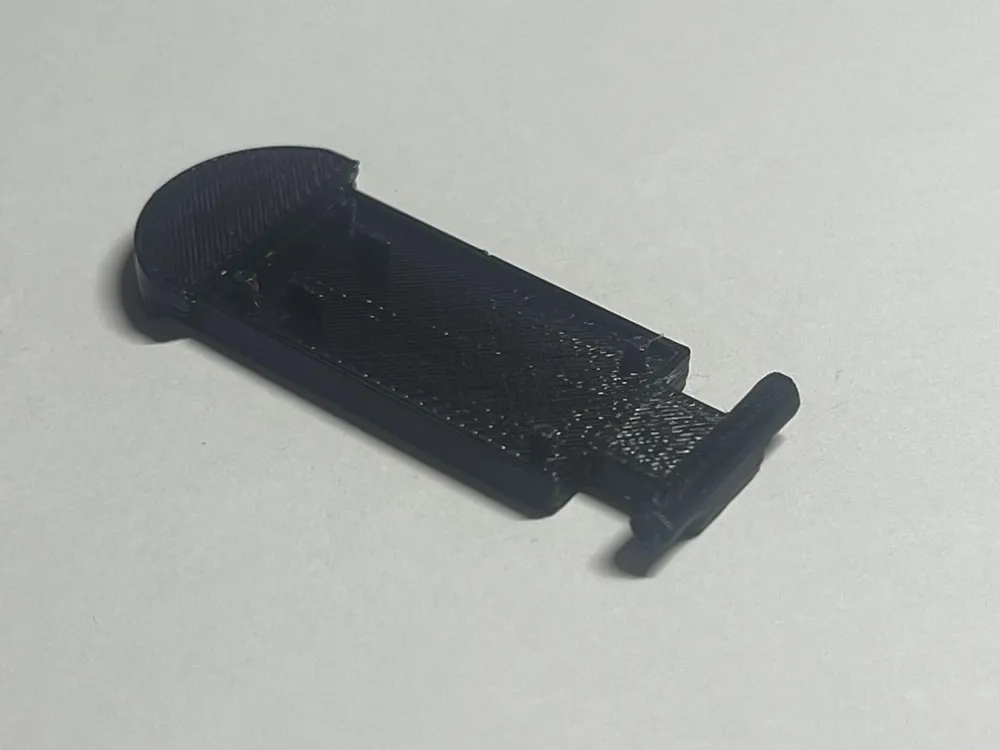

A few days ago, I knocked my DumboRX X6PM off the table and the battery door broke. I couldn't find any replacement part to order, so I made one.

Not sure about the durability when dropped, but it takes just a few grams of filament, so it might be a good idea to print and carry a spare just in case.

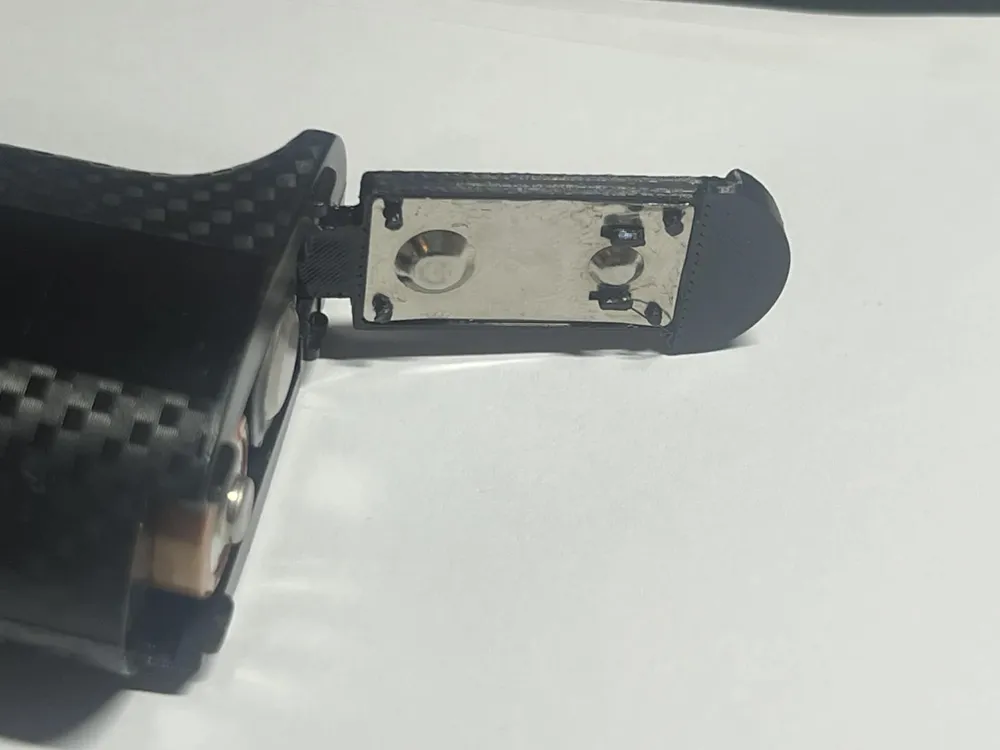

No need to disassemble the whole transmitter, just undo two screws at the end of the handle, pray a bit while opening the bottom, remove the old door, transfer the metal contacts to the printed one, and replace the door. It’s a bit tight at first, but it will wear in.

The metal part should fit nicely, but it’s pretty soft, so be careful - it’s prone to bending. Mine is a bit wonky now :D"
