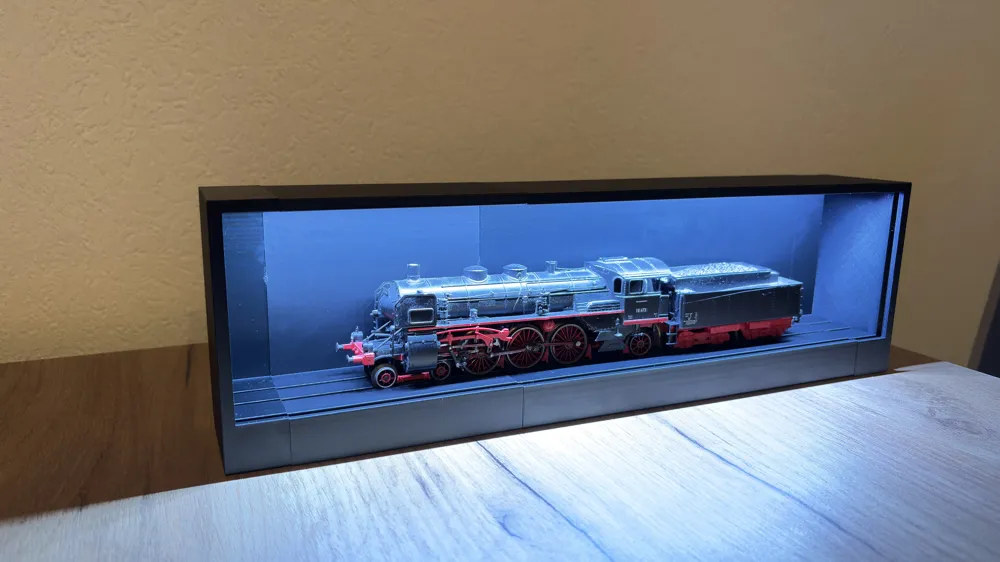

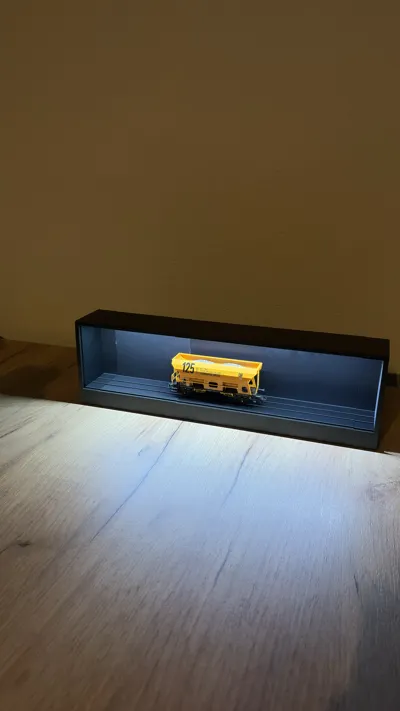

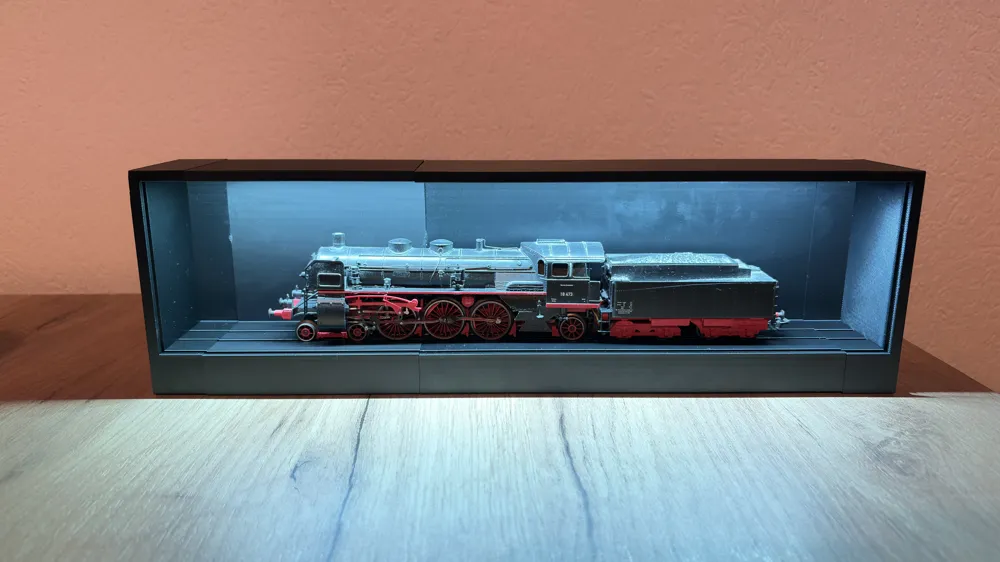

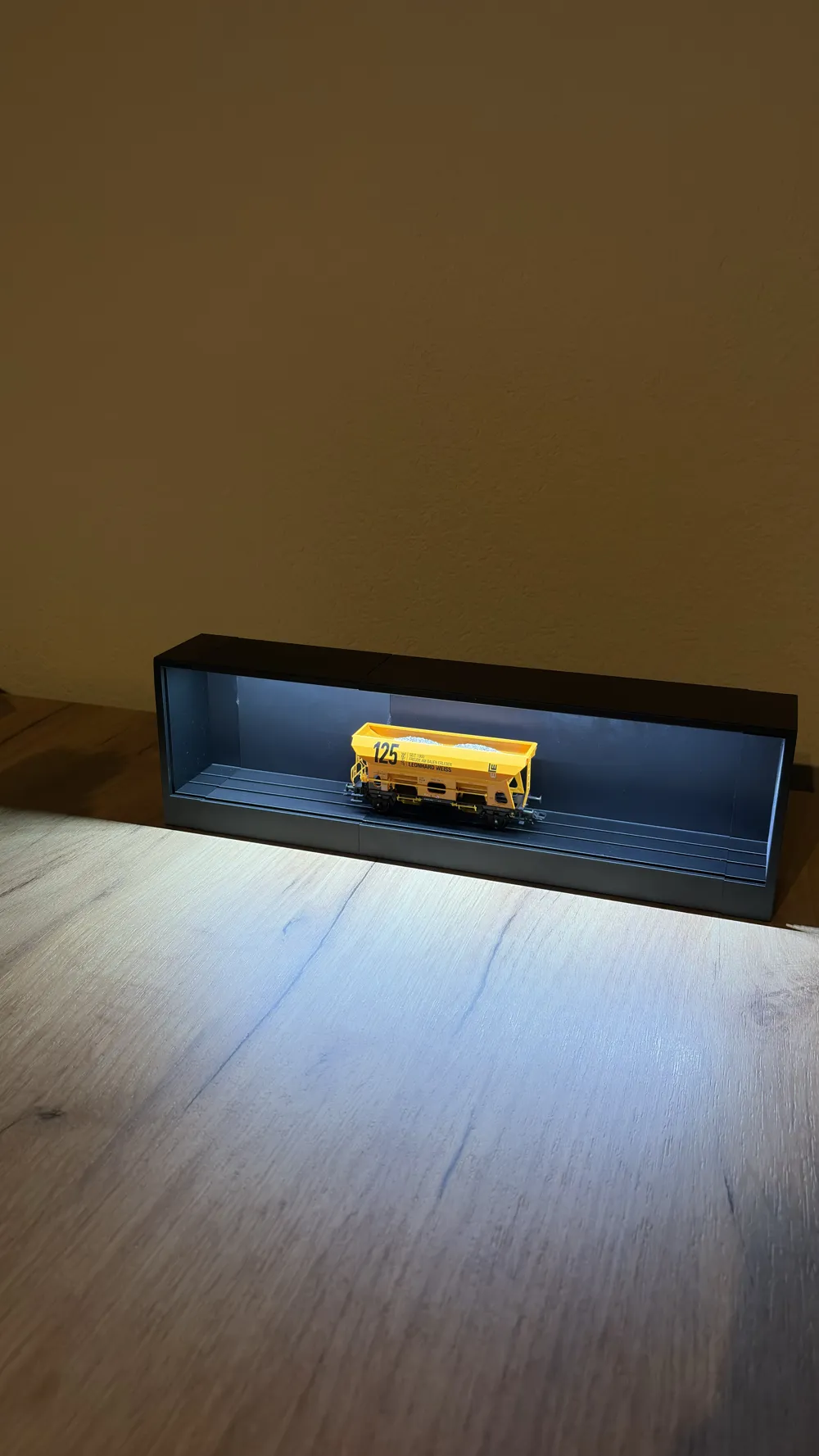

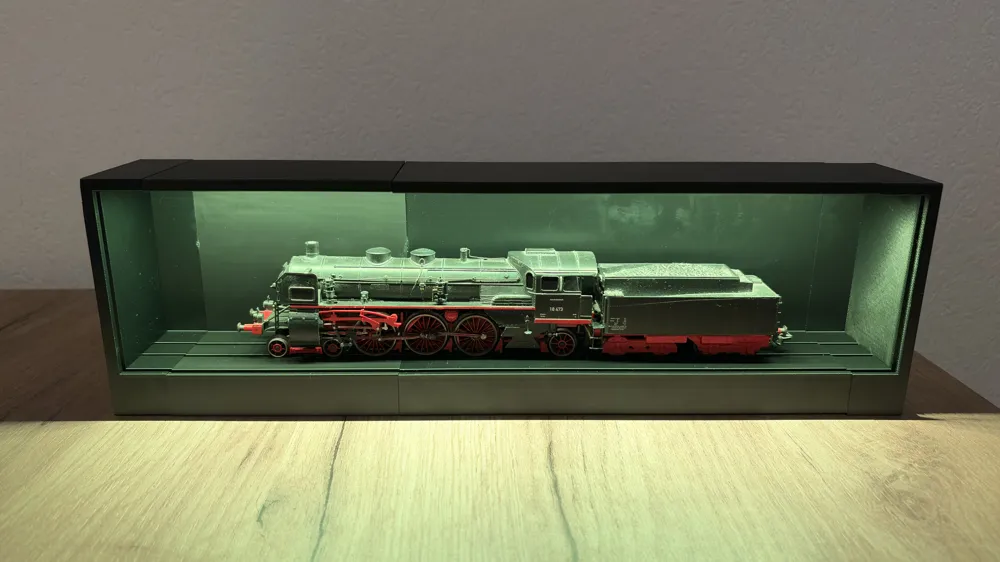

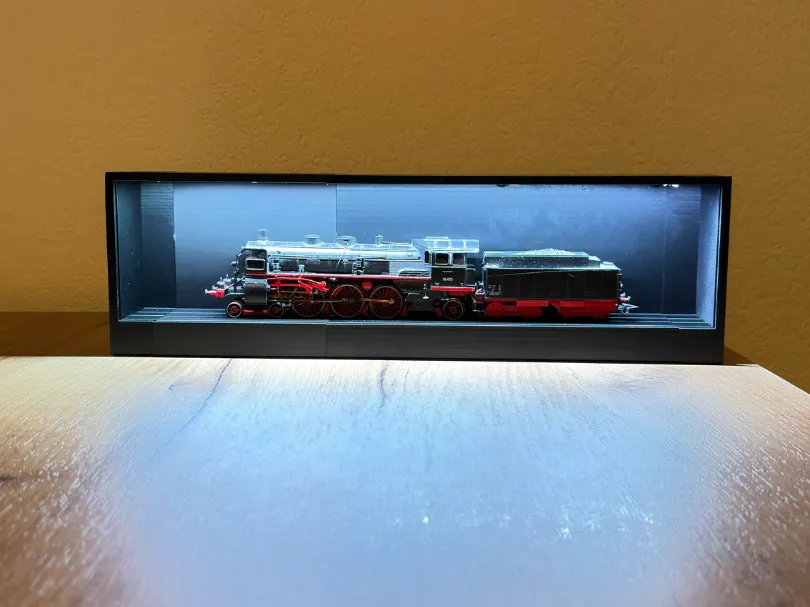

This modular H0 scale display case was specially designed for the stylish presentation of model railway vehicles. Thanks to its thoughtful design, it can be flexibly expanded and offers integrated, WLAN-controllable LED lighting based on an ESP32 controller. The code for the Arduino is included. The display case can also be wall-mounted using brackets.
🔧 Features
Modular Design
The display case consists of end pieces and freely combinable middle pieces (50 / 100 / 150 / 200 mm).

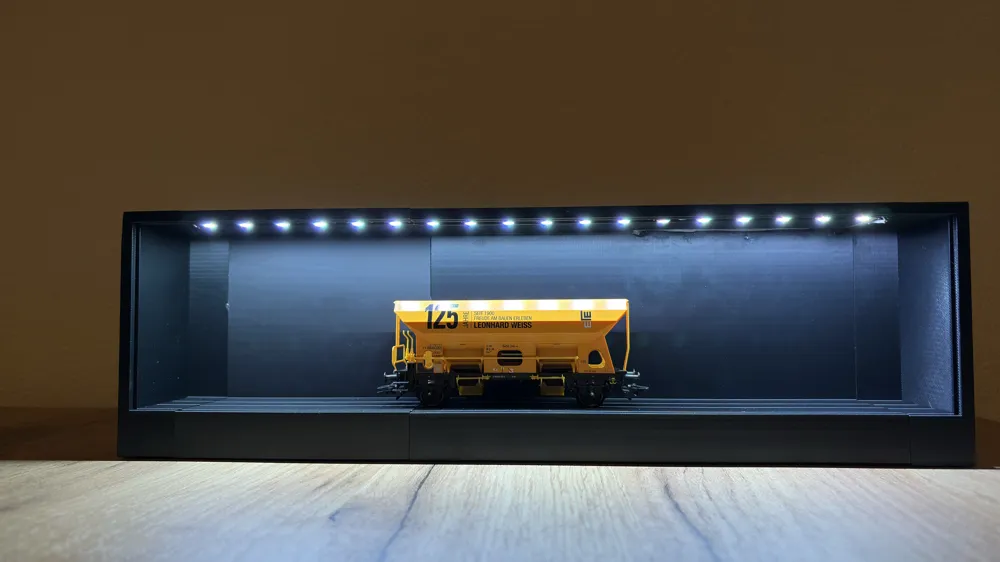

Integrated LED Lighting

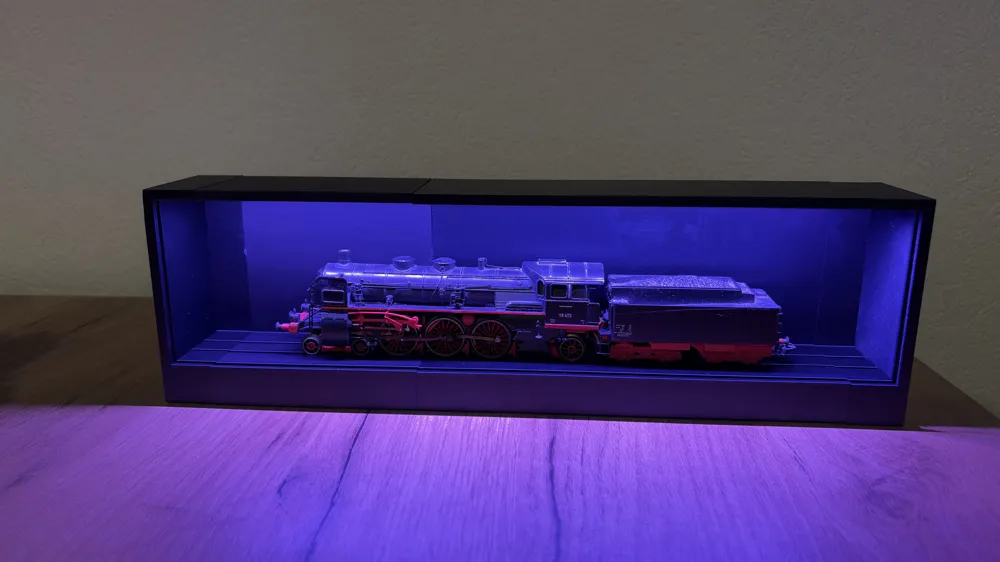

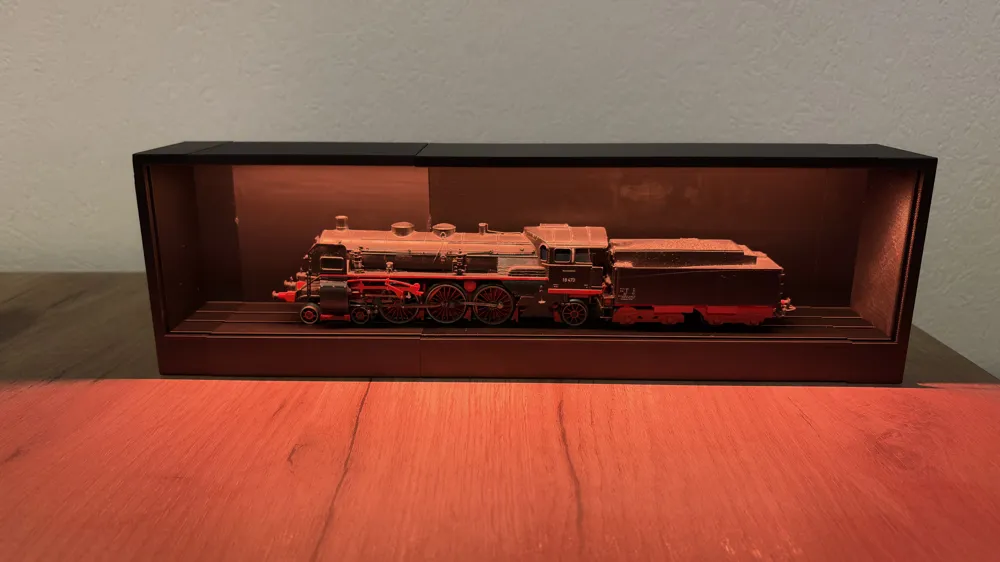

WS2812B LED strips provide even and modern illumination for your models.
WLAN Control

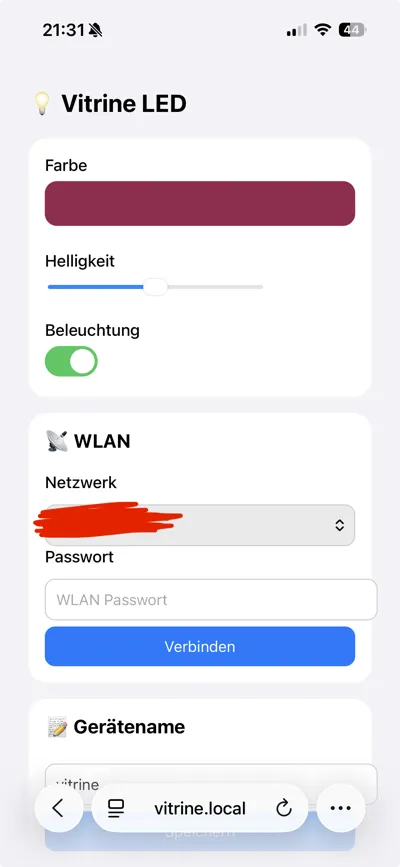

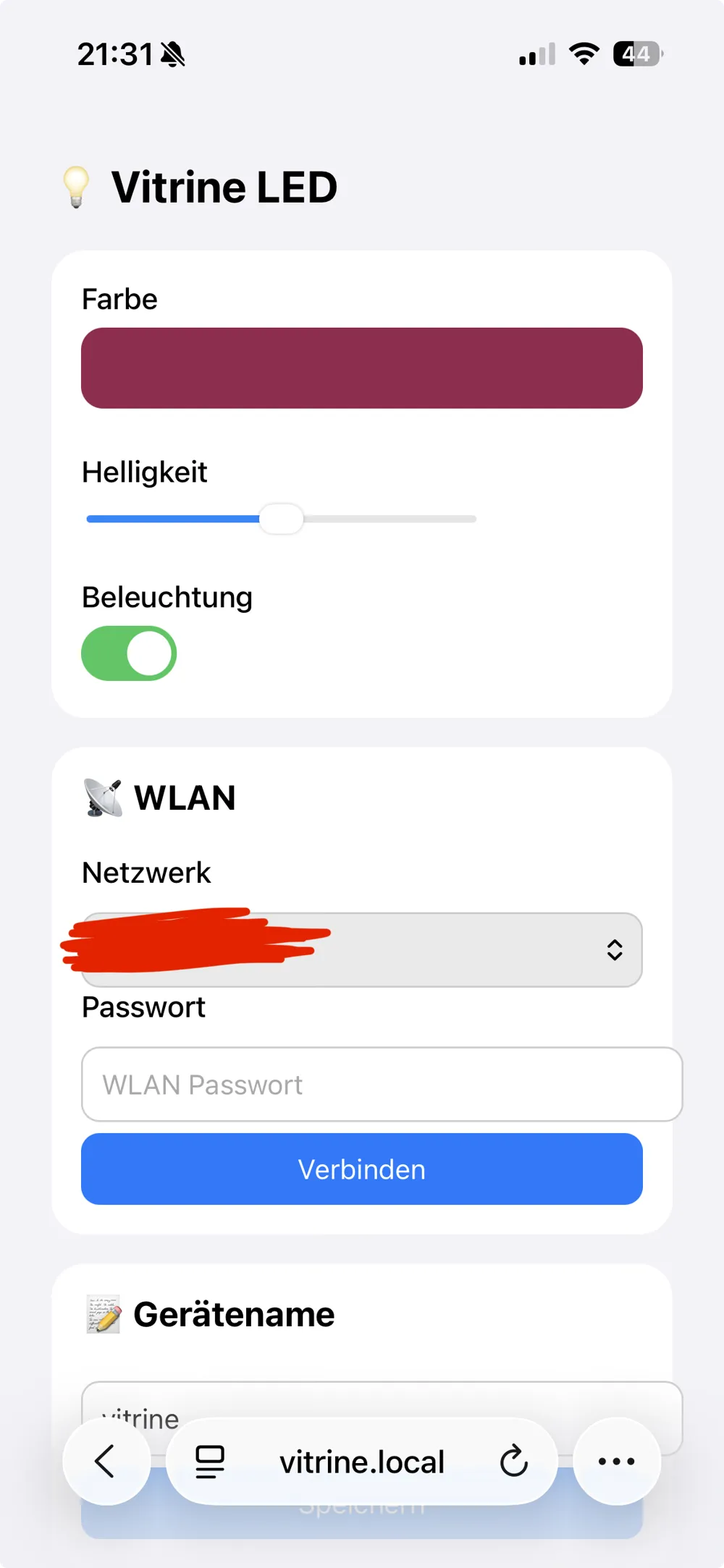

Brightness, color, and on/off can be conveniently controlled via a web interface in the browser – completely without an app.
ESP32 Controller Integrated
The special middle piece accommodates an ESP32-C3 and forms the heart of the electronics, controlling the light. The complete programming code (Arduino) is included.
Plexiglas Front
The transparent cover protects the models and provides a high-quality appearance.
Vehicles
The vehicles are guided by a track groove. The internal dimensions are designed so that the models cannot jump off the track even during transport.
📐 Dimensions
- Base length (smallest display case): 204 mm internal dimension
- Can be extended as desired.
🖨️ 3D Printing
- All components are optimized for 3D printing
- Printing possible without special hardware
- Bonding of the modules is recommended (e.g., superglue)
🔌 Additional Parts Required (not included)
- ESP32-C3 (e.g., Pro Mini)
- WS2812B LED strip (60 LEDs/m)
- Stranded wires
- Plexiglas XT

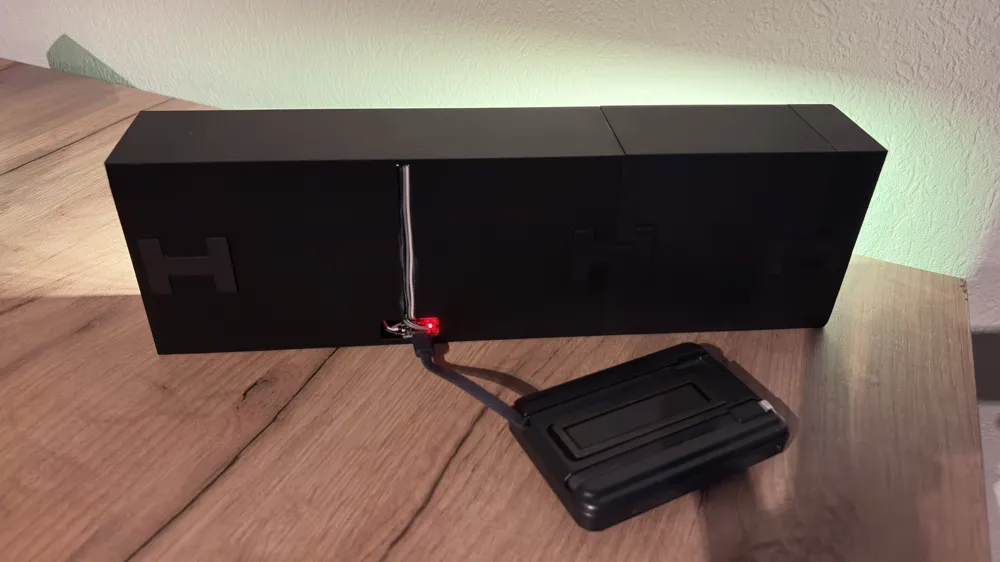

- 5 V power supply (via USB-C, can also be powered by a power bank)
💡 Software
- Arduino sketch for ESP32 included
- Own WLAN access point for initial setup (ESP32)
- Web interface accessible via vitrine.local (Can also be easily adjusted via the web interface)
🎯 Area of Application
Ideal for:
- H0 scale locomotives and wagons
- Model railway collectors
- Display cases
- Makers and hobbyists interested in electronics
