Built-in Caster D80 for e.g. Case Construction
Print Profile(1)
Description

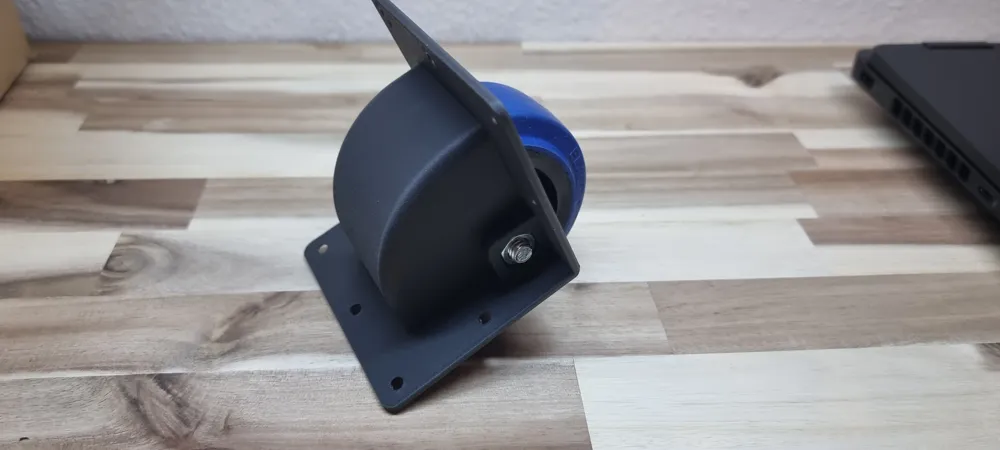

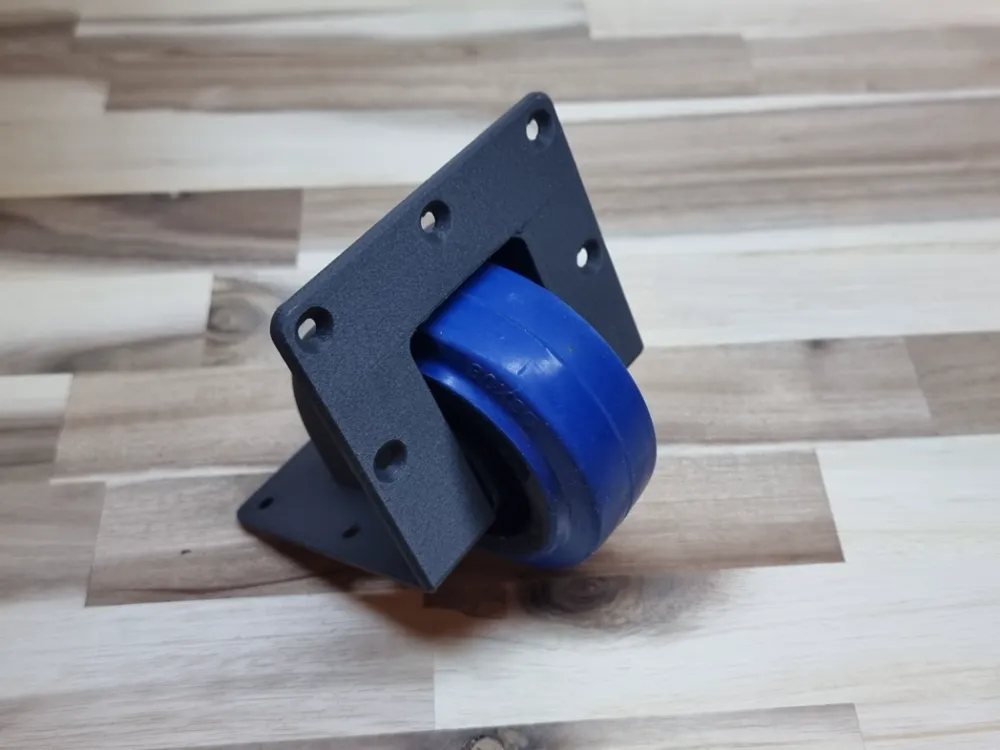

Here's a housing for a built-in caster, like those used in flight cases, for example.
Additionally required (per wheel):

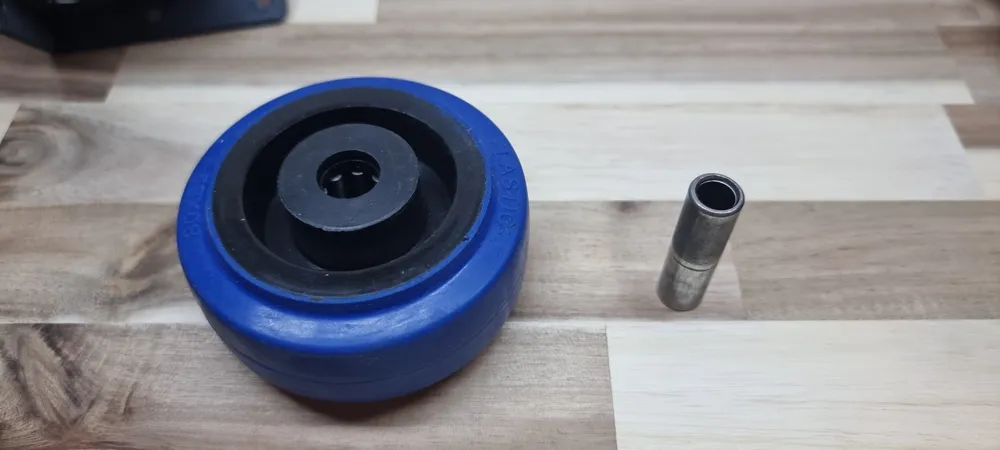

1x Caster with D80 socket, e.g.: https://www.ebay.de/itm/185986170316?var=694005545573
1x Screw M8x60
1x M8 Nut

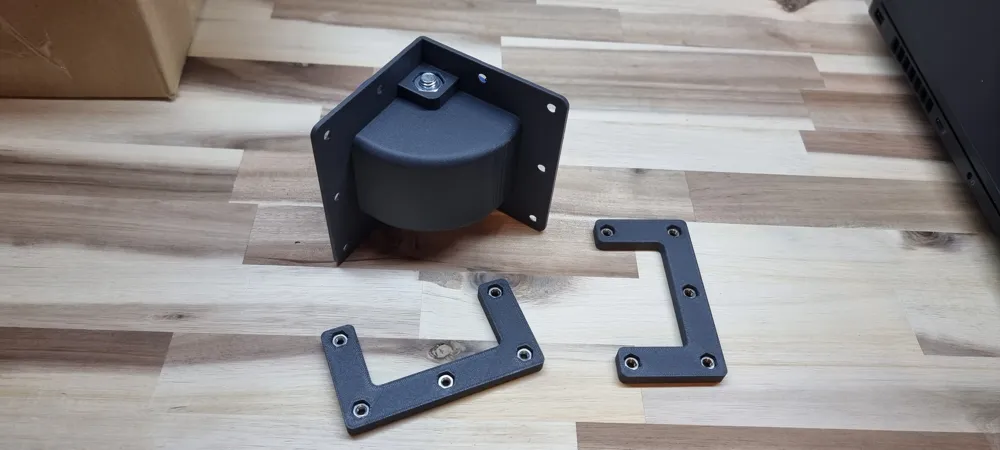

The counter-holders (2x per wheel) are fitted with M4 nuts. 5 pcs per holder.
For installation, M4x15 countersunk screws can be used (depending on board thickness).
