Aero Architect

cover

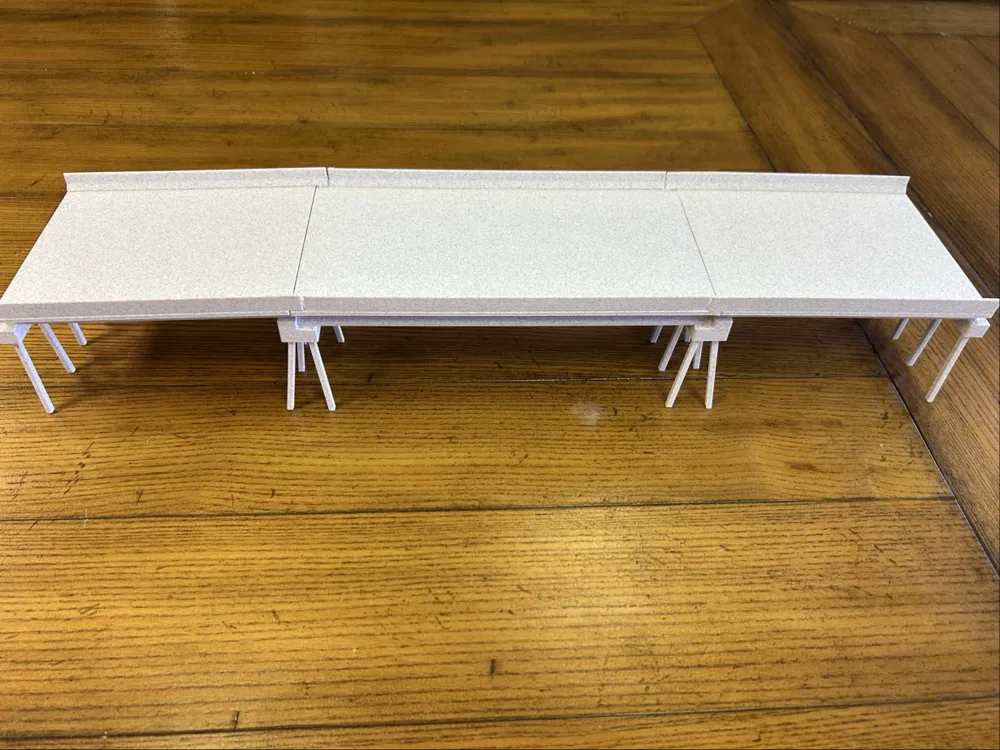

Fully Assembled Prestressed 1.jpg

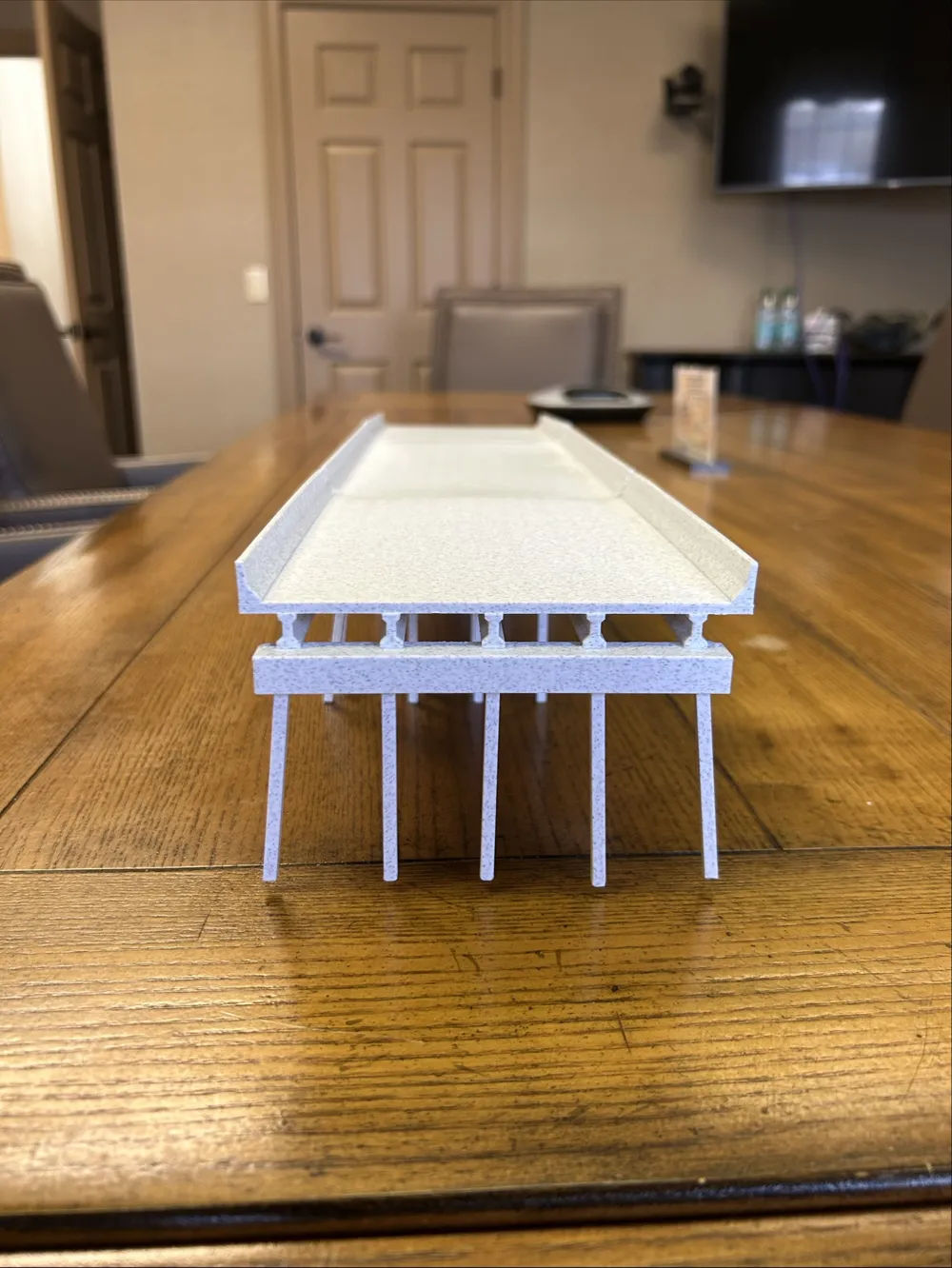

Fully Assembled Prestressed 2.jpg

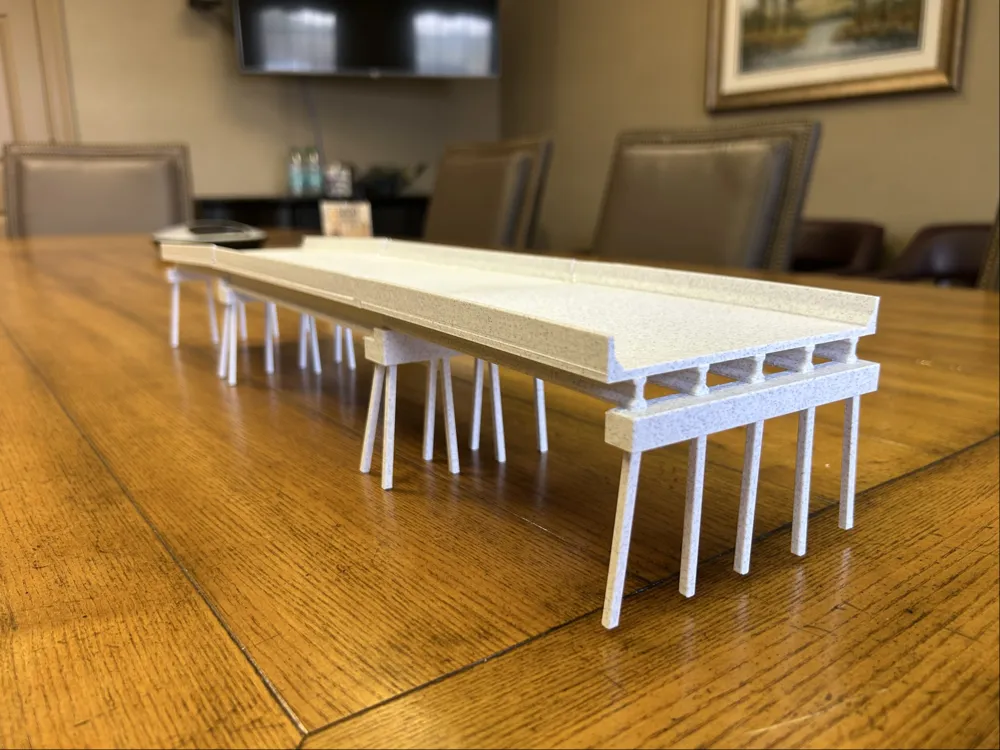

Fully Assembled Prestressed 3.jpg





<p>Print file settings:</p><ul><li>8% Sparce Infill Density</li><li>Gyroid Sparce Infill Pattern</li><li>PETG HF Support Interface Layer</li><li>Organic Hybrid Supports</li></ul>

0.2mm layer, 2 walls, 8% infill

<p>If you export the .stl files, here are the numbers of each part that need to be printed:</p><figure class="table"><table><thead><tr><th>Part Name</th><th>Quantity</th></tr><tr><th>Assembled Bridge Left</th><th>1</th></tr><tr><th>Assembled Bridge Middle</th><th>1</th></tr><tr><th>Assembled Bridge Right</th><th>1</th></tr><tr><th>Piles Double Angle</th><th>8</th></tr><tr><th>Piles Single Angle</th><th>16</th></tr></thead><tbody><tr><td>Piles Straight</td><td>6</td></tr></tbody></table></figure><p>Once the files are printed, the left, middle, and right Assembled Bridge parts will need to be glued together. The piles can then be inserted into the pile slots on the bottom of the bents. </p>

Prestressed Model Bridge

ASIA

Print Profile(1)

Description

Comment & Rating (0)

License

Related Models

Part Name	Quantity
Assembled Bridge Left	1
Assembled Bridge Middle	1
Assembled Bridge Right	1
Piles Double Angle	8
Piles Single Angle	16
Piles Straight	6
