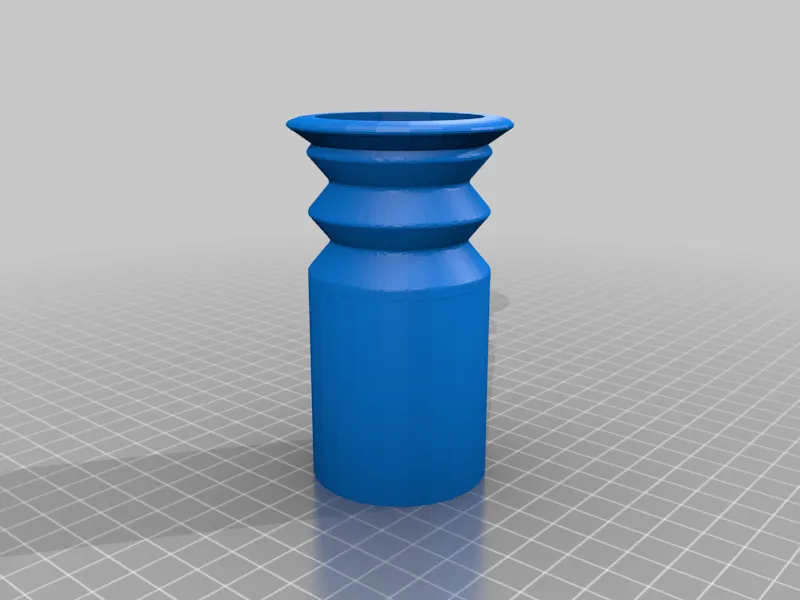

Update 1/1/2026 I received a request to try to smooth out some of the angular faces visible eyepiece. V2 STL is the result of my making the design a bit cleaner. I have not printed it, however it should be dimensionally the same as the original. Comments welcome.
Boost Me (for free)
I'm just a geezer doing 3D printing and design to keep my brain active until I start CTD or become DRT. A little positive attention keeps me going. For you non old school emergency personnel, or those who only know modern approved abbreviations:
CTD is Circling the Drain and DRT is Dead Right There
Cheers!

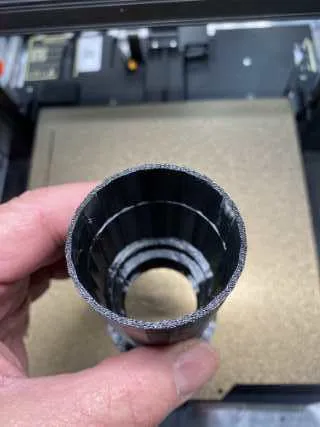

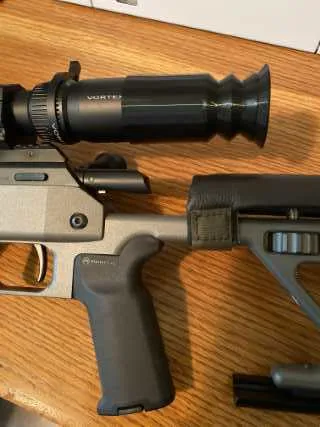

This is an eyepiece I made for a Vortex Venom scope. The fitment diameter is about 44mm, but it should be fairly easy to scale down. It works as intended to reduce glare from between the shooters eye and the scope. This was my first TPU project.
Print Settings
Rafts:
No
Supports:
No
Resolution:
.2
Infill:
20%
Filament: Overture TPU Black
Notes:

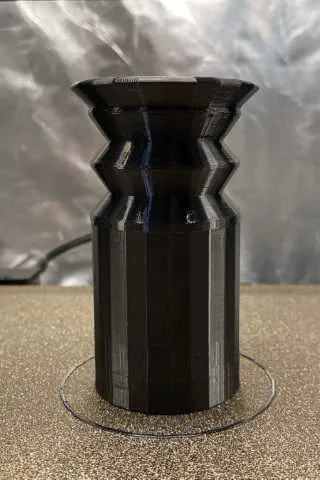

Printed upright, as shown, on a textured bed with hairspray as release agent. No supports used, Z hop enabled.
