Pipeline Pig Launcher/Receiver
Print Profile(1)
Bill of Materials
Description
This will be an ongoing project but I wanted to share it with everyone as it sits currently.
I will be updating this with Milestones as I progress on this project.
If you want to see the updates as I go on, please follow me on here, I will add print profiles as “Milestone #” & Date, and publish it to the community.

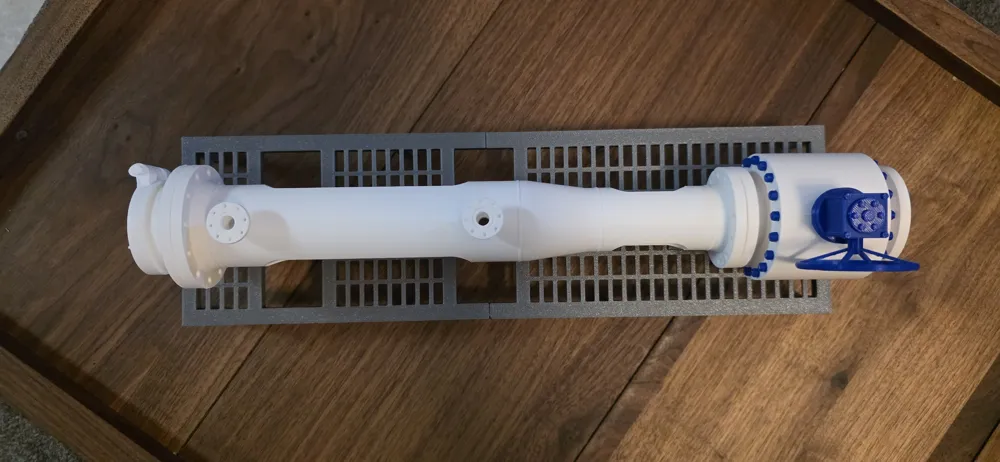

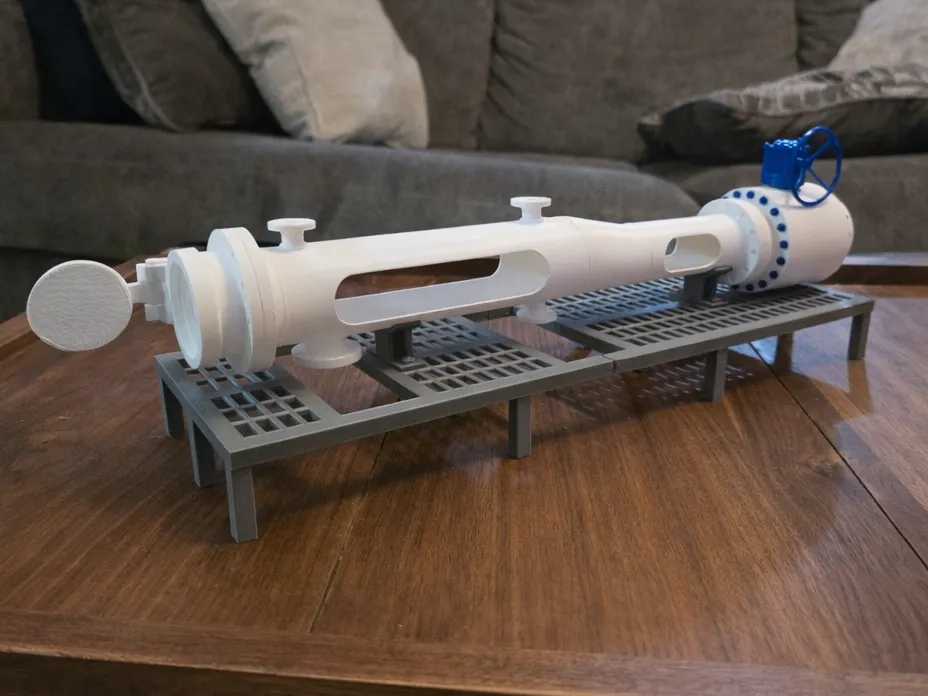

**02/18/2026 Milestone 1.0
This milestone features:

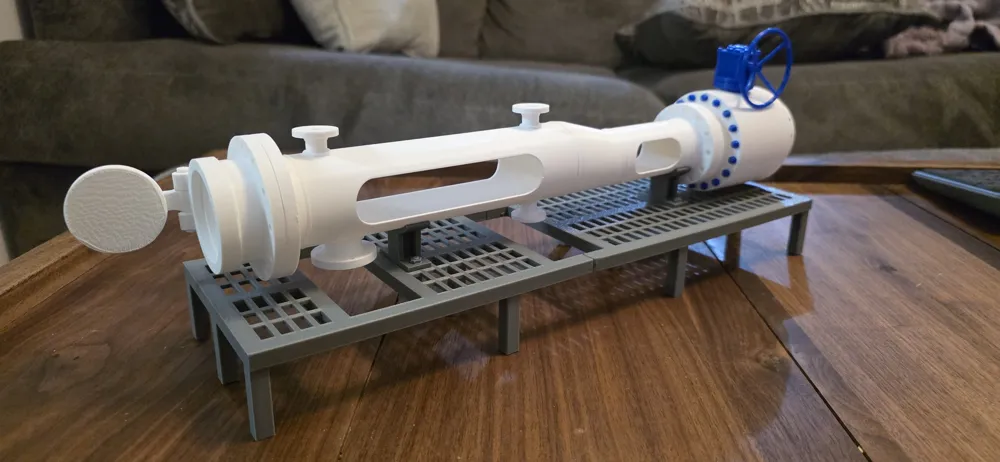

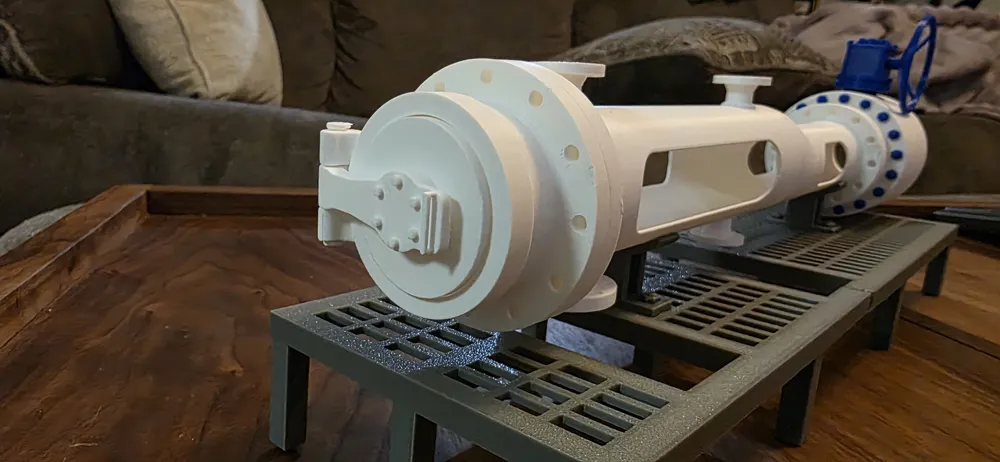

-Pig Trap door (functional & print in place)

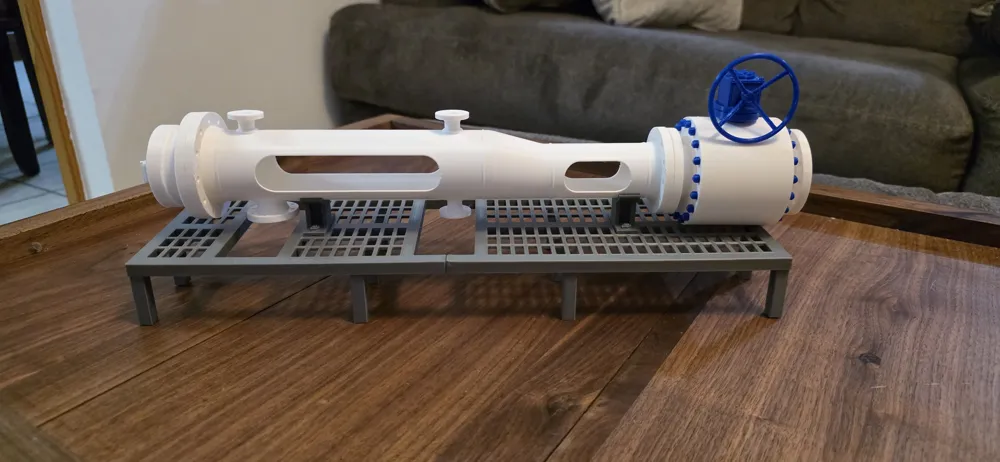

-Launcher assembly

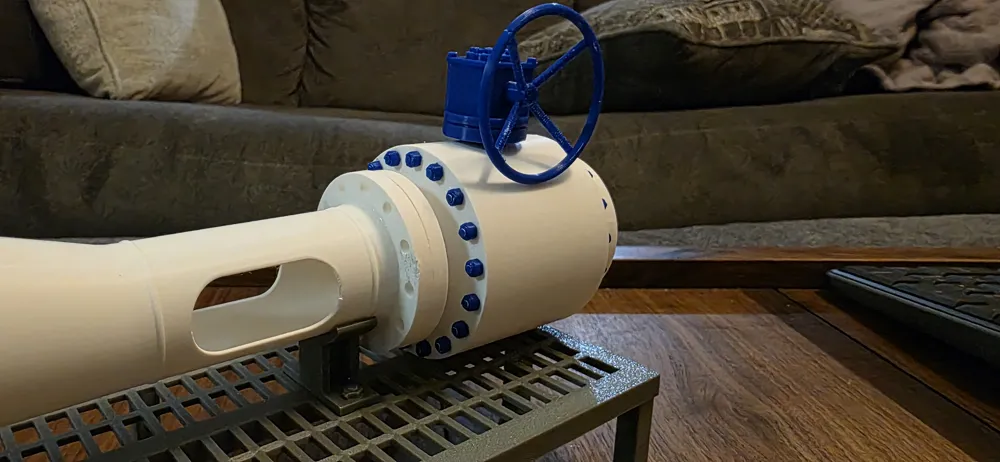

-Mainline Valve (no AMS) (not functional)
-Above ground piping
-Below ground piping
-Grating with pipe supports
Flanges have recess for optional 5x2mm magnets (see BOM below)
Future milestones will include what is depicted in this photo.
I also plan to add a smart pig to this diorama that will be attached to a string that will be able to be operated by moving a lever that will be located on the front side of the model.
