- SSD1306 OLED Display x 1: These are fairly cheap and can be sourced from anywhere.
- Single Board Computer of Choice x 1: This could be a Raspberry Pi, Jetson Nano, or whatever else you feel like that has I2C support.
Description

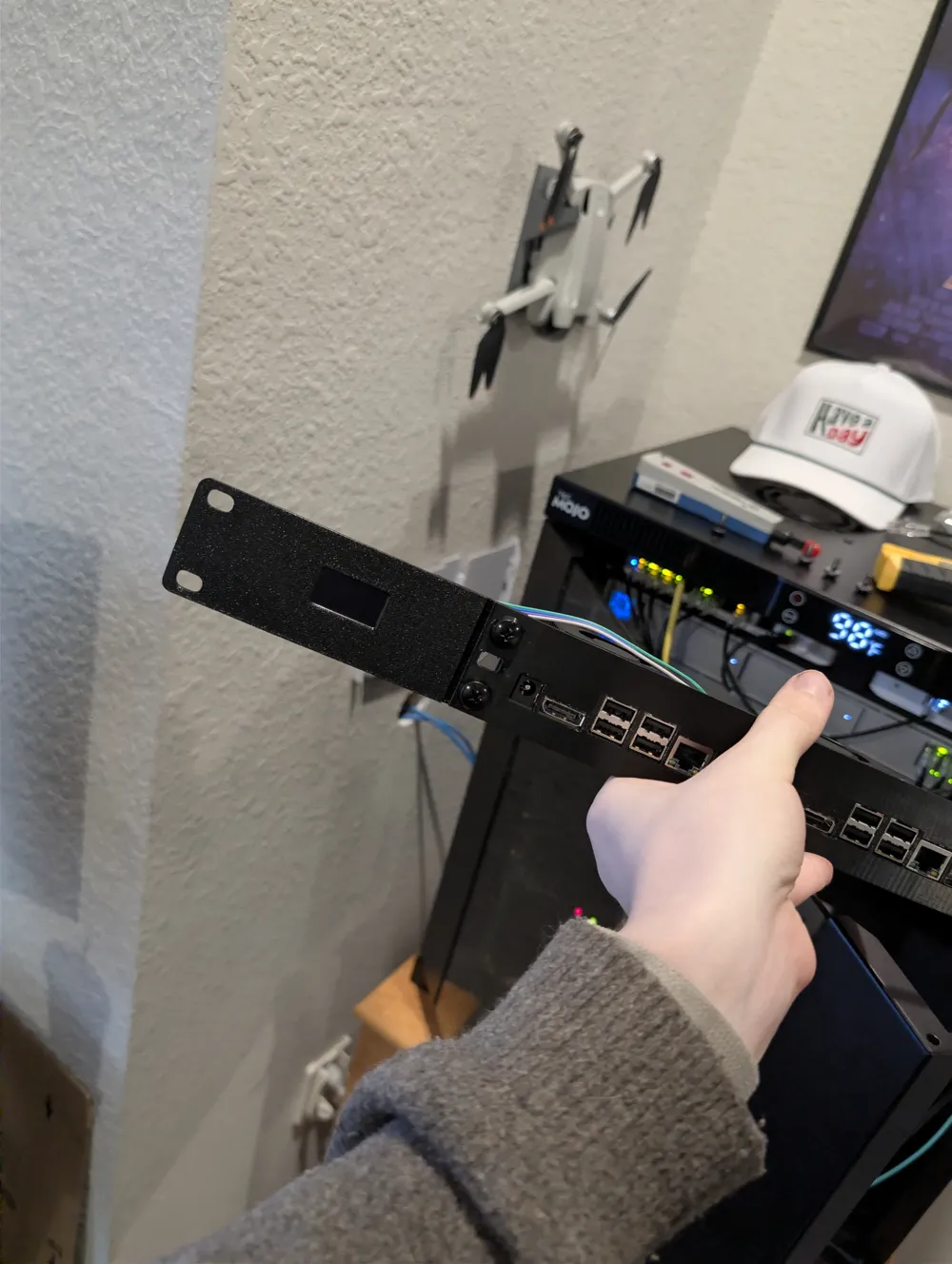

Upgrade your networking setup with this 10-inch to 19-inch Rack Adapter Module. Originally designed to bridge the gap for 10" equipment in a standard 19" 1U rack slot, this remix adds a dedicated mounting point for an SSD1306 OLED display.

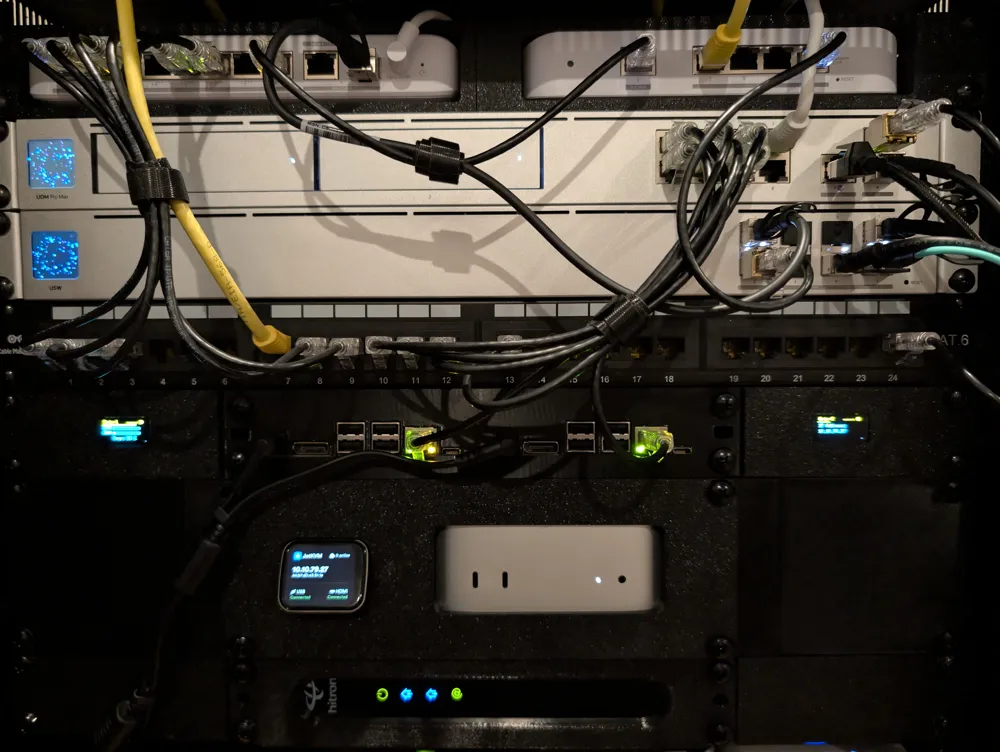

It is the perfect physical companion for my RackDisp-I2C software, allowing you to turn a simple blanking plate into a functional, animated status hub for your homelab or server cluster with a compatible SBC computer.
Design Features:
- Dual Compatibility: Adapts 10-inch rack gear to 19-inch standard rails.

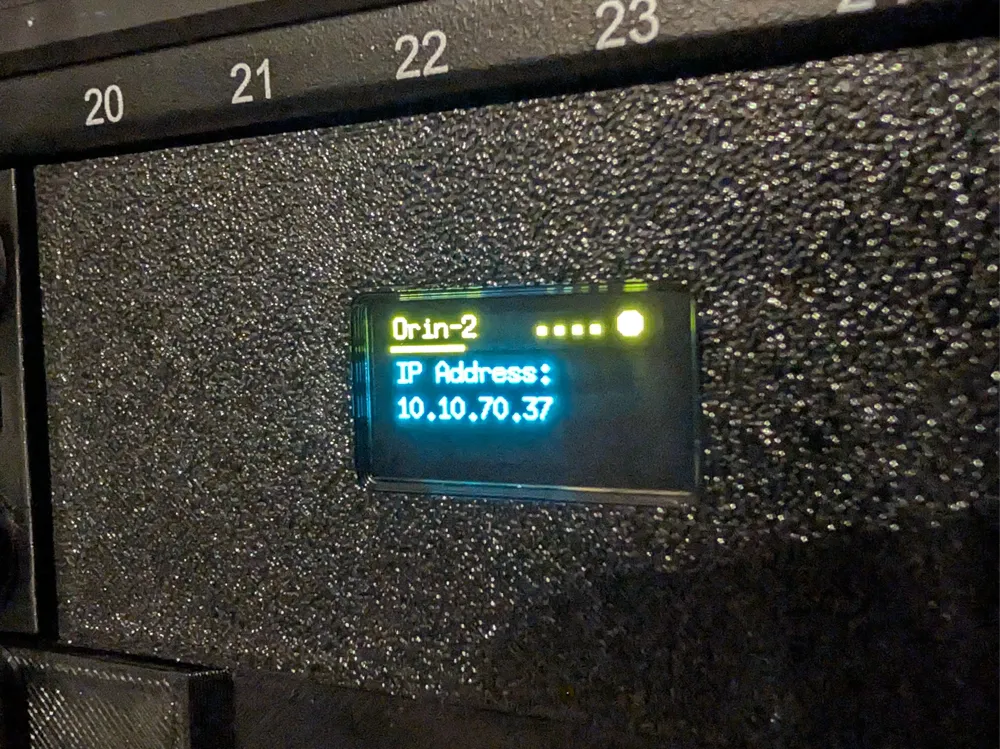

- Integrated OLED Cutout: Precision-fit for 0.96" SSD1306 I2C displays.

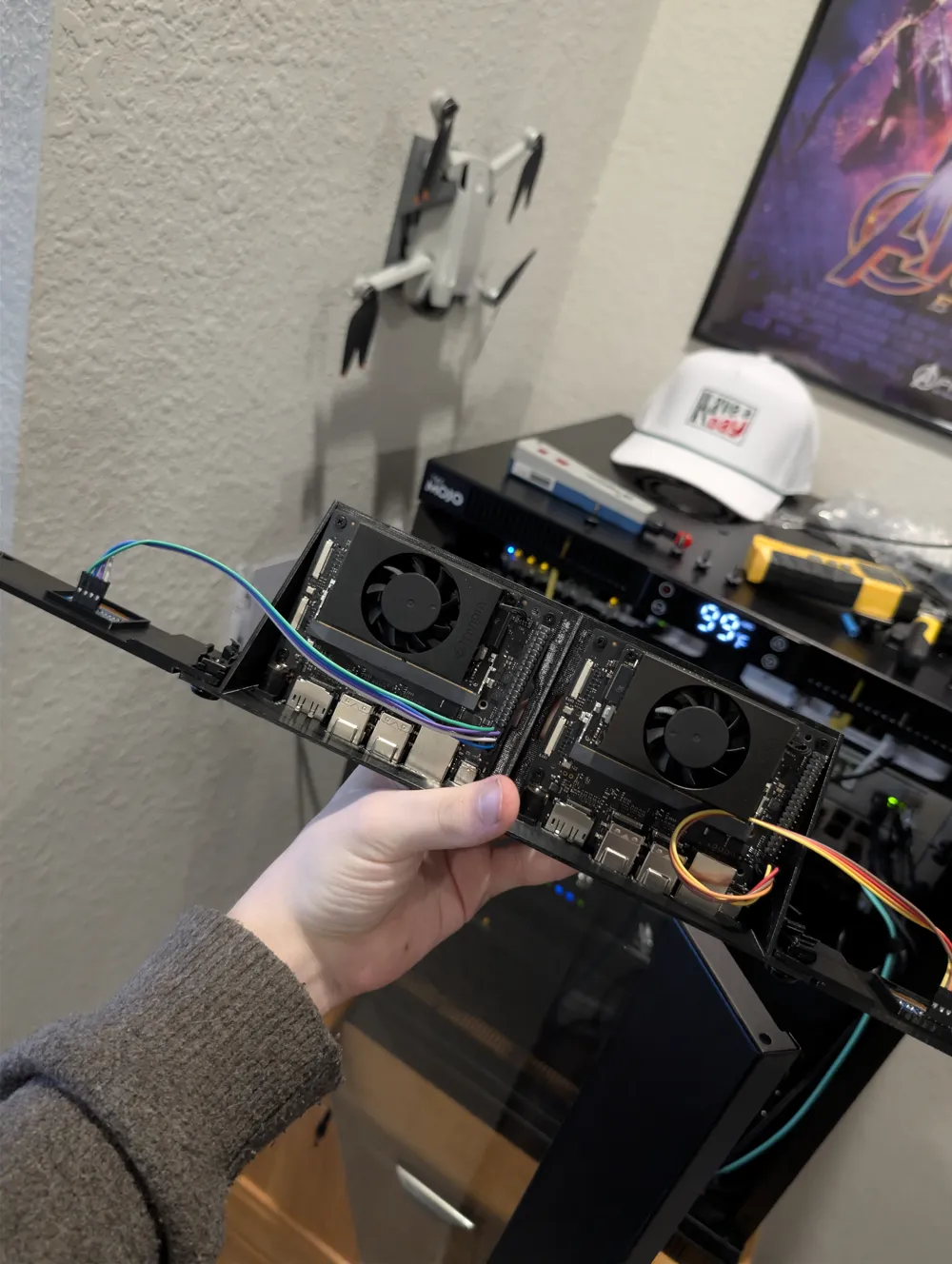

- Cable Management: Rear-access routing to keep your I2C jumpers hidden and organized.
- Sturdy 1U Profile: Reinforced mounting holes to prevent sag when supporting secondary hardware.
Original Adapter Plate Design created by n3rding
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
