Springfield Echelon Compact Magwell Extended Mags
Print Profile(1)
Description
Overview

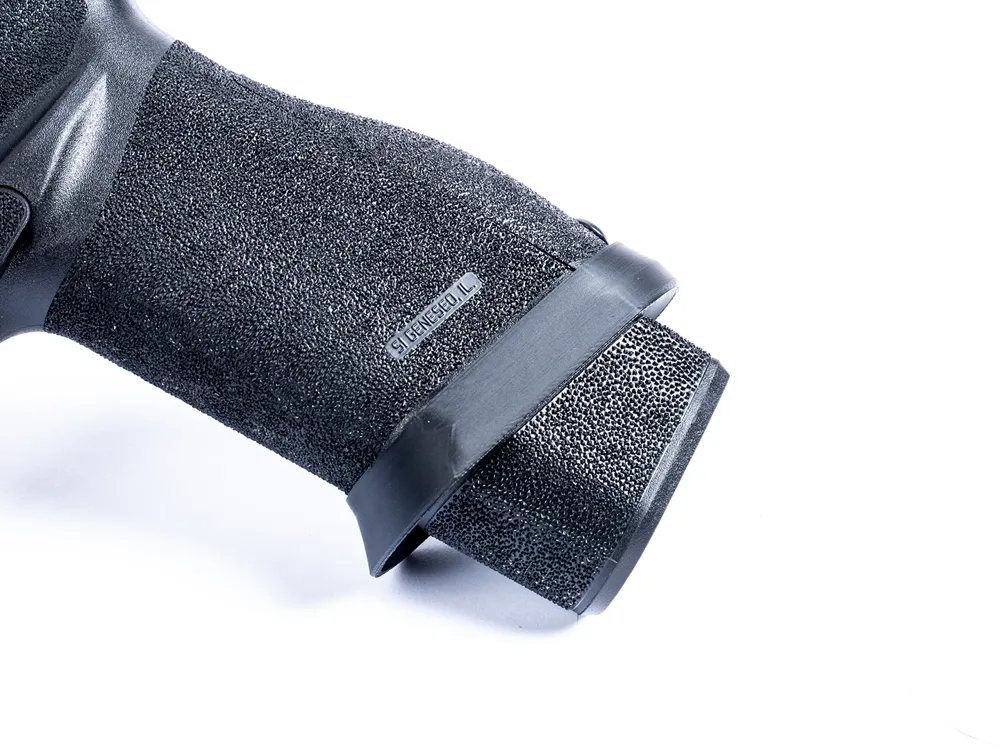

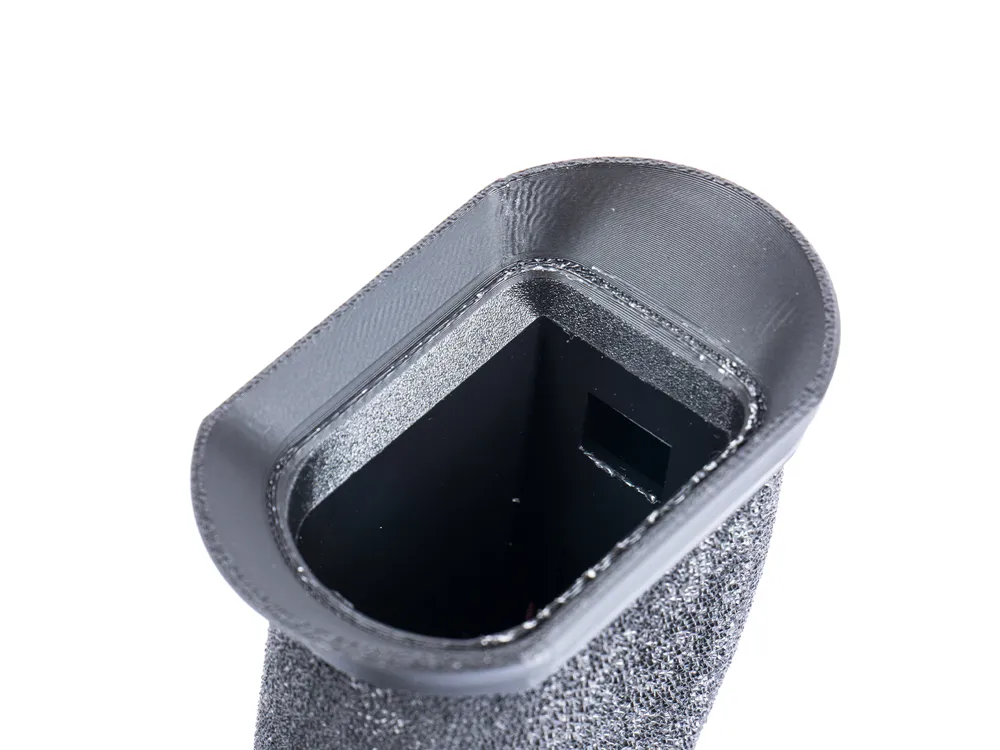

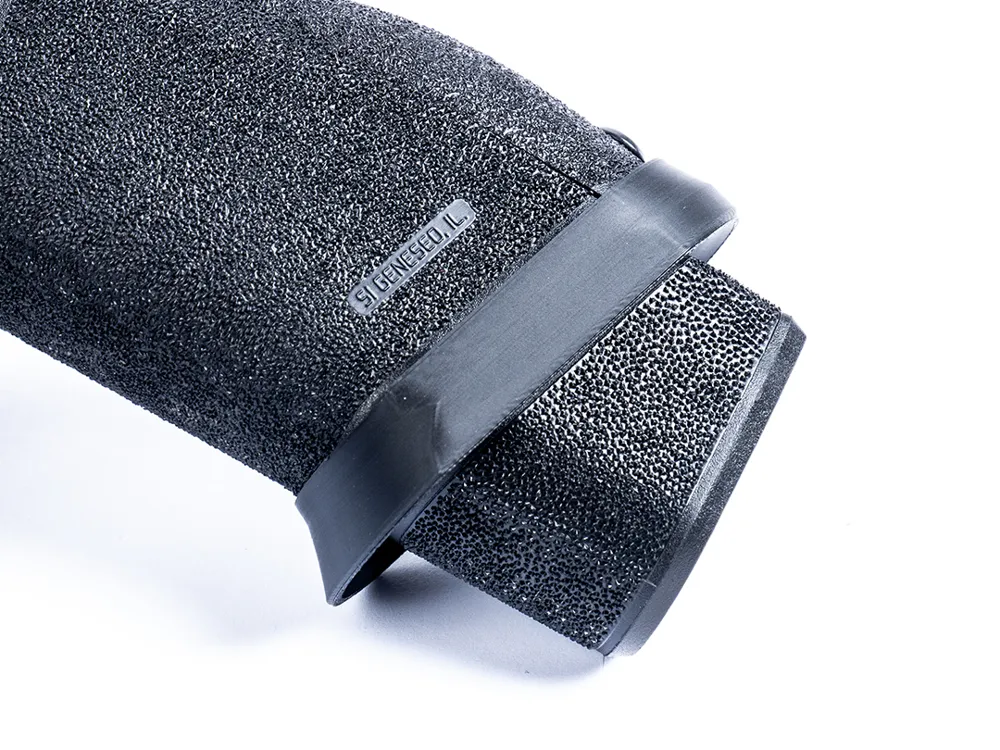

This is a low-profile carry magwell designed for the Springfield Echelon Compact Grip. It provides a flared funnel to improve reload speed and consistency while maintaining a slim profile for carry.
IMPORTANT: Magazine Compatibility This magwell is designed ONLY for use with magazines featuring Extended Base Pads. Standard flush-fit or flat-base magazines will not seat deep enough to lock into place with this magwell installed.
Fitment & Testing
Tested and confirmed to work with Small, Medium, and Large back strap attachments.
- Note on Large Back Strap: The mounting hole on the large attachment sits slightly lower than the others. You may need to apply slight upward pressure on the magwell to align the screw properly during installation.
Required Hardware
- Screw: (1) 8-32 x 7/16" Button Head Screw
- Tool: 3/32" Hex Drive Bit
Installation Instructions
- Slide the magwell onto the bottom of the grip frame.

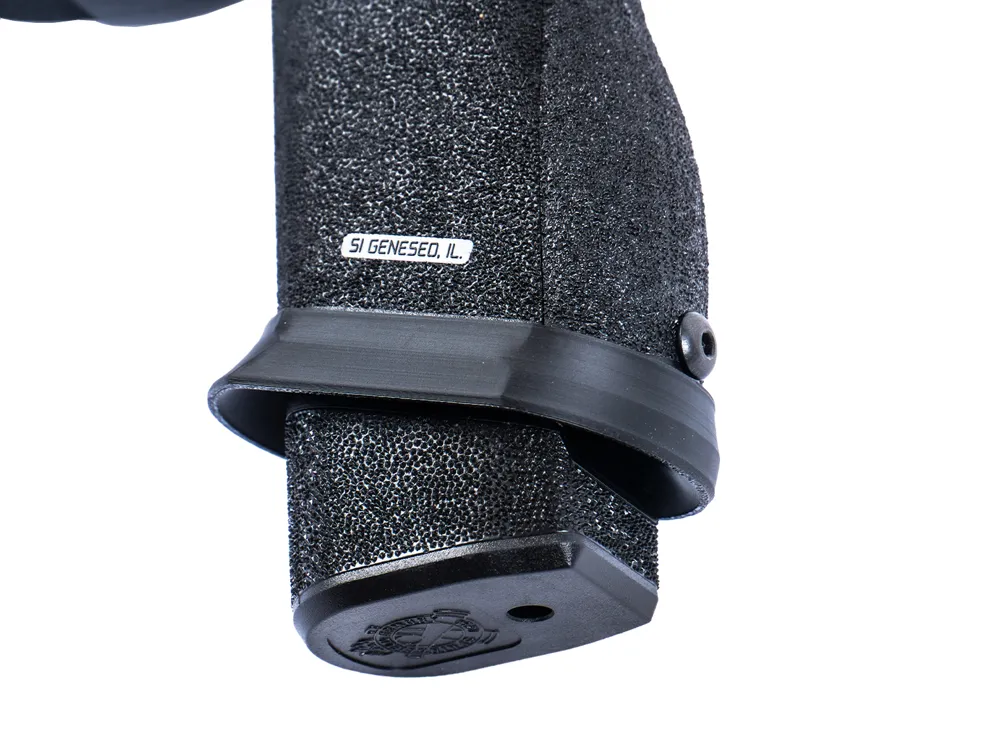

- Insert the 8-32 screw into the rear mounting hole.
- Use a 3/32 hex bit to snug the screw down. Do not overtighten, as you are threading into plastic.
